Thank you for purchasing this projector.

• The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual

• The reproduction, transmission or use of this document or contents is not permitted without express

written authority.

TRADEMARK ACKNOWLEDGEMENT :

• PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation.

• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.

• VESA and SVGA are trademarks of the Video Electronics Standard Association.

• Windows is a registered trademark of Microsoft Corporation.

• All other trademarks are the property of their respective owners.

NOTE

WARNING • Please read the "Product Safety Guide" and this "Operator's

Guide” thoroughly to ensure correct usage through understanding.

After reading, store this instruction manual in a safe place for future reference.

CP-S317/327W/最終02.9.95:37PMページ1

MP7650/MP7750 Multimedia Projector

Operator's Guide

USING THE MAGNIFY FEATURE ... 21

ACCESSORIES .............................. 39

ENGLISH

Page

PROJECTOR FEATURES............... 2

PREPARATIONS ............................. 2

PART NAMES.................................. 4

SETTING UP THE PROJECTOR .... 6

CONNECTING YOUR DEVICES..... 8

USING

THE REMOTE CONTROL ........... 13

TURNING ON THE POWER .......... 14

TURNING OFF THE POWER ........ 16

ADJUSTING THE VOLUME........... 17

TEMPORARILY

SOUND THE SOUND ...................17

ADJUSTING THE POSITION ........ 18

USING THE AUTOMATIC

ADJUSTMENT FEATURE ...........19

CORRECTING

KEYSTONE DISTORTIONS......... 20

Page

FREEZING THE SCREEN ............. 21

SIGNAL SEARCHING ................... 22

SELECTING

THE ASPECT RATIO ..................... 22

TEMPORARILY

BLANKING THE SCREEN .......... 22

USING THE MENU FUCTIONS ..... 23

MULTIFUNCTIONAL

SETTINGS .................................... 24

OPERATING THE PC SCREEN .... 29

THE LAMP ..................................... 30

THE AIR FILTER ............................ 32

OTHER CARE ................................ 34

WHAT TO DO

WHEN YOU THINK A MACHINE

DEFECT HAS OCCURRED ......... 35

SPECIFICATIONS .......................... 38

Downloaded from Projector.com

●

Ultra High Brightness

Crisp, ultra-bright presentations is achieved

by using a UHB (ultra high brightness) lamp

and a highly efficient optical system

●

Partial Magnification Function

Interesting parts of images can be magnified

for closer viewing

●

Keystone Distortion Correction

Quick correction of distorted images electrically

●

Whisper Mode Equipped

Special mode is available for reducing

projector noise to achieve quieter operation

PREPARATIONS Your projector should come with the items

shown below. Check to make sure that all the

items are included. Contact your dealer if

anything is missing.

Projector

(with Lens Cap)

Soft carrying case

Power cord

(US Type)

Power cord

(UK Type)

Power cord

(Europe Type)

(with white lead) (with green lead)

VIDEO

ASPECT

HOME

END MUTE

PAGE DOWN

KEYSTONEFREEZE

OFF

MENUPOSITION

ENTER

ESC RESET

PAGE UP VOLUME

MAGNIFY

AUTOBLANK

RGB SEARCH

STANDBY/ON

Remote control

Two AA batteries

(for the

remote control)

PROJECTOR

FEATURES

This liquid crystal projector is used to project

various computer signals as well as NTSC / PAL /

SECAM video signals onto a screen. Little space

is required for installation and large images can

easily be realized.

•Keep the original packing material for future reshipment.

NOTE

CP-S317/327W/最終02.9.95:37PMページ2

USB mouse

cable

MP7650/MP7750

Multimedia Projector

Product Safety Guide

MP8765 Projecteur multimedia - Guide de Securite de Produit

MP8765 Multimedia-Projektor - Sicherheitsanleitung des Gerats

MP8765 Proyector de Multimedia - Guía de Seguridad del Producto

MP8765 Proiettore Multimediale - Guida di Sicurezza del Prodotto

MP8765 Multimedia Projector - Veiligheidgids op Product

MP8765 Projector dos Multimedia - Guia da Seguranca de Produto

MP8765 Multimedia Projektør- Bruksabvisning for Produktsakerhets

3MMP8765

Product Safety Guide

Warranty

Quick Start Guide

Operator's Guide

RGB cable Video/Audio

cable

Component Video

cable

Downloaded from Projector.com

ENGLISH

1Connect your devices to the projector

Connect your computer, VCR and/or other

devices you will be using to the projector.

Insert the batteries into the remote

control

3Connect the power cord

(1)

Connect the connector of the electrical power cord to the AC inlet of the main unit.

(2) Firmly plug the power cord's plug into the outlet

WARNING Precautions to observe in regards to the power cord: Please use extra

caution when connecting the projector's power cord as incorrect or faulty

connections may result in FIRE AND/OR ELECTRICAL SHOCK. Please adhere to the

following safety guidelines to insure safe operation of the projector:

•

Only plug the power cord into outlets rated for use with the power cord's specified voltage range.

•Only use the power cord that came with the projector.

•NEVER ATTEMPT TO DEFEAT THE GROUND CONNECTION OF THE THREE-

PRONGED PLUG!

•Make sure that you firmly connect the power cord to the projector and wall outlet.

〜

812

(1) (2)

Power outlet

Power cordAC inlet

CP-S317/327W/最終02.9.95:37PMページ3

STANDBY/ON INPUT KEYSTONE RESET

LANP

TENP

POWER

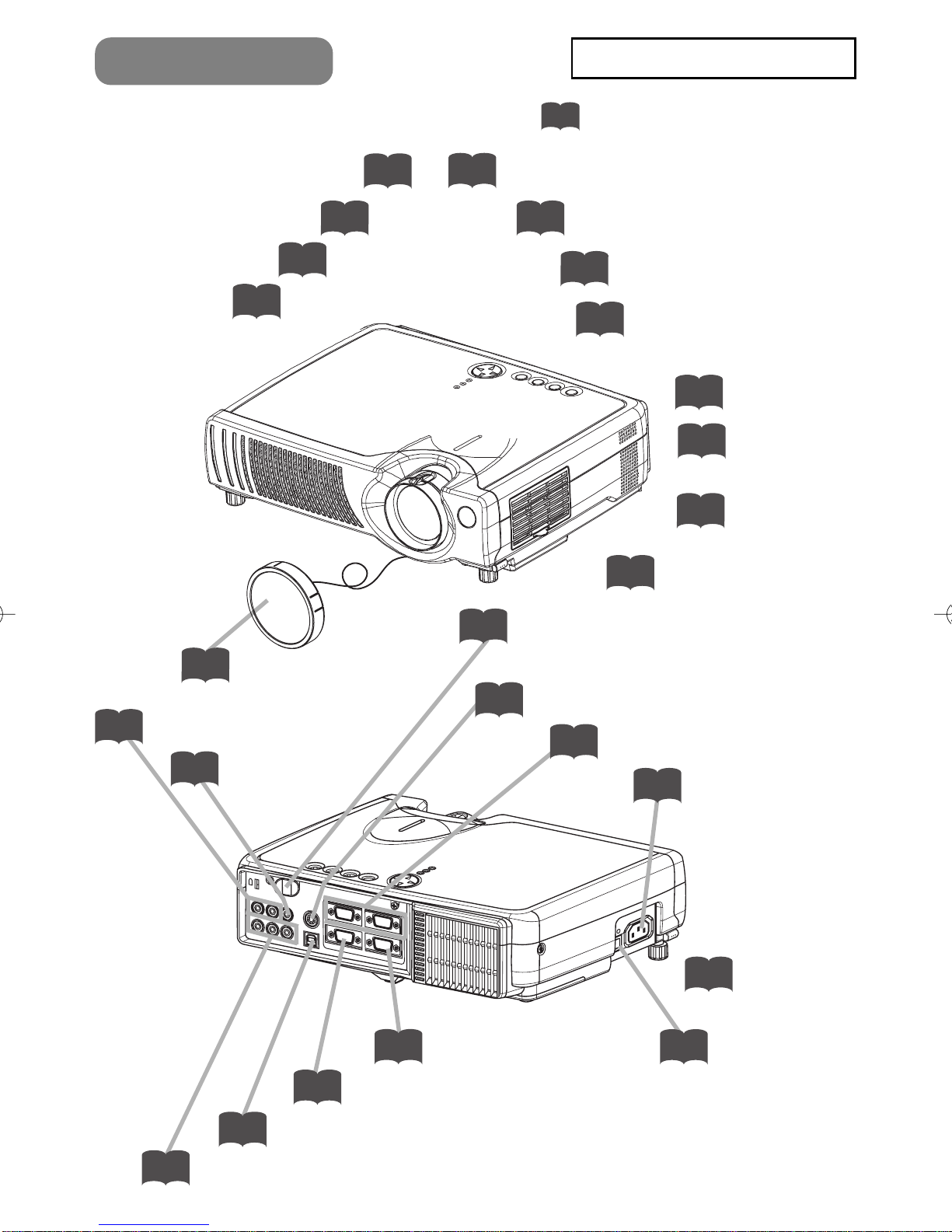

PART NAMES THE PROJECTOR

Zoom ring

Focus ring

Air filter

Elevator button

KEYSTONE button

STANDBY/ON button

INPUT button

RESET button

29

MENU button 23

LAMP indicator 31

TEMP indicator 32

POWER indicator 14

Indicates the corresponding

reference page

AC power inlet

S-VIDEO IN port

RGB IN 1 and 2 ports

AUDIO IN R and L ports

VIDEO IN port

CONTROL port

RGB OUT port

USB port

COMPONENT VIDEO port

Power switch

Lens cap 14

Remote sensor 13

CP-S317/327W/最終02.9.95:37PMページ4

ENGLISH

THE REMOTE CONTROL

STANDBY/ON button

VIDEO button 15

MENU button

RGB button 15

BLANK button

SEARCH button

VOLUME button

MUTE button

KEYSTONE button

ASPECT button 22

AUTO button

MAGNIFY buttons 21

KEYBOARD buttons 24

FREEZE button 21

POSITION button 18

ESC button 23

,,,

Cursor buttons 23

RESET button

ENTER button

VIDEO

ASPECT

HOME

END MUTE

PAGE DOWN

KEYSTONEFREEZE

OFF

MENUPOSITION

ENTER

ESC RESET

PAGE UP VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

CP-S317/327W/最終02.9.95:37PMページ5

Adjusting the Projector's Elevator Feet

1Press and hold in the elevator

buttons

2Raise or lower the projector to the

desired height and then release the

elevator buttons

When you release the elevator buttons, the elevator

feet will lock into position.

3As necessary, you can also finely

adjust the height of the projector by

twisting the elevator feet by hand

You can use the elevator feet to make adjustments if the surface on which you

need to set the projector is uneven or if you otherwise need to adjust the angle of

projection. The adjustment range of the elevator feet is 0 to 9 degrees.

CAUTION •

Install the projector in a suitable environment according to instructions

of the "Product Safety Guide" and this "Operator's Guide".

•If you press the elevator buttons without holding the projector, the projector might

crash down, overturn, smash your fingers and possibly result in malfunction. To

prevent damaging the projector and injuring yourself, ALWAYS HOLD THE

PROJECTOR whenever using the elevator buttons to adjust the elevator feet.

SETTING UP THE PROJECTOR

CP-S317/327W/最終02.9.95:37PMページ6

ENGLISH

Refer to the illustrations and tables below to determine the screen size and

projection distance.

Adjusting the Screen Size and Projection Distance

Top view

Lens center

The screen

Side view

Top view

Lens center

The screen

Side view

If 4:3 aspect ratio

If 16:9 aspect ratio

The values shown in the table are calculated for a full size screen

(MP7650: 800x600 pixels / MP7750: 1024x768 pixels).

a:Distance from the projector to the screen (±10%)

b:Distance from the lens center to the bottom of the screen (±10%)

c:Distance from the lens center to the top of the screen (±10%)

Screen Size [inch (m)] a [inch (m)] b

[inch (cm)]

Min. Max.

30 (0.8) 35 (0.9) 42 (1.1) 1 (2) 17 (44)

40 (1.0) 47 (1.2) 56 (1.4) 1 (3) 23 (58)

50 (1.3) 59 (1.5) 71 (1.8) 1 (4) 29 (73)

60 (1.5) 71 (1.8) 85 (2.2) 2 (4) 34 (87)

70 (1.8) 83 (2.1)

100 (2.5)

2 (5) 40 (102)

80 (2.0) 95 (2.4)

114 (2.9)

2 (6) 46 (116)

90 (2.3)

107 (2.7) 129 (3.3)

3 (7) 51 (131)

100 (2.5)

119 (3.0) 143 (3.6)

3 (7) 57 (145)

120 (3.0)

143 (3.6) 172 (4.4)

3 (9) 69 (174)

150 (3.8)

180 (4.6) 216 (5.5)

4 (11) 86 (218)

200 (5.0)

240 (6.1) 288 (7.3)

6 (15)

114 (290)

250 (6.3)

300 (7.6) 361 (9.2)

7 (18)

143 (363)

300 (7.5)

360 (9.2)

433 (11.0)

9 (22)

171 (435)

Screen Size [inch (m)] a [inch (m)] b

[inch (cm)]

Min. Max.

30 (0.8) 38 (1.0) 46 (1.2) 2 (4) 16 (41)

40 (1.0) 51 (1.3) 61 (1.6) 2 (5) 22 (55)

50 (1.3) 64 (1.6) 77 (2.0) 3 (6) 27 (69)

60 (1.5) 77 (2.0) 93 (2.4) 3 (8) 32 (82)

70 (1.8) 90 (2.3)

109 (2.8)

4 (9) 38 (96)

80 (2.0)

104 (2.6) 125 (3.2)

4 (10) 43 (110)

90 (2.3)

117 (3.0) 140 (3.6)

5 (12) 49 (124)

100 (2.5)

130 (3.3) 156 (4.0)

5 (13) 54 (137)

120 (3.0)

156 (4.0) 188 (4.8)

6 (15) 65 (165)

150 (3.8)

196 (5.0) 235 (6.0)

8 (19) 81 (206)

200 (5.0)

261 (6.6) 314 (8.0)

10 (26)

108 (275)

250 (6.3)

327 (8.3)

393 (10.0)

13 (32)

135 (343)

300 (7.5)

393 (10.0)

472 (12.0)

15 (39)

162 (412)

CP-S317/327W/最終02.9.95:37PMページ7

Display monitors

DVD players

VCRs

Laptop computers

Desktop computers

Indicates the

corresponding

reference page

ATTENTION

Precautions to observe when connecting other devices to the projector

•Whenever attempting to connect other devices to the projector, please thoroughly

read the manual of each device to be connected.

•TURN OFF ALL DEVICES prior to connecting them to the projector. Attempting to

connect a live device to the projector may generate extremely loud noises or other

abnormalities that may result in malfunction and/or damage to the device and/or

projector. Refer to the “TECHNICAL”for the pin assignment of connectors and

RS-232C communication data.

•Make sure that you connect devices to the correct port. Incorrect connection may

result in malfunction and/or damage to the device and/or projector.

•A component cable and some other cables have to be used with core set. Use the

accessory cable or a designated-type cable for the connection. For cables that have

a core only at one end, connect the core to the projector.

•Secure the screws on the connectors and tighten.

CONNECTING YOUR DEVICES

Devices You Can Connect to the Projector

(Refer to this section for planning your device

configuration to use for your presentation.)

CAUTION •Incorrect connecting could result in fire or electrical shock. Please

read the "Product Safety Guide" and this "Operator's Guide".

CP-S317/327W/最終02.9.95:37PMページ8

ENGLISH

Ports and Cables

Refer to the table below to find out which projector port and cable to use for connecting a

given device. Use this table for determining which cables to prepare.

About Plug-and-Play Capability

•This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by

connecting this projector to computers that are VESA DDC (display data channel)

compatible. Please take advantage of this function by connecting the accessory RGB

cable to the RGB IN 1 port (DDC 1/2B compatible). Plug-and-Play may not work

properly if any other type of connection is attempted.

•Plug-and-Play is a system composed of the computer, its operating system and

peripheral equipment (i.e. display devices).

•Please use the standard drivers as this projector is a Plug-and-Play monitor.

•Plug-and-Play may not function properly with some type of computers. Use the RGB

IN 2 port if Plug-and-Play does not function correctly.

NOTE

Function Projector Port Connection Cables

RGB input RGB IN 1 RGB cable with D-sub 15-pin shrink jack

and inch thread screws

RGB IN 2

RGB output RGB OUT

USB mouse control USB USB cable

PS/2 mouse control

CONTROL

PS/2 mouse cable

ADB mouse control ADB mouse cable

Serial mouse control Serial mouse cable

RS-232C communication RS-232C cable

S-video input S-VIDEO IN S-video cable with mini DIN 4-pin jack

Video input VIDEO IN Audio/video cable

Component video input

COMPONENT VIDEO Y

Component video cableCOMPONENT VIDEO CB/PB

COMPONENT VIDEO CR/PR

Audio input AUDIO IN L Audio/video cable

or Audio cable with RCA jack

AUDIO IN R

CP-S317/327W/最終02.9.95:37PMページ9

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de 3M

3M Digital Media System 700 Series Manual de usuario

3M Digital Media System 700P Series Manual de instalación y funcionamiento

3M Multimedia Projector S40 Manual

3M X95 - Digital Projector XGA LCD Manual de funcionamiento

3M Multimedia Projector MP8749 Manual

3M X31 Manual de instalación y funcionamiento

3M Overhead Projector 1800 Series Manual

3M Multimedia Projector MP8750 Manual

3M Personal Projector MP7720 Manual de usuario

3M Multimedia Projector S15 Manual de usuario

3M Multimedia Projector MP8765 Manual de usuario

3M X21 Manual

3M MPro120 - VGA LCOS Projector Manual de instalación y funcionamiento

3M 710 Manual de usuario

3M Digital Projector X30N Manual

3M Multimedia Projector MP8780 Manual

3M Multimedia Projector S15 Manual

3M Multimedia Projector MP8749 Manual

3M Multimedia Projector MP8625 Manual de usuario

3M Overhead Projector 1800 Series Manual

3M Multimedia Projector S15 Manual de usuario

3M MPRO150 Manual

3M Overhead Projector 1700 Manual de usuario

3M Digital Projector X75 Manual de funcionamiento

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario
