3M™Mobile Projector MP225

English

3M™Mobile Projector MP225

English

Contents

Intended Use Statement .......................................................................... 4

Safety Information................................................................................... 4

Safety Labels.......................................................................................... 7

Package Contents................................................................................... 8

Parts...................................................................................................... 9

Getting Started ..................................................................................... 10

Making Connections.............................................................................. 14

Basic Operating Instructions .................................................................. 18

Cleaning the Projector........................................................................... 22

Troubleshooting .................................................................................... 23

Speciﬁcations ....................................................................................... 25

Limited Warranty................................................................................... 27

3M™Mobile Projector MP225

English

Intended Use Statement

The 3M Mobile Projector MP225 is designed to operate with the 3M speciﬁed

battery and 3M power adapter in normal ofﬁce or home environments.

• 0˚–35˚C (32˚–95˚F)

• 10–80% RH (without condensation)

• 0–1829 m (0–6000 feet) above sea level

The ambient operating environment should be free of airborne smoke, grease,

oil and other contaminants that can affect the operation or performance of the

projector.

Use of this product in adverse conditions will void the product warranty.

Safety Information

Please read, understand, and follow all safety information contained in these

instructions prior to the use of this projector. Retain these instructions for future

reference.

Explanation of Signal Word Consequences

m Warning: Indicates a potentially hazardous situation, which, if not avoided, could

result in death or serious injury and/or property damage.

m Caution: Indicates a potentially hazardous situation, which, if not avoided, may

result in minor or moderate injury and/or property damage.

 Warning: Hazardous voltage

3M™Mobile Projector MP225

English

mWarning

To reduce the risk associated with hazardous voltage:

• Do not modify this product in any way. Use only 3M approved replacement

components.

• Do not attempt to service this projector other than battery replacement.

There are no user-serviceable parts other than the battery. Service to be

performed only by a 3M authorized service provider using 3M approved

system components.

• Do not use the wall power supply in a wet environment.

• Do not use with a damaged wall power supply. Replace damaged part prior

to use.

To reduce the risk associated with ﬁre and explosion:

• Do not immerse the projector or battery in any liquid or allow either to get

wet.

• Use only 3M approved power supply and lithium ion battery provided.

• Do not disassemble or short circuit the battery.

• Do not dispose of the battery by incineration or ﬁre.

• Do not operate this projector in any environment above 35°C (95°F).

• Do not expose the projector or battery to direct sunlight in a closed space

such as avehicle.

• Do not carry the battery in pockets, purses or handbags where it may contact

metalobjects.

• Do not place battery in contact with metal objects.

• Do not expose or store battery in direct sunlight or excessive heat (>60°C

[140°F]), or in moist or caustic environments.

To reduce the risks associated with driver distraction:

• Do not use this projector in a moving motor vehicle.

To reduce the risks associated with choking:

• Keep AV adapters and other small parts away from young children.

3M™Mobile Projector MP225

English

mWarning

To reduce the risk associated with ﬁre and explosion, battery leakage

or overheating:

• Do not immerse the battery in water or allow it to get wet.

• Do not reverse the positive(+) and negative(-) terminals.

• Do not connect the battery directly to a wall outlet. Use only the 3M speciﬁed

wall charger or automobile charger.

• Do not strike, throw or subject the battery to physical shock.

• Do not pierce the battery or break it open.

• Keep batteries out of the reach of children.

• Do not recharge the battery near a heat source or in extremely hot

conditions.

• Do not use the battery if it gives off an odor, generates heat, or becomes

discolored ordeformed.

• Keep away from exposed ﬂames if the battery leaks or emits an odor.

• Flush the eyes with water and seek medical attention if the battery leaks and

battery ﬂuid gets in the eyes.

mCaution

To reduce the risks associated with hearing loss:

• Be sure to read earphone manufacturer's instructions with respect to volume

level.

• User is responsible to set a safe volume level.

To reduce the risk associated with environmental contamination:

• Dispose of all system components in accordance with applicable government

regulations.

To reduce the risks associated with LED bright light:

• Do not stare directly into the projector lens.

To reduce the risks associated with tripping and falling:

• Position the charging cord and data cables so that they are not a tripping

hazard.

SAVE THESE INSTRUCTIONS

3M™Mobile Projector MP225

English

Safety Labels

LITHIUM ION BATTERY

Model No. LIN370-002

23Wh (10.95V 2100mAh)

P/N 78-6972-0058-8

mWarning

• Use a speciﬁed charger.

• Do not throw the battery into ﬁre or heat.

• Do not short-circuit the battery terminals.

• Do not disassemble the battery.

Charging Speciﬁcation

Standard Charge 12.3V/1.1A

Cut Off Voltage 9V

Max Charge 12.3V/2.1A

LED Light Output

CLASS 1 LED

PRODUCT

IEC60825-1 :1993+A1

:1997+A2:2001

Maximum Radiant Power:

1.693 mW

3M™Mobile Projector MP225

English

Package Contents

1 3M Mobile Projector MP225

2 Rechargeable Battery

3 Outlet Adapters (4)

4 Power Adapter

5 Product Warranty and

Safety Guide

6 Quick Start Guide

7 AV Cable for Apple®

Devices

3M™Mobile Projector MP225

English

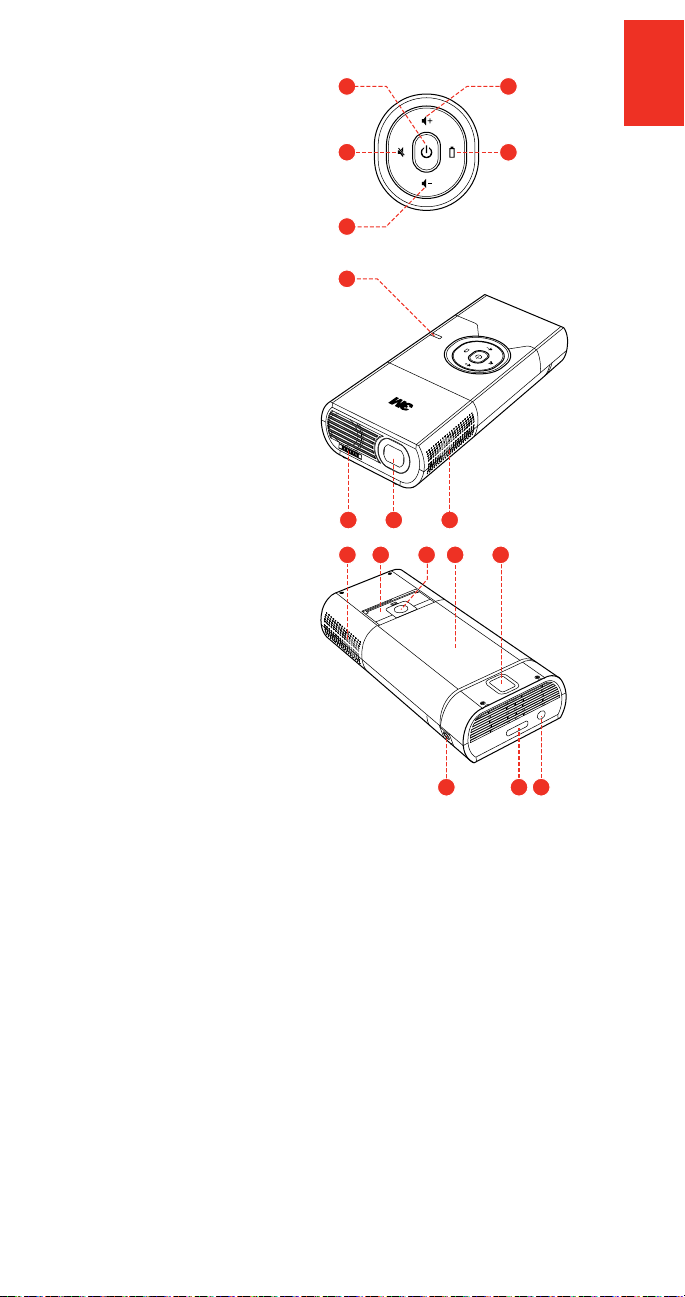

Parts

1 Power Button

2 Mute Button

3 Volume Down Button

4 Volume Up Button

5 Battery Status Button

6 Status Indicator

7 Focus Wheel

8 Lens

9 Speaker

10 Flip Stand

11 Tripod Socket

12 Battery

13 Battery Latch

14 Earphone jack

15 VGA-A/V Input

16 DC Power Input

7 8 9

14 15 16

11 13912

3M™Mobile Projector MP225

English

Getting Started

Removing the Protective Film

When the projector is shipped, there is a protective ﬁlm between the battery and

the battery contacts on the projector. Remove the protective ﬁlm by removing the

battery and the protective ﬁlm, discard the ﬁlm and ﬁnally install the battery.

Install Battery

The 3M Mobile Projector MP225 comes with a rechargeable battery. The battery

should be fully charged before using the projector with the battery.

To install the battery: point the contacts on the battery toward the contacts on the

projector, insert the end farthest from the battery latch ﬁrst, then push down until

the battery clicks into place.

Remove Battery

To remove the battery: slide the battery latch away from the battery and then lift the

battery out, starting at the end closest to the latch.

Important Note: Use only the 3M speciﬁed battery: 78-6972-0058-8.
