3Com
Wireless 11G Cable/DSL Router
Model Number: WL-550
3CRWER101A-75, 3CRWER101E-75, 3CRWER101U-75
Installation Guide
www.3com.com
Part No. 10016653 Rev.AB
Published May 2008
INTRODUCTION
About This Guide:
This Guide takes you through the basic steps necessary to install and configure your
Wireless 11g Cable/DSL Router, and establish a connection from your computers to the
Internet. Throughout, the Wireless 11g Cable/DSL Router is simply referred to as the
Router.
Your Package Contains:
• One Wireless 11g Cable/DSL Router
• One power adapter for use with the Router
• One Ethernet cable
• One 2dBi detachable antenna
• One CD-ROM containing the Quick Installation Guide and the User Guide
• This Installation Guide
• One Support and Safety Information Sheet
• One Warranty Flyer
System Requirements
Before starting, you must ensure the following:
• You already have a cable or DSL broadband connection to the Internet with a suitable
modem and that this connection works properly. The modem must have an Ethernet port
for connection to your Router.
• You have a computer that has an Ethernet connection available and is already correctly
E
11
configured for communication with the Internet. Your computer must be able to connect
to the Internet via the modem, and must have a Web browser installed.
• There are no other DHCP server devices on your local network that are responsible for
allocating IP addresses to your computers and other network-connected devices. Your
Router will now perform this function by default.
If one or more of these conditions are not met, refer to the comprehensive Router User
Guide provided on the accompanying CD-ROM for further guidance.

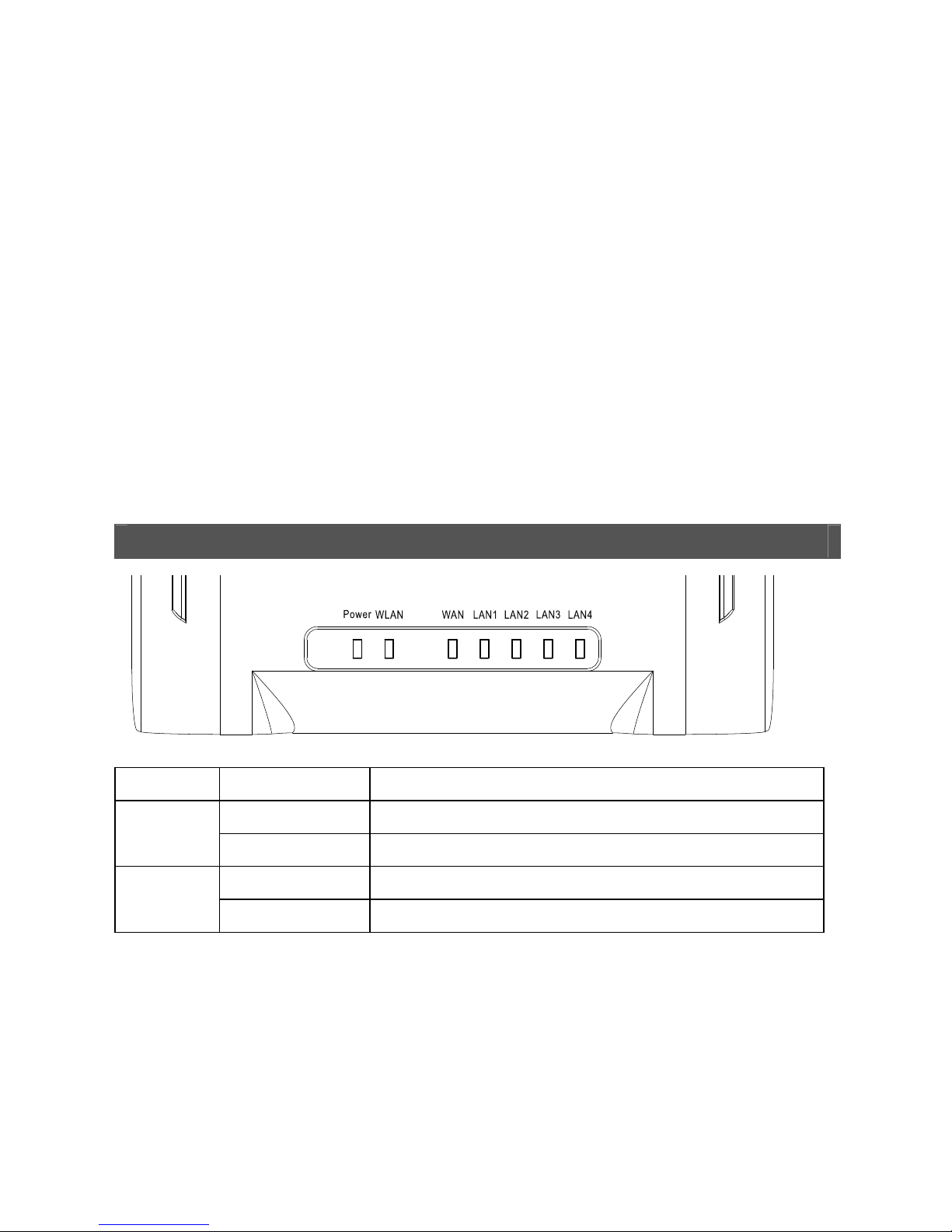

ABOUT YOUR ROUTER
Name State Condition
Off Not receiving power.Power
Solid Receiving power.
Off Not connected to WLAN.WLAN
Solid WLAN link is achieved.
22
Flashing Sending or receivcing WLAN data.
Off Not connected to WAN.
Solid Ethernet WAN link is achieved.
WAN
Flashing Sending or receiving WAN data.
Off Not connected to LAN.
Solid Ethernet LAN link is achieved.
LAN
Flashing Sending or receiving LAN data.

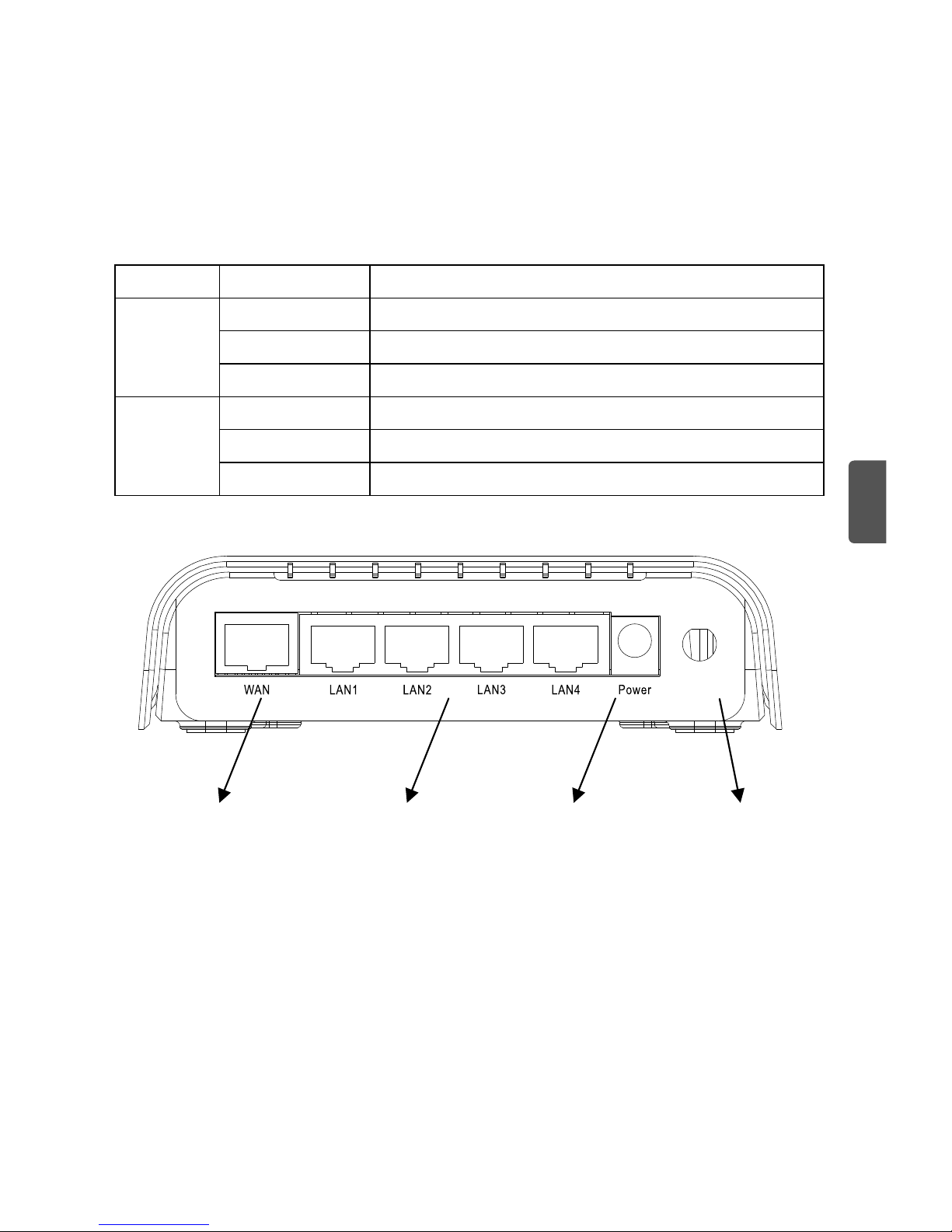

Ethernet Cable/DSL port Four 10/100 LAN ports Power Adapter Socket 2dBi detachable Antenna
Reset Button (on the bottom of the base)
Press Reset button for 5 seconds then release it. All settings of Wireless 11g Cable/DSL
Router will reset to factory default.
E
3

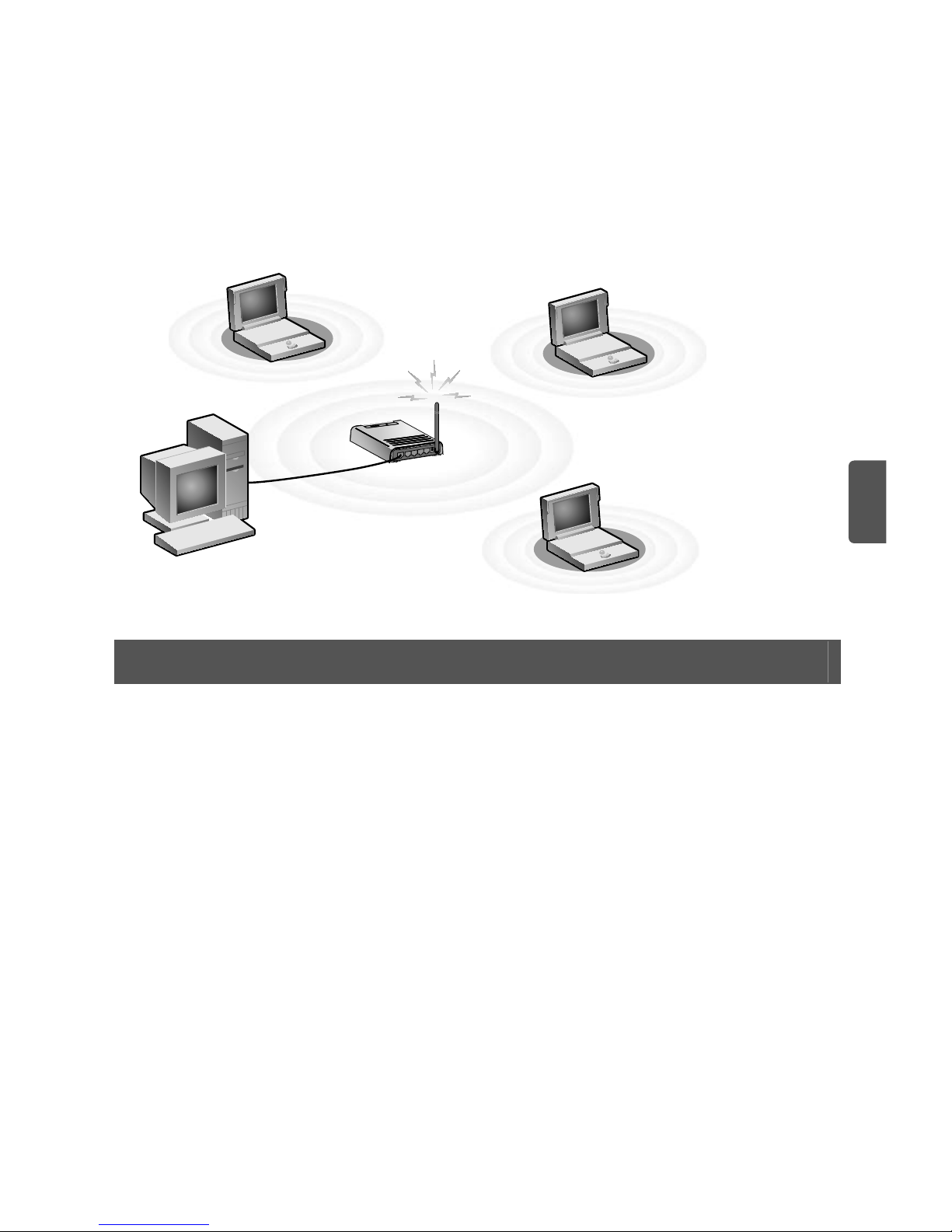

POSITIONING YOUR ROUTER
When positioning your Router, ensure:
• The unit is centrally located to the wireless computers that will connect to the Router. A
suitable location might be on top of a high shelf or similar furniture to optimize wireless
connections to computers in both horizontal and vertical directions, allowing coverage
throughout.
• In order to meet FCC radiation exposure regulations the Router should be located in a
position that maintains a minimum distance of 20 cm (8 inches) from any personnel
(refer to the User Guide for details).
• It is out of direct sunlight and away from sources of heat.
• Cabling is away from power lines, fluorescent lighting fixtures, and sources of electrical
noise such as radios, transmitters and broadband amplifiers.
• Water or moisture cannot enter the case of the unit.
• Air flow around the unit and through the vents in the side of the case is not restricted.
We recommend you provide a minimum of 25 mm (1 in.) clearance.
4
1. INSTALLING YOUR ROUTER
1. Connect the power adapter to the Router and wait for the Power LED to solid.
2. Ensure that your modem and computer are both switched on.
3. Insert one end of the supplied Ethernet (RJ-45 Category 5) cable into the Cable/DSL
port on the rear panel of the Router.
4. Insert the other end of the cable into the RJ-45 port on your cable or DSL modem.
Check that the Cable/DSL status LED lights on the Router.
5. Connect the cable or DSL modem to the Internet.
6. Connect your computer to one of the four LAN ports on the Router using an Ethernet
E
5
cable. Check that the corresponding LAN status LED on the Router lights.
To share your Router with more than four users you will need an additional Hub or
Switch. Connect a LAN port of your Router to the Hub or Switch, e.g. OfficeConnect Dual
Speed Switch 8.
]

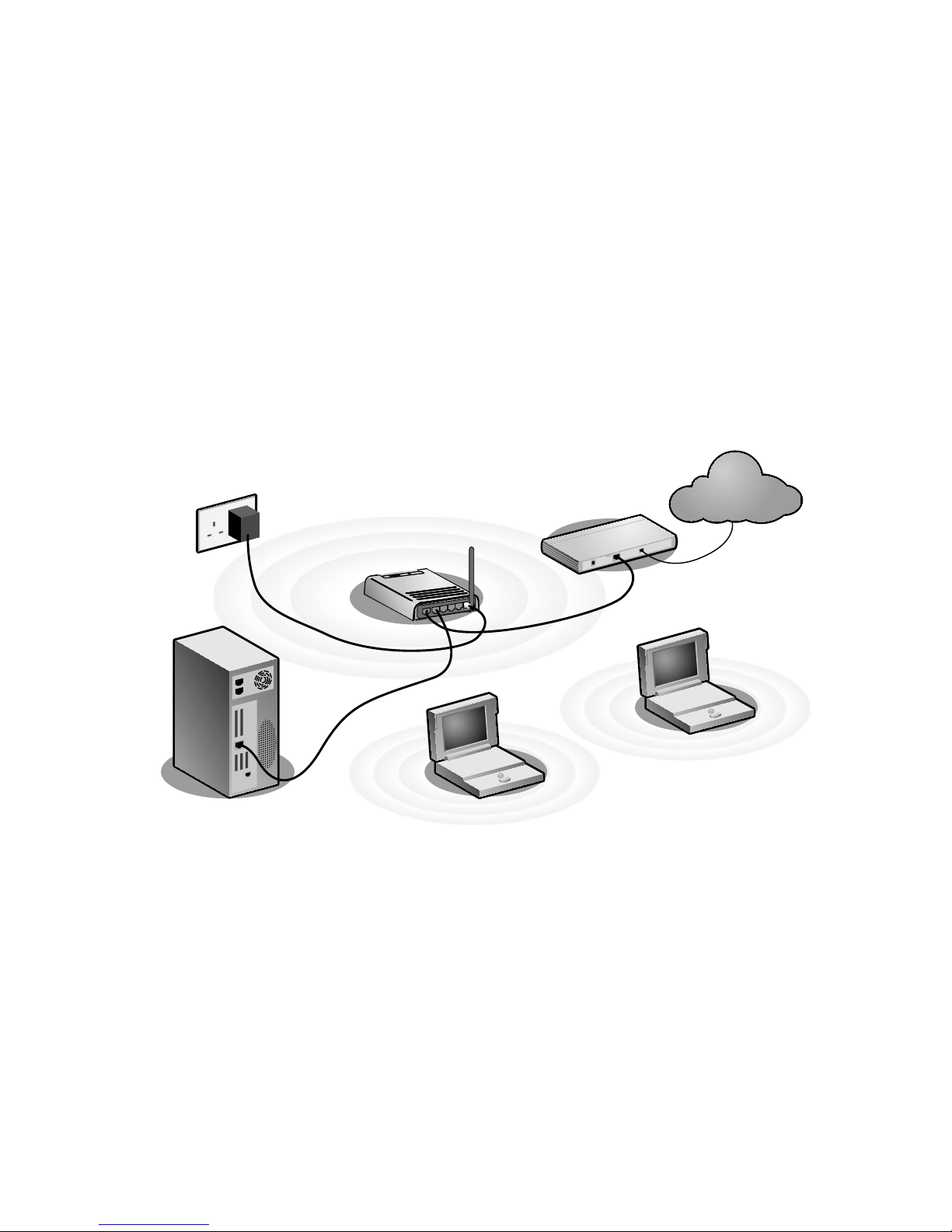

Internet
Power supply unit
3Com Wireless 11g
Cable/DSL Router
Your Cable/DSL Modem
Wireless Users
Your PC
6
2. CHANGING YOUR COMPUTER'S CONFIGURATION
You may need to make some changes to the configuration of your computers in order to
communicate with the Router.
DSL users with PPPoE or PPTP Client Software.
If you have PPPoE or PPTP client software installed on your computer, you will need to
disable it. To do this:
1. From the Windows Start menu, select Settings > Control Panel.
2. Double click on Internet Options.
3. Select the Connections Tab.
4. Select the Never Dial a Connection option and click OK.
You may wish to remove the PPPoE client software from your computer to free
resources, as it is not required for use with the Router.
Obtaining an IP Address automatically.
Follow the instructions below for your particular operating system to ensure that your
computers are configured to obtain an IP address automatically.
For computers using Windows Vista.
1. From the Windows Start menu, select “Control Panel”.
2. Click on “View Network and task” which is under “Network and Internet Connections”.
E
7
3. Click on “Manage Network Connections”.
4. Right click on “Local Area Connection Status” and select “Properties” from the pull
down menu.
5. Select “Internet Protocol version 4 (TCP/IPv4)” and click on “Properties”.
6. Ensure that the options Obtain an IP Address automatically”, and “Obtain DNS
servers automatically” are both selected. Click OK.
7. Restart your computer.
For computers using Windows XP.
1. From the Windows Start menu, select Control Panel.
2. Click on Network and Internet Connections.
3. Click on the Network Connections icon.
4. Double click on LAN or High Speed Connection icon. A screen titled Local Area
Connection Status will appear.
5. Select Internet Protocol TCP/IP and click on Properties.
6. Ensure that the options Obtain an IP Address automatically, and Obtain DNS servers
automatically are both selected. Click OK.
7. Restart your computer.
For computers using Windows 2000.
1. From the Windows Start Menu, select Settings > Control Panel.
8
