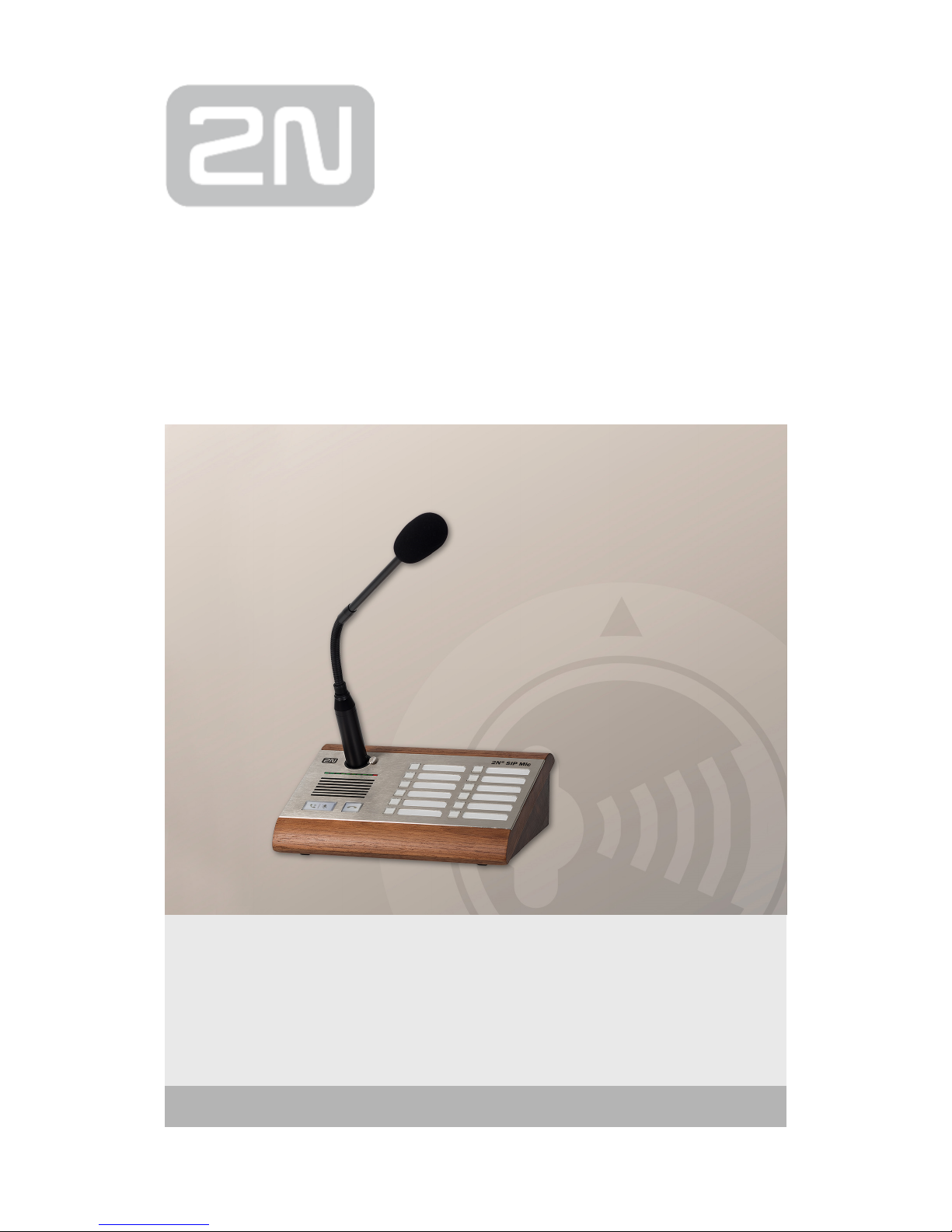

2N SIP Mic
Microphone console
Configuration Manual
Firmware:
Version: 1.0
The 2N TELEKOMUNIKACE a.s. is a Czech manufacturer and supplier of
telecommunications equipment.
The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways,
private branch exchanges (PBX), and door and lift communicators. 2N
TELEKOMUNIKACE a.s. has been ranked among the Czech top companies for years
and represented a symbol of stability and prosperity on the telecommunications
market for almost two decades. At present, we export our products into over 120
countries worldwide and have exclusive distributors on all continents.
2N is a registered trademark of 2N TELEKOMUNIKACE a.s. Any product and/or other
®
names mentioned herein are registered trademarks and/or trademarks or brands
protected by law.
2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find
information and to answer your questions about 2N products and services. On www.
faq.2n.cz you can find information regarding products adjustment and instructions for
optimum use and procedures „What to do if...".
2N TELEKOMUNIKACE a.s. hereby declares that the 2N product complies with all
®
basic requirements and other relevant provisions of the 1999/5/EC directive. For the
full wording of the Declaration of Conformity see the CD-ROM (if enclosed) or our
website at www.2n.cz.
The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All
development, production and distribution processes of the company are managed by
this standard and guarantee a high quality, technical level and professional aspect of
all our products.
2N TELEKOMUNIKACE a.s., www.2n.cz 3/76
Content:
1. Product Overview
1.1 Components and Associated Products
1.2 Terms and Symbols
2. Description and Installation
2.1 Before You Start
2.2 Electric Installation
2.3 Product Description
3. Function and Use
3.1 Configuration
3.1.1 System Status
3.1.2 Network
3.1.3 VoIP
3.1.4 Audio
3.1.5 Buttons
3.1.6 Zones
3.1.7 Action Scheduler
3.1.8 System
3.1.9 Voice Messages
3.2 Setting Examples
3.2.1 Express Settings
3.2.2 Announce to Zone – VAPIX
3.2.3 Voice Message Loading
3.2.4 HTTP Request
3.3 Downloads
4. Technical Parameters
5. Supplementary Information
5.1 Troubleshooting
5.2 Directives, Laws and Regulations
5.3 General Instructions and Cautions
2N TELEKOMUNIKACE a.s., www.2n.cz 4/76
1. Product Overview
Here is what you can find in this section:
1.1 Components and Associated Products
1.2 Terms and Symbols
2N TELEKOMUNIKACE a.s., www.2n.cz 5/76
Basic Properties
2N SIP Mic
® is an IP microphone console playing live or pre-recorded announcements
to up to 12 zones. Together with the 2N SIP speakers, provides a 2N SIP Mic
®
complete voice announcement distribution system. However, is more 2N SIP Mic
®
than that. For example, it can accept calls from the 2N intercoms, listen to the zone
traffic, schedule announcements and/or load own messages. This makes it an ideal
solution for places where identical announcements are played several times a day,
such as schools, amusement parks, stores or public transport terminals. Easy power
supply via PoE and programming via a web interface are additional bonuses. With
integrated VAPIX , is capable of playing announcements to AXIS audio
®2N SIP Mic
® ®
systems and cameras.
2N TELEKOMUNIKACE a.s., www.2n.cz 6/76
Advantages of Use
Clear and loud speech
Announcement planner
VAPIX support
®
Easy control
Easy one-cable installation (Ethernet + PoE)
VoIP PBX support (SIP)
Remote control via DTMF or HTTP commands
Integrated administration web server
Streamed audio support
Applicable as a standard VoIP phone/communicator
DTMF detection according to RFC2833, in-band and SIP-INFO
2N TELEKOMUNIKACE a.s., www.2n.cz 7/76
Basic Features
10/100Base-TX LAN interface
12 – 30 V DC / 2 A or PoE 802.3af supply
Integrated speakers and top-quality microphone in package
Caution
This product, its installation and configuration are not intended for
persons with physical, sensory or mental disabilities or persons with
limited experience and skills unless expert supervision or relevant
instructions are provided to them by a person responsible for their
safety.
2N TELEKOMUNIKACE a.s., www.2n.cz 8/76
1.1 Components and Associated Products
Main Unit
Part No. 914431E
2N SIP Mic
®
2N TELEKOMUNIKACE a.s., www.2n.cz 9/76
Power Supply
Part Numbers:
91378100
91378100E
91378100US
PoE injector – without cable
PoE injector – with EU cable
PoE injector – with US cable
For power supply of intercom via ethernet cable when PoE
switch is not available.
Part No. 914102x Stabilised 12 V / 2 A power supply (E – Europe, GB – Great
Britain, US – USA) needs to be used when no PoE is
available.
Tip
For more accessories and particular advice please contact your local
distributor of 2N products.
2N TELEKOMUNIKACE a.s., www.2n.cz 10/76
1.2 Terms and Symbols
The following symbols and pictograms are used in the manual:
Safety
Always abide by this information to prevent persons from injury.
Warning
Always abide by this information to prevent damage to the device.
Caution
Important information for system functionality.
Tip
Useful information for quick and efficient functionality.
Note
Routines or advice for efficient use of the device.
