ZyXEL Communications STB-2101H Manual de usuario

www.zyxel.com

IP Set-Top Box

Firmware v3.6

Edition 1, 03/2010

STB-2101H

ZyXEL Communications Corporation

Device Panels

POWER/REMOTE

LED

ON/OFF POWER

ETHERNET

E-SATA

PORT A/V

PORT

USB

PORT HDMI

PORT S/PDIF

PORT

ENGLISH

Overview

The STB-2101H is a set-top box that connects your television to the

Internet. Use the STB-2101H to watch Internet television (IPTV) or Video

on Demand (VOD) on your regular TV.

How It Works

Your STB-2101H IP Set-Top Box (A) connects to your Internet

access device (B); this can be a broadband router, a wireless

router, a cable modem, and so on, just as long as it provides

connectivity to the Internet. Your television set (C) also connected

to the STB-2101H, and programs are controlled by the remote (D).

Hardware Connections

Take the following steps to set up your STB-2101H’s hardware

connections. Use either the cables that came with your STB-2101H, or

those that came with your TV or Internet access device.

1. Connect your TV (and audio system, if required) to the STB-2101H’s

audiovisual ports using either the included cables or those that came

with your TV. Refer to the next figure for some example connections.

2. Connect your Internet access device (such as a broadband modem or

router) to the STB-2101H’s RJ-45 port.

3. Using the includedpower adaptor, connect the STB-2101H’s POWER

port to a suitable power source.

123

ENGLISH

The STB-2101H has a variety of options for connecting your TV (and

audio system). Use the hardware connections best suited to your

equipment; the following figure shows some examples.

Turn On the STB-2101H

Once you have made the hardware connections, take the following steps

to start up the STB-2101H.

1. Turn your television on. Change it to the channel or setting you

normally use to watch videos or DVDs. For example, select the

“VIDEO” input option, or press the “AV” button (look at the

documentation that came with your TV if you are not sure what to do).

2. Press the ON/OFF button on the rear of the STB-2101H.

The Power LED on the front of the STB-2101H lights up. It blinks

while the STB-2101H is starting up, then shines steadily green once

the STB-2101H is ready (this may take a little while).

The Ethernet LED on the front of the STB-2101H turns green once

the STB-2101H has finished starting up.

 If the Power or Ethernet LEDs do not behave as expected,

first check the STB-2101H’s connections. Make sure that the

power is on and the Internet access device is working. If this

does not help, restart the STB-2101H (switch it off, then on

using the ON/OFF switch on the rear panel). If the problem

persists, contact your vendor.

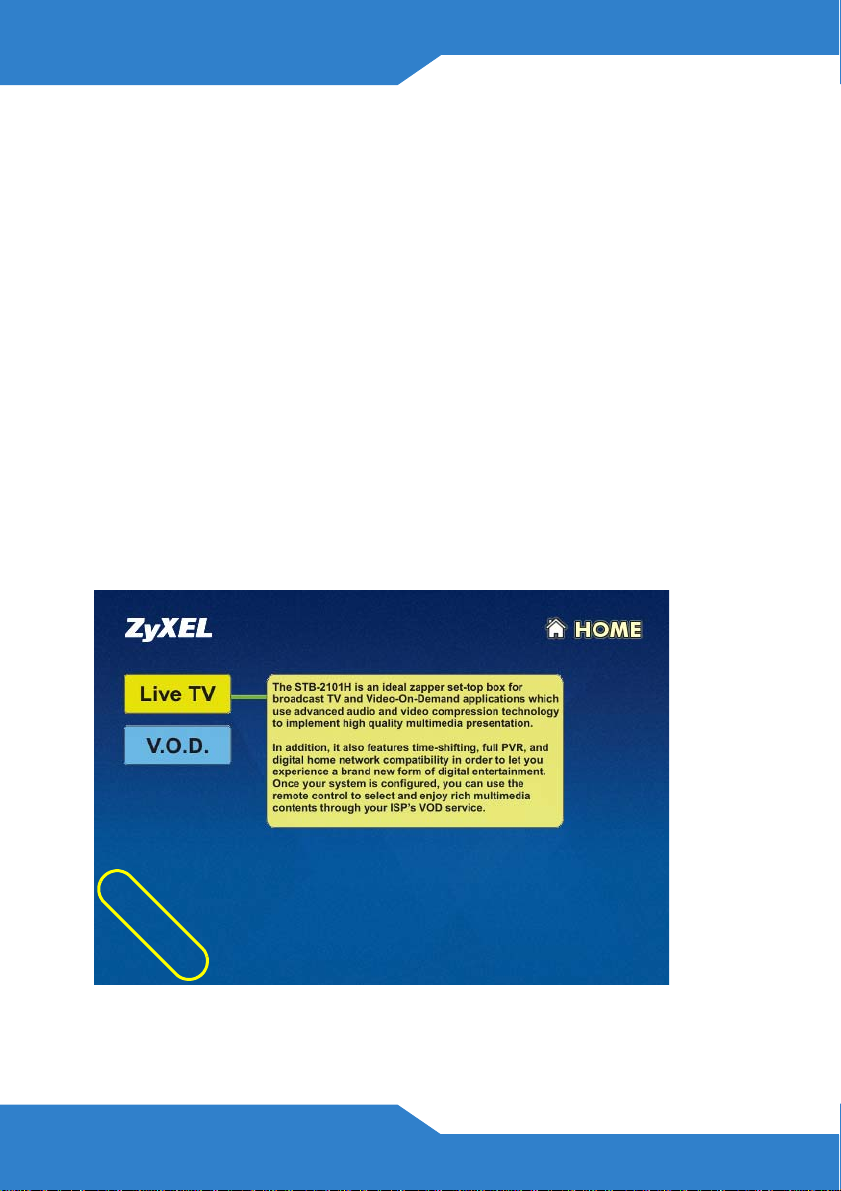

3. A start-up picture displays on the television. When the STB-2101H

has successfully started up, the Home menu displays. Your STB-

2101H is ready to use!

The TV pictures shown in this Quick Start Guide are examples; what you

see may be different (depending on your IPTV service provider)

EXAMPLE

ENGLISH

The Remote Control

Before you first use the remote control, take the following steps to insert

two AAA-size batteries.

1. Press the battery cover release catch in and lift the cover off.

2. Press the batteries into the compartment. The negative (-) end of

each battery should be at the end of the slot that has a spring.

3. Replace the cover.

Quick Reference

The following picture shows your STB-2101H’s remote control, and

identifies the buttons you need to use in this Quick Start Guide.

See the Remote Control Reference on page 11 for more details.

The Menu System: TV and Video

The STB-2101H’s menu system allows you to select the TV channels

and Video on Demand (VOD) services you want to watch from your

service provider. Use the remote control to navigate the menu system.

This is only an example - the actual menus you see depend on your

IPTV service provider.

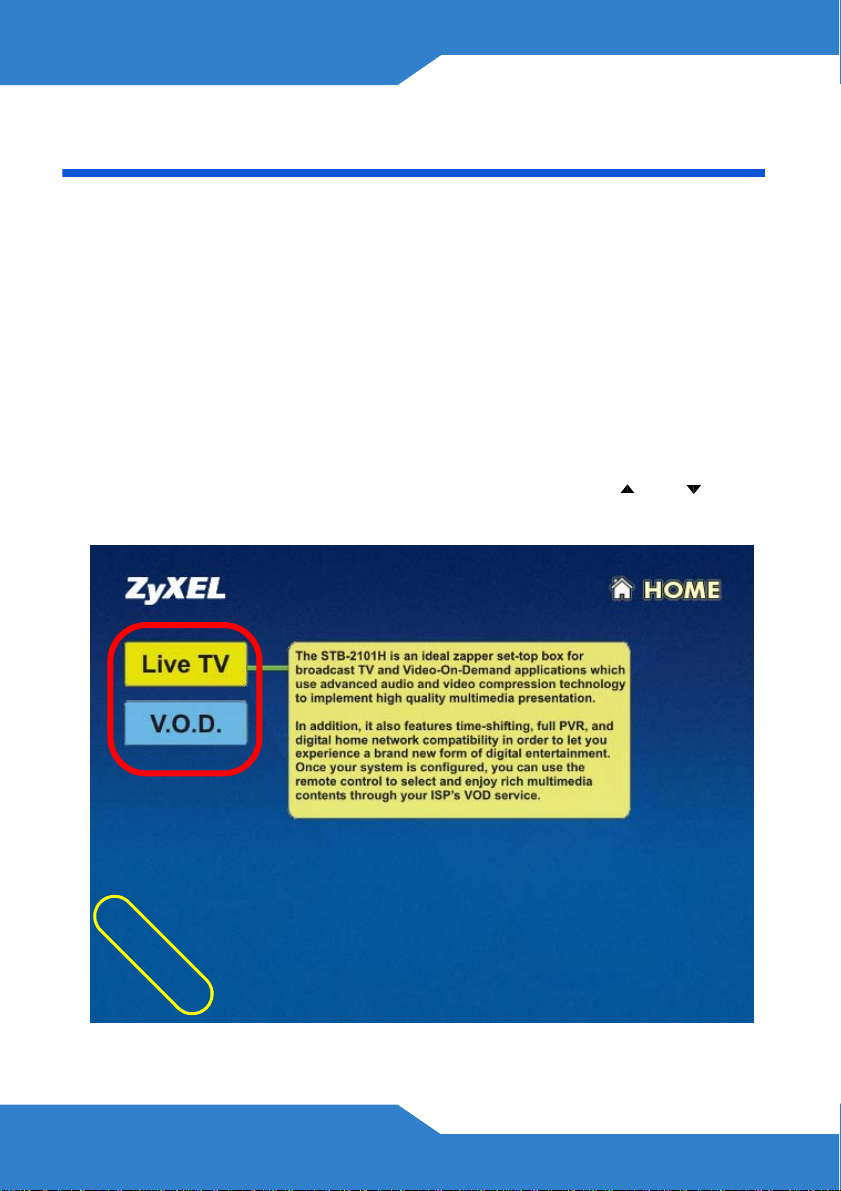

When the STB-2101H is ready to use, the Home menu displays. Use the

HOME key on the remote control to return to this menu at any time.

1. Select the Live TV or VOD option (use the navigator’s and keys,

and the OK key).

EXAMPLE

ENGLISH

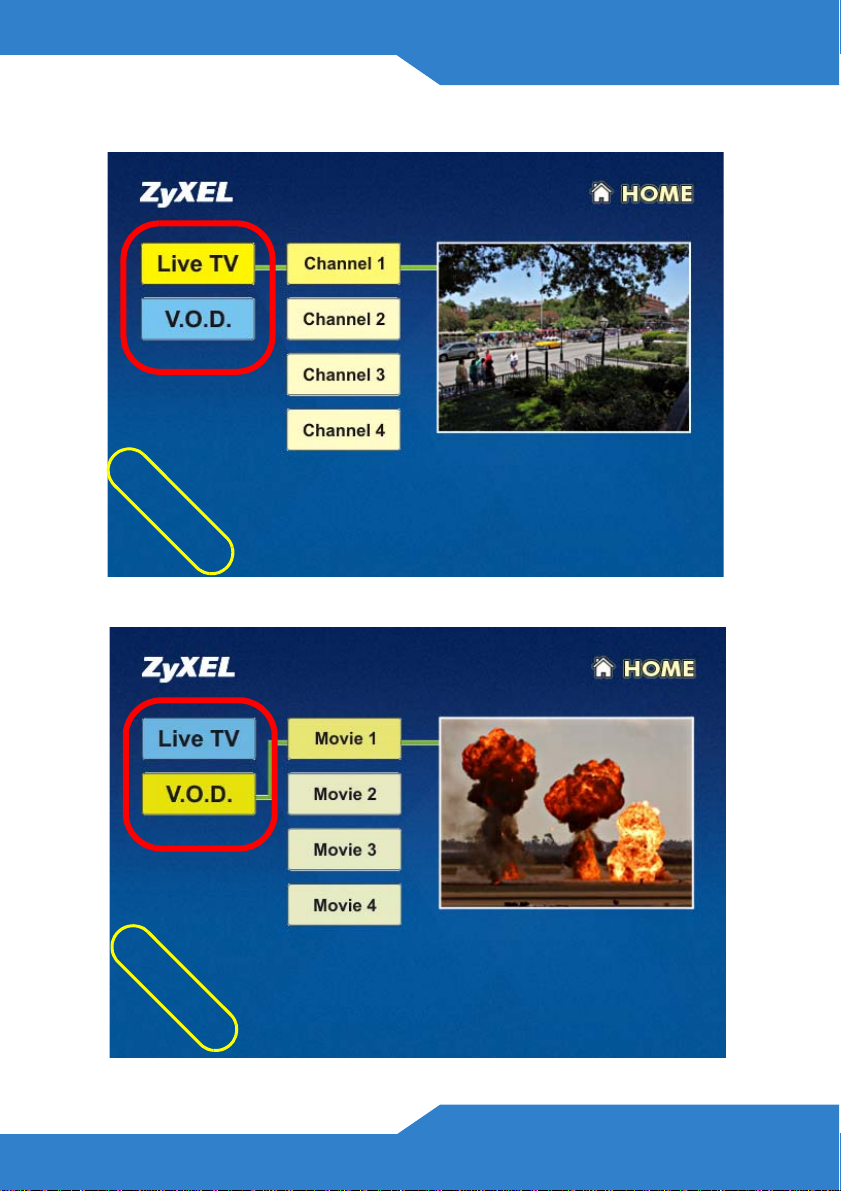

For Live TV, the channel selection menu displays.

For VOD, the VOD menu appears.

EXAMPLE

2. For Live TV, highlight the channel you want to watch using the

navigator’s and keys. The small screen on the bottom right

shows the current program.

For VOD, highlight the video you want to watch.

3. Press the OK key. The program is shown in full screen.

4. For Live TV, use the CHANNEL + and - keys to change the channel.

For VOD, use the video controls to rewind, fast-forward, pause and

so on.

If you want to return to the HOME menu, press the HOME key.
