ZyAIR 200 Wireless LAN USB Adapter

Quick Start Guide

Version 1.0.3

March 2002

Contents

1Network Configuration………………………….......... 3

2Package Content…………………………..................... 3

3Driver Installation………………………...................... 4

3.1 Windows 98/ME ............................................... 4

3.2 Windows 2000 ................................................... 4

3.3 Windows XP ...................................................... 5

4Utility Installation………………… .............................. 5

4.1 Utility Information ............................................. 5

4.1.1 Status ..............................................................................5

4.1.2 Counter ...........................................................................6

4.1.3 AP Browser ....................................................................6

4.1.4 Configuration .................................................................6

4.1.5 Encryption ......................................................................6

4.1.6 About..............................................................................6

5Set Up an Ad-Hoc Network........................................... 6

6Set Up an Infrastructure Network ............................... 7

7Encryption…………………… ...................................... 7

8Driver Update…………………..................................... 7

8.1 Windows 98/ME ................................................ 8

8.2 Windows 2000 ................................................... 8

8.3 Windows XP ...................................................... 9

9Software Information……………… ............................ 9

ZyAIR 200 Wireless LAN USB Adapter Quick Start Guide

1 Network Configuration

The ZyAIR 200 Wireless LAN USB Adapter provides you an easy and

fast way to access your wireless and wired network. The ZyAIR 200,

which utilizes the latest advancement of the computer industry – USB

technology, allows you to install and use the ZyAIR 200 easier than

ever before.

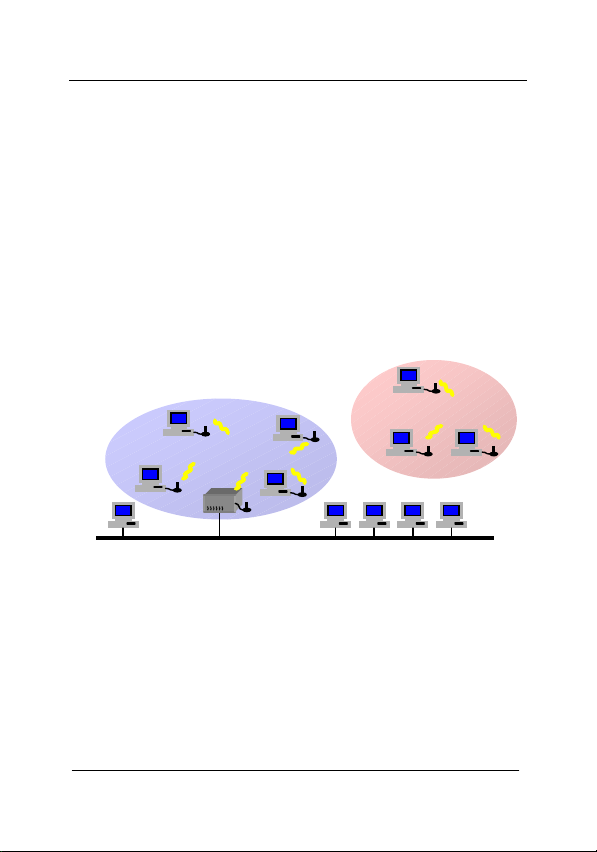

The ZyAIR 200 can be operated in Ad-Hoc and Infrastructure network

configurations. Ad-Hoc mode allows ZyAIR 200 users to join a Basic

Service Set (for instance, peer-to-peer mode without access point).

Infrastructure mode allows ZyAIR 200 users to join an Extended

Basic Service Set (for instance, connect to an access point).

2 Package Content

• ZyAIR 200 Wireless LAN USB Adapter

• Quick Start Guide

ess

ras

ruc

ure

• Support CD-ROM

ZyAIR 200 Wireless LAN USB Adapter Quick Start Guide

3 Driver Installation

3.1 Windows 98/ME

• Connect the ZyAIR 200 to an available USB port on your

computer. Windows will auto-detect the ZyAIR 200 display a

New Hardware Found screen. Click Next

• Select Search for the best driver for your device.

(Recommended). Click Next.

• Insert the Support CD-ROM into the appropriate drive and

specify the location of the driver. Click Next.

• Click OK to locate Windows system files. They may be found

in C:\WINDOWS or C:\WINDOWS\SYSTEMS. Otherwise

insert your Windows 98/ME CD-ROM.

• Click Finish and then click Ye s to restart your computer.

• Click Start, Control Panel, System, Device Manager. Click

Network Adapters. Locate the ZyAIR 200 icon. If no error

icon appears, your ZyAIR 200 is working

3.2 Windows 2000

• Connect the ZyAIR 200 to an available USB port on your

computer. Windows 2000 will auto-detect the ZyAIR 200 and

displays a Found New Hardware Wizard dialog box. Click

Next.

• Select Search for a suitable drive for my device

(recommended) and click Next.

• Insert the Support CD-ROM and select specify a location.

Click Next.

• Windows will find a USB device. Click Next.

• If you encounter a warning window, click Ye s to continue.

• Click Finish and then Ye s to restart your computer.

• Click Start, Control Panel, System, Device Manager. Click

Network Adapters. Locate the ZyAIR 200 icon. If no error

icon appears, your ZyAIR 200 is working.

ZyAIR 200 Wireless LAN USB Adapter Quick Start Guide

3.3 Windows XP

• Connect the ZyAIR 200 to an available USB port on your

computer. Windows XP will auto-detect the ZyAIR 200 and

display Found New Hardware Wizard window. Select

Install from a list or specific (Advanced) and click Next.

• Insert the Support CD-ROM into the appropriate drive and

specify the location where the driver. Click Next.

• If you encounter a warning window, click Continue Anyway

to continue the installation process.

• Click Next and then Finish to complete the installation.

• Click Start, Control Panel, Performance and Maintenance

(in category view) , System, Hardware, Device Manager.

Click Network Adapters. Locate the ZyAIR 200 icon. If no

error icon appears, your ZyAIR 200 is working.

4 Utility Installation

• To install the ZyAIR 200 Utility, insert the Support CD-ROM

and double click setup.exe.

• Follow the on-screen instructions to complete the utility

installation.

• To run the utility for the first time, click Start, Programs and

then ZyAIR 200 Utility. Then double click ZyAIR 200 Utility

in the system tray and configure your ZyAIR 200 using this

interface.

4.1 Utility Information

Monitor and configure your ZyAIR 200 using the following utilities:

Status, Counter, AP Browser, Configuration, Encryption and

About.

4.1.1 Status

The Status tab displays the current status of the ZyAIR 200.

ZyAIR 200 Wireless LAN USB Adapter Quick Start Guide

4.1.2 Counter

The Counter tab displays the transmission throughput in byte per

second.

4.1.3 AP Browser

Click Rescan button to display Access Points around the working

environment, the BSSID and SSID of each Access Point, Channel,

Signal and Encryption. To join a displayed Access Point, select the

Access Point you wish to connect .

4.1.4 Configuration

Use Configuration to configure Network Type, Channel,

Transmit(Tx) Rate, SSID (Service Set ID), WEP, RTS/CTS

Threshold and Fragment Threshold.

4.1.5 Encryption

To secure your data transmission, set up your encryption keys in the

Encryption tab.

4.1.6 About

Use About to display the driver, firmware and application version of

your ZyAIR 200.

5 Set Up an Ad-Hoc Network

• Click on Configuration tab. Select Ad-Hoc under Network

Type.

• Select Channel. Click on AP Browser tab to view channel

quality under the Signal column. Change to a better channel

if necessary.

ZyAIR 200 Wireless LAN USB Adapter Quick Start Guide

Computers in a specific Ad-Hoc network must be

configured to the same radio channel.

6 Set Up an Infrastructure Network

• Click on Configuration tab. Select Infrastructure under

Network Type.

• Select Channel. Click on AP Browser tab to view channel

quality under the Signal column. Change to a better channel

if necessary.

• Specify the SSID of a specific wireless LAN you wish to

connect to. Type ANY (all upper case) to connect to any

wireless LAN.

7 Encryption

ZyAIR 200 offers highly secure data transmission using WEP (Wired

Equivalent Privacy). Refer to User’s Guide for more information.

• Click Encryption tab. Select 64 Bit or 128 Bit under

Encryption.

• Create the encryption keys depending on the type of

encryption you choose.

• Select Wep key to use to activate a key.

To allow encrypted data communications, you must set the

same encryption key values on all wireless stations and/or

Access Points.

8 Driver Update

Download the latest driver and read the section relevant to your

Windows version.

ZyAIR 200 Wireless LAN USB Adapter Quick Start Guide

8.1 Windows 98/ME

• Double-click System, click the Hardware tab and click

Device Manager.

• From Network Adapters, double-click ZyAIR 200, click

the Driver tab and then click Update Driver.

• Click Next to proceed.

• Select Display a list of all the drivers in a specific location,

so you can select the driver you want and click Next.

• Click Have Disk and specify the location of the new driver.C

Click OK.

• From the Models list, select ZyAIR 200 and click OK.

• The Windows will copy the new driver files (wlannic.inf /

wlannds.sys) onto your computer.

• Once the Please insert the disk labeled Windows 98/ME

CD-ROM, and then click OK window appears, type the

path corresponding to the appropriate drives and click OK.

Usually these files can be found at C:Windows or

C:Windows\system.

• Click Finish. Restart your computer.

8.2 Windows 2000

• From the Start main menu, click Control Panel.

• Double-click System, click the Hardware tab and then click

Device Manager.

• From Network Adapters, double-click the ZYAIR 100 icon.

Click the Driver tab and then click Update Driver.

• Click Next.

• Select Display a list of the known drivers for this device

so that I can choose a specific driver and click Next.

• Click Have Disk and specify the location where the driver is

placed, then click OK.

• From the Network Adapter list, select ZyAIR 200 and click

ZyAIR 200 Wireless LAN USB Adapter Quick Start Guide

Next.

• Click Next, Windows will copy the new driver files

(wlannic.inf / wlannds.sys) onto your computer.

• Click Finish.

8.3 Windows XP

• From the Start main menu, go to Control Panel.

• Double-click System, click the Hardware tab and then

Device Manager.

• From Network Adapters, double-click ZyAIR 200.

• Click Driver tab, Update Driver and click Next.

• Select Don’t search. I will choose the driver to install and

click Next.

• Click Have Disk, specify the location of the driver and then

click OK. Windows will copy the new driver files

(wlannic.inf/wlannds.sys) onto your computer.

• Click Finish.

9 Software Information

View the firmware, software or driver versions of your ZyAIR 200 on

the utility About window. You could download and upgrade the most

recent software version from the supplier’s web site or refer to your

reseller for the latest software information.

Otros manuales para Wireless LAN USB Adapter ZyAIR 200

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Adaptador de ZyXEL Communications

ZyXEL Communications

ZyXEL Communications G-210H Manual de instrucciones

ZyXEL Communications

ZyXEL Communications NWD-271N - Manual de usuario

ZyXEL Communications

ZyXEL Communications PLA-400 Manual de usuario

ZyXEL Communications

ZyXEL Communications PowerLine PLA-402 Manual de usuario

ZyXEL Communications

ZyXEL Communications G-210H Manual de usuario

ZyXEL Communications

ZyXEL Communications PLA series Manual de usuario

ZyXEL Communications

ZyXEL Communications MAX-100 Series Manual de usuario

ZyXEL Communications

ZyXEL Communications G-220 V2 Manual de usuario

ZyXEL Communications

ZyXEL Communications FN312 Manual de usuario

ZyXEL Communications

ZyXEL Communications OMNI.NET LITE Manual de usuario

ZyXEL Communications

ZyXEL Communications ZyAIR G-220 Manual de usuario

ZyXEL Communications

ZyXEL Communications AG-220 Guía de referencia

ZyXEL Communications

ZyXEL Communications G-220F Manual de usuario

ZyXEL Communications

ZyXEL Communications Omni TA128 Manual de usuario

ZyXEL Communications

ZyXEL Communications PLA6457 Manual de usuario

ZyXEL Communications

ZyXEL Communications G-202 Manual de instrucciones

ZyXEL Communications

ZyXEL Communications NWD217N Manual de usuario

ZyXEL Communications

ZyXEL Communications G-202 Manual de usuario

ZyXEL Communications

ZyXEL Communications Powerline Ethernet Multiplug Center PLA491 Manual de usuario

ZyXEL Communications

ZyXEL Communications AG-220 Manual de instrucciones

ZyXEL Communications

ZyXEL Communications ZyXEL Prestige 202 Manual de usuario

ZyXEL Communications

ZyXEL Communications ZyXEL ZyAIR B-220 Manual de usuario

ZyXEL Communications

ZyXEL Communications PLA-400 Guía de referencia

ZyXEL Communications

ZyXEL Communications PLA-401 v2 Manual de usuario

Manuales populares de Adaptador de otras marcas

PCB Piezotronics

PCB Piezotronics 090B274 Manual de usuario

Auvidea

Auvidea J20 Manual del producto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manual de usuario

Akribis

Akribis ITF-21-BISS-MIT Manual de usuario

Tenda

Tenda W54U Manual de usuario

ROHO

ROHO AGILITY Manual de usuario

PROLiNK

PROLiNK WN2001 Manual de usuario

Hawking

Hawking HUF2 Manual de usuario

Airlink101

Airlink101 AWLC4030 Manual de usuario

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manual de usuario

Philips

Philips SWA4554S/10 Manual de usuario

JVC

JVC TS-C9D2B Manual de instrucciones

NETGEAR

NETGEAR A6100 Manual de usuario

D-Link

D-Link DWA-121 Manual de usuario

Philips

Philips SWA2037 Manual de usuario

Basalte

Basalte 0610-20 Manual de usuario

Yealink

Yealink EHS40 Manual de usuario

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manual de usuario
