ZyXEL Communications DMA-1100P Manual de usuario

DMA-1100P

Digital Media Adaptor

Quick Start Guide

Version 1.00

03/2008

Edition 1

CONTENTS

ENGLISH 2

DEUTSCH 16

ESPAÑOL 32

FRANÇAIS 46

ITALIANO 62

РУССКИЙ 78

SVENSKA 94

ENGLISH

With the DMA-1100P you can:

• Play DVD-quality video, music and photo files on your TV or stereo instead of on your com-

puter.

• Connect the DMA-1100P directly to your computer or connect the DMA-1100P to multiple

computers on your wired home network.

• Use the standard electrical wiring in your house to connect to your computer(s) on a Home-

Plug AV powerline network.

• Play files from a USB memory stick or hard drive.

• Play podcasts from the Internet.

The following figure shows a DMA-1100P with a USB memory stick attached, and

connected to a computer through a powerline connection using a powerline adapter. The

DMA-1100P then plays files on a TV and/or stereo.

Software Specifications

Windows XP User Windows Vista User Other OSs

Install the included media

server software to let the

DMA-1100P play files stored

on your computer.

See the Windows Vista

Media Server appendix in

the User’s Guide (on the

included CD) for more

information on how to set up

your DMA-1100P.

Instead of installing the

software, you can put your

files on a USB stick or USB

file storage device. The USB

stick connects directly to the

DMA-1100P without need of

the media server software or

a computer.

HDMI

USB

HomePlug

RCA

DMA-1100P

ENGLISH

Use the following sections in this guide (in the listed order) to view files on computers or on

a USB stick.

1 Install the Media Server Software

You must install the media server software on each computer that you will use to share

files with the DMA-1100P.

"You can only install the media server software on a Windows XP/Vista

computer. See Requirements for more details.

1Put the CD into your CD-ROM. Click Setup.

VIf the Setup screen does not display, locate and double-click setup.exe.

Viewing Files on Computers

Section 1 : Install the Media Server Software

Section 2 : Connect Your DMA-1100P

Section 3 : Share Your Files

Section 4 : Play Your Files

Viewing Files on a USB Stick

Section 2 : Connect Your DMA-1100P

Section 4 : Play Your Files

ENGLISH

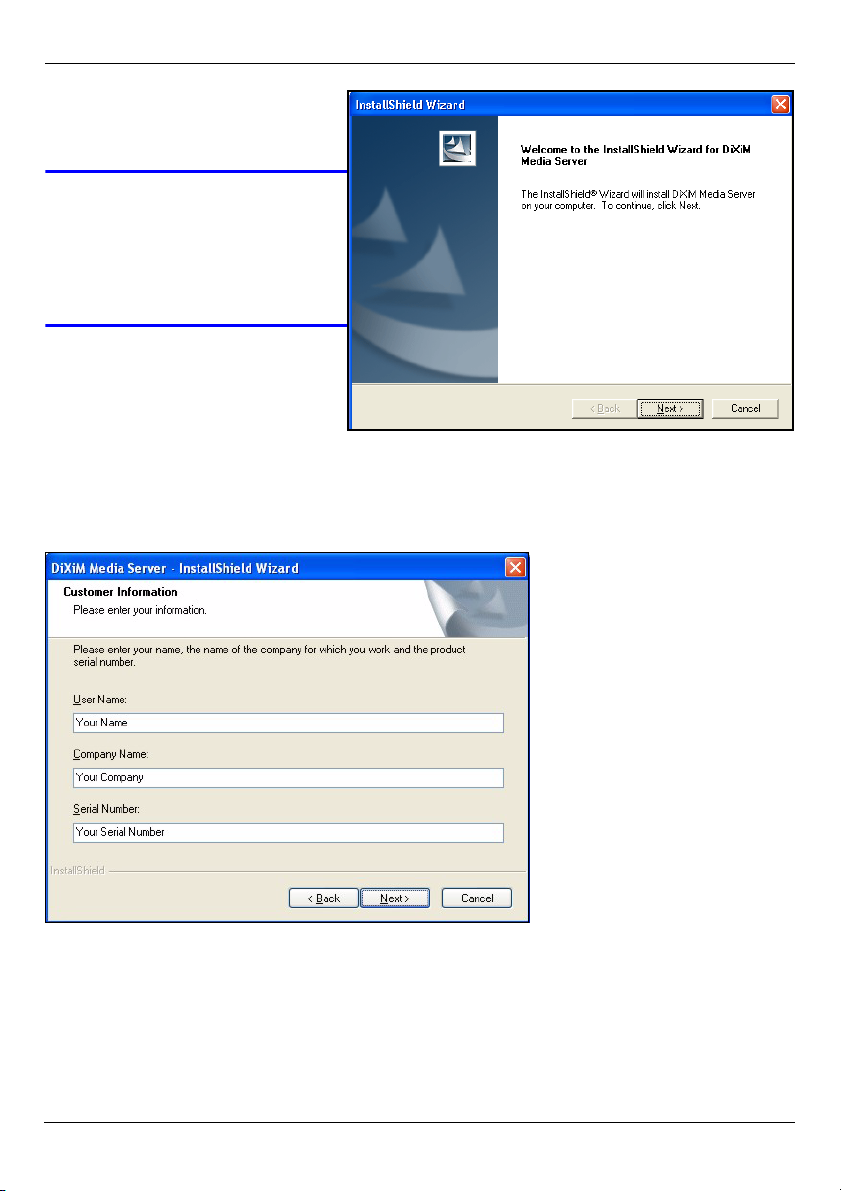

2The installation wizard

appears. Follow the directions

to install the software.

VSee the requirements

section if you have

trouble installing or

using the media

server.

3Enter your information in this

screen. Enter a user name (up to 64 ASCII characters recommended). The company

name is optional (up to 64 ASCII characters recommended). Click Registration in the

screen that opened when you inserted the CD-ROM. Then click Media Server Serial

Number to open a text file with a serial number. Copy and paste the serial number into

the Serial Number field in the screen shown here.

ENGLISH

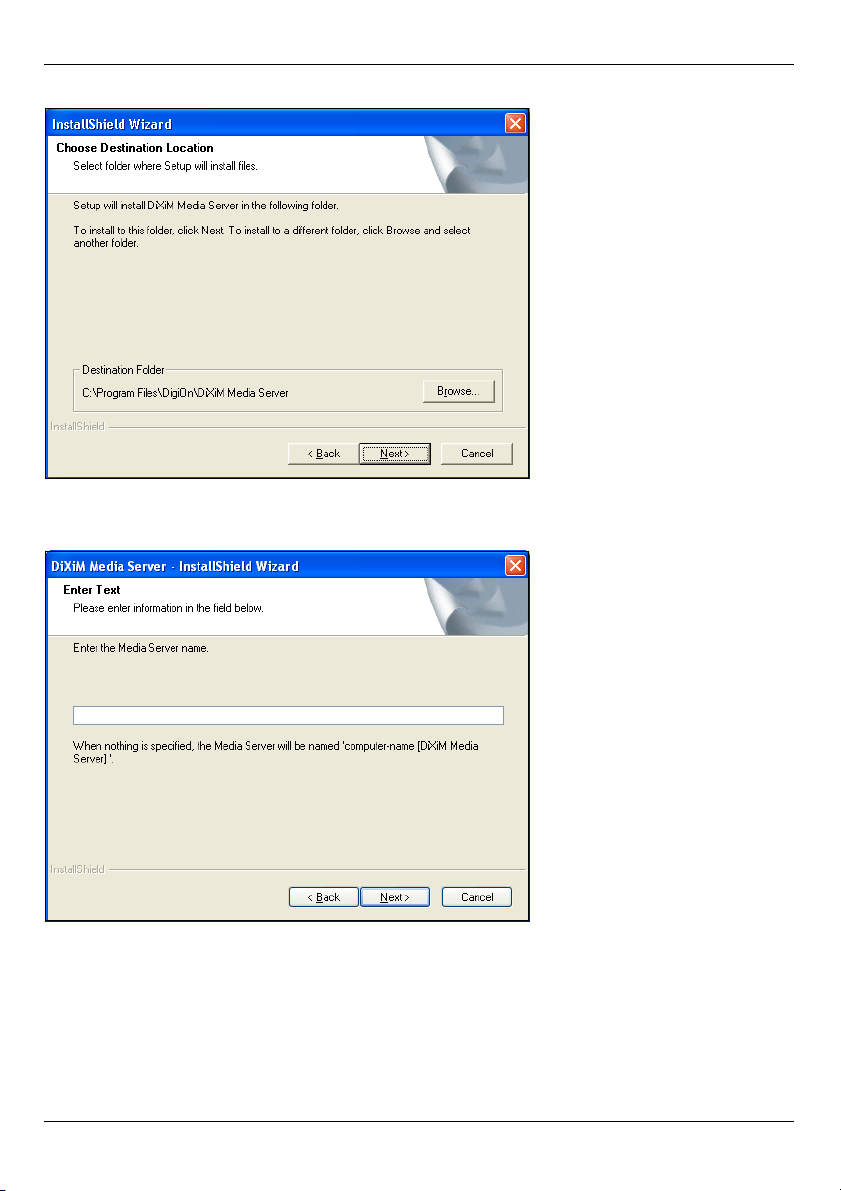

4Select a destination for the software (or just leave the default).

5You can specify a name for the media server that the DMA-1100P displays on your TV.

It is helpful to use unique names if you install the media server on multiple computers.

Up to 34 ASCII characters recommended.

ENGLISH

6If you see a screen asking about configuring the Windows XP firewall, click Yes. This

allows the DMA-1100P to access the files on your computer that you share.

VRefer to the User’s Guide if your computer has another software firewall

(ZoneAlarm, for example) that you need to configure.

7This icon displays in the system tray (usually in the bottom right corner) after the

installation is done. Double-click the icon to open the server configuration screens.

8The Published Folder List lists folders of files that your computer will share with the

DMA-1100P.

•YourMy Music, My Pictures and My Videos folders are included by default.

• To share other files, click the Add Folder button and browse to select a folder that

you want to share.

• To remove a folder from the list, click it and then click Cancel Publication.

ENGLISH

2 Connect Your DMA-1100P

Turn off your TV before you connect the DMA-1100P.

1If your TV has a HDMI connector, use an HDMI cable to connect the DMA-1100P’s

HDMI connector (shown) to the TV, as this provides the best quality video and audio.

HDMI

SPDIF

On/Off

Video

Left/Right

USB LAN

HomePlug

Audio

Power

EncryptEncrypt

ENGLISH

2If your TV does not have an HDMI connector use the Video connector and, for your

audio, use either the Right/Left Audio connector or the SPDIF connector (better

quality).

AIf your TV or audio system has a coaxial S/PDIF jack, use RCA cables to connect it

to the DMA-1100P’s S/PDIF and Video jack (shown). If you use the red connector to

connect to the SPDIF jack (A), make sure you use the red connector to connect to

the SPDIF jack on your TV (B), as shown.

Bf your TV or audio system does not have a coaxial S/PDIF jack, use RCA cables to

connect it to the DMA-1100P’s LEFT, RIGHT and Video jacks (shown). Make sure

the color of your connectors matches the jack it is using.

ENGLISH

3If you want to play files from a USB hard drive or a USB memory stick (A), connect it to

the DMA-1100P’s USB port. (The USB memory stick is shown as an example only,

yours may differ.)

4Connect to your computer directly or through a home network using an Ethernet cable

and/or a powerline connection.

ATo connect the DMA-1100P to your computer or home network with an Ethernet

cable, connect the cable to the LAN port on the DMA-1100P as shown (A). Connect

the same Ethernet cable to your computer directly, as shown (B), or connect it to a

router on your home network.

ENGLISH

BTo connect the DMA-1100P to your computer or your existing HomePlug network

using a HomePlug connection, plug the DMA-1100P into a standard power outlet in

your home.

• Then use an Ethernet cable to connect your computer or router to a HomePlug

adapter such as ZyXEL’s PLA-400. Follow the instructions that came with your

HomePlug adapter.

• If your router is already HomePlug enabled, you do not need to connect it to a

HomePlug adapter.

• Finally, go to Options > Homeplug in the on-screen menu to give your DMA-1100P

the same network password as that of the HomePlug adapter you wish to connect

to.

To set up a HomePlug network, see the User’s Guide on the CD that came with the pack-

age.

5Connect the POWER socket to a power source using only the included power cord.

6Your computer should already be turned on. Turn on the TV and the DMA-1100P.

2.1 Check the LEDs (Lights)

Look at the front of the device.

1The power light ( ) comes on.

2The LAN light ( ) comes on if you are connected to a computer with the LAN cable.

3The HomePlug light ( ) comes on if you are connected to another HomePlug device.

4The USB light ( ) turns on if you have attached a USB memory stick or hard drive.

VCheck your connections if the lights do not come on.
