Zotac ZBox EN1070 Manual de usuario

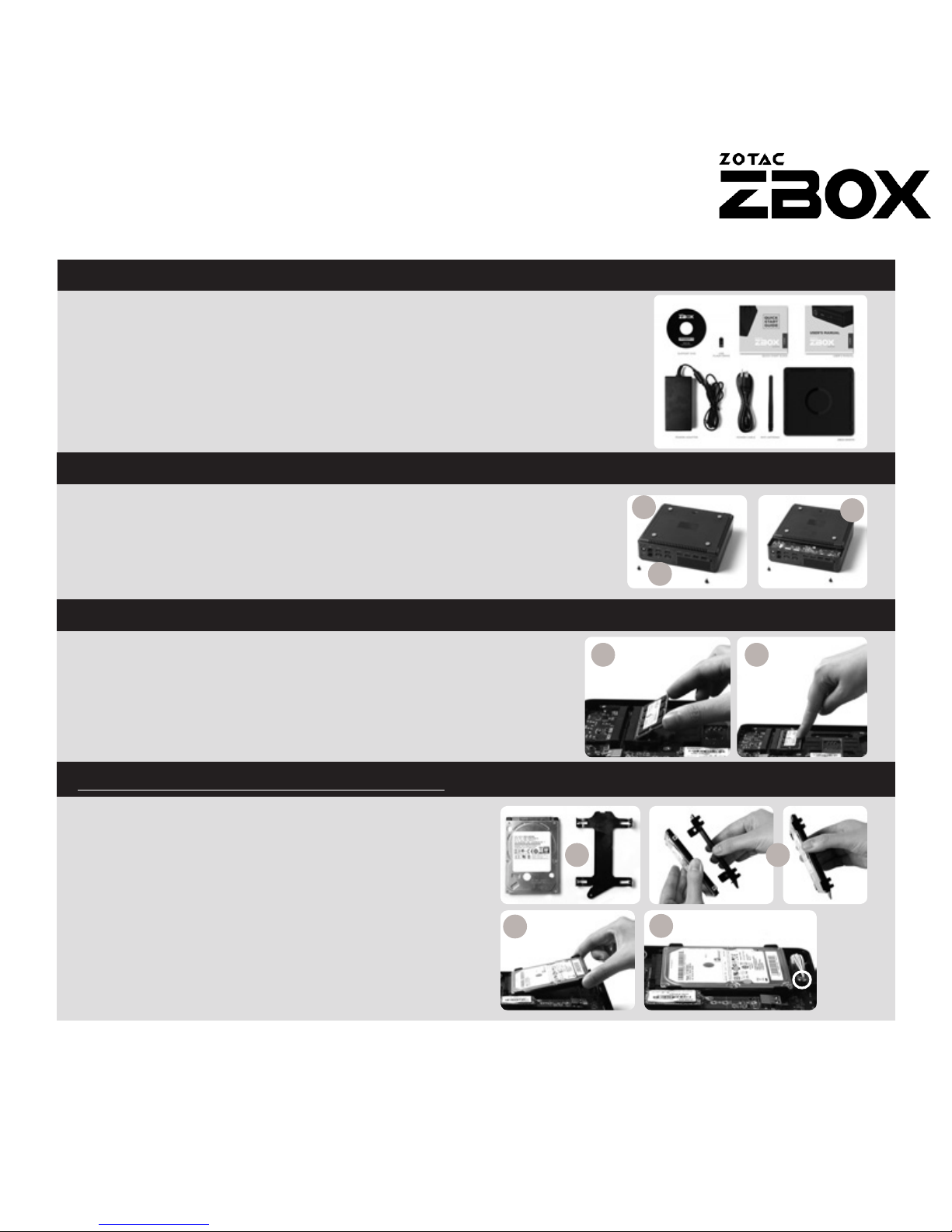

QUICK START GUIDE

INSTALLING HARD DISKS/SSD

1. Locate the 2.5-inch SATA hard disk/SSD and

the hard disk bracket.

2. Install the hard disk/SSD to the hard disk

bracket.

3. Insert the hard disk bracket into the SATA

slot.

4. Reinstall the thumb screw.

PACKAGE CONTENTS

CUSTOMIZING YOUR ZOTAC ZBOX

INSTALLING MEMORY MODULES (OPTIONAL)

• 1 x ZOTAC ZBOX

• 1 x AC Adapter

• 1 x Power Cord

• 1 x Warranty Card

• 1 x User Manual

• 1 x Windows Driver DVD

• 1 x USB ﬂash drive with Windows drivers

• 1 x Antenna

1. Lay the ZOTAC ZBOX on a ﬂat surface with the

rubber feet facing upwards.

2. Locate the two thumb screws and remove.

3. Slide the cover o the ZOTAC ZBOX in the

direction of the arrow.

1. Locate the SO-DIMM memory slots and insert a

SO-DIMM memory module into the slot at a 45

degree angle.

2. Gently press down on the memory module until

it locks into place by the arms of the memory

slot.

INSTALLING M.2 SSD MODULE (OPTIONAL)

1. Locate the M.2 SSD slot and insert an M.2 SSD

module into the slot at a 45 degree angle.

2. Gently press down on the M.2 SSD module, and install

the screw.

SETTING UP YOUR ZOTAC ZBOX

FRONT PANEL

REAR PANEL

1. Connect USB 2.0 devices

2. Connect USB 3.0 devices

3. Connect DP displays

4. Connect HDMI displays

5. Connect to home networks

6. Connect antenna for WiFi

7. Connect power cable

8. Turn on the system

1. Power button

2. Memory card reader (SD/SDHC/SDXC)

3. Power LED

4. WiFi LED

5. Hard drive LED

6. USB 3.1 port

7. Microphone jack

8. Headphone/Audio Out jack

9. USB 3.1 Type-C port

1. Power input (DC19.5V)

2. USB 2.0 ports

3. USB 3.0 ports

4. DP ports

5. HDMI ports

6. LAN (RJ45) ports

7. WiFi antenna connector

234 5

3 4 5

189

15 6 7
