Zorlu ADX-6004 Manual de usuario
COOKER HOOD
USER MANUAL
2
r product.
3
45
1
2
3
2
5
0
2
6
2
20
400
2080
Min695Max975
500
40
5
0
0
5
9
8
,8
9
8
100
4
1

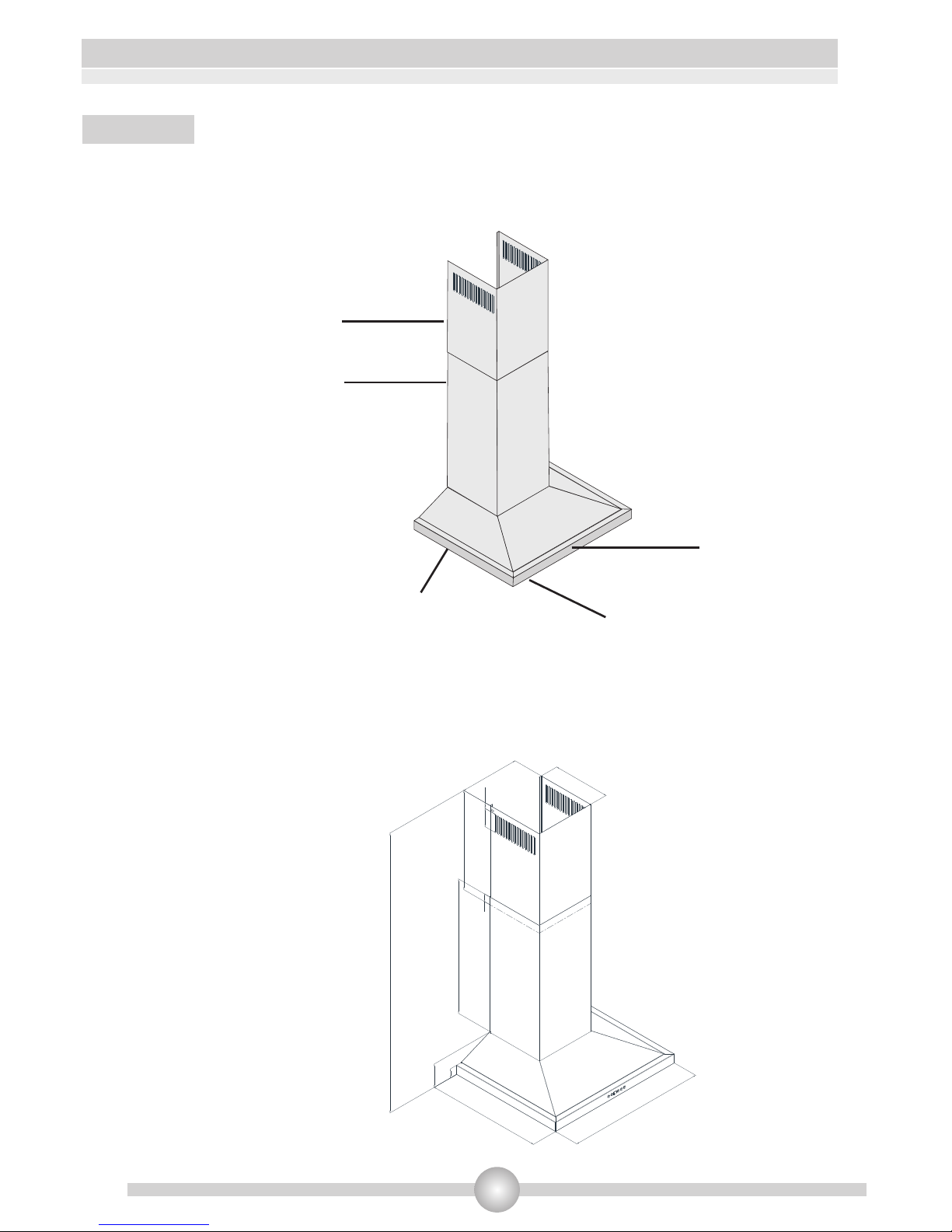

2 External chimney
3. Control panel
4. Cooker lighting
5.Aleminum cassette filter
Internal chimney
INTRODUCTION OF DEVICE
ADX-6004
ADX-9004
MODELS
*This product is designed for usage at
home.
*Your products usage voltage is 220-240
Volts~50Hz
*Grounded plug is used at your product's
electric network cable. This cable should
definitely be plugged in a grounded
socket.
*All electrical networks should be set by
a qualified electrician.
*Installation applied by unauthorized
people may cause the product to operate
at low performance, damage of the
product and accidents.
*Power supply cable should not be
exposed to press or smash during
montage. Network cordon should not be
placed near the cookers; it may cause
fire if it melts.
*Do not plug into the socket before
installation of the product is completed.
*Keep the plug at a reachable place so
that you can unplug it in case of any
danger.
*Do not touch the lamps when they are
on for long time. Lamps may hurt your
hand as they will be hot.
*Kitchen cooker hoods are designed for
usage during normal and home-style
cooking. If it is used for other purposes,
failure risk occurs and it will be out of
warranty.
*Follow applicable rules and directions
for passing out outlet air. (This warning is
not valid for usage without chimney.)
*Flaming foods should not be cooked
under the product.
*Start your product after you put pot,
fry-pan etc. on the hob. Otherwise
high temperature may cause some
parts of your product to get
deformed.
*Before you take pot, fry-pan etc.
from the hob, put their lids on.
*Do not leave hot oil on the hob. Pots
that have hot oil in them may cause
self-ignition.
*Pay attention to curtains and covers
during cooking of meals like frying
because oil may flare up.
*Make sure that filters are changed in
convenience. Filters that are not
changed at appropriate time has risk
of causing fire due to oil that will be
gathered on them.
*Do not use filter materials that are
not flame resistant instead of filter.
*Do not operate your product without
aluminum filter; do not remove filters
when the product is on.
*In case of flame, cut power of the
product and the cooking appliances.
(Cut power of the product by plugging
it off the socket).
*Your product may cause fire risk if
cleaning is not applied periodically.
*Cut power of the product before
maintenance process. (Cut power of
the device by unplugging it)
5
WARNINGS AND SAFETY PRECAUTIONS
*When chimney hood and the
appliances working with energy other
than electricity are operated at the
same time, negative pressure in the
room should not be more than
4 Pa (4 x 10 bar)
*If there is an appliance working with
fuel or gaseous fuel at the same place
with your hood, this appliance's exhaust
should be isolated from its volume
totally and the appliance should be
hermetic type.
*When chimney connection is applied to
your product, use ducts of 150mm or
120mm diameter. Duct connection
should be as short as possible and
should include few bends.
*Keep package materials away from
children as they may be dangerous for
them.
*Be sure that your child does not play
with the product. Do not allow kids to
use your product.
*If power supply cable is damaged,
this cable should be changed by its
producer or its service agency or a
personnel who is a specialist at the
same level in order to prevent a
dangerous situation.
*In case of flame, cut power of the
cooker hood and the cooking
appliances, cover the flame. Never
use water in order to extinguish it.
Use “MAX 6 A” fuse at cooker hood
installment for your security.
Warning about Transportation and Carriage
*All the materials used at package of your product are suitable for recycling.
*Please comply with the signs on the product's box during transportation.
*Hold the holders placed at sides of the box in order to carry your product.
If you need transportation;
*Keep the original box.
*Carry your product in its original box; comply with the carrying signs on the
product's box.
If there is no original package;
*Do not put heavy material on the chimney hood.
*Keep the external surface from bash.
*Pack your product to avoid damages.
-5
6
If the product does not work:
Before you contact the technical service:
Make sure that the product is plugged in and the electric fuse of the electric
wiring is running. Do not take any action that will damage the product. Before
you contact with technical service, check your cooker hood according to Table 2.
If the problem goes on, contact the seller or the most authorized service.
Check electric connection
Check lamp switch
Cooker-hood does not work
Illumination Lamp does
Cooker-hoods air suction
Cooker-hood does not
Check motor switch
Check aluminum filter
(Aluminum Cassette Filter should be washed
once a month at normal conditions.)
Check lamps
(Lamps should be firm.)
Check outlet
(Outlet should be open)
Check Carbon Filter
(Carbon filter should be replaced with a
new one each 2-3 months at the models
with Carbon Filter at normal conditions)
X
X
X
X
X
X
X
X X
X
not work
is weak
direct air out
(at places without
chimney)
(Voltage of the electric network should
be between 220-240V, cooker hood should
be connected to grounded plug.)
(Motor switch should be at on position)
(Lamp switch should be at on position)
Table 2
7
8
3
Figure 5
USAGE
Remove protective foil on your inox product after installation.
Speed Selection The product has 3 ventilation speed choice. Ventilation speed is
selected in accordance with steam of cooking or fry. You may switch on your
product by pressing control buttons on the front panel.
Automatic timer (TIMER) is available at all models with electronic control. When
pressed on any of the motor control buttons for more than 2 seconds, timer
function will be set for 15 minutes. When the timer is on, Display will signal and the
motor will be off automatically in 15 minutes. Please use the cooker and the
product at the same time to enable air circulation. This will have positive effect on
air suction power. We recommend you to operate your product for few minutes
more after the cooking is completed to enable absorption rest of smell and steam.

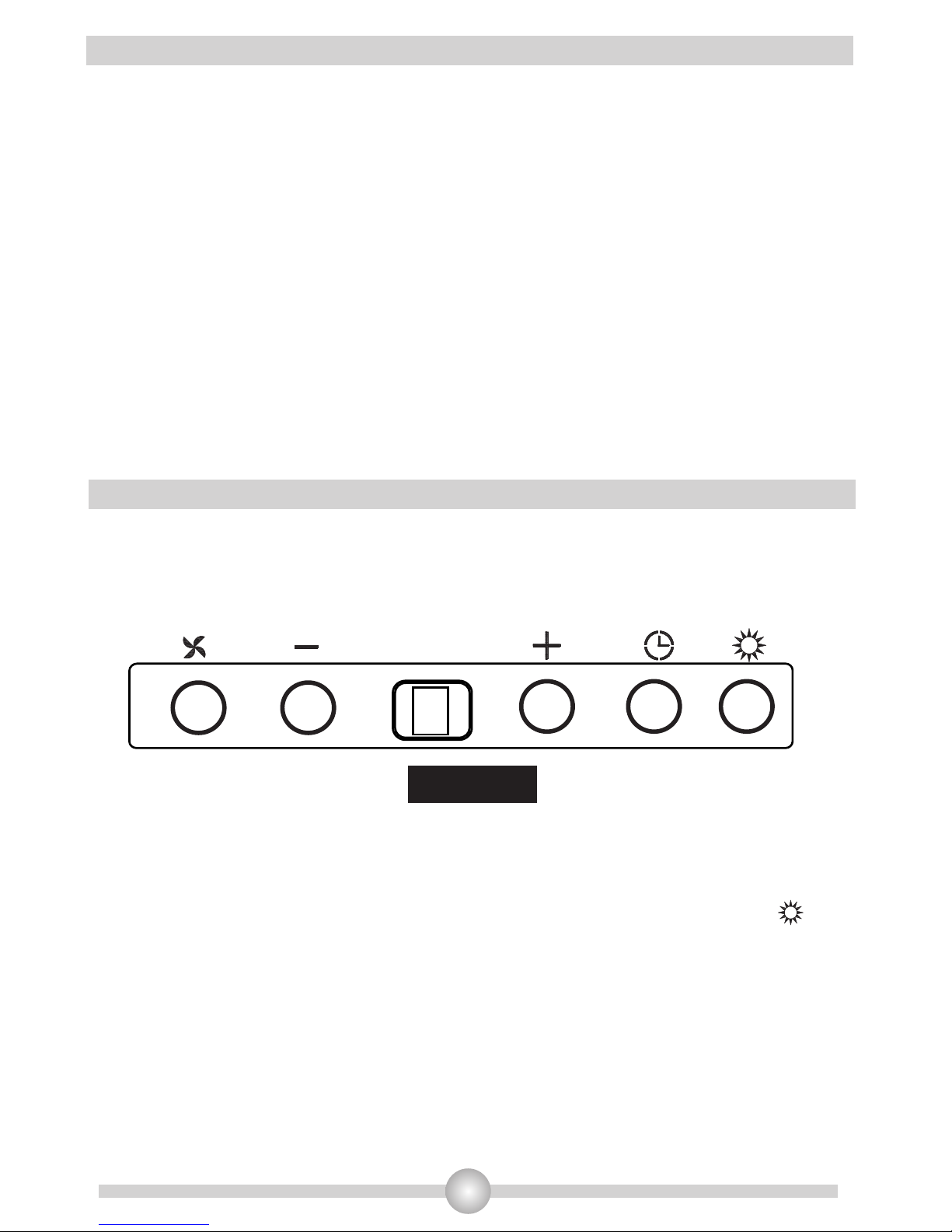

TOUCH BUTTON POSITIONS
Illumination
The product has 2 lamps and one lamp button to operate illumination. Press
lamp button in order to start illumination.
Motor Step Lamp
on/off
Motor
on/off
Cleaning Periods of Aluminum Filter
Filter should be cleaned when “C” signal appears on the Display or each 2-3
weeks (in accordance with the usage frequency). After cleaning and replacing
filters to their places, button should be pressed for more than 3 seconds
(when the product is off) in order to remove the “C” signal. “E” signal will
appear on Display and product will start working at normal position. If you want
to continue using your product without removing “C” signal, active speed will
appear for 1 second when you press button, then “C” signal will appear
once more and the motor will continue operating.
NOTE: “C” signal will appear after you use the product for 60 hours.
9
Picture 19
Picture 18
VEfficient Ventilation
In order to ensure correct ventilation, keep your kitchen windows closed.
IMPORTANT NOTE
Please pay attention when the product is operated at the same time with a product
which operates using air and fuel (for instance; heater, water heater etc. which
operates using gas, diesel fuel, coal or wood), since cooker hood may affect
burning negatively as it directs the air out.
This warning is not valid for usage without chimney.
10
MAINTENANCE
*Disconnect electricity connection before
maintenance and cleaning process.
*Aluminum cassette filter holds the dust and the
oil in the air.
*Metal filter should be washed once in a month
with hot and soaped water or, if possible, at
dishwasher (55C).

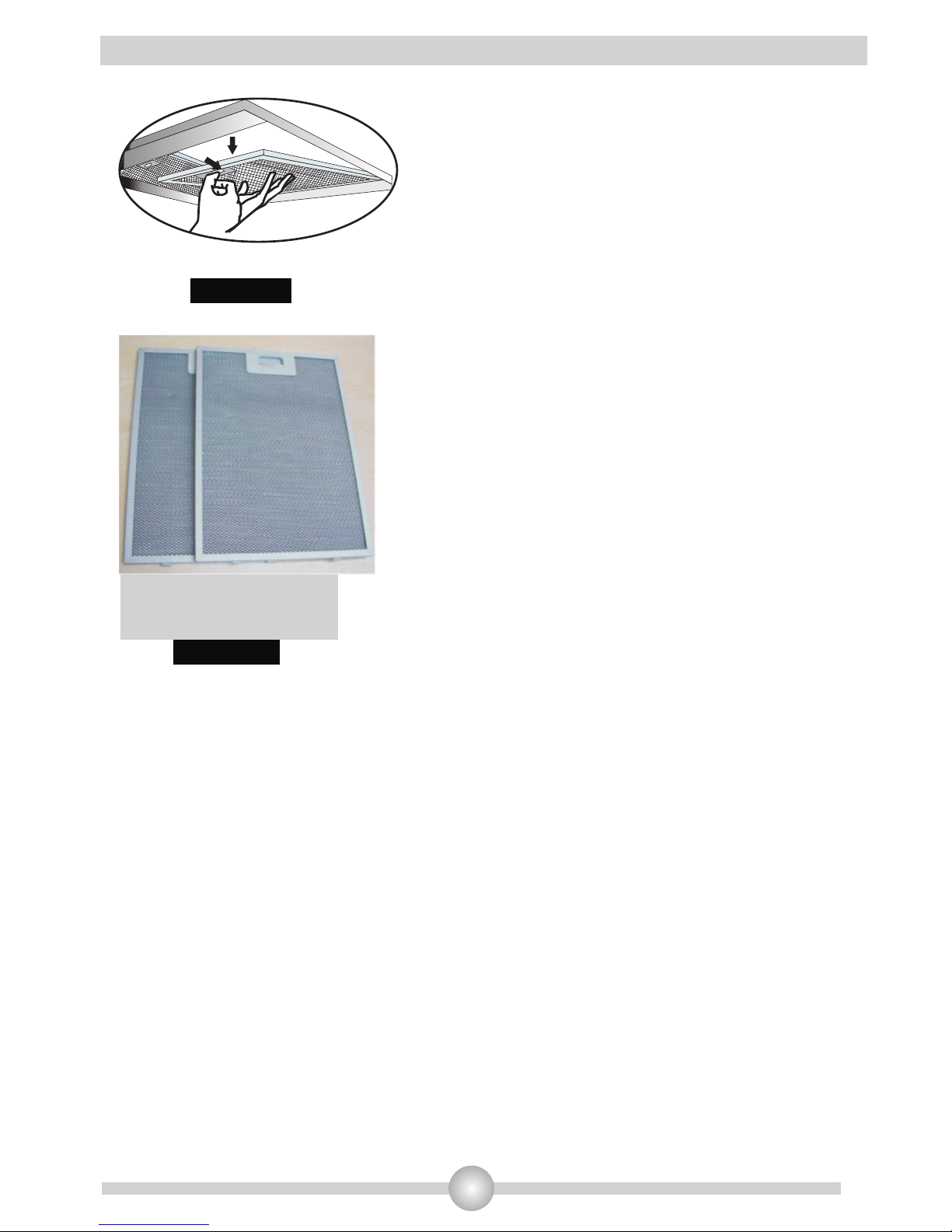

*Take off aluminum cassette filter pressing on
springy latches on end point. After cleaning, do
not replace before it dries.
*Outer surface of the cooker hood should be
wiped with a wet cloth that is wetted with water or
alcohol.
*Please avoid contact of electronic parts with
water or similar materials.
*Using Inox cleaning and maintenance products
available in the market will help your product to
perform longer.
Warning: Aluminum filters may be washed in the
dishwasher. Color of aluminum filters may change
after several washings. This is normal and it is not
necessary to change the filters.umdur ve filtrelerin
deðiþtirilmesini gerektirmez.
Washable Aluminum
Cassette Filter
