Owner’s Manual

H0379900 Rev B

English

For customer service or support:

Zodiac Group Australia

219 Wood park Road

Smithfield, NSW 2164

1800 688 552

Important Information

WARNING

RISK OF SUCTION HAZARD, WHICH IF NOT AVOIDED, CAN RESULT IN SERIOUS INJURY OR DEATH.

READ THIS MANUAL IN ITS ENTIRETY BEFORE INSTALLING AND OPERATING THE CLEANER.

Do not block the suction fittings in the pool, the suction opening on the cleaner, or the cleaner hoses with any

part of your body. Do not expose your hair, loose clothing, jewellery, etc, to any suction outlet fittings in the

pool/ spa or on the cleaner.

Notice for Vinyl Liner Pools: Before installing your pool cleaner, examine the interior of your pool

carefully. If the vinyl liner is brittle or has stones, wrinkles, roots or metal corrosion in contact with the

underside of the liner, or has damage to the base material or supporting walls, do not install the cleaner

before having a qualified professional perform the necessary repairs or liner replacement. Zodiac Group

Australia Pty Ltd (Zodiac) will not be responsible for liner damage caused by a cleaner which

is in disrepair, pattern removal from a vinyl liner, or a cleaner used in a pool having an aged or

deteriorated liner. Please see Limited Warranty.

• Clean the skimmer basket, pump basket and pool filter before installing the cleaner and on a

regular basis thereafter.

• Always disconnect the cleaner from the pool wall or skimmer before cleaning or backwashing the

pool filter. After cleaning or backwashing, let the filtration system run for at least five (5) minutes

before re-connecting the cleaner.

• Remove the cleaner from the pool before chemical or shock treatments. Wait a minimum

of four (4) hours after super chlorination before re-installing the cleaner.

Read owner’s manual completely before operating the cleaner.

Remove cleaner before entering the pool.

Do not operate outside of the pool.

Do not let children play with cleaner.

Congratulations on the purchase of your new Zodiac B3 automatic pool cleaner. Your Zodiac B3 is

designed and manufactured for easy installation, and years of carefree operation. Before installing the

cleaner, please take a few moments to become familiar with its components and to review the items

listed under Important Information.

Like most mechanical devices, the Zodiac B3 requires periodic adjustments, routine maintenance, and

the replacement of certain hardworking parts. Be sure to have the Zodiac B3 checked occasionally by

your local Zodiac dealer or service center.

Always insist on genuine Zodiac® replacement parts. Non-Zodiac parts are not made to our specifications.

They may have an adverse effect on the operation of your Zodiac B3 or may even damage it.

Zodiac B3 Complete Cleaner

1. Cleaner Body

2. AD Flow Valve & Connector

3. Universal Weir Cuff

4. Hose mesh

English

5. Hose Weight

6. Pool Pulse™

7. Hose Section

8. Rotating Wheel Deflector with Quick Connector

9. 90 Degree Elbow

Introduction

e g

i k

English

1. Before You Start

For best Zodiac pool cleaner performance, you will need to follow the following steps of the installation.

1.1 Following manufacturer’s instructions, clean the filter and empty the skimmer and the pump strainer

basket.

1.2 If your main drain is connected to the skimmer box, block off access.

1.3 Manually vacuum the pool.

1.4 Ensure circulation system is operating at maximum water flow,

or you will need to re-adjust when it comes to clean the filter baskets.

1.5 Adjust water flow, from all return inlets: -

a) Downward and toward each other OR

b) Downward and toward the centre of the pool.

If return inlet directional fittings can’t be directed far enough

down to prevent water flow affecting the natural movement

of the Zodiac hose, you will need to install Zodiac return line

diverters. These are available from your local Zodiac dealer.

2. AD Flow Valve

The AD Flow valve works by regulating the flow through the pool cleaner to the pump.

As the filter collects debris, the valve will automatically maintain the correct flow.

The installation of the AD Flow valve will depend upon the type of skimmer box and

Vac plate you have. It is either installed straight in from the top of the Vac plate or

from the bottom of the Vac plate.

See the 4 different cases below.

1st case: with Waterco Skimmer Box

Screw in the AD Flow valve connector into the top of the Vac plate

2nd case: with Poolrite Skimmer Box

Screw in the AD Flow valve connector into the bottom of the Vac plate.

3rd case: with Speed Regulator/Skimtrol Vac Plate

Simply connect the 90 Degree Elbow into the top of

the Vac Plate.

Installation

















90 Degree Elbow

Speed Regulator

English

Installation

4th case: with any other type of Skimmer Box and Vac plate

Simply insert the AD Flow valve directly into the

universal weir cuff which will then fit into the top of

the Vac plate.

Note:

The AD Flow valve has three settings: High (3), Medium (2) and Low (1). To deliver the maximum pool

cleaning efficiency, the AD Flow valve comes preset at a factory setting of 2. You will need to adjust the

AD Flow valve when and if a problem occurs.

AD Flow valve trouble shooting

3. Assemble the hose sections

The hoses are fitted with easy Twist-Lock connectors. Push and twist the hose connectors on each hose

section until they lock into position with a clicking sound. See drawing below.

3.1 Assemble the hose sections starting from the skimmer box until you reach the furthest point of

your pool and add 2 extra sections. Add the hose weight on the last section as per drawing below,

approximately 1m away from the cleaner.

Problem Solution

The Zodiac pool cleaner is performing too fast and/ or

climbing above the level of the water.

Reduce AD Flow valve to setting 1

The Zodiac pool cleaner is performing slowly and /or is not

climbing the pool walls.

Increase AD Flow valve to setting 3

WARNING

To avoid any serious injury, turn off the pool pump before proceeding to this step.

































AD Flow valve

Universal Weir Cuff

3.2 Connect the hose to the valve in the skimmer box.

3.3 Submerge the whole hose under water until there is

no air left in the hose.

English

Installation

4. Attach the wheel deflector ring

The wheel deflector ring can be used to help direct the cleaner around

steps and other obstacles in the pool.

Keep the hose under water and attach the wheel deflector by

twist-locking the Quick connector to the female hose cuff.

5. Test and adjust water flow with Pool Pulse™

5.1 Pool Pulse™ measures the required water

flow through your Zodiac pool cleaner.

5.2 Once the hose sections are assembled, and

the wheel deflector ring in place, connect

the Pool Pulse™ by pushing the connector

into the pipe until it clicks in place.

NOTE:

a. If the Pool Pulse™ reads more than 2.5, then decrease the AD Flow Valve setting at 1 to decrease

suction flow.

b. If the Pool Pulse™ reads less than 2.5, then increase the AD Flow Valve setting at 3 to increase the

suction flow.

c. For 3rd case with speed regulator/Skimtrol Vac plate - adjust the regulator on the Vac plate

accordingly to receive a reading of 2.5 on pool pulse

Once this step is achieved, you can then disconnect the Pool Pulse™ and replace it with the head of

the cleaner.

6. Connect the cleaner head

WARNING

To avoid any serious injury and before starting step 6, turn off the pool pump.

6.1 Submerge the cleaner head and flow it with water.

6.2 When bubbles stop coming out of the cleaner, connect the hose

to the cleaner by pushing the quick connector onto the outer

extension pipe until it locks into position with a clicking sound.

6.3 Allow the cleaner to drift to the bottom of the pool.

6.4 Turn on the pool pump to begin cleaning. Installation is complete.

IMPORTANT: Turn on the pump to measure

suction. For best performance, the Pool Pulse™

needs to read 2.5.

Extremity of the hose

with Wheel Deflector

and Quick Connector. Pool

Pulse™

English

Operation and Maintenance

Fine Tuning Cleaner Performance

The B3 cycles on/off with the pool filtration pump vacuuming and cleaning all surfaces randomly

throughout the pool. The coverage of the cleaner is dependent on the pool’s shape and available water

flow. In some pools, adjustments may be necessary to optimise cleaning coverage.

Properly Balanced Hose

A properly balanced hose will create a

45º angle to the cleaner and the bottom

of the pool.

In pools 8 ½ ft. (2.5 m) or deeper, an

extra hose weight may be necessary.

Attach the extra weight 5 - 8 ft.

(1.5 - 2.5 m) from the cleaner.

Return Line Installed

A return line can be used to guide the cleaner away

from steps or areas with V-shaped corners, and

reduce patterning.

Direct the return line to gently push the cleaner

hose by positioning the return directional eyeball

so it aims towards the wall on the opposite side

of the pool. Adjust until surface movement is

visible 8 ft. (2.5 m) out from the return.

In this example, any return within the grey area

can be used.

Routine Maintenance

To maintain performance:

• Never coil the hose. Straighten coiled or kinked hoses with warm water or by laying hoses straight

in the sun for several hours until heated, then reshape manually. A kinked or coiled hose will

adversely affect the cleaner’s coverage of the pool.

• When the cleaner is not in the pool, keep the disc flat to avoid warping.

• Periodically inspect cleaner parts for wear. Replace the footpad when the depths of the channels

between the treads are 1/16 in. (1.6 mm) or less.

• Thoroughly clean the skimmer basket, pump basket and filter regularly.

• Always disconnect the cleaner from the pool wall or skimmer before cleaning or backwashing the

pool filter. After cleaning or backwashing, let the filtration system run for at least five (5) minutes

before re-connecting the cleaner.

English

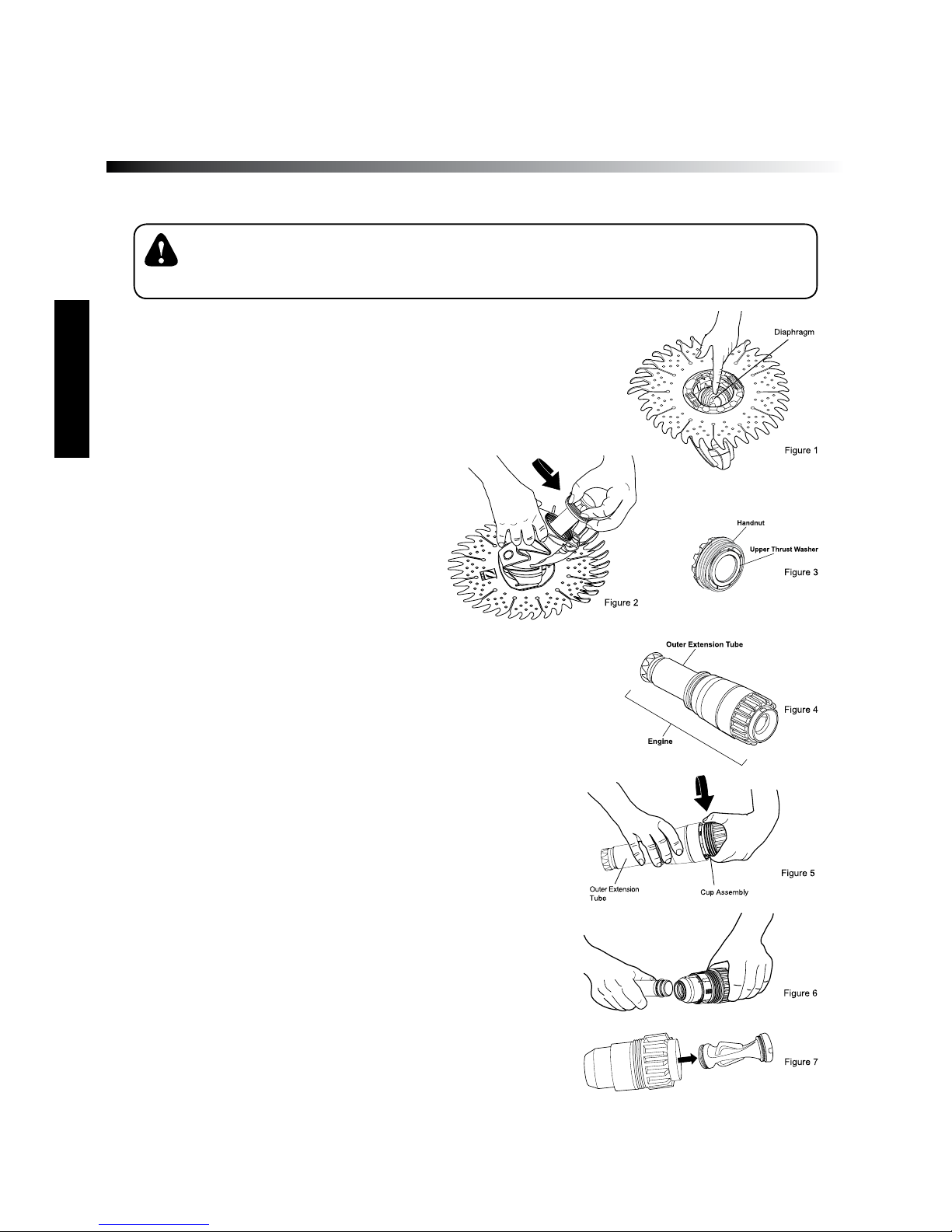

Clearing the Diaphragm

WARNING

To avoid serious injury, turn off the suction pump for the cleaner before performing this step.

If the cleaner stops, turn off the suction pump and remove the cleaner

from the water, then check the diaphragm for blockage.

1. Turn cleaner over (see Figure 1).

2. Inspect diaphragm and push through debris or obstacles to clear.

If the diaphragm is not blocked, check it for wear or damage.

To remove the diaphragm:

1. Unthread the handnut and slide it off

the engine outer extension tube (see

Figure 2), and set aside.

The upper thrust washer is designed

to stay inside the handnut and detach

as a single unit. (See Figure 3.)

2. Remove the engine (Figure 4) from the cleaner body.

3. Unscrew the cup assembly, remove outer extension tube

and set aside (see Figure 5).

4. Pull inner extension tube firmly away from cup assembly

to separate (see Figure 6), and set aside.

5. Remove diaphragm from cup assembly (see Figure 7)

and inspect for foreign objects or wear. Rinse thoroughly

with clean water before reinstalling. Replace diaphragm if

necessary.

Operation and Maintenance

English

Operation and Maintenance

To reinstall the diaphragm:

1. Attach diaphragm to inner extension tube (see Figure 8).

2. Insert inner pipe and diaphragm into cup assembly. Align

diaphragm tabs with notches and pull straight through

(do not twist) until the edge of the diaphragm is visible

(see Figures 9 and 10).

3. Thread the outer extension tube onto the cup assembly and

tighten (see Figure 11).

4. Verify the thrust washer is still in place inside the handnut.

Insert the engine into cleaner body, slide the handnut over

the engine extension tube and tighten (see Figure 12).

5. Make sure the extension tube swivels freely by spinning it

(see Figure 13).

Storage and Winterizing

Never coil the hose. Store the B3 cleaner out of direct sunlight.

When storing for the winter, drain all water from the cleaner.

Remove all connectors and adapters from the dedicated

suction line or skimmer. Store the disc flat, and hose sections

disconnected, drained and straight.

English

Troubleshooting

If you experience a problem with your Zodiac B3, please follow the troubleshooting steps below to

restore performance. If further assistance is required, contact Zodiac® Technical Support Department at

1800 688 552. Please have your serial number and date of purchase available when you call.

Problem Solution

Cleaner does not move or

moves slowly.

•Use Pool Pulse™ to verify proper flow.

•Confirm that the main drain is closed.

•Check diaphragm for blockage, damage or wear.

•Backwash filter and empty pump basket.

•Check for air in system. If water level in pump basket drops or

you see excessive air bubbles in the pump basket or coming

from the return lines, there is air in the system. Check hose

connections, tighten all fittings at pump and check o-ring at

pump basket for wear.

Cleaner patterns, does not cover

entire pool.

•Use Pool Pulse™ to verify proper flow. Reduce flow to move

cleaner off the walls

•Ensure return fittings are directed down. Add a return diverter if

necessary.

•Make sure hose is not coiled or kinked. Lay in sun to straighten

if necessary.

•Verify correct hose weight positioning: 1 m from cleaner.

•Verify that the engine assembly spins freely inside the cleaner

body.

•Confirm proper hose length.

Cleaner gets stuck at steps. •Use Pool Pulse™ to verify proper flow.

•Confirm proper hose length. Shorten if necessary.

•Use return jets to guide cleaner.

•Reposition the wheel deflector along the hose to better contact

steps and push the cleaner aside.

Cleaner stays on walls or edge

of pool.

•Using Pool Pulse™ as guide, reduce flow to number 2 setting.

•Verify correct hose weight positioning: 1 m from cleaner.

Cleaner won’t climb walls. •Use Pool Pulse™ to verify proper flow, number 2.5 setting.

•Verify correct hose weight positioning: 1 m from cleaner.

Otros manuales para B3

Tabla de contenidos

Otros manuales de Aspiradora de piscina de Zodiac

Zodiac

Zodiac EP31 Series Manual de usuario

Zodiac

Zodiac VOYAGER RE 4100 Manual de usuario

Zodiac

Zodiac SpaWand Manual de usuario

Zodiac

Zodiac EN11 Series Manual de usuario

Zodiac

Zodiac Vortex EC11 Manual de usuario

Zodiac

Zodiac ALPHA iQ Manual de usuario

Zodiac

Zodiac MX6 Elite Manual de usuario

Zodiac

Zodiac VX65 iQ Vortex-Pro Manual de usuario

Zodiac

Zodiac Kontiki 2 Manual de usuario

Zodiac

Zodiac Ranger Manual de usuario

Zodiac

Zodiac MX6 Elite Manual de usuario

Zodiac

Zodiac Vortex 3 Manual de usuario

Zodiac

Zodiac Super G+ Manual de usuario

Zodiac

Zodiac VX55 4WD Manual de usuario

Zodiac

Zodiac Automatic Pool Cleaner Manual de usuario

Zodiac

Zodiac Zippy Manual de usuario

Zodiac

Zodiac T5 Duo Manual de usuario

Zodiac

Zodiac Baracuda G3 Manual de usuario

Zodiac

Zodiac Vortex OV 3450 Manual de usuario

Zodiac

Zodiac T3 Manual de usuario

Zodiac

Zodiac VORTEX 1 Manual de usuario

Zodiac

Zodiac LAZERNAUT Manual de usuario

Zodiac

Zodiac Vortex OV 3300 Manual de usuario

Zodiac

Zodiac MX6 Elite Manual de usuario

Manuales populares de Aspiradora de piscina de otras marcas

POOLGOODS

POOLGOODS PoolGobbler Pro Manual de usuario

AREBOS

AREBOS AR-HE-BSR Hoja de información del producto

Maytronics

Maytronics Dolphin POOL UP Manual de usuario

iRobot

iRobot Verro 600 Manual de usuario

Kokido

Kokido SKOOBA K535CBX/18/EU Manual de usuario

Dolphin

Dolphin 2x2 Gyro Manual de usuario

SmartPool

SmartPool Robo-Kleen PLUS Manual de usuario

Brilix

Brilix BARACUDA Manual de usuario

Aiper

Aiper Orca 1200 Pro Manual de usuario

Hayward

Hayward Navigator Pro Manual de usuario

Polaris

Polaris Vac-Sweep 380 Manual de usuario

Pentair

Pentair Prowler 710 Manual de usuario

BWT

BWT D500 Manual de usuario

Kokido

Kokido xtrovac 70 Manual de usuario

Pentair

Pentair RACER Manual de usuario

Pentair

Pentair REBEL 2 Manual de usuario

SmartPool

SmartPool Robo Kleen Plus Manual de usuario

Steinbach

Steinbach Twin Manual de usuario
