ZKTeco QRM10 Manual de usuario

User Manual

QRM10/QRM10L/QRM10X

Date: March 2021

Doc Version: 1.0

English

Preface

Thank you for choosing our product QRM10 series QR code collector. Please read this User

Manual carefully before use.

We strongly believe that the QR code collector will provide you and your customers with an

outstanding user experience and will elevate your brand image and management to a

higher level.

Please do not optionally dismantle the product or modify the system settings without

professional instructions, as this could compromise the product’s quality and service life.

Please contact the local dealers if you have any questions.

Contents

1. Introduction........................................................................................................................................1

2. Features................................................................................................................................................3

3. Technical Specifications .................................................................................................................3

4. Scanning ..............................................................................................................................................4

5. Communication Mode Settings...................................................................................................5

6. Driver Installation........................................................................................................................... 12

Notes................................................................................................................................................................ 14

Statements concerning Human Rights Privacy ................................................................................ 15

1. Introduction

QRM10L, QRM10X QR code collector is a highly integrated, high-performance QR code

collector that includes the QR code scanning engine algorithm and driver. The product

has a delicate appearance and is equipped with a high-speed processor, making it

suitable for all types of users. The collector supports Windows, Android, and Linux

operating systems.

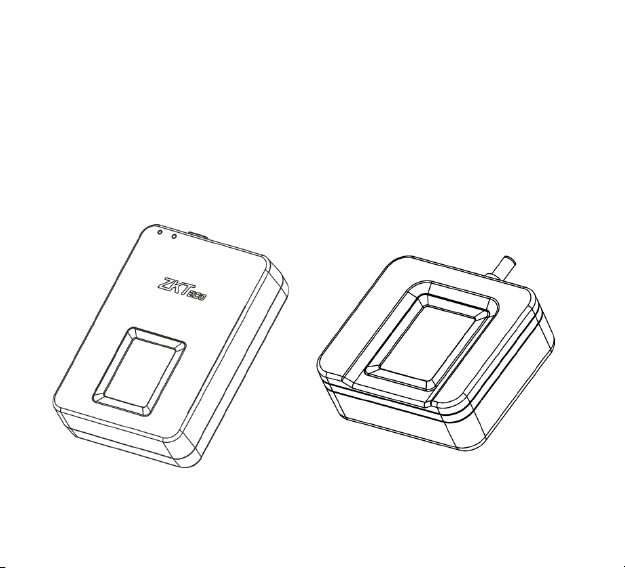

QRM10L QRM10X

The QRM10 module is a compact optical module. It not only has all the functions of the

collector, but it can also integrate applications with various products in a flexible manner

without the use of any accessories.

QRM10

2. Features

•It is the most recent and precise QR code Identification Technology.

•It is compatible with Windows, Android, and Linux operating systems.

3. Technical Specifications

Features Specifications

Scanner Type QRM10L and QRM10X

Material

Optical

Dimensions (L * W * H) QRM10L: 75.5 * 53.2 * 19 mm

QRM10X: 49 * 44 * 20.1mm

Operating System Windows, Linux, and Android

Scanning Angle Roll: 360°, Pitch: ±40°, Yaw: ±60°

FOV Horizontal: 66°, Vertical: 50°

Image Size

648 * 488 pixels

Illumination Intensity 0 to 10000 Lux

One-dimensional Code

Types

UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, EAN-14,

EAN-128, UCC128, ISBN/ISSN, CODE11, CODE32,

CODE39, CODE39 Full ASCII, CODE93, CODE128,

interleaved 2 of 5, industrial 2 of 5, Matrix 2 of 5, China

post code, UK/Plessey, and GS1

Types of QR Code QR code, PDF417, Data Matrix, MicroPDF417, and

Aztec

Operating Temperature

-10°C to +50°C

Operating Humidity

5% to 93% RH (Non-condensing)

Operating Voltage

5.0V±0.25V (USB)

Operating Current

(Working Mode)

240mA

Operating Current

(Idle Mode)

50mA

Anti-static Voltage ≥8kV

Product Certifications FCC, CE, RoHS

Communication Interface USB keyboard, USB HID

4. Scanning

Depth of Field

Code Type Barcode Size Content Byte Size Scanning Distance

Code128 6mil 6 bytes 5 to 6cm

Code128 12.5mil 15 bytes 10 to 15cm

Qrcode 40mil 28 bytes 5 to 25cm

5. Communication Mode Settings

•The module’s default communication mode is the USB HID protocol, with the header

and the tail of the data added.

To switch back to factory settings, scan:

Change the communication mode individually, set it to USB HID mode, and scan

the setting code:

•USB virtual serial port mode

Scan the following code to switch to the USB virtual serial port mode, baud rate

115200, 8 data bits, 1 stop bit, and no parity bit.

•USB keyboard mode

Scan the setting code below to switch to USB keyboard mode, and the carriage

return suffix is automatically added.
