Safety Precautions

Electrical safety

•Before connecting an external cable to the device, complete the grounding properly and set up

surge protection; otherwise, static electricity will damage the mainboard.

•Ensure that the standard voltage applicable in your country or region is used (the rated voltage of

the machine is 220V). Power mismatch may cause short circuit or device damage.

Operation safety

•The device hardware may be damaged by transportation and other unpredictable causes. Check

whether the device has serious damage before installation. If the device has major defects, contact

your dealer as soon as possible.

•Do not connect or disconnect cables to/from the device when it is in working state.

•Do not keep the device in a place that vibrates. Handle the device with care. Do not place heavy

objects on top of the device.

•Do not apply rosin, alcohol, benzene, pesticides, and other volatile substances that can damage

the device enclosure. Clean the enclosure with a piece of soft cloth or a small amount of cleaning

agent.

•Non-professional personnel is not allowed to open the device cover. If you have any technical

questions regarding usage, contact certified or experienced technical personnel.

LPRC200 User Manual

1Overview

1.1 About the Product

The LPRC200 is a high-performance H.264/H.265-based license plate recognition camera and it has the

properties of:

•Integrating HD imaging

•Image collection

•License plate recognition

•Image decompression

•Storage of data on an embedded intelligent platform.

It automatically identifies the numbers, letters, and characters on license plates, and outputs the identified

results. At the same time, it can identify vehicle details (such as colors, auto logos and vehicle models). It is

mainly used in the field of parking charge and entry/exit management.

1.2 Features

•High-performance architecture of dual-core processors, stable system architecture, powerful

computing capacity, embedded capture, analysis and recognition features.

•Adopt modular structure design to ensure normal work under harsh environment.

•Complete SDK can support secondary development docking, system integration is simple.

•The algorithm is stable and reliable, with strong scene adaptability, and supports the recognition

of ordinary blue, black, yellow, double-layer yellow and multiple national license plates.

•Support vehicle feature recognition, including body color, logo and vehicle type.

•1/2.8" wide dynamic CMOS, 2 million HD lens, high-quality images, resolution up to 1920*1080.

•License plate recognition accuracy reaches more than 99% in the daytime and more than 98% at

night, with a wide range of recognition angles.

•4G module is optional to meet the construction requirements of field communication cabling free.

•It can support remote connection and debugging of equipment by mobile phone APP and

computer client and set parameters. It is not distance-limited and can be readily adapted anytime

and anywhere to simplify the operation, maintenance, installation and debugging of the product.

LPRC200 User Manual

1.3 Appearance

1.4 Port Definition

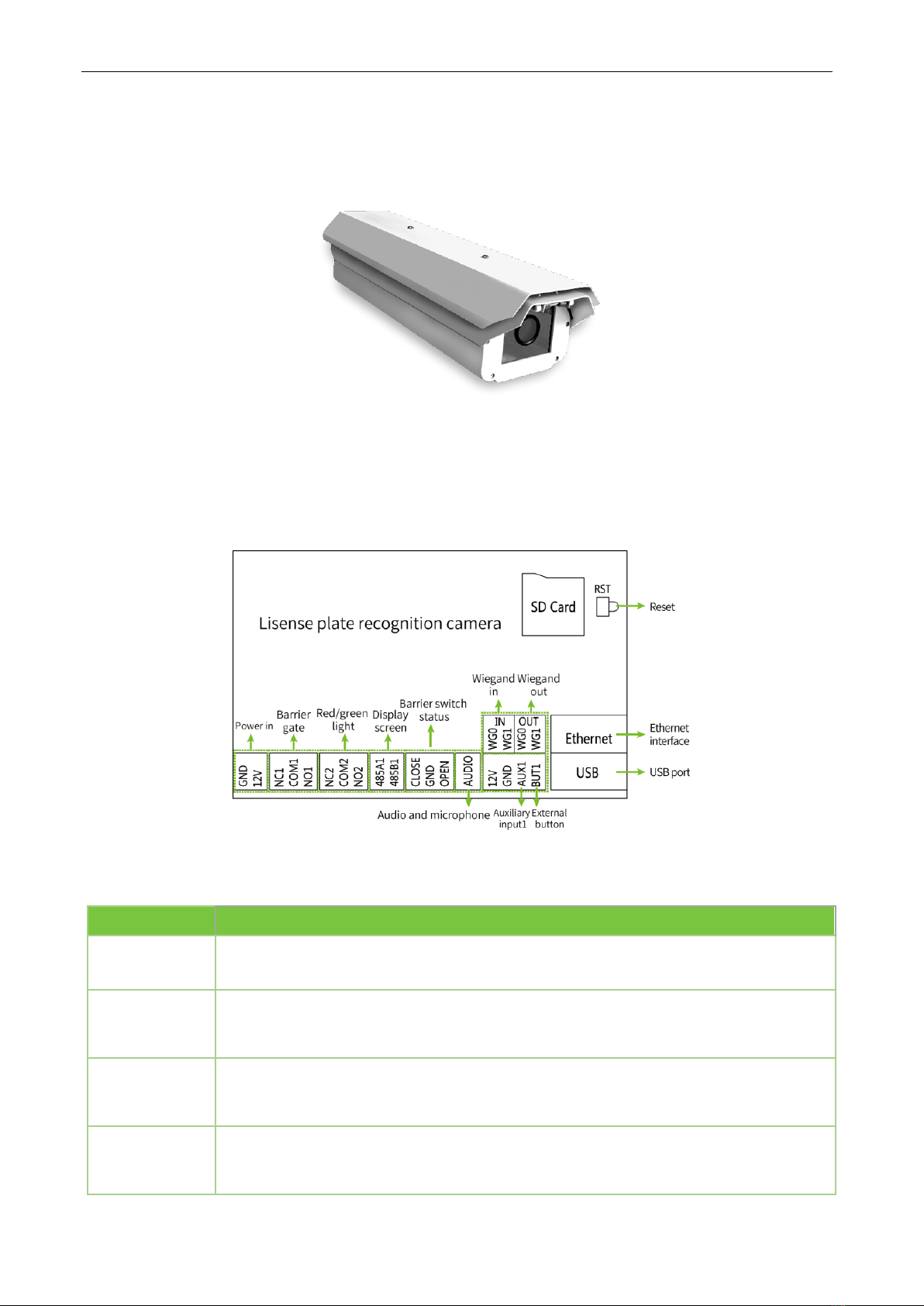

•Wiring terminal diagram:

•Port description:

Description

Reset Used to restore the original camera parameters

Ethernet Standard Ethernet RJ45 socket, 10M/100M self-adaptive, can be con;5nected with

various network devices, such as switches, routers, hubs, etc.

USB USB connection

GND

+12V

Used to connect the power adapter. The camera's power supply voltage is 12V/3A

DC. Do not use other power sources to prevent damage to the camera.

LPRC200 User Manual

NC1

COM1

NO1

Used for connecting barrier gate

NC2

COM2

NO2

Indicator light connection (Red and Green)

485A1

485B1

RS485 transmission function used to connect the display screen and voice module of

parking system

GND

OPEN

Barrier switch status

Audio Used to connect audio and microphone of the parking system

WG0

WG1 IN Wiegand in

WG0

WG1 OUT Wiegand out

12V

GND

AUX1

BUT1

Auxiliary input and external button connection

Tabla de contenidos

Otros manuales de Cámara IP de ZKTeco

ZKTeco

ZKTeco ZKIR532 Guía del usuario

ZKTeco

ZKTeco ZKIR5 Manual de usuario

ZKTeco

ZKTeco 8000 Series Manual de usuario

ZKTeco

ZKTeco ZKSD3 Series Manual de usuario

ZKTeco

ZKTeco ZKMD372 Manual de usuario

Manuales populares de Cámara IP de otras marcas

FLIR

FLIR Exx series Manual de usuario

Avigilon

Avigilon H4A-BO1-IR Manual de usuario

Digital Watchdog

Digital Watchdog DWCA-C128-64 Manual de usuario

ShareTech

ShareTech AV1 Manual de usuario

Ezviz

Ezviz C6C Manual de usuario

Melchioni

Melchioni UCAM 2015 Manual de usuario

Geutebruck

Geutebruck G-Cam/ESD-4630 Manual de usuario

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Manual de usuario

Mitel

Mitel 6800i Series Manual de servicio

Vitek

Vitek VTC-IR403-212NP Manual de usuario

THOMSON

THOMSON DSC - 323W Manual de usuario

AVer

AVer FB2027 Manual de usuario

ENFORCER

ENFORCER EV-T5105-N2SQ Manual de usuario

Wansview

Wansview NC543 Manual de usuario

Eneo

Eneo MCB-64A0003M0A Manual de usuario

deView electronics

deView electronics CBDNI36F Manual de usuario

Swann

Swann SwannEye Manual de usuario

LevelOne

LevelOne IP CamSecure Manual de usuario
