Zephyr ARC Z1C-00SL Manual de usuario

customer service

1.888.880.8368

Mounting the duct cover Pag. 4

Fixation des cheminees Pag. 6

Fijación de las chimeneas Pag. 8

Fissaggio dei camini Pag. 10

Duct Cover Extension

Z1C-00SL

For use with Surface Is. range hood

www.zephyronline.com

DUCT COVER EXTENSION SPECIFICATION

Min. 47-3/16" - Max. 79"

- 2 -

MOUNTING THE DUCT COVER

1. Before installing the duct cover extension kit, take out the duct cover ceiling bra-

cket fom the range hood packaging and remove the bracket by unscrewing the (4)

screws.

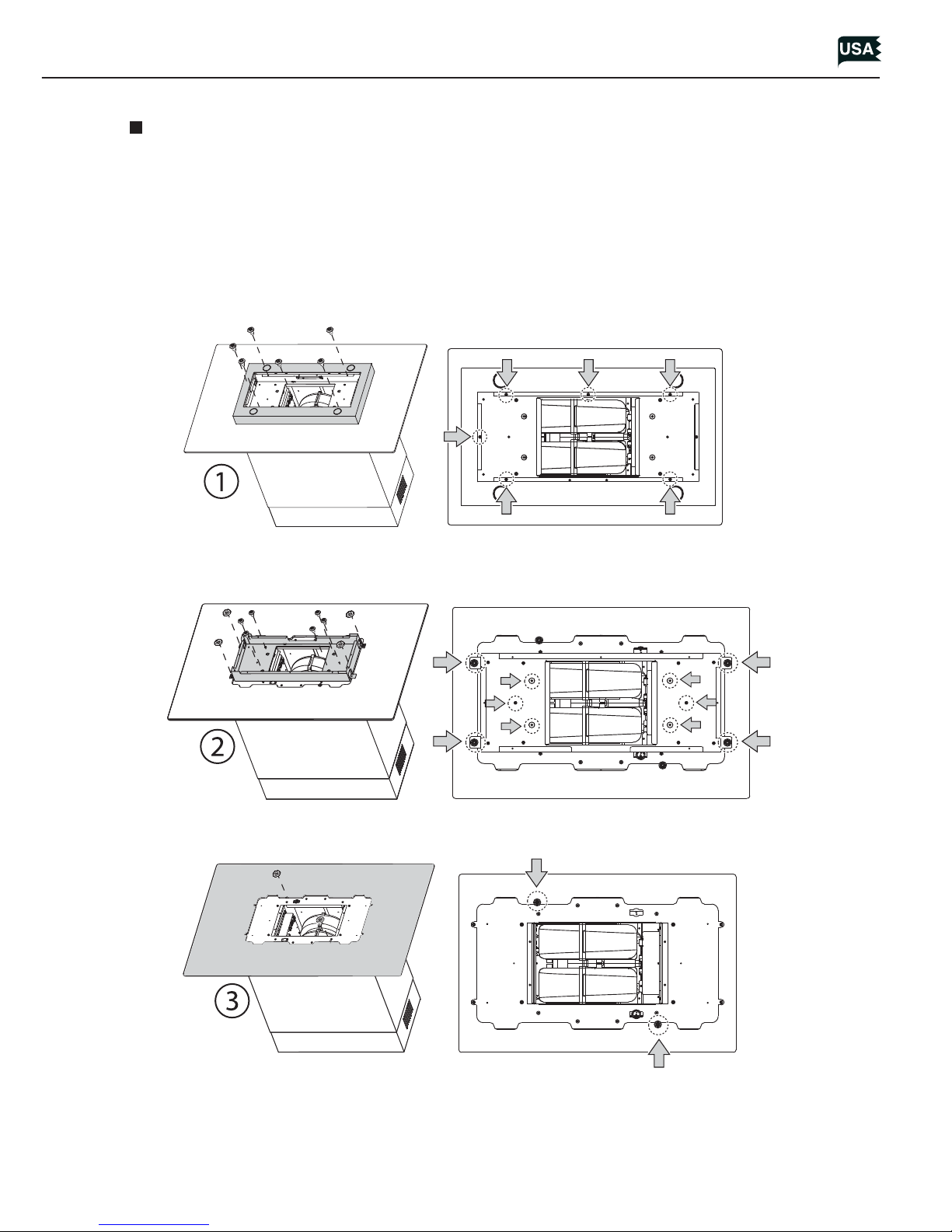

2. Remove the duct cover from the hood assembly, according to the following steps:

A - Take out the lower mantle by removing the (7) screws. Fig. 1

B - Take out the spacer, by removing the (6) plus (4) metric screws and the bushes.

Fig. 2

C - Take out the two additional bushes that secure the glass. Fig. 3

3. Take the lower duct cover from the duct cover extension kit and secure it to the

hood assembly by following the instructions from step 2 in reverse order.

Installation - Mounting the Duct Cover

- 3 -

www.zephyronline.com

4. Remove the (2) screws to unlock the top support frame from the bottom support

frame. Fig.4.

5. Secure the top support frame to the duct

cover ceiling bracket by using the (4)

screws. Fig. 5

6. Position hole template on the ceiling paying

attention that the arrow is positioned on

the same side as the range hood controls.

- Make 4 holes in the ceiling and drive in (3)

screws without completely tightening

them. Pay attention not to insert the screw

into the hole marked with an X on the hole

template. Fig.6

7. Lift the hood assembly to the ceiling and

align the top support frame and ceiling bra-

cket with the (3) screws previously installed

in the ceiling.

Rotate assembly slightly clockwise to lock in

place.

Drive in the fourth screw and tighten the re-

maining 3 screws to secure the structure in

place with con ulteriori (4) viti. Fig.6

8. Insert the bottom support frame into the

top support frame. Fig.7

Installation - Mounting the Duct Cover

5 - 1/2"

24"

X = C - (5-1/2" + 24" + B)

- 4 -

Adjust height by referring to the diagram in g.8.

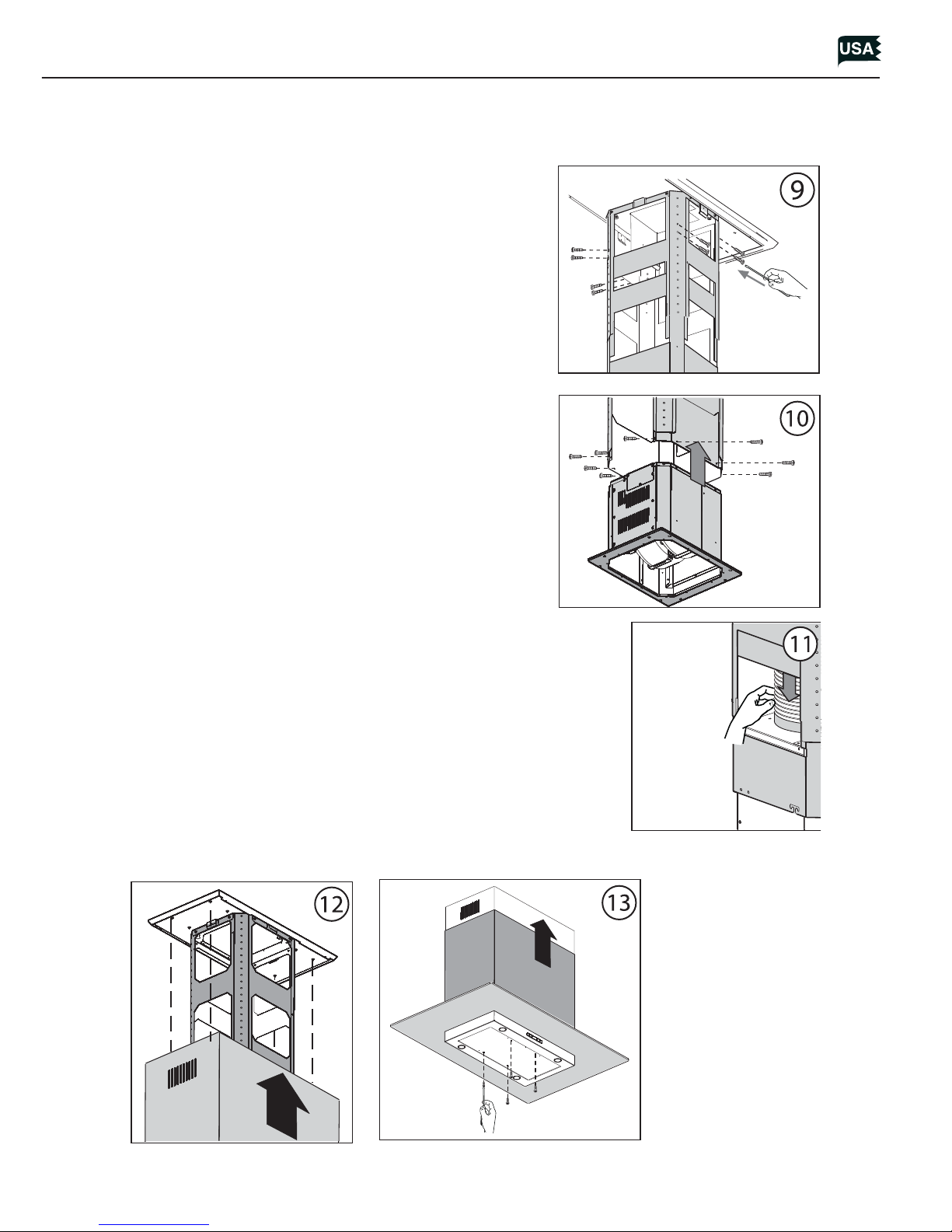

Secure the support frames together using (2)

screws per extension arm (8 total). Fig.9

9. Insert the motor housing into the support frame

assembly and secure it using (8) screws. Fig.10

10. Connect the equipment to the power supply.

11. Secure the correct size ducting for your instal-

lation (not supplied) to the collar on top of the

housing. Fig.11

12. Extend upper duct cover to the ceiling and

secure it to the duct cover ceiling bracket using

the (4) screws previously removed when the as-

sembly was taken out of the packaging. Fig. 12

13. Lift the hood assembly into the top duct cover.

Secure hood assembly to bottom support frame by using

(4) screws. Fig. 13

14. Verify that ducting from hood is connected to ducting

in the attic that will exhaust air out of the home.

Installation - Mounting the Duct Cover

- 5 -

3FA0174
