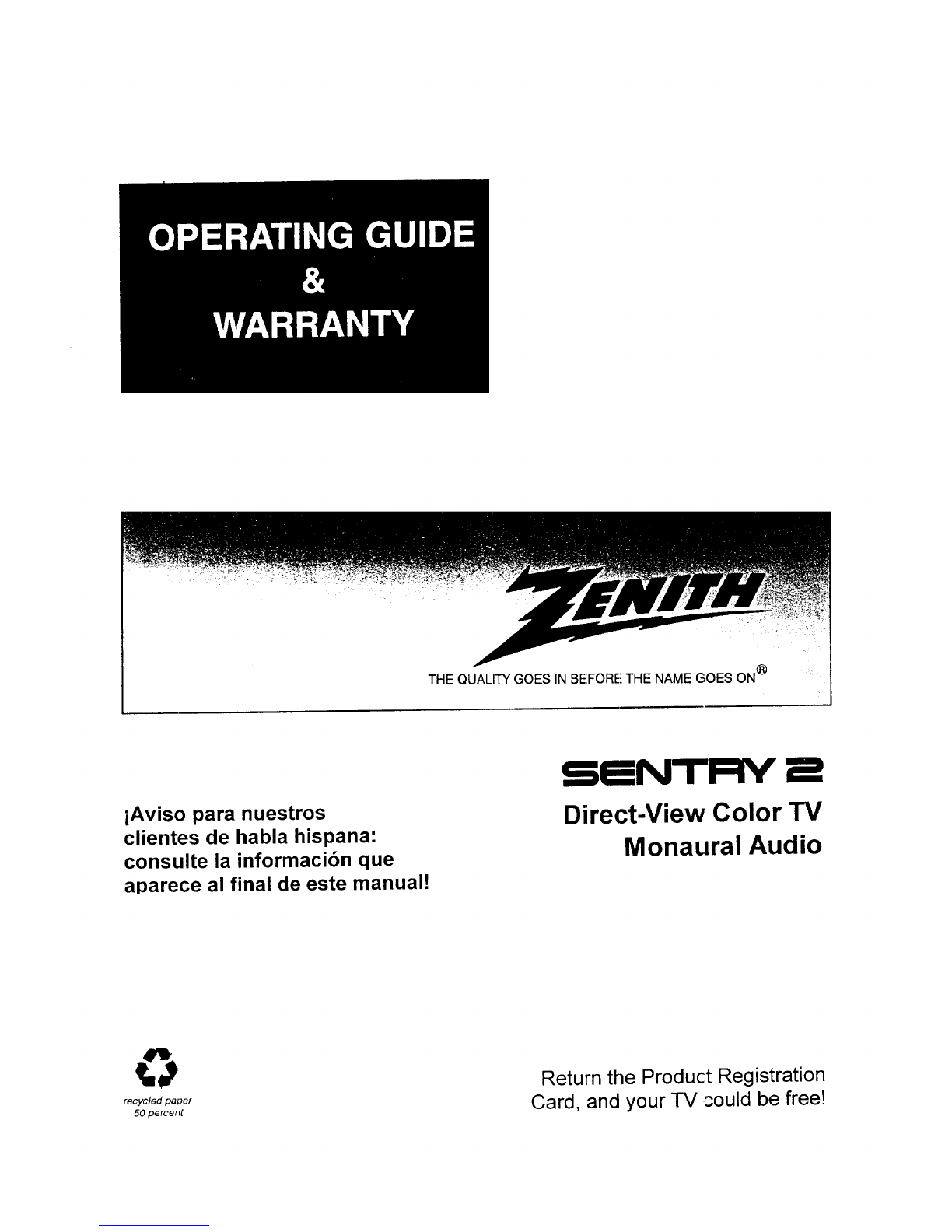

Zenith SENTRY 2 SMS2047W Manual de operación y mantenimiento

THE QUALITY GOES IN BEFORE THE NAME GOES ON@

iAviso para nuestros

clientes de habla hispana:

consulte la informacibn que

aDarece al final de este manual!

SgNTFIY

Direct-View Color TV

Monaural Audio

recycled paper

50 percent

Return the Product Registration

Card, and your TV could be free!

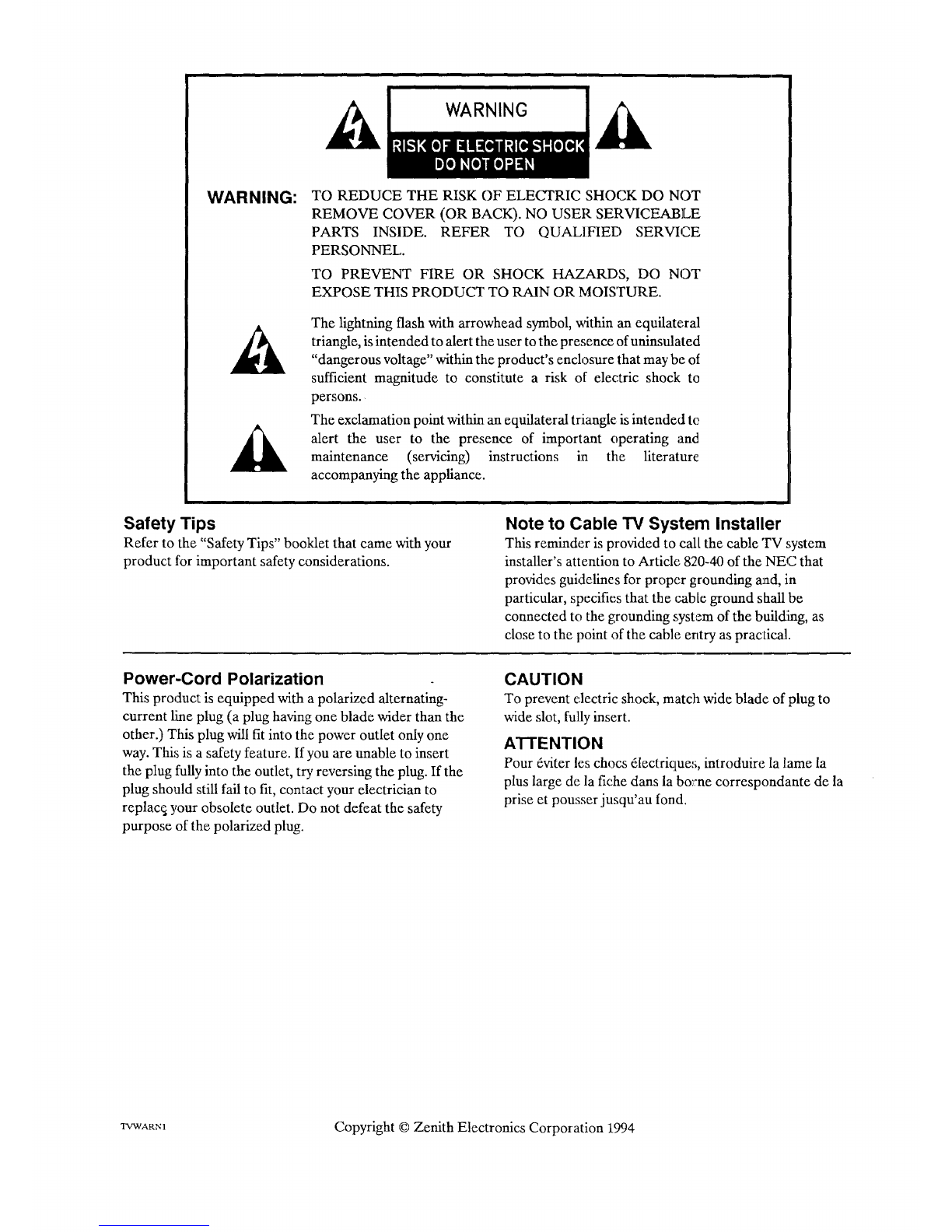

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT

REMOVE COVER (OR BACK). NO USER SERVICEABLE

PARTS INSIDE. REFER TO QUALIFIED SERVICE

PERSONNEL.

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT

EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be ot

sufficient magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is intended te

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance.

Safety Tips

Refer to the "Safety Tips" booklet that came with your

product for important safety considerations.

Note to Cable TV System Installer

This reminder is provided to call the cable TV ,;ystem

installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding a:ad, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to the point of the cable entry as practical.

Power-Cord Polarization

This product is equipped with a polarized alternating-

current fine plug (a plug having one blade wider than the

other.) This plug will fit into the power outlet only one

way. This is a safety feature. If you are unable to insert

the plug fully into the outlet, try reversing the plug. If the

plug should still fail to fit, contact your electrician to

replac_ your obsolete outlet. Do not defeat the safety

purpose of the polarized plug.

CAUTION

To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION

Pour dviter les chocs 61ectriques, introduire la lame la

plus large de la tic.he dans la bo:ne correspondante de la

prise et pousser jusqu'au fond.

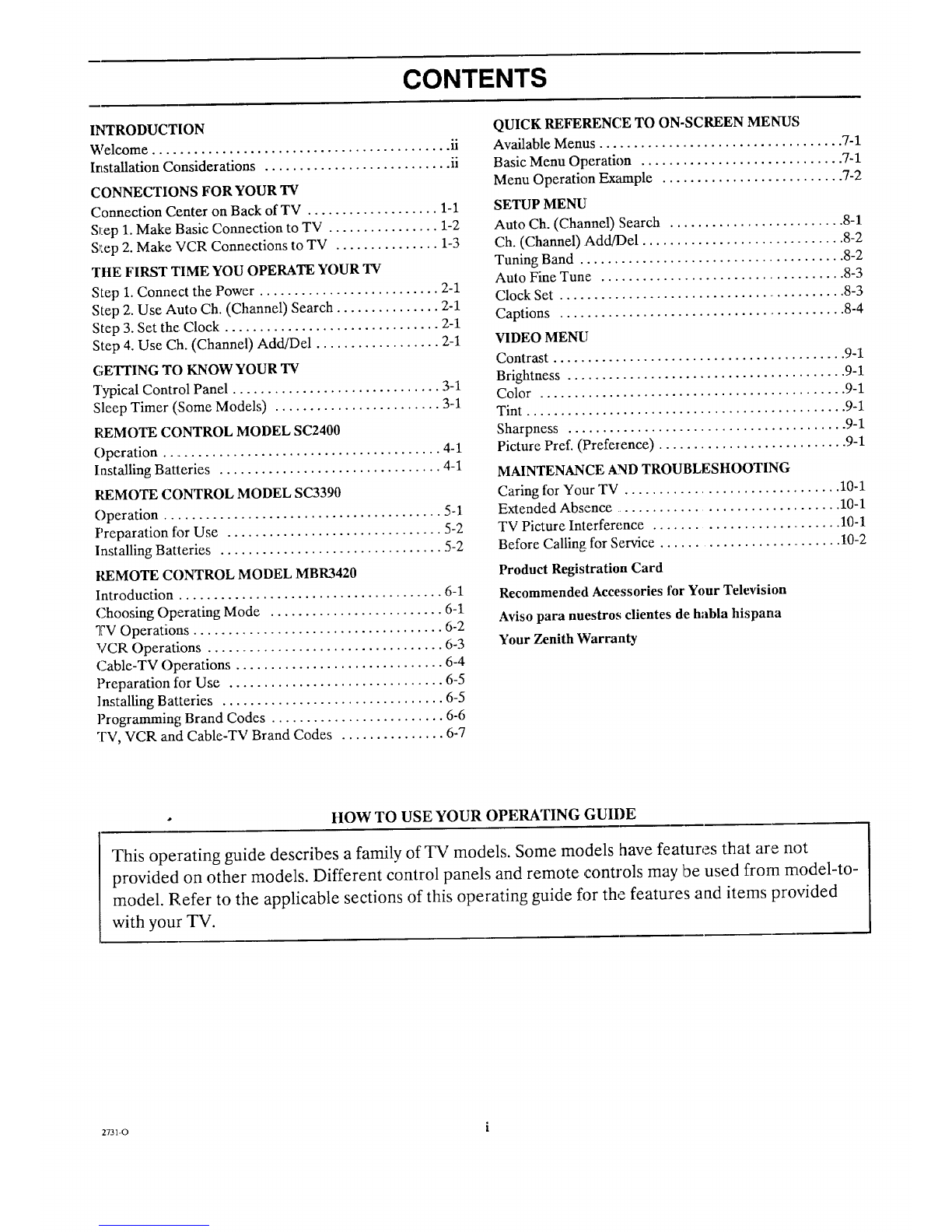

CONTENTS

INTRODUCTION

Welcome ........................................... ii

Ittstallation Considerations ........................... ii

CONNECTIONS FOR YOUR TV

Connection Center on Back of TV ................... 1-1

St:ep 1. Make Basic Connection to TV ................ 1-2

S_:ep 2. Make VCR Connections to TV ............... 1-3

THE FIRST TIME YOU OPERATE YOUR TV

Step 1. Connect the Power .......................... 2-1

Step 2. Use Auto Ch. (Channel) Search ............... 2-1

Step 3. Set the Clock ............................... 2-1

Step 4. Use Ch. (Channel) Add/Del .................. 2-1

GETrlNG TO KNOW YOUR TV

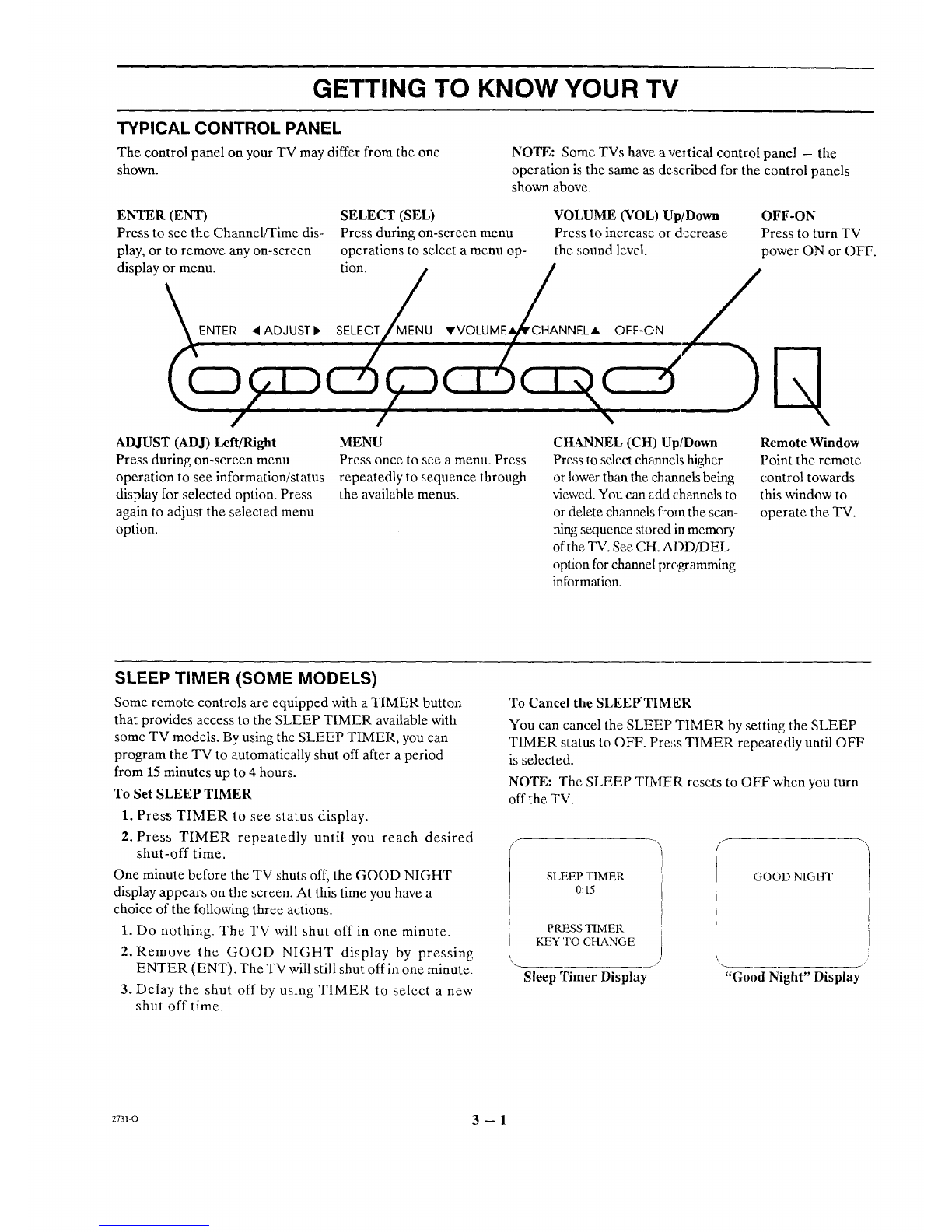

Typical Control Panel .............................. 3-1

Sleep Timer (.Some Models) ........................ 3-1

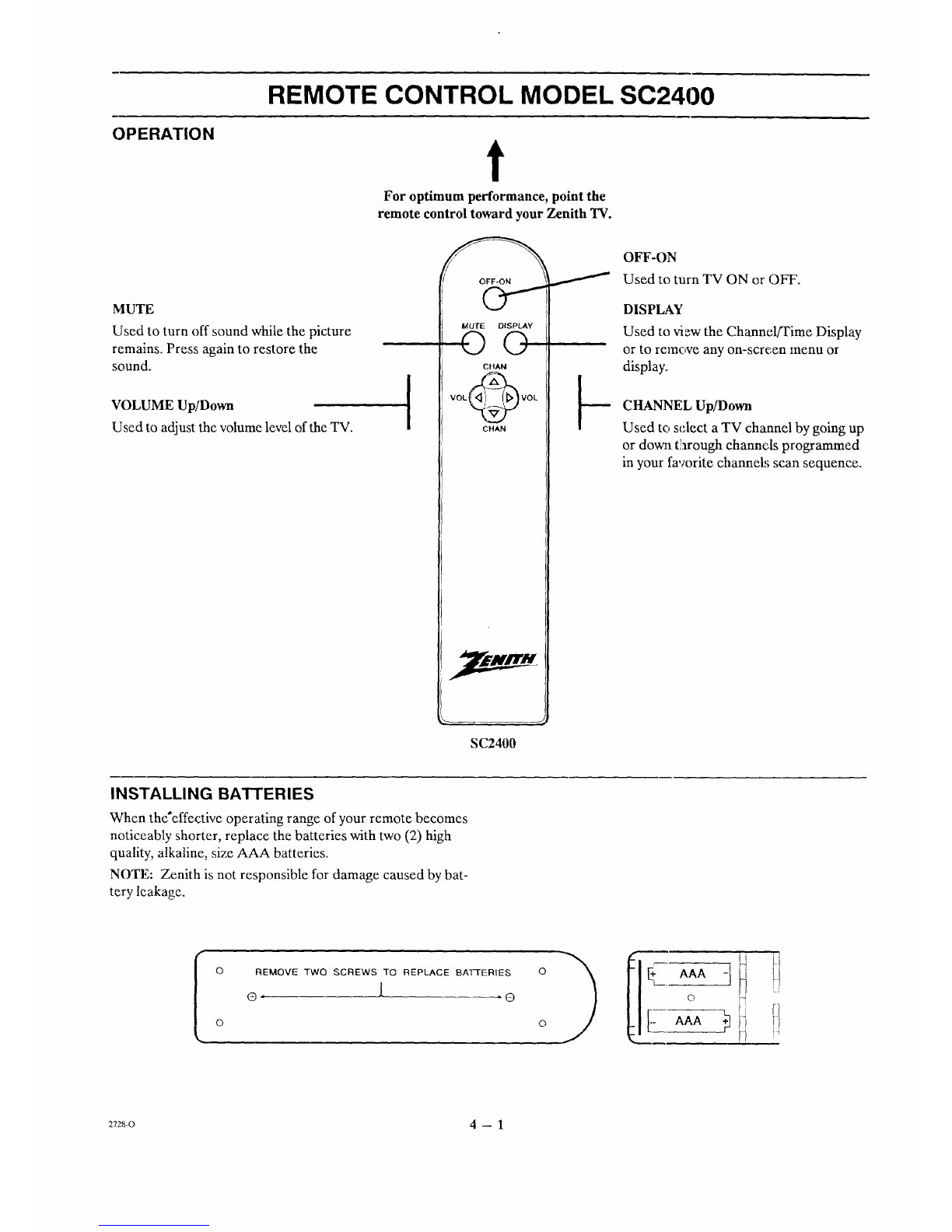

REMOTE CONTROL MODEL SC2400

Operation ......................................... 4-1

Installing Batteries ................................ 4-1

REMOTE CONTROL MODEL SC3390

Operation ........................................ 5-1

Preparation for Use ............................... 5-2

Installing Batteries ................................ 5-2

REMOTE CONTROL MODEL MBR3420

Introduction ...................................... 6-1

Choosing Operating Mode ......................... 6-1

"!?VOperations .................................... 6-2

VCR Operations .................................. 6-3

Cable-TV Operations .............................. 6-4

Preparation for Use ............................... 6-5

Installing Batteries ................................ 6-5

Programming Brand Codes ......................... 6-6

TV, VCR and Cable-TV Brand Codes ............... 6-7

QUICK REFERENCE TO ON-SCREEN MENUS

Available Menus .................................... 7-1

Basic Menu Operation ............................. 7-1

Menu Operation Example .......................... 7-2

SETUP MENU

Auto Ch. (Channel) Search ......................... 8-1

Ch. (Channel)Add/Del ............................. 8-2

Tuning Band ...................................... 8-2

Auto Fine Tune .................................... 8-3

Clock Set .......................................... 8-3

Captions ......................................... 8-4

VIDEO MENU

Contrast .......................................... 9-1

Brightness ........................................ 9-1

Color ............................................ 9-1

Tint .............................................. 9-1

Sharpness ........................................ 9-1

Picture Pref. (Preference) ........................... 9-1

MAINTENANCE AND TROUBLESHOOTING

Caring for Your TV ............................... 10-2

Extended Absence ................................. 10-1

TV Picture Interference ........................... 10-1

Before Calling for Service .......................... 10-2

Product Registration Card

Recommended Accessories for Your Television

Aviso para nuestros clientes de habla hispana

Your Zenith Warranty

HOW TO USE YOUR OPERATING GUIDE

This operating guide describes a family of TV models. Some models have features that are not

provided on other models. Different control panels and remote controls may 19e used from model-to-

model. Refer to the applicable sections of this operating guide for the features and items provided

with your TV.

2731-O i

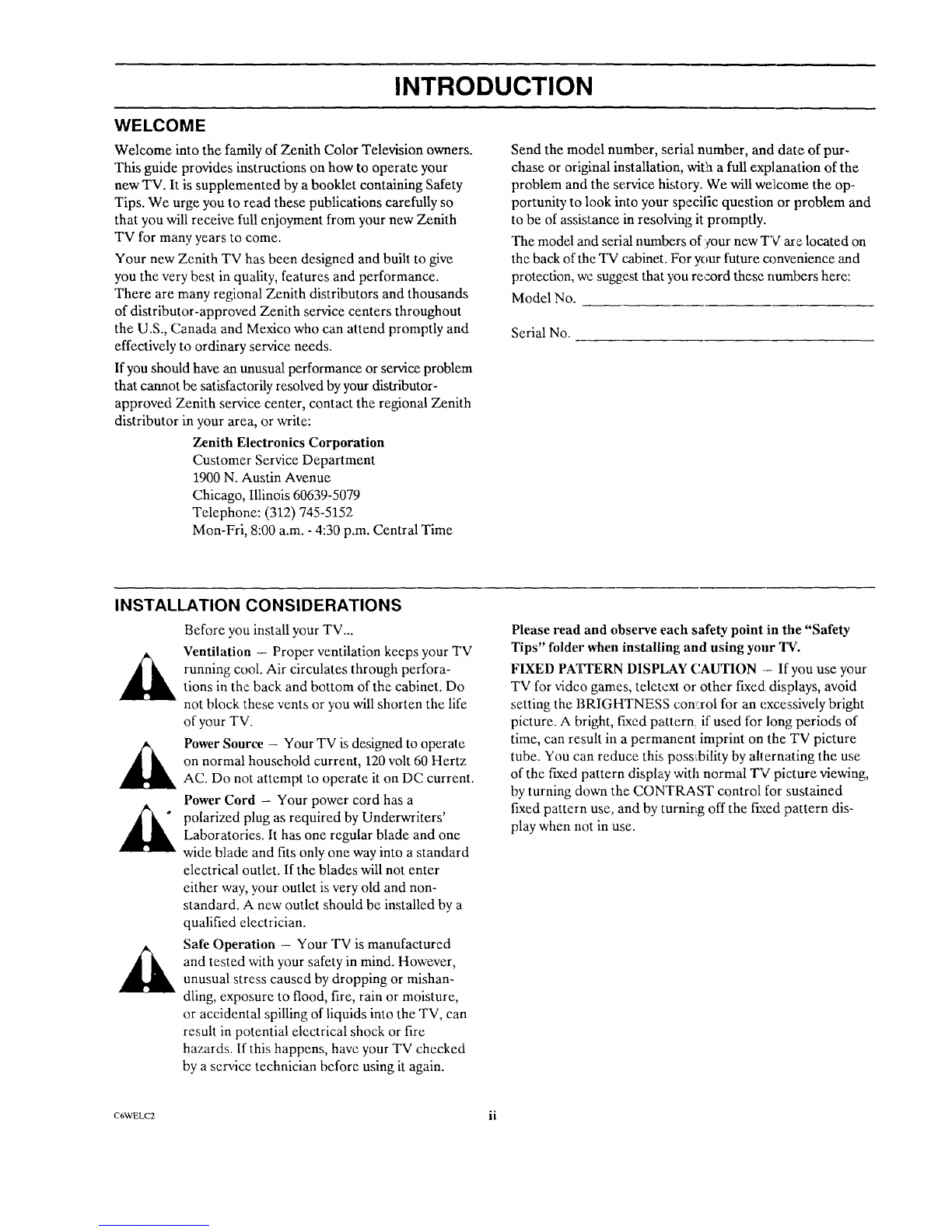

INTRODUCTION

WELCOME

Welcome into the family of Zenith Color Television owners.

This guide provides instructions on how to operate your

new TV. It is supplemented by a booklet containing Safety

Tips. We urge you to read these publications carefully so

that you will receive full enjoyment from your new Zenith

TV for many years to come.

Your new Zenith TV has been designed and built to give

you the very best in quality, features and performance.

There are many regional Zenith distributors and thousands

of distributor-approved Zenith service centers throughout

the U.S., Canada and Mexico who can attend promptly and

effectively to ordinary service needs.

If you should have an unusual performance or service problem

that cannot be satisfactorily resolved by your distributor-

approved Zenith service center, contact the regional Zenith

distributor in your area, or write:

Zenith Electronics Corporation

Customer Service Department

1900 N. Austin Avenue

Chicago, Illinois 60639-5079

Telephone: (312) 745-5152

Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time

Send the model number, seriaL1number, and date of pur-

chase or original installation, with a full explanation of the

problem and the service history. We will wellcome the op-

portunity to look into your specilic question or problem and

to be of assistance in resolving it promptly.

The model and serial numbers of i¢ournew TV are located on

the back of the TV cabinet. For your future c_)nvenience and

protection, we suggest that yott record these numbers here:

Model No.

Serial No.

INSTALLATION CONSIDERATIONS

Before you install your TV...

Ventilation - Proper ventilation keeps your TV

running cool. Air circulates through perfora-

tions in the back and bottom of the cabinet. Do

not block these vents or you will shorten the life

of your TV.

Power Source - Your TV is designed to operate

on normal household current, 120 volt 60 Hertz

AC. Do not attempt to operate it on DC current.

Power Cord - Your power cord has a

polarized plug as required by Underwriters'

Laboratories. It has one regular blade and one

wide blade and fits only one way into a standard

electrical outlet. If the blades will not enter

either way, your outlet is very old and non-

standard. A new outlet should be installed by a

qualified electrician.

Safe Operation - Your TV is manufactured

and tested with your safety in mind. However,

unusual stress caused by dropping or mishan-

dling, exposure to flood, fire, rain or moisture,

or accidental spilling of liquids into the TV, can

result in potential electrical shock or fire

hazards. [f this happens, have your TV checked

by a service technician before using it again.

Please read and observe each safety point in tlae"Safety

Tips" folder when installing and using your TV.

FIXED PATTERN DISPLAY CAUTION - If you use your

TV for video games, teletexl or other fixed displays, avoid

setting the BRIGHTNESS eon_:rol for an excessively bright

picture. A bright, fixed patt(,'rn: if used for long periods of

time, can result in apermanent imprint on the TV picture

tube. You can reduce this, possi:bility by alternating the use

of the fixed pattern display with normal TV picture viewing,

by turning down the CONTRAST control for sustained

fixed pattern use, and by turnirtg off the f'r_ed pattern dis-

play when not in use.

C6WEI._C2 ii

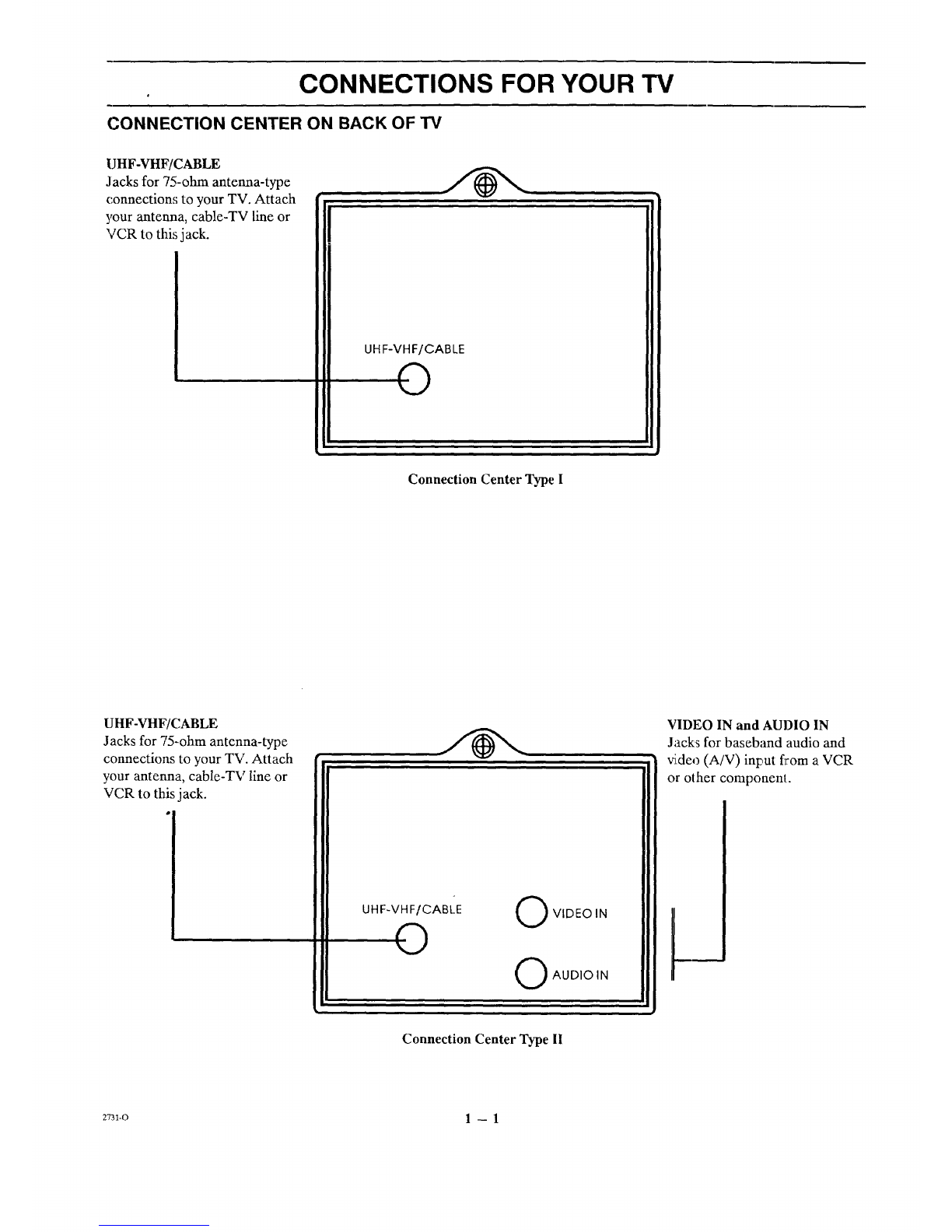

CONNECTIONS FOR YOUR TV

CONNECTION CENTER ON BACK OF TV

UHF-VHF/CABLE

Jacks for 75-ohm antenna-type

connections to your TV. Attach

your antenna cable-TV line or

VCR to this ack.

UHF-VHF/CABLE

Connection Center Type I

UHF-VItF/CABLE

Jacks for 75-ohm antenna-type

connections to your TV. Attach

your antenna cable-TV line or

VCR to this ack.

UHF-VH F/CABLE

©©

VIDEO IN

AUDIOIN

VIDEO IN and AUDIO IN

Jacks for baseband audio and

video (A/V) input from a VCR

or olher component.

Connection Center Type II

2731-0 1 -1

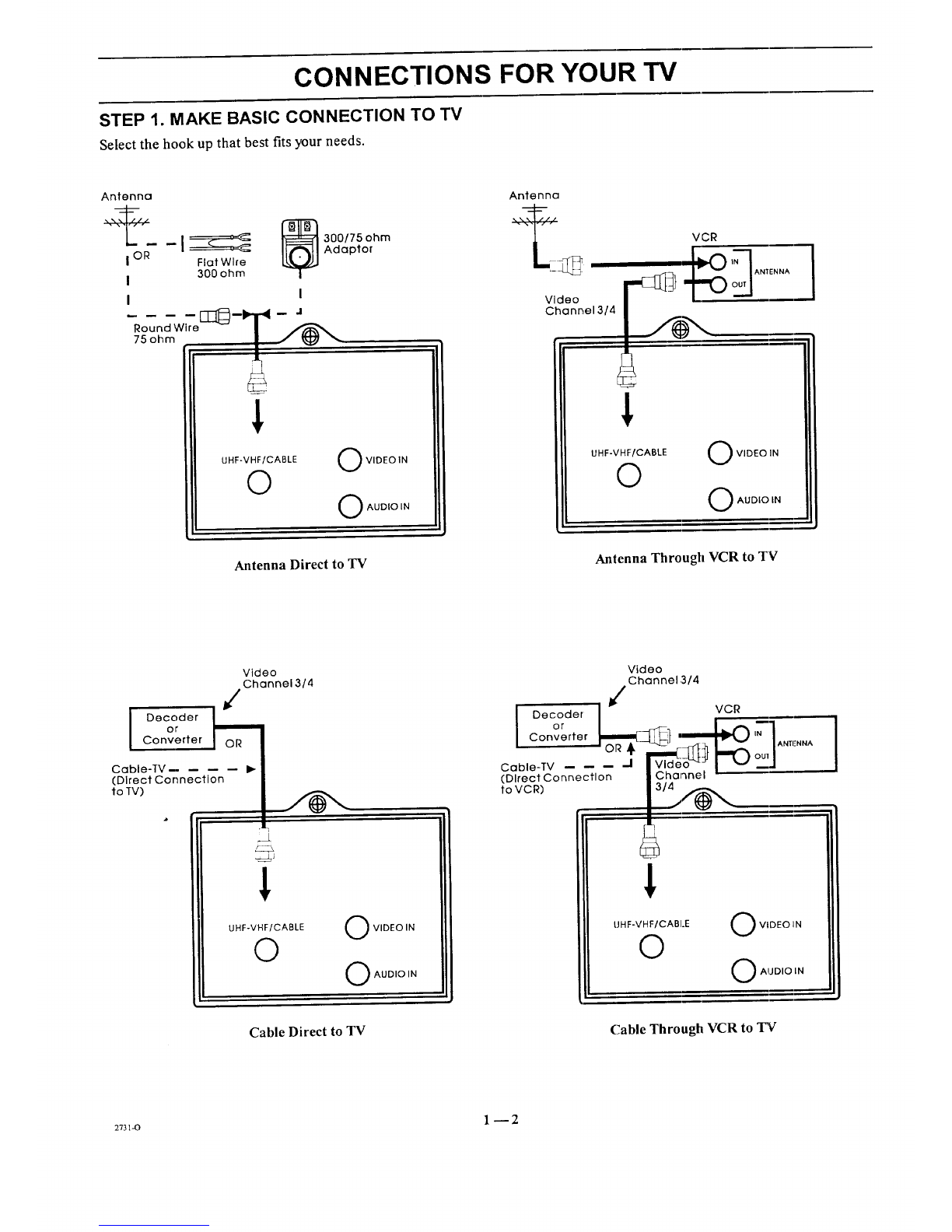

CONNECTIONS FOR YOUR TV

STEP 1. MAKE BASIC CONNECTION TO TV

Select the hook up that best fits your needs.

Antenna

iOR

---I_ _3oonso._

Adaptor

Flat Wlre

300 ohm

UHF-VHF/CABLE 0 VIDEO IN

O AUDIO IN

Antenna

Video

Channel3/4

VCR

ANTENNA

UHF-VHF/CABLE O VIDEO IN

O AUDIO IN

Antenna Direct to TV Antenna Through VCR to TV

Decoder

olr

Converter

Video

Channel3/4

Cable-TV m

(Direct Connection

to TV)

UHF-VHF/CABLE O VIDEO IN

O AUDIO IN

Video

Channel ,3/4

Io co o,o J

Converter tN

=ANTENNA

Cable-TV -- -- -- -I

[Direct Connection Channel '

toVCR)

UHF-VHF/CABI.E O VIDEO fIN

O AUDIO IN

Cable Direct to TV (;able Through VCR to TV

273143 1 --2

CONNECTIONS FOR YOUR TV

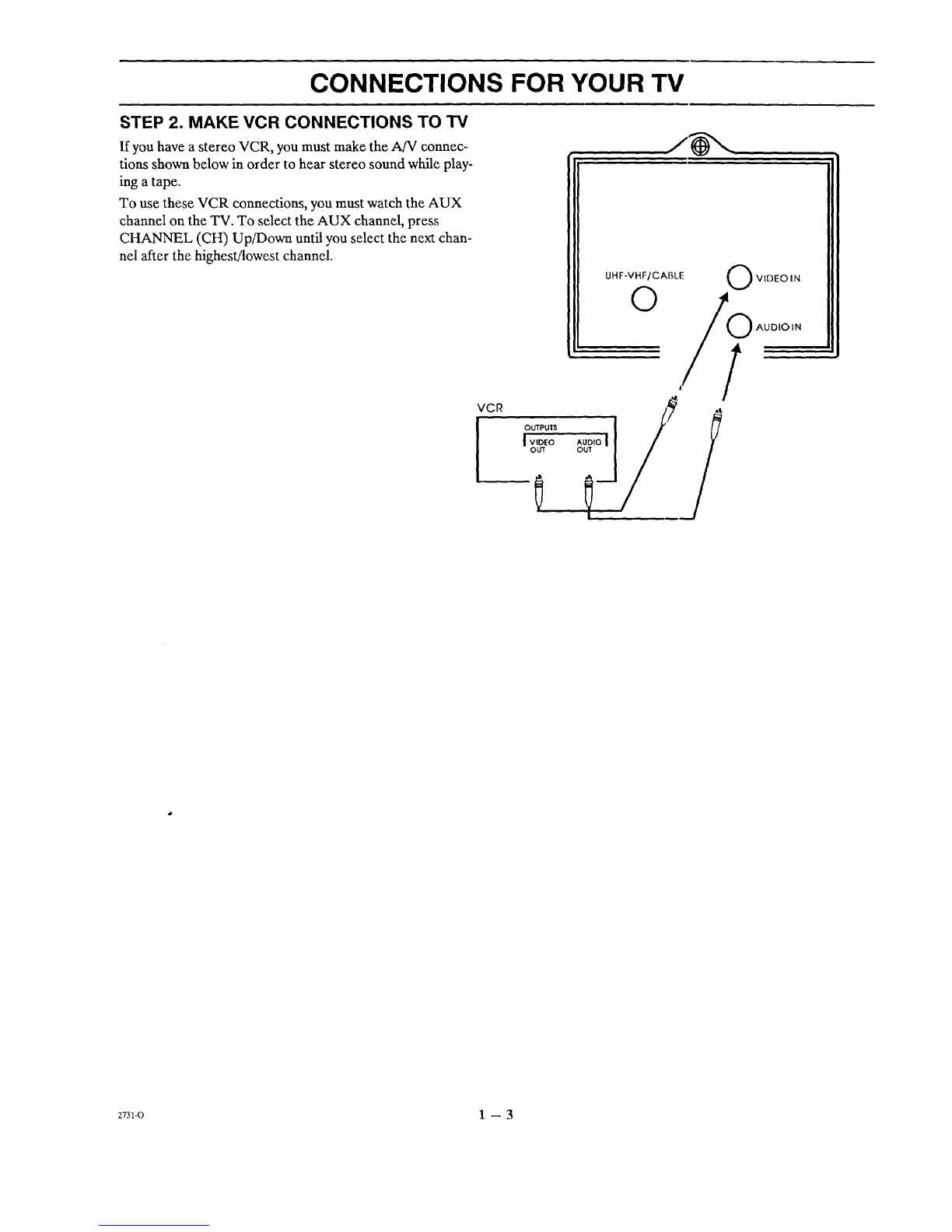

STEP 2. MAKE VCR CONNECTIONS TO TV

If you have a stereo VCR, you must make the AN connec-

tions shown below in order to hear stereo sound while play-

hag a tape.

To use these VCR connections, you must watch the AUX

channel on the TV. To select the AUX channel, press

CHANNEL (CH) Up/Down until you select the next chan-

nel after the highest/lowest channel.

UHF-VHF/CABLE 0 VIDEO IN

VCR

OUTPU'_S

_VIDEO

OUT

z731-o 1-3

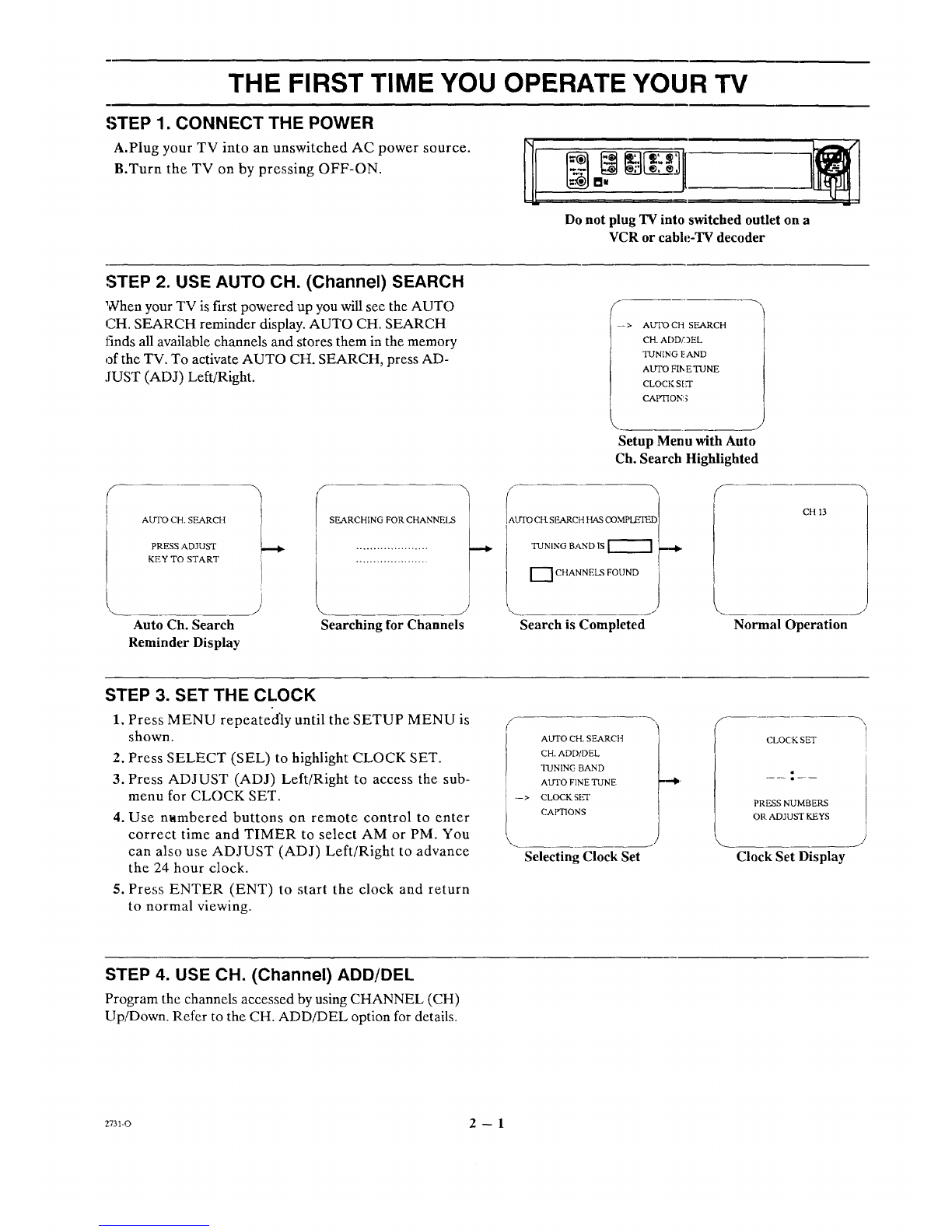

THE FIRST TIME YOU OPERATE YOUR TV

,STEP 1. CONNECT THE POWER

A.Plug your TV into an unswitched AC power source.

B.Turn the TV on by pressing OFF-ON.

Do not plug TV into switched outlet on a

VCR or cable-TV decoder

STEP 2. USE AUTO CH. (Channel) SEARCH

When your TV is first powered up you will see the AUTO

CH. SEARCH reminder display• AUTO CH. SEARCH

finds all available channels and stores them in the memory

of the TV. To activate AUTO CH. SEARCH, press AD-

JUST (ADJ) Left/Right.

AUTO CH. SEARCH

PRESS ADJUST

KEY TO START

SEARCHING FOR CHANNELS

Auto Ch. Search Searching for Channels

Reminder Display

AWI'O CH SEARCH

CH. ADDL)EL

TUNING E AND

AUTO FIhETUNE

CLOCK S[,'T

CAPTIONS

Setup Menu with Auto

Ch. Search Highlighted

CH 13

AUTO CH. SEARCH HAS OOMP_

TUNING BAND IS

-_ CHANNELS FOUND

Search is Completed Normal Operation

STEP 3. SET THE CLOCK

1. Press MENU repeatedly until the SETUP MENU is

shown•

2. Press SELECT (SEL) to highlight CLOCK SET.

3. Press ADJUST (ADJ) Left/Right to access the sub-

menu for CLOCK SET.

4. Use numbered buttons on remote control to enter

correct time and TIMER to select AM or PM. You

can also use ADJUST (ADJ) Left/Right to advance

the 24 hour clock•

5. Press ENTER (ENT) to start the clock and return

to normal viewing.

AUTO CH. SEARCH

CH. ADD/DEL

TUNINC- BAND

AUTO FINE TUNE

--> CLOCK SET

CAPTIONS

Selecting Clock Set

CLOCK SET

PRESS NUMBERS

OR ADJUST KEYS

Clock Set Display J

STEP 4. USE CH. (Channel) ADD/DEL

Program the channels accessed by using CHANNEL (CH)

Up/Down. Refer to the CH. ADD/DEL option for details.

2731-O 2 -- 1

GETTING TO KNOW YOUR TV

TYPICAL CONTROL PANEL

The control panel on your TV may differ from the one

shown. NOTE: Some TVs have a vmtical control panel - the

operation is the same as described for the control panels

shown above.

ENTER (ENT)

Press to see the Channel/Time dis-

play, or to remove any on-screen

display or menu. tion.

SELECT (SEL) VOLUME (VOL) Up/Down OFF-ON

Press during on-screen menu Press to increase or decrease Press to turn TV

operations to select amenu op- the sound level, power ON or OFF.

vVOLUM[ CHANNEL,& OFF-ON /

ADJUST (ADJ) Left!Right

Press during on-screen menu

operation to see information!status

display for selected option. Press

again to adjust the selected menu

option.

Press once to see a menu. Press

repeatedly to sequence through

the available menus.

CHANNEL (CH) Up/Down

Press to select channels higher

or lower than the channels being

viewed. You can add channels to

or delete channels fi:omthe scan-

ning sequence stored in memory

of the TV. See CH. ADD/DEL

option for channel programming

information.

Remote Window

Point the remote

control towards

this window to

operate the TV.

SLEEP TIMER (SOME MODELS)

Some remote controls are equipped with a TIMER button

that provides access to the SLEEP TIMER available with

some TV models. By using the SLEEP TIMER, you can

program the TV to automatically shut off after a period

from 15 minutes up to 4 hours.

To Set SLEEP TIMER

1. Press TIMER to see status display.

2. Press TIMER repeatedly until you reach desired

shut-off time.

One minute before the TV shuts off, the GOOD NIGHT

display appears on the screen. At this time you have a

choice of the following three actions.

1. Do nothing. The TV will shut off in one minute.

2. Remove the GOOD NIGHT display by pressing

ENTER (ENT). The TV will still shut off in one minute.

3. Delay the shut off by using TIMER to select a new

shut off time.

To Cancel the SLEEP'TIMER

You can cancel the SLEEP TIMER by setting the SLEEP

TIMER status to OFF. Pre:;s TIMER repeatedly until OFF

is selected.

NOTE: The SLEEP TINIER resets to OFF when you turn

off the TV.

SLEEP TIMER

0:15

PRI_SSTIMER

KEY TO CHANGE

Sleep Timer Display

GOOD NIGHT

"'Good Nigh_play

2731-O 3 -- 1

REMOTE CONTROL MODEL SC2400

OPERATION t

For optimum performance, point the

remote control toward your Zenith TV.

MUTE

Used to turn off sound while the picture

remains. Press again to restore the

sound.

VOLUME Up/Down

Used to adjust the volume level of the TV. I

OFF-ON

CHAN

VOL@VOL

CHAN

OFF-ON

Used to turn TV ON or OFF.

DISPLAY

Used to view the Channel/Time Display

or to remove any on-screen menu or

display.

CHANNEL Up/Down

Used to select a TV channel by going up

or down through channels programmed

in your favorite channels scan sequence.

SC2400

INSTALLING BAI-I'ERIES

When the*effective operating range of your remote becomes

noticeably shorter, replace the batteries with two (2) high

quality, alkaline, size AAA batteries.

NOTE: Zenith is not responsible for damage caused by bat-

tery leakage.

REMOVE TWO SCREWS TO REPLACE BATTERIES

® J -O

27zs-o 4 --1

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Zenith

Zenith

Zenith C27V36 Manual de operación y mantenimiento

Zenith

Zenith A25A76ROM Manual de usuario

Zenith

Zenith Sentry 2 Series Manual de operación y mantenimiento

Zenith

Zenith B32AZ4W Manual de operación y mantenimiento

Zenith

Zenith B25A10Z Manual de instrucciones

Zenith

Zenith Sentry 2 SR2031 Manual de operación y mantenimiento

Zenith

Zenith Z27H96 Manual de operación y mantenimiento

Zenith

Zenith SENTRY 2 SY2551 Manual de operación y mantenimiento

Zenith

Zenith D27B48T Manual de operación y mantenimiento

Zenith

Zenith C32C84R Series Manual de operación y mantenimiento

Zenith

Zenith SL2784BT and Manual de operación y mantenimiento

Zenith

Zenith A50M84W Series Manual de usuario

Zenith

Zenith C27C41T Series Manual de operación y mantenimiento

Zenith

Zenith Presentation H25D46DT Manual de operación y mantenimiento

Zenith

Zenith Concierge H27E35DT Guía de solución de problemas

Zenith

Zenith A27B41 Manual de usuario

Zenith

Zenith H27E55DT Manual de operación y mantenimiento

Zenith

Zenith D27D53T Manual de operación y mantenimiento

Zenith

Zenith SENTRY 2 SLS2555S5 and warranty Manual de operación y mantenimiento

Zenith

Zenith SL3583ST8 Manual de operación y mantenimiento

Zenith

Zenith ZLD15A1B Manual de usuario

Zenith

Zenith A27A23W Manual de usuario

Zenith

Zenith SENTRY 2 SR2053 Manual de operación y mantenimiento

Zenith

Zenith C27C35T Series Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
