THE QUALITY GOES IN BEFORE THE

iAviso para nuestros

clientes de habla hispana:

consulte la informaci6n que

aparece al final de este manual!

SEN

Direct-View Color TV

Stereo Audio

recycled paper

50 percent

Return the Product Registration

Card, and your TV could be free!

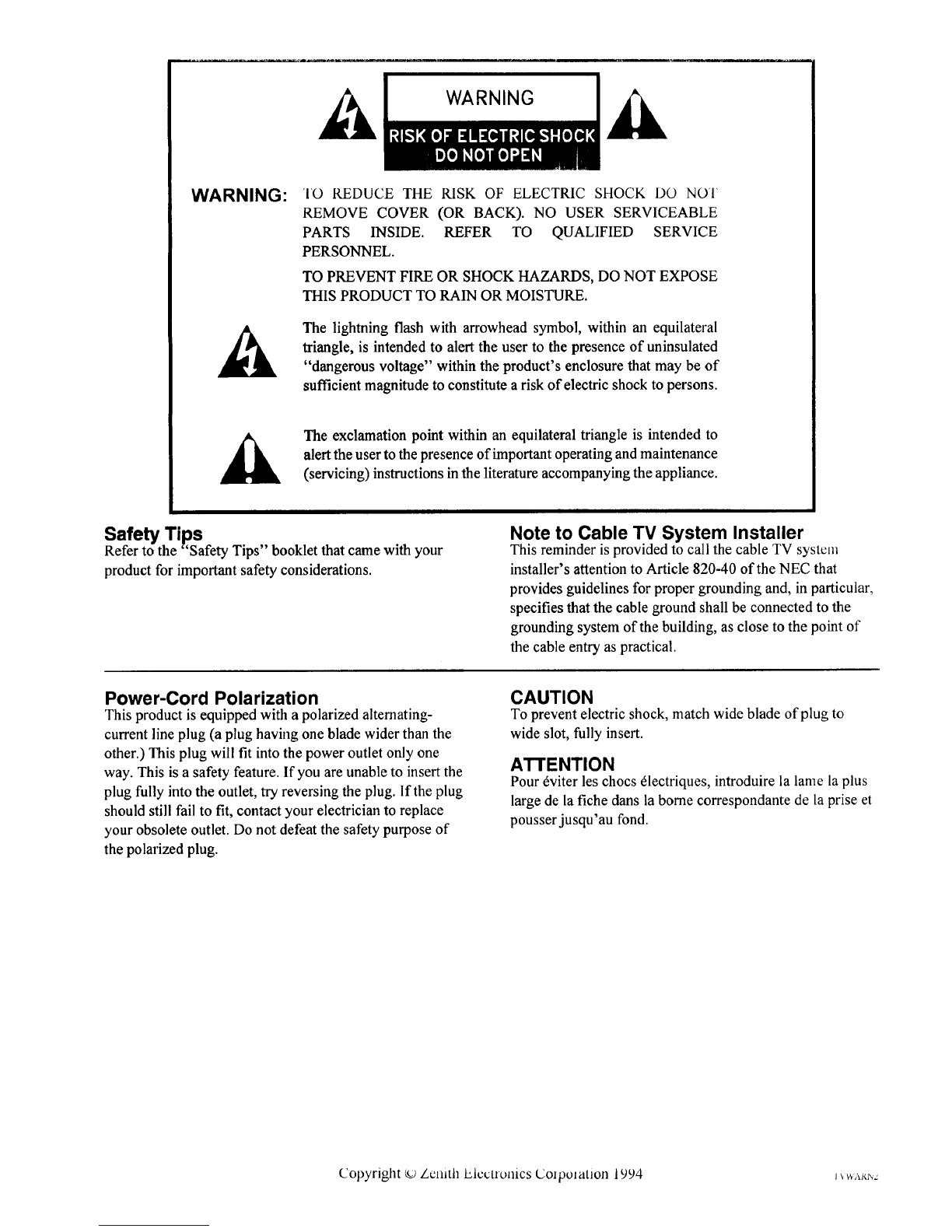

WARNING: 'i'O REDUCE THE RISK OF ELECTRIC SHOCK DO NOT

REMOVE COVER (OR BACK). NO USER SERVICEABLE

PARTS INSIDE. REFER TO QUALIFIED SERVICE

PERSONNEL.

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE

THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

Safety Tips

Refer to the "Safety Tips" booklet that came with your

product for important safety considerations.

Note to Cable TV System Installer

This reminder is provided to call the cable TV systcln

installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected to the

grounding system of the building, as close to the point of

the cable entry as practical.

Power-Cord Polarization

This product is equipped with a polarized alternating-

current line plug (a plug having one blade wider than the

other.) This plug will fit into the power outlet only one

way. This is a safety feature. If you are unable to insert the

plug fully into the outlet, try reversing the plug. lfthe plug

should still fail to fit, contact your electrician to replace

your obsolete outlet. Do not defeat the safety purpose of

the polarized plug.

CAUTION

To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION

Pour _viter les chocs _lectriques, introduire la lame la plus

large de la fiche dans la borne correspondante de la prise et

pousser jusqu'au fond.

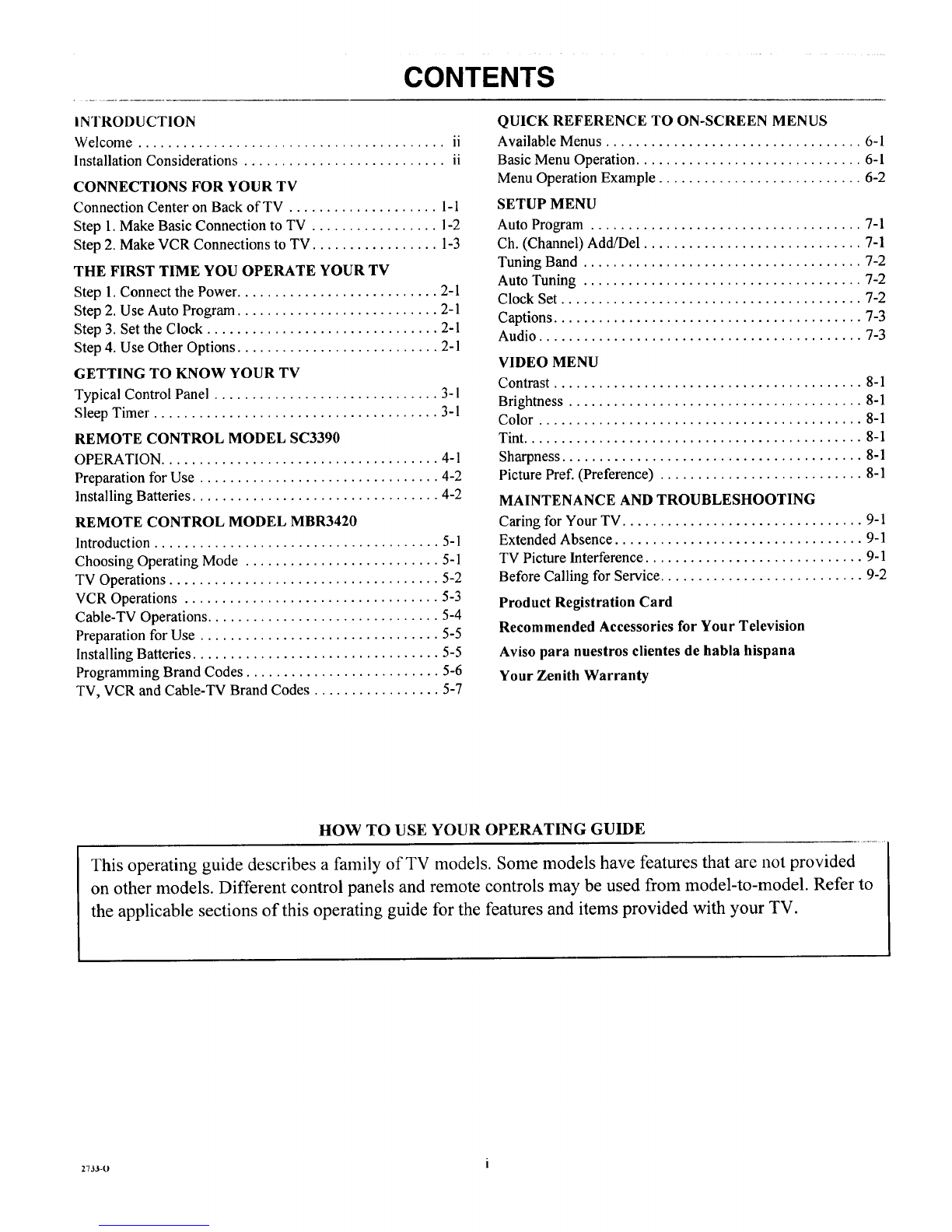

CONTENTS

INTRODUCTION

Welcome ......................................... ii

Installation Considerations ........................... ii

CONNECTIONS FOR YOUR TV

Connection Center on Back of TV .................... 1-1

Step 1.Make Basic Connection to TV ................. 1-2

Step 2. Make VCR Connections to TV ................. 1-3

THE FIRST TIME YOU OPERATE YOUR TV

Step 1. Connect the Power ........................... 2-1

Step 2. Use Auto Program ........................... 2-1

Step 3. Set the Clock ............................... 2-1

Step 4. Use Other Options ........................... 2-1

GETTING TO KNOW YOUR TV

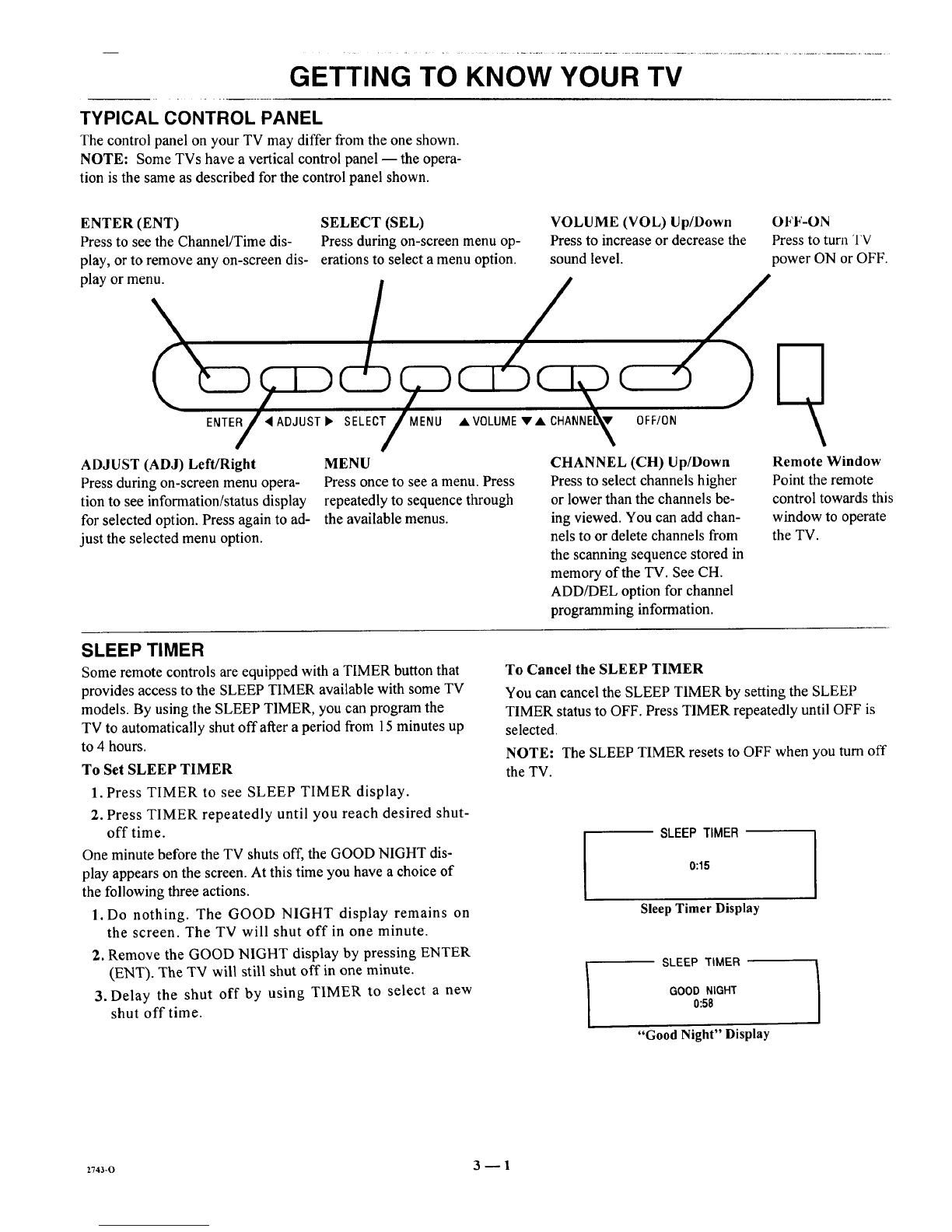

Typical Control Panel .............................. 3-1

Sleep Timer ...................................... 3-1

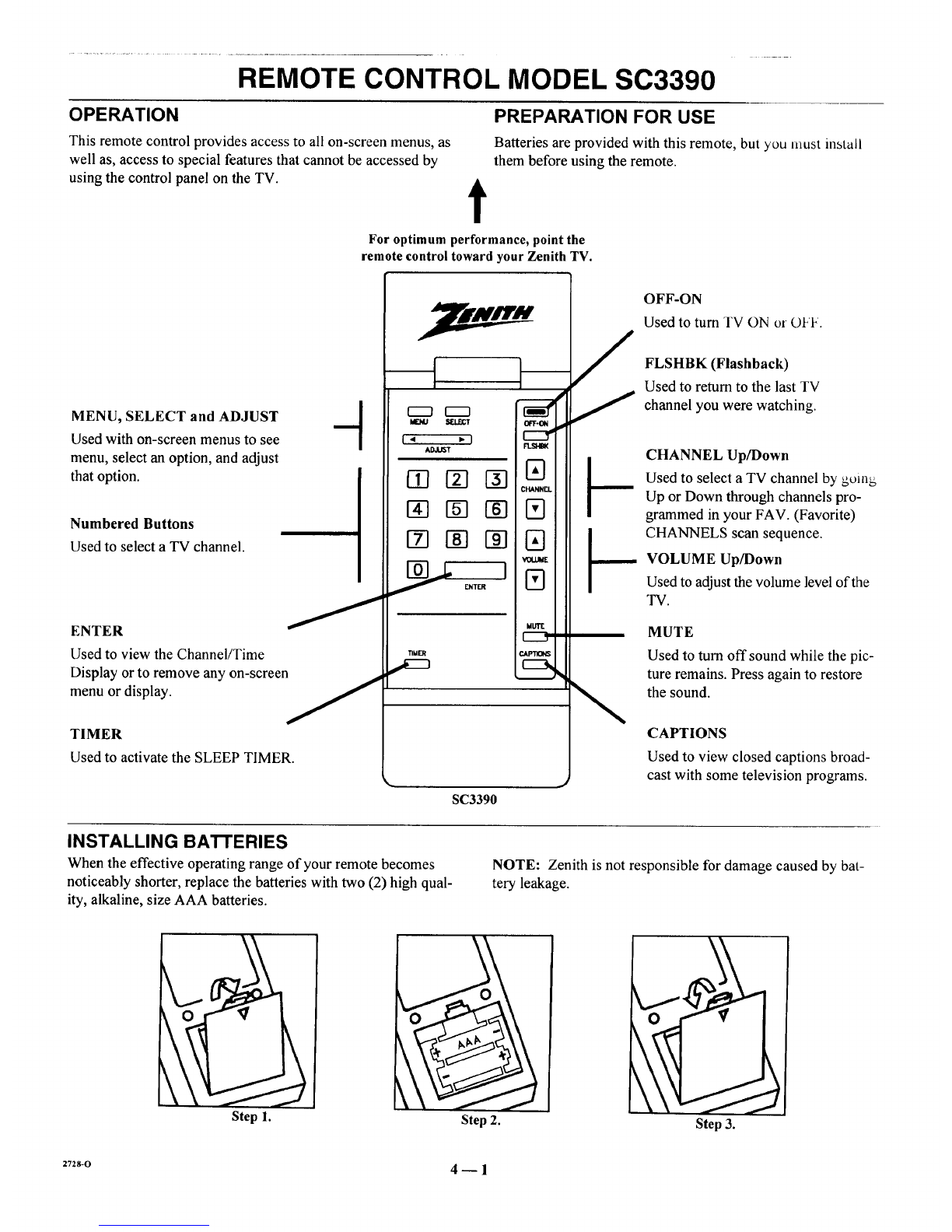

REMOTE CONTROL MODEL SC3390

OPERATION ..................................... 4-1

Preparation for Use ................................ 4-2

Installing Batteries ................................. 4-2

REMOTE CONTROL MODEL MBR3420

Introduction ...................................... 5-1

Choosing Operating Mode .......................... 5-1

TV Operations .................................... 5-2

VCR Operations .................................. 5-3

Cable-TV Operations ............................... 5-4

Preparation for Use ................................ 5-5

Installing Batteries ................................. 5-5

Programming Brand Codes .......................... 5-6

TV, VCR and Cable-TV Brand Codes ................. 5-7

QUICK REFERENCE TO ON-SCREEN MENUS

Available Menus .................................. 6-1

Basic Menu Operation .............................. 6-1

Menu Operation Example ........................... 6-2

SETUP MENU

Auto Program .................................... 7-1

Ch. (Channel) Add/Del ............................. 7-1

Tuning Band ..................................... 7-2

Auto Tuning ..................................... 7-2

Clock Set ........................................ 7-2

Captions ......................................... 7-3

Audio ........................................... 7-3

VIDEO MENU

Contrast ......................................... 8-1

Brightness ....................................... 8-1

Color ........................................... 8-1

Tint ............................................. 8-1

Sharpness ........................................ 8-1

Picture Pref. (Preference) ........................... 8-1

MAINTENANCE AND TROUBLESHOOTING

Caring for Your TV ................................ 9-1

Extended Absence ................................. 9-1

TV Picture Interference ............................. 9-1

Before Calling for Service ........................... 9-2

Product Registration Card

Recommended Accessories for Your Television

Aviso para nuestros clientes de habla hispana

Your Zenith Warranty

HOW TO USE YOUR OPERATING GUIDE

This operating guide describes a family of TV models. Some models have features that are not provided

on other models. Different control panels and remote controls may be used from model-to-model. Refer to

the applicable sections of this operating guide for the features and items provided with your TV.

2733-0 i

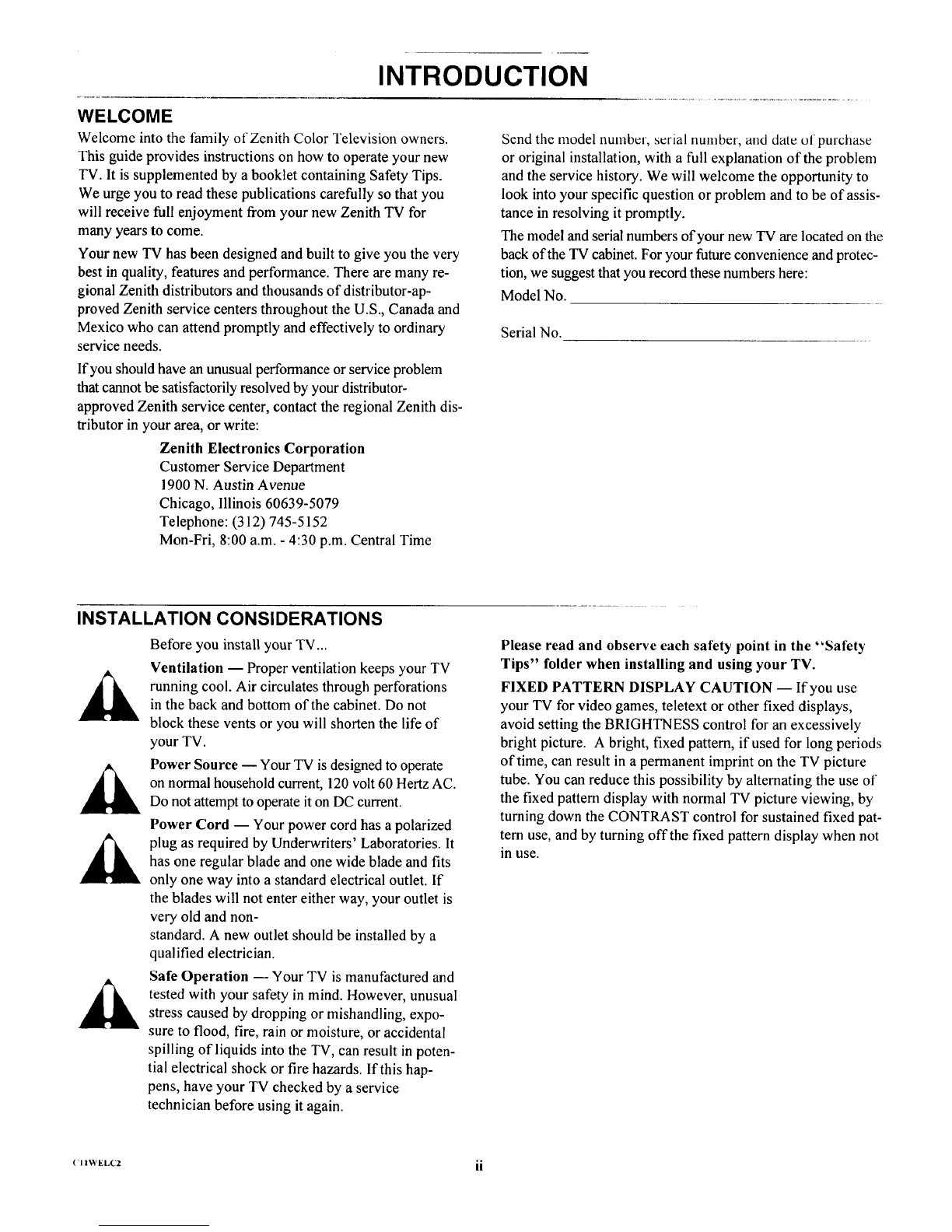

INTRODUCTION

WELCOME

Welcome into the family of Zenith Color Television owners.

This guide provides instructions on how to operate your new

TV. It is supplemented by a booklet containing Safety Tips.

We urge you to read these publications carefully so that you

will receive full enjoyment from your new Zenith TV for

many years to come.

Your new TV has been designed and built to give you the very

best in quality, features and performance. There are many re-

gional Zenith distributors and thousands of distributor-ap-

proved Zenith service centers throughout the U.S., Canada and

Mexico who can attend promptly and effectively to ordinary

service needs.

Send the model number, serial number, and date of purchase

or original installation, with a full explanation of the problem

and the service history. We will welcome the opportunity to

look into your specific question or problem and to be of assis-

tance in resolving it promptly.

The model and serial numbers of your new TV are located on the

back ofthe TV cabinet. For your future convenience and protec-

tion, we suggest that you record these numbers here:

Model No.

Serial No.

If you should have an unusual performance or service problem

that cannot be satisfactorily resolved by your distributor-

approved Zenith service center, contact the regional Zenith dis-

tributor in your area, or write:

Zenith Electronics Corporation

Customer Service Department

1900 N. Austin Avenue

Chicago, Illinois 60639-5079

Telephone: (312) 745-5152

Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time

INSTALLATION CONSIDERATIONS

Before you install your TV...

Ventilation -- Proper ventilation keeps your TV

running cool. Air circulates through perforations

in the back and bottom of the cabinet. Do not

block these vents or you will shorten the life of

your TV.

Power Source -- Your TV is designed to operate

on normal household current, 120 volt 60 Hertz AC.

Do not attempt to operate it on DC current.

Power Cord -- Your power cord has a polarized

plug as required by Underwriters' Laboratories. It

has one regular blade and one wide blade and fits

only one way into a standard electrical outlet. If

the blades will not enter either way, your outlet is

very old and non-

standard. A new outlet should be installed by a

qualified electrician.

Safe Operation -- Your TV is manufactured and

tested with your safety in mind. However, unusual

stress caused by dropping or mishandling, expo-

sure to flood, fire, rain or moisture, or accidental

spilling of liquids into the TV, can result in poten-

tial electrical shock or fire hazards. If this hap-

pens, have your TV checked by a service

technician before using it again.

Please read and observe each safety point in the "Safety

Tips" folder when installing and using your TV.

FIXED PATTERN DISPLAY CAUTION -- If you use

your TV for video games, teletext or other fixed displays,

avoid setting the BRIGHTNESS control for an excessively

bright picture. A bright, fixed pattern, if used for long periods

of time, can result in a permanent imprint on the TV picture

tube. You can reduce this possibility by alternating the use of

the fixed pattern display with normal TV picture viewing, by

turning down the CONTRAST control for sustained fixed pat-

tern use, and by turning offthe fixed pattern display when not

in use.

<.WELCZ ii

CONNECTIONS FOR YOUR TV

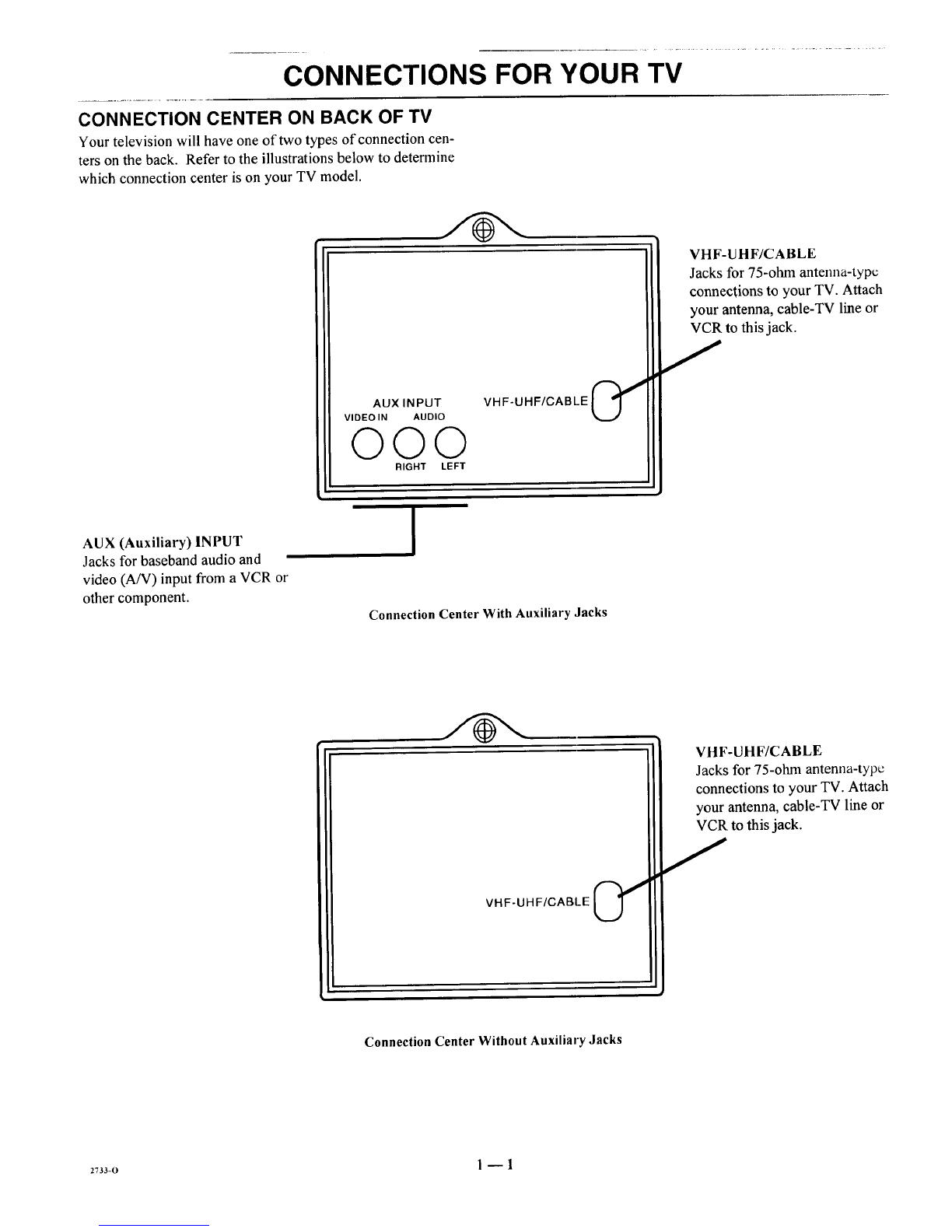

CONNECTION CENTER ON BACK OF TV

Your television will have one of two types of connection cen-

ters on the back. Refer to the illustrations below to determine

which connection center is on your TV model.

AUX INPUT

VIDEO IN AUDIO

000

RIGHT LEFT

VHF-UHF/CABLE

Jacks for 75-ohm antenna-type

connections to your TV. Attach

your antenna, cable-TV line or

VCR to this jack.

AUX (Auxiliary) INPUT

Jacks for baseband audio and

video (A/V) input from a VCR or

other component.

Connection Center With Auxiliary Jacks

VHF-UHF/CABLE

Jacksfor 75-ohm antenna-type

connections to your TV. Attach

your antenna, cable-TV line or

VCR to this jack.

Connection Center Without Auxiliary Jacks

2733-0 1 -- 1

CONNECTIONS FOR YOUR TV

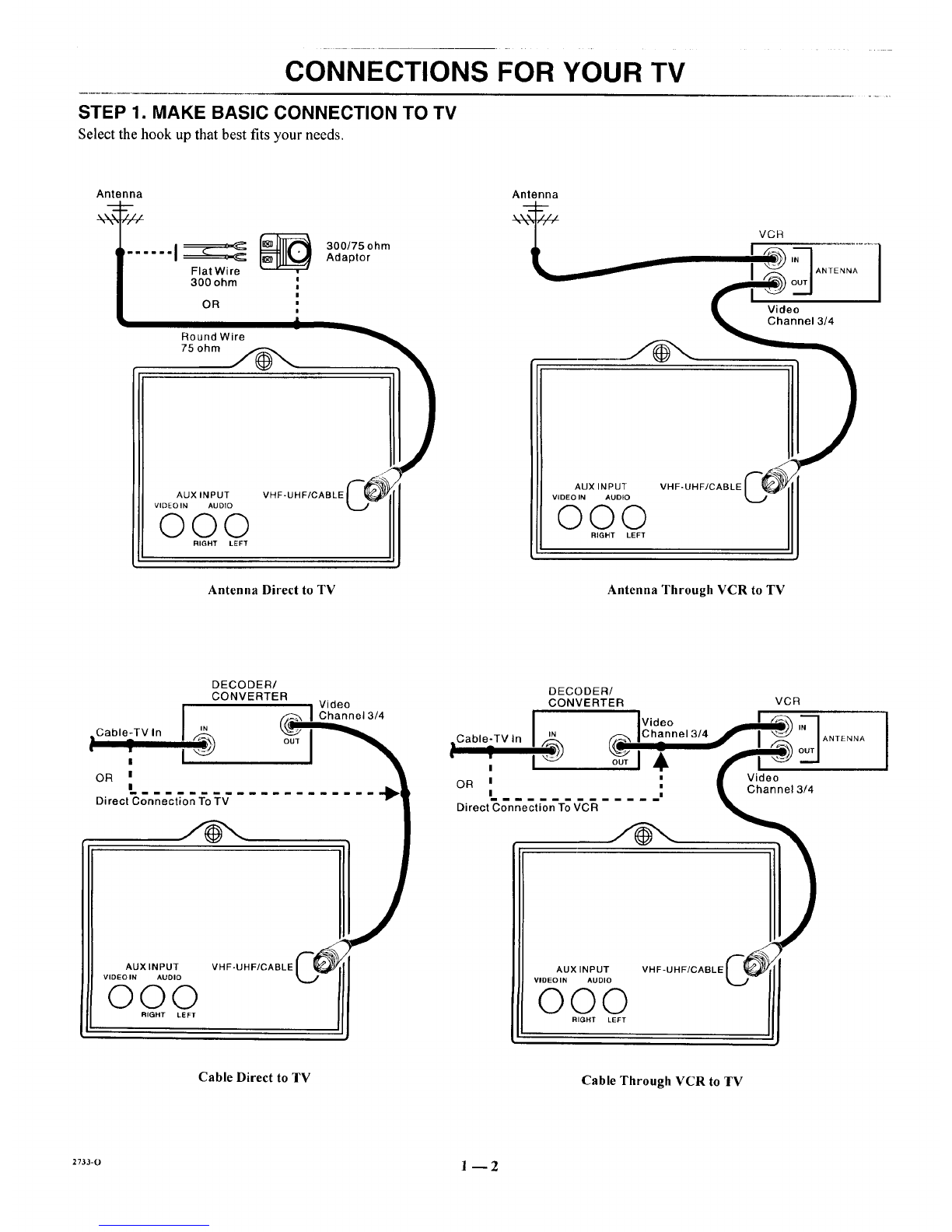

STEP 1. MAKE BASIC CONNECTION TO TV

Select the hook up that best fits your needs.

Antenna

Flat Wi re

300 ohm =

OR 'i

•i

300/75 ohm

Adaptor

Round Wire

75 ohm

AUX INPUT VHF-UHF/CABLE _'_

L_.F

VIDEOIN AUDIO

OOO

RIGHT LEFT

Antenna

VCR

_U_T ANTENNA

AUX INPUT VHF-UHFICABLE (_)

k.__.'--

VIDEO IN AUDIO

OOO

RIGHT LEFT

Antenna Direct to TV Antenna Through VCR to TV

tCableJV In

OR I

Direct Connection To TV

DECODER/

CONVERTER . Video

I'- °°TI "_

AUX INPUT

VIDEO IN AUDIO

O©O

RIGHT LEFT

VHF-UHF/CABLE C_

DECODER/

CONVERTER

tCableLTVln [

, I

OR _

Direct Connection To VCR

AUX INPUT

VIDEOIN AUDIO

©©O

RIGHT LEFT

VCR

Ividoo IJ___,_,.--I

IChannel3/4 _ I,_, •ANTENNA

I"- "=-J_.-"_ OUT,

OUTI _, __J--J

, _ _i_ nnel 3t4

VHF-UHF/CABLE C_ ,i

Cable Direct to TV Cable Through VCR to TV

2733-0 1_2

CONNECTIONS FOR YOUR TV

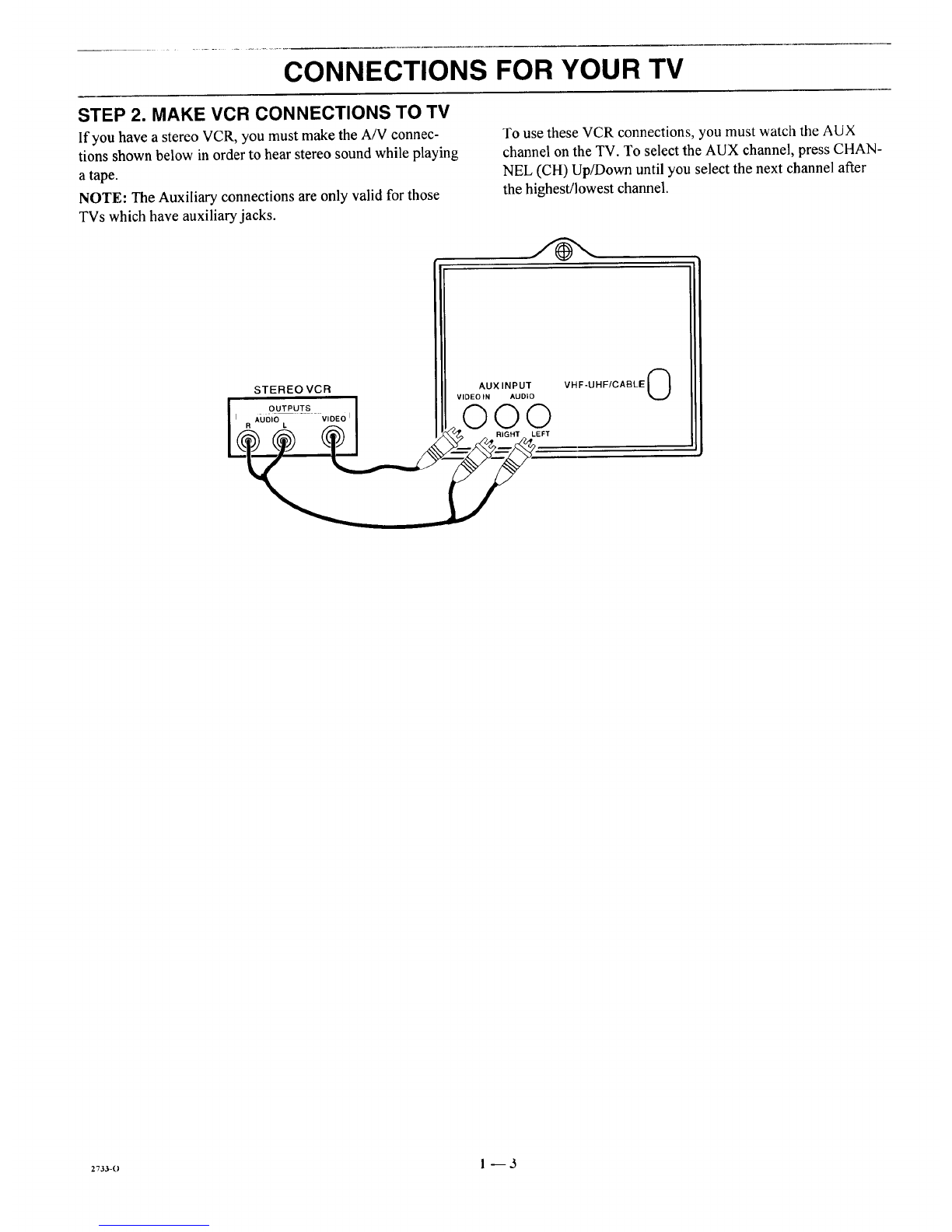

STEP 2. MAKE VCR CONNECTIONS TO TV

If you have a stereo VCR, you must make the A/V connec-

tions shown below in order to hear stereo sound while playing

a tape.

NOTE: The Auxiliary connections are only valid for those

TVs which have auxiliary jacks.

To use these VCR connections, you must watch the AUX

channel on the TV. To select the AUX channel, press CHAN-

NEL (CH) Up/Down until you select the next channel after

the highest/lowest channel.

STEREOVCR

OUTPUTS

/ AU0JO_ -vfoEoJ

AUX INPUT

VIDEO IN AUDIO

©©©LEFT

VHF-UHF/CABLE @

273_-o 1 -- 3

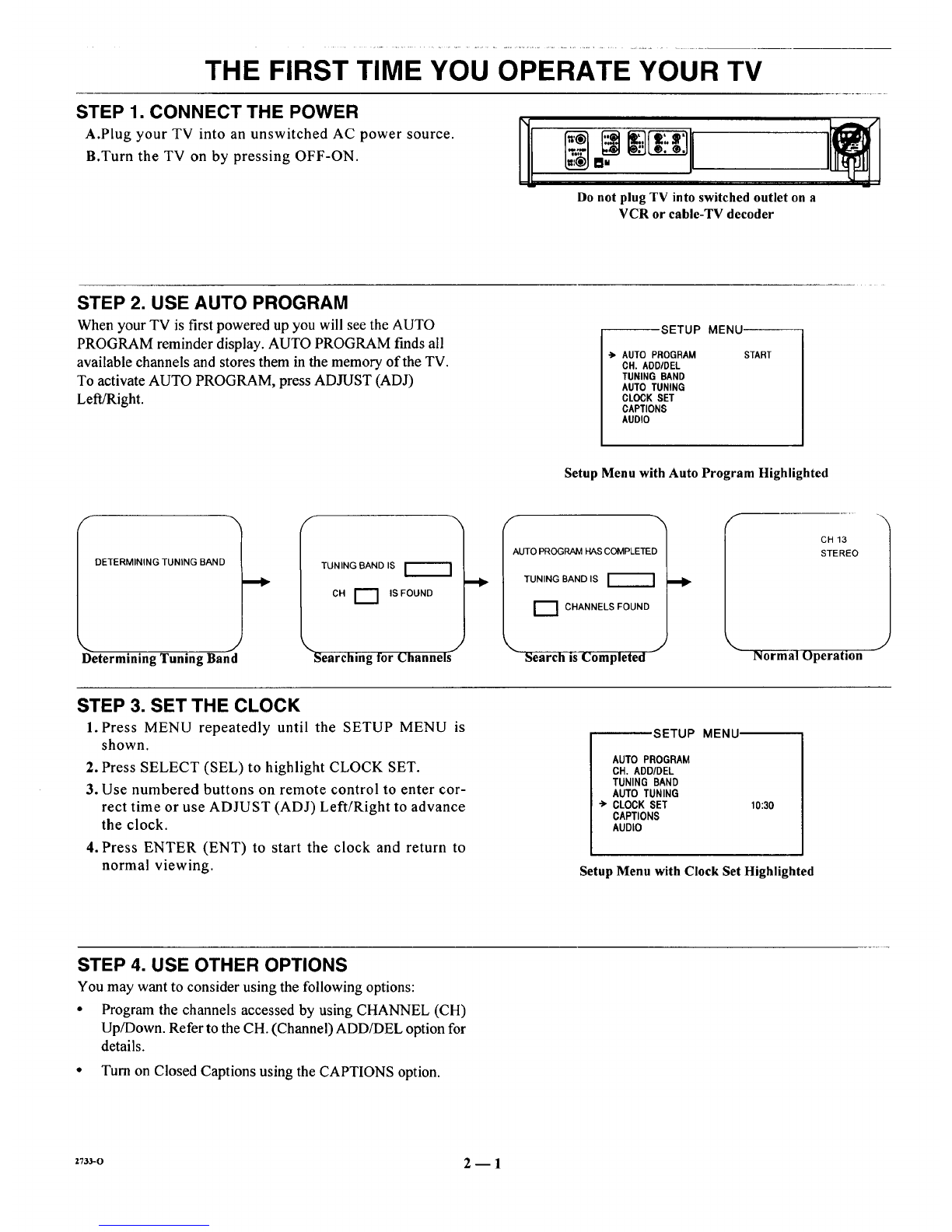

THE FIRST TIME YOU OPERATE YOUR TV

STEP 1. CONNECT THE POWER

A.Plug your TV into an unswitched AC power source.

B.Turn the TV on by pressing OFF-ON.

Do not plug TV into switched outlet on a

VCR or cable-TVdecoder

STEP 2. USE AUTO PROGRAM

When your TV is first powered up you will see the AUTO

PROGRAM reminder display. AUTO PROGRAM finds all

available channels and stores them in the memory of the TV.

To activate AUTO PROGRAM, press ADJUST (ADJ)

Left/Right.

SETUP MENU---

-> AUTO PROGRAM

CH. ADDIDEL

TUNING BAND

AUTO TUNING

CLOCK SET

CAPTIONS

AUDIO

START

Setup Menu with Auto Program Highlighted

DETERMINING TUNING BAND

DeterminingTuning Band

TUNING BAND IS

CH I'---"] IS FOUND

Searching for Channels-

AUTO PROGRAM HAS COMPLETEI

_1_ / TUNING BAND IS _

[ I--I C"ANNE'SFOUND

Search is Completed

SCH 13

STEREO

Normal Operation J

STEP 3. SET THE CLOCK

1. Press MENU repeatedly until the SETUP MENU is

shown.

2. Press SELECT (SEL) to highlight CLOCK SET.

3. Use numbered buttons on remote control to enter cor-

rect time or use ADJUST (ADJ) Left/Right to advance

the clock.

4. Press ENTER (ENT) to start the clock and return to

normal viewing.

SETUP MENU

AUTO PROGRAM

CH. ADD/DEL

TUNING BAND

AUTO TUNING

-> CLOCK SET

CAPTIONS

AUDIO

10:30

Setup Menu with Clock Set Highlighted

STEP 4. USE OTHER OPTIONS

You may want to consider using the following options:

• Program the channels accessed by using CHANNEL (CH)

Up/Down. Refer to the CH. (Channel) ADD/DEL option for

details.

•Turn on Closed Captions using the CAPTIONS option.

273_o 2-- 1

GETTING TO KNOW YOUR TV

TYPICAL CONTROL PANEL

The control panel on your TV may differ from the one shown.

NOTE: Some TVs have a vertical control panel m the opera-

tion is the same as described for the control panel shown.

ENTER (ENT) SELECT (SEL) VOLUME (VOL) Up/Down OFF-ON

Press to see the Channel/Time dis- Press during on-screen menu op- Press to increase or decrease the Press to turn TV

play, or to remove any on-screen dis- erations to select a menu option, sound level, power ON or OFF.

play or menu. _ _

_ UST OFFION

Press once to see a menu. Press

repeatedly to sequence through

the available menus.

ADJUST (ADJ) Left/Right

Press during on-screen menu opera-

tion to see information/status display

for selected option. Press again to ad-

just the selected menu option.

CHANNEL (CH) Up/Down

Press to select channels higher

or lower than the channels be-

ing viewed. You can add chan-

nels to or delete channels from

the scanning sequence stored in

memory of the TV. See CH.

ADD/DEL option for channel

programming information.

Remote Window

Point the remote

control towards this

window to operate

the TV.

SLEEP TIMER

Some remote controls are equipped with a TIMER button that

provides access to the SLEEP TIMER available with some TV

models. By using the SLEEP TIMER, you can program the

TV to automatically shut off after a period from 15 minutes up

to 4 hours.

To Set SLEEP TIMER

1. Press TIMER to see SLEEP TIMER display.

2. Press TIMER repeatedly until you reach desired shut-

off time.

One minute before the TV shuts off, the GOOD NIGHT dis-

play appears on the screen. At this time you have a choice of

the following three actions.

l. Do nothing. The GOOD NIGHT display remains on

the screen. The TV will shut off in one minute.

2. Remove the GOOD NIGHT display by pressing ENTER

(ENT). The TV will still shut off in one minute.

3. Delay the shut off by using TIMER to select a new

shut off time.

To Cancel the SLEEP TIMER

You can cancel the SLEEP TIMER by setting the SLEEP

TIMER status to OFF. Press TIMER repeatedly until OFF is

selected.

NOTE: The SLEEP TIMER resets to OFF when you turn off

the TV.

SLEEP "rIMER

o:15

Sleep Timer Display

SLEEP TIMER /

lGOOD NIGHT

0:58

"Good Night" Display

z74s-o 3-- 1

REMOTE CONTROL MODEL SC3390

OPERATION

This remote control provides access to all on-screen menus, as

well as, access to special features that cannot be accessed by

using the control panel on the TV. /

For optimum performance, point the

remotecontrol toward your ZenithTV.

PREPARATION FOR USE

Batteries are provided with this remote, but you must install

them before using the remote.

MENU, SELECT and ADJUST

Used with on-screen menus to see

menu, select an option, and adjust

thatoption.

Numbered Buttons

Used to select aTV channel.

ENTER J

Used to view the Channel/Time

Display or to remove any on-screen

menu or display.

TIMER

Used to activate the SLEEP TIMER.

f--q

I 4 p'I

AIXI..I_T

IN@@

TluER

OFT-ON

[]

CHANNEL

MUTE

SC3390

OFF-ON

Used to turn TV ON or OFF.

FLSHBK (Flashback)

Used to returnto the last TV

J channel you were watching.

CHANNEL Up/Down

Used to select a TV channel by going

Up or Down through channels pro-

grammed in your FAV. (Favorite)

CHANNELS scan sequence.

VOLUME Up/Down

Used to adjustthe volume level of the

TV.

MUTE

Used to turn off sound while the pic-

ture remains. Press again to restore

the sound.

CAPTIONS

Used to view closed captions broad-

cast with some television programs.

INSTALLING BATTERIES

When the effective operating range of your remote becomes

noticeably shorter, replace the batteries with two (2) high qual-

ity, alkaline, size AAA batteries.

NOTE: Zenith is not responsible for damage caused by bat-

tery leakage.

Step 1. Step2. Step 3.

2728-o 4-- 1

Otros manuales para Sentry 2 Series

Tabla de contenidos

Otros manuales de TELEVISOR de Zenith

Zenith

Zenith INTEQ IQZ36Z98C Manual de operación y mantenimiento

Zenith

Zenith C32V23 - 32" Flat-Screen Integrated HDTV Manual de operación y mantenimiento

Zenith

Zenith SENTRY 2 SMS2049X3 Manual de operación y mantenimiento

Zenith

Zenith SMS1324S Manual de operación y mantenimiento

Zenith

Zenith Concierge H19D34Y Manual de operación y mantenimiento

Zenith

Zenith Sentry 2 Series Manual de operación y mantenimiento

Zenith

Zenith Concierge H27E35DT Guía de solución de problemas

Zenith

Zenith IQA56M98W9 Series Manual de operación y mantenimiento

Zenith

Zenith IQB50M92W Manual de usuario

Zenith

Zenith C27V28 Manual de usuario

Zenith

Zenith A2221YI Instrucciones de instalación

Zenith

Zenith B19A23DCOM Manual de operación y mantenimiento

Zenith

Zenith H27D55DT Manual de usuario

Zenith

Zenith SR2786 Manual de operación y mantenimiento

Zenith

Zenith IQB50M90W Manual de usuario

Zenith

Zenith A25A76R Manual de usuario

Zenith

Zenith Concierge H27D35DT Guía de solución de problemas

Zenith

Zenith Sentry 2 Series Manual de operación y mantenimiento

Zenith

Zenith HealthView H20D50DT Manual de operación y mantenimiento

Zenith

Zenith IQC50H94W Manual de usuario

Zenith

Zenith SENTRY 2 Z27A11 Manual de operación y mantenimiento

Zenith

Zenith Sentry 2 Series Manual de operación y mantenimiento

Zenith

Zenith Presentation H27E44DT Guía de solución de problemas

Zenith

Zenith B25A02ZOM Manual de operación y mantenimiento

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
