Zenith A19A11D Manual de usuario

Thanks for

choosing Zenith!

machine numbers A19A11D A25A11D A27A11D

operating guide / warranty

hookup directory page 3

RECORD YOUR MODEL NUMBER

The model and serial number of your new TV are located

on the back of the TV cabinet. For your future convenience,

we suggest that you record these numbers here:

MODEL NO.____________________________________

SERIAL NO.____________________________________

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence

of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

POWER CORD POLARIZATION:

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE

CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

NOTE TO CABLE/TV SYSTEM INSTALLER:

This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code

(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be

connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures: •Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation.

Unauthorized modification could void the user’s authority to operate this product.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

206-3370-A

INSTALLATION GETTING STARTED PAGE 3

This page will

direct you to

which page

to go to for

proper hook-up

of your

Entertainment

Machine.

Hook-Up Directory

IMPORTANT!!

Use this page to decide where you need to begin your Setup. First, find the line

below that best describes what you want to do, then go to that page number.

Cable TV

wall jack

Cable box

Out

Cable TV

wall jack

Cable box

Out

If you are using an antenna and no other equipment, go to . . . . . . . . . . . . . . . . . . page 4

If you have cable and no other equipment, go to . . . . . . . . . . . . . . . . . . . . . . . . . page 5

If you are using an antenna and have a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . page 6

If you have cable and a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7

Antenna only

Cable only

Antenna with VCR

Cable and VCR

206-3370-A

INSTALLATION STANDARDPAGE 4

Connect an

off-air antenna

to your

Entertainment

Machine.

Hook Up Your Antenna to the TV

Mini glossary

75 OHM RF CABLE The wire that comes from an off-air antenna or cable service provider. Each end looks like a hex shaped nut with a wire

sticking through the middle, and it screws onto the threaded jack on the back of your TV.

300 TO 75 OHM ADAPTER A small device that connects a two-wire 300 ohm antenna to a 75 ohm RF jack. They are usually about an

inch long with two screws on one end and a round opening with a wire sticking out on the other end.

RF coaxial wire

(75ohm)

Antenna TV back

TV back panel

(expanded view)

Antenna

Cable

TV back

Flat wire

(300 ohm)

Antenna

300/75 ohm

Adapter

TV back panel

(expanded view)

Antenna

Cable

Audio In Video

If you have a 75 ohm RF cable,

then you don’t need any adapters!

Remember, when screwing RF

cables onto jacks, clockwise tight-

ens, and counterclockwise loosens.

A 300 to 75 ohm adapter is not

included with your Entertainment

Machine.

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

back of remote

Flat wire antenna to TV

Antenna to TV Coaxial wire

206-3370-A

INSTALLATION STANDARD PAGE 5

Connect cable

to your

Entertainment

Machine.

Mini glossary

CABLE SERVICE The wire that supplies all your cable TV (CATV) stations.

Hook Up Your Cable (CATV) to the TV

Cable TV

wall jack

Cable TV

wall jack

Audio In Video

Cable box

Out

RF coaxial wire (75ohm)

3 4

output

switch

TV back panel

(expanded view)

Antenna

Cable

TV back

Audio In Video

TV back panel

(expanded view)

Antenna

Cable

TV back

If you’re using a cable box, leave your TV on

channel 3 or 4 and use your cable box to

change channels.

Remember, when screwing RF cables onto jacks,

clockwise tightens, and counterclockwise

loosens.

If you’re using a cable box, Auto Program

(page 8) might only find the channel your

cable service is on (usually channel 3 or 4).

Don’t worry, that’s all you need!

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

back of remote

Cable to TV

Cable with Cable Box to TV

206-3370-A

INSTALLATION STANDARDPAGE 6

Connect your

off-air

antenna and

VCR to your

Entertainment

Machine.

Hook Up Your Antenna and VCR to TV

Remember, when screwing

RF cables onto jacks, clockwise

tightens, and counterclockwise

loosens.

No A/V cables are included with

your Entertainment Machine.

Without A/V cables, most VCRs

will not play videocassettes in

stereo sound.

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

back of remote

TV back panel

(expanded view)

Antenna

Cable

TV back

Out Audio

Video

3 4

VCR back

VCR back AV panel

Flat wire

(300 ohm)

Antenna

300/75 ohm

Adapter

RF coaxial wire

(75ohm)

not included

with TV

output

switch

Audio In Video A/V cables

not included

with TV

TV back panel

(expanded view)

Antenna

Cable

TV back RF coaxial wire

(75ohm)

not included

with TV

Audio In Video

A/V cables

not included

with TV

Out Audio

Video

3 4

VCR back

VCR back AV panel

output

switch

RF coaxial cable

(75ohm)

Antenna

Flat wire Antenna to TV with VCR

Coaxial wire Antenna to TV with VCR

Optional

for 25” and

27” screens

only.

206-3370-A

INSTALLATION STANDARD PAGE 7

Connect your

VCR and Cable

to your

Entertainment

Machine.

Hook Up Your Cable (CATV) and VCR

Leave your VCR and your television

tuned to channel three and use

the cable box to change channels.

Remember, when screwing in RF

cables onto jacks, clockwise tight-

ens, and counterclockwise loosens.

No A/V cables are included with

your Zenith Entertainment

Machine. Without A/V cables, most

VCRs will not play videocassettes

in stereo sound.

Cable TV

wall jack

RF coaxial cable (75ohm)

TV back panel

(expanded view)

Antenna

Cable

TV back

Out Audio

Video

3 4

VCR back

VCR back AV panel

RF coaxial wire

(75ohm)

not included

with TV

A/V cables

not included

with TV

output

switch

Audio In Video

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

back of remote

Cable TV

wall jack

RF coaxial cable (75ohm)

Cable box

Out

Out Audio

Video

3 4

VCR back

VCR back AV panel

output

switch

3 4

output

switch

TV back panel

(expanded view)

Antenna

Cable

TV back RF coaxial wire

(75ohm)

not included

with TV

Audio In Video

A/V cables

not included

with TV

Cable with Cable

Box to TV with

VCR

Cable to TV with VCR

Optional

for 25” and

27” screens

only.

206-3370-A

Mini glossary

AUTO PROGRAM Auto Program is how your Entertainment Machine finds all the channels available in your area and stores them into memory.

INSTALLATION QUICK STARTPAGE 8

Use Auto

Program to

automatically

find and

store all the

stations

available in

your area.

Auto Program

With the remote control in hand,

press the POWER key to turn on

your Entertainment Machine.

Press the MENU key so the Setup

menu appears.

Using the UP/DOWN arrows on

the remote control, select Auto

Program on your screen.

Press a RIGHT or LEFT arrow to

reach the Auto Program screen.

Using the UP/DOWN arrows,

choose either Cable TV or Off-air

Antenna on your screen.

Press a RIGHT or LEFT arrow to

begin Auto Program.

Press ENTER to return to

TV viewing.

123

456

ENTER

POWER

TIMER

FLSHBK

MUTE

VOLUME

CHANNEL

ADJ ADJ

SELECT

3/5

4/6

206-3370-A

INSTALLATION QUICK START PAGE 9

123

456

ENTER

POWER

TIMER

FLSHBK

MUTE

VOLUME

CHANNEL

ADJ ADJ

SELECT

Power

Turns controlled

device on and off.

Timer

Displays Sleep Timer

menu. See “Timer

Setup” on page 17 for

more information.

Selects closed captions.

Flashback

Returns to last channel

viewed.

Mute

Turns sound off and on.

Volume

Adjusts the sound on

your Entertainment

Machine.

Channel

Cycles through available

channels.

Number Key Pad

Use for direct channel

entry or for on-screen

programming.

Enter

Displays current TV

channel and time, removes

on-screen menus. Press

after channel numbers for

instant selection.

Displays on-screen

menus available.

Select Up/Down Arrows

Selects on screen

menu options.

Adj Left/Right Arrows

Adjust on-screen

menu options.

remote control part number

SC3492

A quick list

of all the

buttons on

your remote

and what they

do.

The Buttons on Your Remote

206-3370-A

How to

use your

six-button

panel to

operate

the menus.

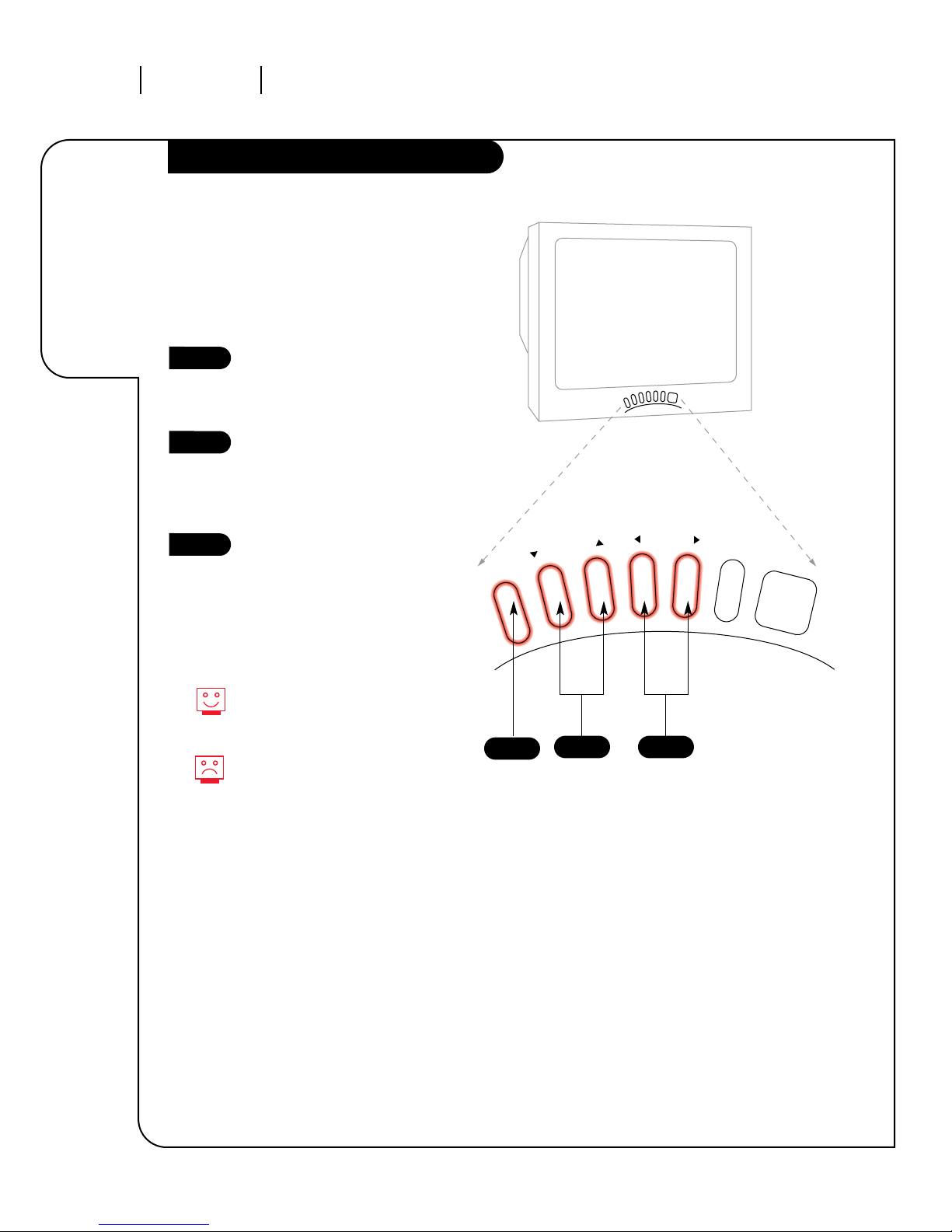

Front Panel Diagram

OPERATION BUTTON FUNCTIONSPAGE 10

POWER

VOLUME

CHANNEL

To access the Setup menus, press

the MENU button once; to get the

Video menus, press the MENU

button twice.

Choose the function you wish to

change using the CHANNEL

UP/DOWN buttons. The Channel

buttons act as a “Select”

(Up/Down) function.

The VOLUME buttons act as an

“adjustment” (Left/Right)

function. Use the VOLUME

buttons to make changes or

adjustments.

Menus disappear after five seconds.

To get them back, push the MENU

button again.

You’ll want to get a new remote;

call 1-800-255-6790 to purchase a

replacement.

132

When using the on-screen menus, the

buttons on the front panel correspond to

the remote control buttons as follows:

VOLUME = Adjust Left/Right

CHANNEL = Select Up/Down

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Zenith

Zenith

Zenith PVR5269 Manual de operación y mantenimiento

Zenith

Zenith SYSTEM 3 Series Manual de operación y mantenimiento

Zenith

Zenith H13E01L Manual de operación y mantenimiento

Zenith

Zenith B32AZ4W Manual de operación y mantenimiento

Zenith

Zenith H25F39DT Series Manual de operación y mantenimiento

Zenith

Zenith ADVANCED SYSTEM 3 Manual de operación y mantenimiento

Zenith

Zenith SM3589BT Manual de operación y mantenimiento

Zenith

Zenith A27A74R Manual de usuario

Zenith

Zenith Sentry 2 Series Manual de operación y mantenimiento

Zenith

Zenith Presentation H25D46DT Manual de operación y mantenimiento

Zenith

Zenith A25B33W Manual de usuario

Zenith

Zenith SR2786 Manual de operación y mantenimiento

Zenith

Zenith INTEQ SRX3253 Manual de operación y mantenimiento

Zenith

Zenith C27A25 Manual de usuario

Zenith

Zenith Presentation H25C46DT Manual de operación y mantenimiento

Zenith

Zenith D27D53T Manual de operación y mantenimiento

Zenith

Zenith A27A74R Manual de usuario

Zenith

Zenith SENTRY 2 SLS1931S Manual de operación y mantenimiento

Zenith

Zenith SENTRY 2 SLS25495S and warranty Manual de operación y mantenimiento

Zenith

Zenith SYSTEM 3 Series Manual de usuario

Zenith

Zenith C27C41T Series Manual de operación y mantenimiento

Zenith

Zenith SENTRY 2 Z25A65 Manual de operación y mantenimiento

Zenith

Zenith C27C35T Series Manual de operación y mantenimiento

Zenith

Zenith HealthView H20C50DT Manual de operación y mantenimiento

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
