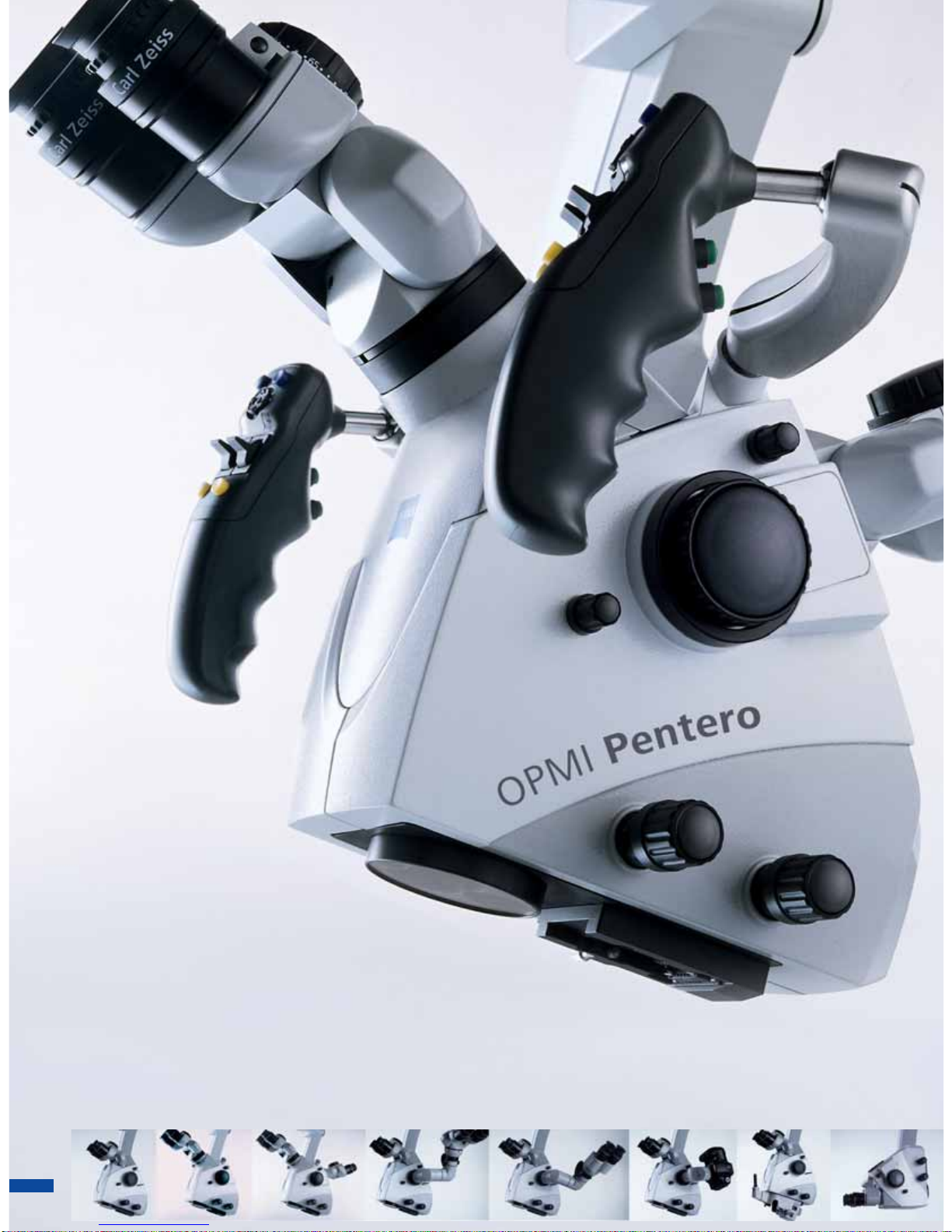

OPMI®Pentero®

OPMI®surgical microscopes from Carl Zeiss

With OPMI Pentero, Carl Zeiss has created

something unique:

an ingenious simplification of complexity.

The Sum of

50 Years of Knowledge

“OPMI Pentero, the new microscope of Carl Zeiss has

exceeded all my expectations. The motorized X/Y move-

ment; increased headroom; single-lever pistol grip

movement; completely internalized video, cameras, and

cables; elimination of the drape bulk with a vacuum

system; single-button autobalance; and unparalleled

binocular vision with superb lighting make this highly

integrated microscope system the most important tool

for the practice of neurosurgery.”

Robert F. Spetzler, M.D., Chairman and Medical

Director Barrow Neurological Institute, Phoenix,

Arizona, USA

For more than 50 years, Carl Zeiss surgical

microscopes have been delivering excellence

to the world’s most challenging professions.

Surgeons’ needs have been the driving force

behind our quest to provide ever more refined,

more multifunctional systems.

An OPMI is no longer just at the center of the

microsurgical procedure, it is now an information

and communication cockpit; not only the window

to the operating field, but also a gateway to the

outside world.

But how can a sophisticated, high-tech surgical

microscope assist in simplifying very complex

surgical procedures?

OPMI Pentero is the answer.

Trust

The challenge: to develop a new optical design

that once again substantially improves depth of

field, light and working distance.

Bringing it all within reach

State-of-the-art apochromatic optics deliver the

legendary crystal-clear images, sharp details and

natural colors associated with Carl Zeiss. The

innovative optical design, with a new Varioskop™,

provides a larger working range and virtually

ensures comfortable working conditions – even

when using long instruments. The depth of field

has been increased by 17% and can be doubled

by activating the DeepView function.

Bringing Light to the Darkness

Surgeons now have 20% more light to work

with, the assistant even more. Spot illumination

precisely adjusts the light cone – all without

reflections. The patented, two-channel illumination

system delivers light wherever it’s needed – a

distinct advantage, which provides higher-contrast

images in narrow and deep canals.

Focus at the Push of a Button

The high-speed autofocus automatically delivers

razor-sharp images at all times, regardless of

magnification. And when focusing manually?

An intuitive laser-focusing aid assists in selecting

the exact focal point – particularly helpful when

using the mouth switch.

Stress Free

Whether the surgeon remains standing or seated,

the 30% more compact design of OPMI Pentero

allows for freedom of hand and instrument

movement while providing a short distance to the

surgical field.

Thanks to its overhead design, the suspension

system can be placed in any position – even

behind the surgeon.

“I have been using Carl Zeiss microscopes for the last

two and half decades. They have provided the best in

optics and have been constantly upgrading the technol-

ogy. My team and I trust Carl Zeiss optics.”

Dr. A. S. Hegde, Chairman Neurosciences, Sri Sathya

Sai Institute of Higher Medical Sciences, Bangalore,

India

“With the tremendous improvements to the co-obser-

vation tube, the OPMI Pentero really helps the assis-

tant. The tube provides a better view of the operating

field and does not move when the microscope is reposi-

tioned.”

J.J. van Overbeeke M.D., Ph.D., St. Elisabeth Hospital,

Tilburg, The Netherlands

14-function foot control panel Rocker switch Foot switch
