Ventilation system Zehnder ComfoAir Q

Manual for the service engineer

ComfoAir Q TR ComfoAir Q ST

2 - EN

Foreword

Read this document carefully before use.

With this document you can commission and

perform the maintenance of the ComfoAir Q in a safe

and optimal manner. In this document the ComfoAir

Q will be referred to as “the unit”. The unit is subject

to continuous development and improvement. Thus

the unit may be slightly different from the given

descriptions.

The following pictograms are used in the Zehnder

documents:

Symbol Meaning

Point of interest.

Risk of compromised performance or damage of

the ventilation system.

Risk of personal injury.

Information found in the user manual

General information about the ventilation system.

Warranty and liability conditions.

EEC declaration of conformity.

How to replace the filters in the unit.

How to clean the valves and/or grilles in the ventilation system.

How to use the display on the unit.

Information found in the installer manual

Installation conditions

Information about transport and unpacking

Installation procedures

Available operating devices

Available ancillaries

Information found on the identification plate

Suffix Meaning

ComfoAir Product family name.

QProduct type name.

350 Maximum air volume of 350 m3/h.

450 Maximum air volume of 450 m3/h.

600 Maximum air volume of 600 m3/h.

SI Country code of the unit.

RThe unit has been set with the supply and extract air

on the right side as default.

ST15 The unit has four fixed air connections.

TR16 The unit has four air connections which can turn.

ERV The unit has an enthalpy exchanger installed as

default.

CHANGED

SAME

Questions

Contact your supplier when you have any questions or would like to order a new document or new filters. The

contact details of the main supplier can be found on the back page of this document.

This documentation has been made with the utmost care. The publisher cannot be held liable for any damage

caused as a result of missing or incorrect information in this document. In case of disputes the English version of

the instructions will be binding.

15 Not available on the ComfoAir Q 350 and 450.

16 Not available on the ComfoAir Q 600.

2 - EN

EN - 3

Table of Contents

Foreword...................................................................................................................................................................... 2

1 Safety instructions ........................................................................................................................................................ 5

2 Technical specifications ................................................................................................................................................6

2.1 Overview of the unit............................................................................................................................................. 10

2.2 Service parts ...................................................................................................................................................... 11

2.3 Wiring diagram main board................................................................................................................................... 12

3 Commissioning procedure........................................................................................................................................... 13

3.1 Commissioning the unit........................................................................................................................................ 13

3.2 Programming the RF controls ............................................................................................................................... 15

4 Operation................................................................................................................................................................... 17

4.1 Access the unit display ........................................................................................................................................ 17

4.2 Overview of the unit display.................................................................................................................................. 17

4.3 Activate/deactivate the child lock ......................................................................................................................... 19

4.4 How to navigate through the unit menu ................................................................................................................. 19

4.5 Access the installer settings ................................................................................................................................. 19

4.6 Menu structure.................................................................................................................................................... 20

4.7 COMMISSIONING menu...................................................................................................................................... 22

4.8 MAIN BOARD SETTINGS menu............................................................................................................................ 24

4.8 .1 VENTILATION PRESETS menu ................................................................................................................... 24

4.8.2 VENTILATION CONTROLS menu................................................................................................................ 24

4.8.3 FILTER SETTINGS menu............................................................................................................................ 24

4.8.4 ALTITUDE menu........................................................................................................................................ 24

4.8.5 FIRE PLACE PRESENT menu ..................................................................................................................... 24

4.8.6 UNBALANCE menu................................................................................................................................... 25

4.8.7 HEAT EXCHANGER TYPE menu................................................................................................................. 25

4.8.8 DIRECT FAN CONTROL menu ................................................................................................................... 25

4.8.9 SERVICE MODE menu .............................................................................................................................. 25

4.9 OPTION BOX SETTINGS3menu........................................................................................................................... 25

4.10 LOG OUT menu .................................................................................................................................................. 25

4.11 Reset options...................................................................................................................................................... 25

4.12 Software update.................................................................................................................................................. 25

3 This menu is only visible when the accessory is connected to the unit.

4 - EN

5 Maintenance procedures............................................................................................................................................. 26

5.1 Procedure for opening the unit ............................................................................................................................. 26

5.2 Maintenance of the casing ................................................................................................................................... 27

5.3 Maintenance of the heat exchanger ..................................................................................................................... 27

5.4 Maintenance of the fans....................................................................................................................................... 28

5.5 Maintenance of the modulating bypass valves ....................................................................................................... 29

5.6 Maintenance of the pre-heater.............................................................................................................................. 29

5.7 Maintenance of the condensation drain................................................................................................................. 30

5.8 Maintenance of the air ducts ................................................................................................................................30

5.9 Procedure for ending the maintenance.................................................................................................................. 31

6. Malfunction procedures .............................................................................................................................................. 32

6.1 How to reset errors .............................................................................................................................................. 32

6.2 How to remove ancillaries..................................................................................................................................... 32

6.3 Malfunction alerts on the display of the unit1 .............................................................................................................................................. 33

6.3 How to gain access to the ComfoNet connectors on the unit.................................................................................. 34

6.4 How to gain access to the main board .................................................................................................................. 34

6.5 How to gain access to the main power fuse of the unit .......................................................................................... 34

6.6 How to gain access to the top-section sensor ....................................................................................................... 35

6.7 How to gain access to the mid-section sensor....................................................................................................... 35

6.8 How to remove the modulating bypass valve ......................................................................................................... 36

6.9 How to change the location of the pre-heater ........................................................................................................ 36

6.10 What to do in the event of a malfunction alert (troubleshooting) ............................................................................... 37

6.11 What to do in the event of a malfunction (or problem) without a malfunction alert (troubleshooting) ............................ 44

4 - EN

EN - 5

1 Safety instructions

■ Always obey the safety regulations,

warnings, comments and instructions

given in this document. When

the safety regulations, warnings,

comments and instructions in this

document are not obeyed personal

injury or damage to the unit can

occur;

■ Always obey the general and locally

applicable construction, safety and

installation instructions of the local

council, electricity and water boards

or other agencies;

■ Always connect air ducts of at least

900mm to the unit before you connect

the power to the unit. This ensures the

motor cannot be touched while the

unit is active;

■ After installation all parts that can

cause personal injury are secured

behind the casing. Tools are required

to open the casing;

■ The installation, commissioning and

maintenance must be carried out by

a certified engineer unless instructed

differently. A non-certified engineer

can cause personal injury or damage

the performance of the ventilation

system;

■ Do not modify the unit or the

specifications given in this document.

A modification can cause personal

injury or damage the performance of

the ventilation system;

■ Always disconnect all poles of the

power supply of the unit and optional

connected ComfoSplitter before

you start working on the ventilation

system. The unit can cause personal

injury when it is open while running.

Make sure the unit cannot switch back

on by accident;

■ Often power is needed on the unit

during troubleshooting while the

unit is open. At all times be aware

of the danger for electrical shocks

and rotating parts. Therefore always

take all the possible precautions to

protect yourself and others during

troubleshooting.

■ Always take ESD-inhibiting measures

when dealing with electronics, such as

wearing an antistatic wristband. The

electronics can be damaged by static

charges;

CHANGED

SAME

ESD

■ The FIREPLACE setting is no safety

feature. For safety, a delta-pressure

switch switching off the ventilation in

case of under pressure should still be

installed;

■ Do not change the filters when the

unit is powered without using the filter

wizard. For safety reasons the unit will

stop the ventilation during the filter

replacement instructions.

CHANGED

SAME

ESD

CHANGED

SAME

ESD

6 - EN

2 Technical specifications

Q 350 Q 450 Q 600

Performance

Minimal airflow when preheater is off 75m3/h 75m3/h 75m3/h

Minimal airflow when preheater is on 100m3/h 100m3/h 100m3/h

Maximal airflow 350m3/h 450m3/h 600m3/h

Thermal Efficiency

(According to EN 13141-7:2010)

92% 90% 89%

Electrical data

Maximal power including pre-heater

(At -15°C and max airflow)

1850W 10.00A 2240W 10.80A 2620W 12.70A

Maximal power excluding pre-heater 180W 1.42A 250W 1.98A 350W 2.77A

Power supply / power cord 230V±10%, single phase, 50Hz

Cos φ0.36 - 0.54 0.32 - 0.57 0.4 - 0.62

Internal fuse F5010

(10A)

F5015

(16A)

F5015

(16A)

Connection data

Air connection size (Ø) Inside: 160mm

Outside: 190mm

Inside: 160mm

Outside: 190mm

Inside: 180mm

Outside: 200mm

Condensation drain size (Ø) Tube version: 32mm

Thread version: 1¼”

ComfoNet data

Maximal power 400mA@12V

Maximal non powered devices 4

Cable type 2x unshielded twisted pair,

stiff (solid) wires 0,6mm2 (max 50m)

Color code 12V: red

GND: black

CAN_H: yellow

CAN_L: white

Material specifications

Housing Coated Sheet Steel

Interior EPP and ABS

Heat Exchanger Polystyrene

Enthalpy Exchanger Polyethylene-polyether-copolymer

General

IP classification IP40

ISO classification B

Temperature range during tansport and

storage

-40°C tot +60°C

Temperature range moved air -20°C tot +60°C

Temperature range installation area 0°C tot 45°C

Relative air humidity installation area <90%; non-condensing

Weight 50kg

Filter class Outdoor air: F7

Extract air: G4

6 - EN

EN - 7

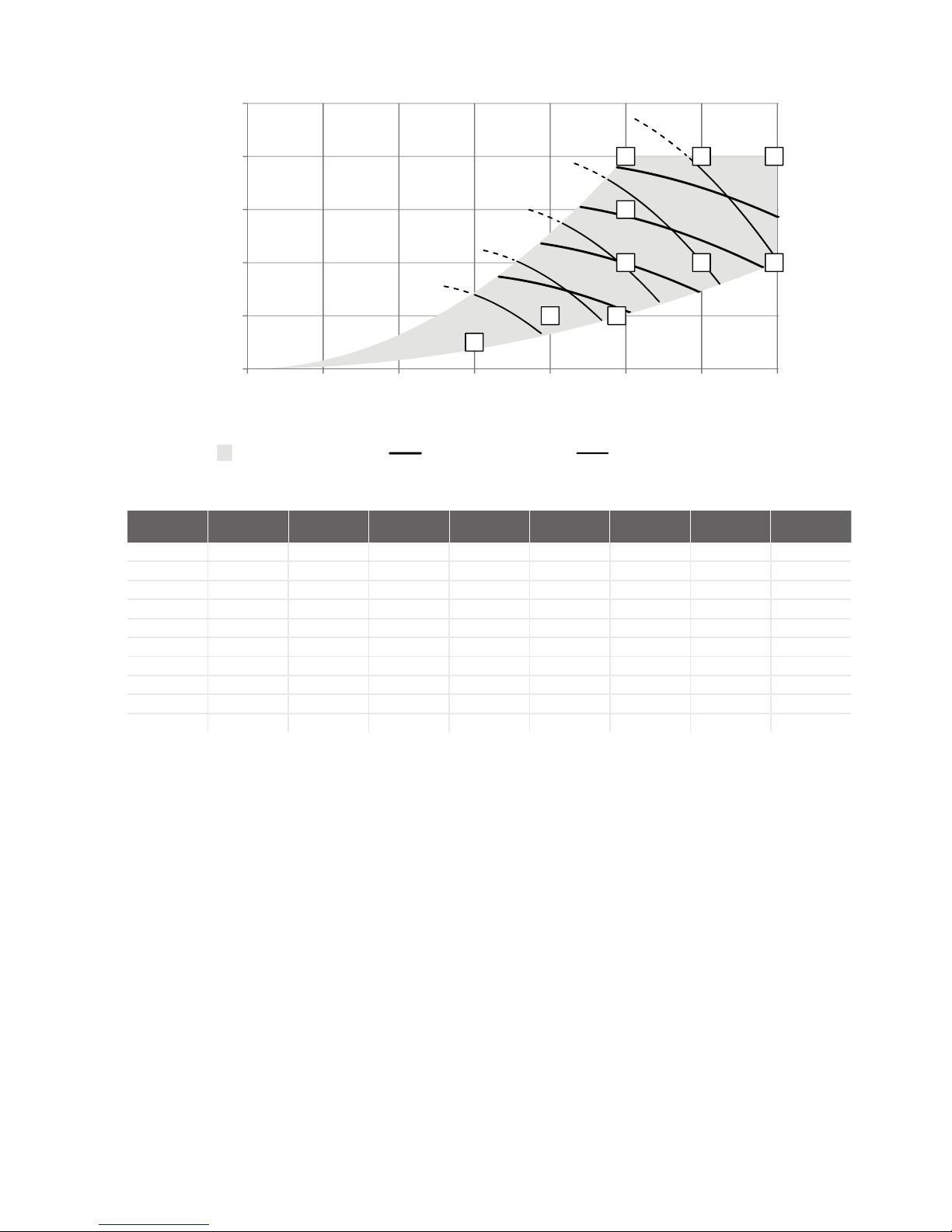

ComfoAir Q 350

4 56

8 9 10

0.2

0.25

0.3

0.35

100

150

200

250

0 50 100 150 200 250 300 350

Pst(Pa)

Qv(m³/h)

ComfoAirQ350PLVVTR

SFP(Wh/m³) Lw(dB[A])

2 3

4 5 6

8 9 10

0.7

0.9

1.1

1.3

46 49

100

150

200

250

0 50 100 150 200 250 300 350

Pst (Pa)

Qv (m³/h)

ComfoAir Q350 GB ST

SFP (W/l/s)intended work area Lw (dB[A])

m³/h

Pst

cos φ

SFP

Wh/l/s

Lw, supply

dB(A)

Lw, extract

dB(A)

Lw, casing

dB(A)

1150 25 16 0.41 0.37 46 34 33

2200 50 31 0.45 0.57 51 38 37

3245 50 43 0.47 0.64 54 40 40

4250 100 59 0.49 0.85 56 42 42

5300 100 77 0.50 0.92 59 45 45

6350 100 98 0.51 1.00 63 48 47

7250 150 74 0.50 1.06 59 44 44

8250 200 88 0.51 1.27 61 46 46

9300 200 108 0.52 1.30 63 48 48

10 350 200 131 0.53 1.35 66 50 50

Lw in dB(A) reference 10ˉ¹²W

Casing radiation measured according to ISO 3741:2010

Supply noise and extract noise measured according ISO 5135:1997 (values include end duct correction)

SFP calculated using data measured according EN13141-7:2010

cos phi with pre heater switched off (if present)

8 - EN

ComfoAir Q 450

9 10 11

0.2

0.25

0.3

0.35

100

150

200

250

0 50 100 150 200 250 300 350 400 450

Pst(Pa)

Qv(m³/h)

ComfoAirQ450PLVVST

SFP(Wh/m³) Lw(dB[A])

2 3

4 5 6

8 9 10

0.7

0.9

1.1

1.3

46 49

100

150

200

250

0 50 100 150 200 250 300 350

Pst (Pa)

Qv (m³/h)

ComfoAir Q350 GB ST

SFP (W/l/s)intended work area Lw (dB[A]) d

m³/h

Pst

cos φ

SFP

Wh/l/s

Lw, supply

dB(A)

Lw, extract

dB(A)

Lw, casing

dB(A)

1200 25 19 0.40 0.33 51 40 39

2250 50 37 0.46 0.54 54 43 42

3300 50 53 0.48 0.64 57 45 44

4315 50 59 0.49 0.67 57 46 45

5350 100 89 0.52 0.92 61 48 48

6400 100 113 0.54 1.01 63 50 50

7450 100 140 0.55 1.12 66 52 53

8350 150 106 0.53 1.09 62 49 49

9350 200 122 0.54 1.26 63 50 50

10 400 200 148 0.55 1.33 65 52 52

11 450 200 177 0.57 1.42 68 54 54

Lw in dB(A) reference 10ˉ¹²W

Casing radiation measured according to ISO 3741:2010

Supply noise and extract noise measured according ISO 5135:1997 (values include end duct correction)

SFP calculated using data measured according EN13141-7:2010

cos phi with pre heater switched off (if present)

When the automated bypass control is active the maximum air flow is restricted.

8 - EN

EN - 9

ComfoAir Q 600

1 2

3 4 5

6 7 8

10 11 12

0.75

1.00

1.25

1.50

100

150

200

250

0 50 100 150 200 250 300 350 400 450 500 550 600

Pst (Pa)

Qv (m³/h)

ComfoAir Q600 GB ST

SFP (W/l/s) Lw (dB[A])

intended work area

m³/h

Pst

cos φ

SFP

Wh/l/s

Lw, supply

dB(A)

Lw, extract

dB(A)

Lw, casing

dB(A)

1250 25 28 0.48 0.40 54 43 43

2300 25 44 0.51 0.53 56 45 45

3350 50 72 0.54 0.74 59 48 48

4400 50 97 0.55 0.87 62 50 50

5420 50 107 0.56 0.92 63 51 51

6450 100 143 0.57 1.15 65 53 53

7500 100 176 0.59 1.27 68 55 55

8600 100 254 0.61 1.53 73 59 60

9450 150 162 0.58 1.29 66 53 54

10 450 200 180 0.59 1.44 67 54 55

11 500 200 215 0.60 1.55 70 56 57

12 600 200 296 0.61 1.77 75 60 61

Lw in dB(A) reference 10ˉ¹²W

Casing radiation measured according to ISO 3741:2010

Supply noise and extract noise measured according ISO 5135:1997 (values include end duct correction)

SFP calculated using data measured according EN13141-7:2010

cos phi with pre heater switched off (if present)

When the automated bypass control is active the maximum air flow is restricted.

10 - EN

2.1 Overview of the unit

F G

L K

I G

Position Part

ASemi-transparent visor for access to the display and the filter caps.

B2 filter caps for easy access to the filters.

C2 filters for air filtering.

DDisplay to operate the unit.

ECable tray cover for cover and protection of the connected cables.

FFront cover for an air tight seal.

GComfoNet RJ45 connection.

HMains power connection and identification plate detailing information on the unit (not visible).

I2 ComfoNet plug-in connections.

JMain board behind the display cover.

LPre-heater for frost protection. (optional; standard in unit version “VV” )

Otros manuales para ComfoAir Q TR

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Admirador de Zehnder Rittling

Zehnder Rittling

Zehnder Rittling FF-200 Instrucciones de instalación y funcionamiento

Zehnder Rittling

Zehnder Rittling ComfoAir 180 Manual de usuario

Zehnder Rittling

Zehnder Rittling Centair CMEV.4e Manual de usuario

Zehnder Rittling

Zehnder Rittling ComfoAir 350 Basic Series Guía del usuario

Zehnder Rittling

Zehnder Rittling ComfoAir 200 Luxe Series Guía del usuario

Zehnder Rittling

Zehnder Rittling Adaptive ZLE100TA Manual de usuario

Zehnder Rittling

Zehnder Rittling ComfoAir 70 Guía de inicio rápido

Zehnder Rittling

Zehnder Rittling ComfoSpot 50 Manual de usuario

Zehnder Rittling

Zehnder Rittling ComfoSpot 50 Guía de inicio rápido

Zehnder Rittling

Zehnder Rittling ComfoAir 155 WMe Manual de usuario

Zehnder Rittling

Zehnder Rittling ComfoAir 550 Luxe Guía del usuario

Zehnder Rittling

Zehnder Rittling ComfoAir 200 Manual de usuario

Zehnder Rittling

Zehnder Rittling ComfoAir flat 150 Series Manual de usuario

Zehnder Rittling

Zehnder Rittling ComfoAir 160 Manual de usuario

Zehnder Rittling

Zehnder Rittling comfocool Guía

Zehnder Rittling

Zehnder Rittling ComfoAir 160 Manual de usuario

Zehnder Rittling

Zehnder Rittling ComfoAir 70 Manual de usuario

Zehnder Rittling

Zehnder Rittling ComfoAir 185 WM Manual de usuario

Zehnder Rittling

Zehnder Rittling Svea eAir Manual

Zehnder Rittling

Zehnder Rittling Centair CMEV.4 Manual de usuario

Zehnder Rittling

Zehnder Rittling ComfoAir XL Manual de servicio

Zehnder Rittling

Zehnder Rittling Unity ZCV3si Manual de usuario

Zehnder Rittling

Zehnder Rittling ComfoAir 550 Guía del usuario

Zehnder Rittling

Zehnder Rittling ComfoAir 185 WM Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
