Zebex Z-6172 Manual de usuario

Z-6172

Hands-Free 2D Image Reader

Service Guide

Revision History

Changes to the original manual are listed below:

Version Date Description of Version

1.0 April 21, 2015 Initial release

SERVICE GUIDE

Table of Contents

Table of Contents..........................................................................................................................................................2

Scanner Parts ..........................................................................................................................................................................3

Take Apart ....................................................................................................................................................................4

Before You Start ....................................................................................................................................................4

Important Instructions ..................................................................................................................................................4

Tools to Prepare .....................................................................................................................................................................4

Z-6172 Service Guide 2 / 8

Z-6172 Service Guide 3 / 8

SERVICE GUIDE

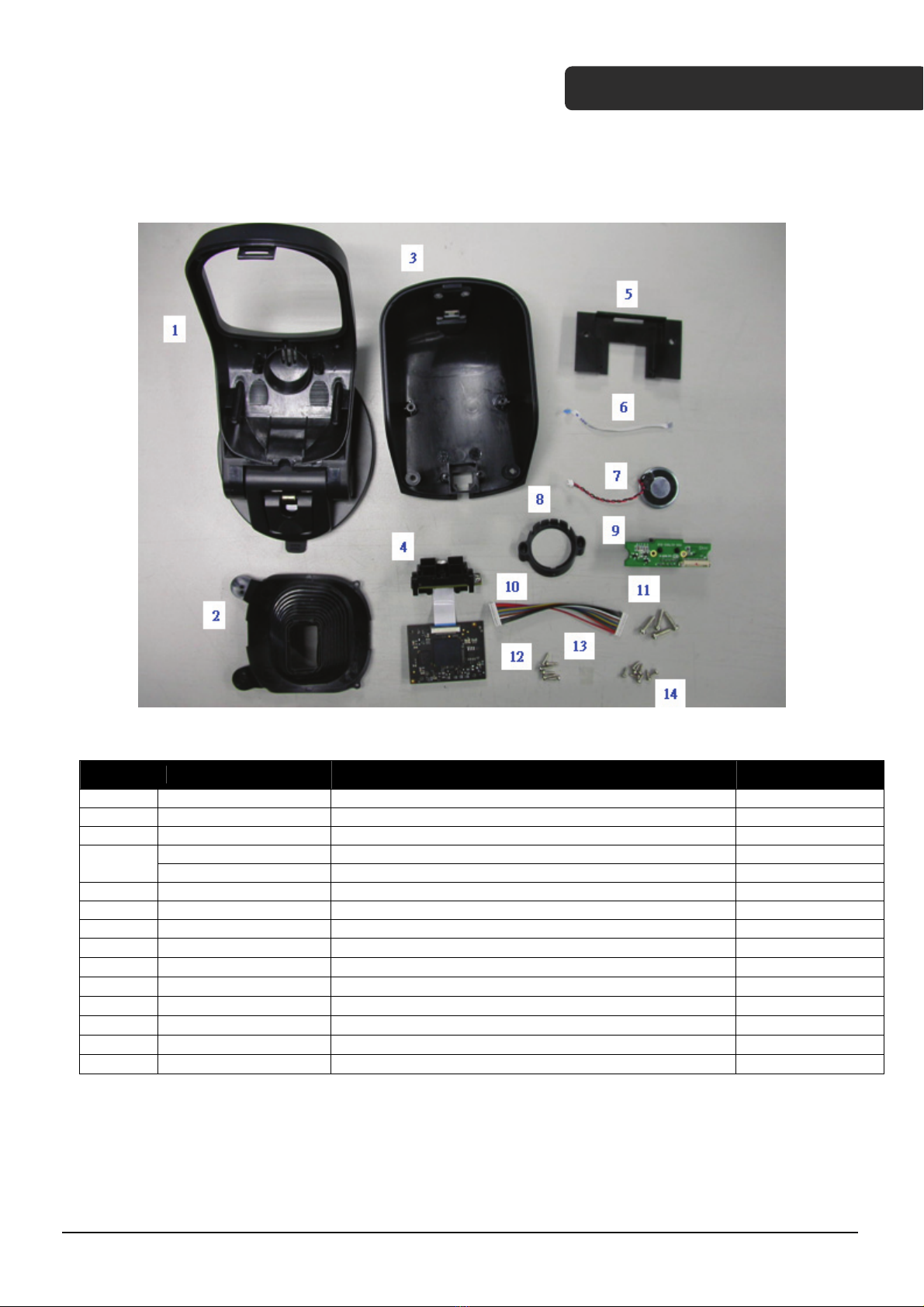

Scanner Parts

The scanner includes the following parts:

NO. P/N Name Quantity

1 866-617200-203 Z-6172(BK) Front case + Stand assembly (repair) 1

2 866-617200-204 Z-6172(BK) Front case cover assembly (repair) 1

3 866-617002-313 Z-6170(BK) Back case assembly 1

830-Z51120-ENZ Scan engine assembly 1

4 644-7319X0-000 Mylar tape 1

5 564-061720-002 Z-6172 engine holder 1

6 031-008006-520 6Pins FFC 1

7 10K-028050-410 Speaker 1

8 564-061700-016 Z-6170(BK) speaker cover 1

9 616-617003-203 Z-6170 phone jack board assembly 1

10 160-212120-081 Z-6170 12PINS 1.25mm connector 1

11 521-604000-012 Self tapping screw M3-12.0mm 4

12 521-003000-8R0 Self tapping screw ,M2-8.0mm 6

13 644-7319X0-000 Mylar tape 1

14 521-003000-6R0 Self tapping screw ,M2-6.0mm 8

Z-6172 Service Guide 4 / 8

SERVICE GUIDE

Take Apart

Before You Start

Important Instructions

•Read these instructions completely before you begin.

•Follow all instructions.

•Heed all warnings.

Tools to Prepare

•Philips screwdriver.

Please follow these steps to take apart Z-6172.

1. Remove the screws (521-604000-012) from the back case.

2. Separate the front and back case and remove the speaker connector (red circle).

Z-6172 Service Guide 5 / 8

SERVICE GUIDE

3. Remove the screws from the front case and front case cover (521-003000-6R0) and screws (521-003000-

6R0) from the speaker (red circles).

4. Separate the front case cover, speaker, and the speaker cover.

5. Remove the screws (521-003000-6R0) from phone jack board assembly.

Z-6172 Service Guide 6 / 8

SERVICE GUIDE

6. Disconnect the phone jack board assembly (red circle).

7. Remove the screws from the engine (521-604000-012) then remove the Mylar tape (red circle).

8. Remove the engine and the FFC cable.

Z-6172 Service Guide 7 / 8

SERVICE GUIDE

9. Separate the engine from the back case.

10. Take out the FFC cable for LED.

11. Separate the cable.

Z-6172 Service Guide 8 / 8

SERVICE GUIDE

12. Remove the screws to separate the engine assembly and the holder.
