Zanussi Professional Export 642013 Manual de usuario

ZANUSSI

P R O F E S S I O N A L

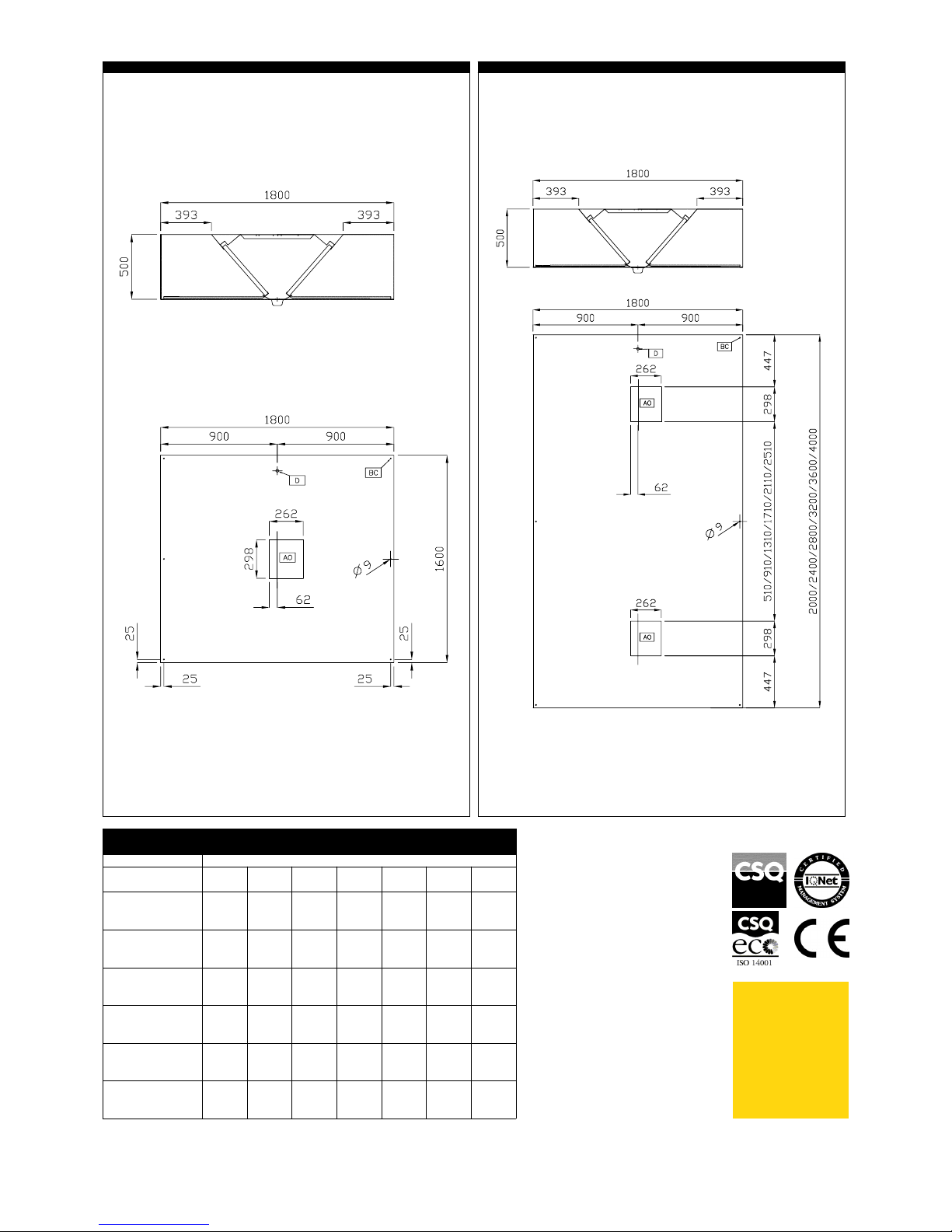

304 AISI CENTRAL TYPE HOODS

EXPORT - E line - 1800 mm

304 S/S LABYRINTH FILTER H=500 MM 4 8 8 10 12 12 14

304 S/S BLIND PANEL 400X500H MM 2 2 2 2

INCLUDED ACCESSORIES

Net weight - kg. 57 76 84 93 102 111 120

Air Capacity - mc/h 4500 5400 6400 7300 8200 9100

height 500 500 500 500 500 500 500

depth 1800 1800 1800 1800 1800 1800 1800

width 1600 2000 2400 2800 3200 3600 4000

External dimensions - mm

EC1816T

642037

EC1820T

642038

EC1824T

642039

EC1828T

642013

EC1832T

642040

EC1836T

642041

EC1840T

642042

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

A range of central hoods with

characteristic square shape that

goes well with technological hoods,

as well as offering sturdyness.This

shape allows the container to hold

fumes before making it flow to the

filters. The range consists of hoods

with 7 different lengths (1600, 2000,

2400, 2800, 3200, 3600 and 4000

mm) and 1800 mm deep.

FUNCTIONAL AND

CONSTRUCTION

FEATURES



� Constructed entirely in 304 AISI

stainless steel.

� Labyrinth filters in 304 AISI

stainless steel easily removable for

cleaning. Labyrinth filters guarantee

constant filtration to avoid clogging

and protect against fire.

� Perimetral gutter with drain hole to

transfer grease into a 304 AISI

container.

� External panels with upturned

edges to avoid injuries.

� Blind panels in 304 AISI stainless

steel for a correct exhaustion.

� The outlet holes are sized in order

to minimize drops in pressure.

� Pressure gauging for perfect

calibration.

� Condensate collection tray in 304

AISI stainless steel.

� Eyebolts and screw anchors for

ceiling installation.

� Prearranged for installation of

lighting.

HDAB2 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

SPEED VARIATOR

FOR MOTORS UP TO

1.7 KW

640686 640686 640686 640686 640686 640686

SPEED VARIATOR

FOR MOTORS UP TO

1.17 KW

640076

FAN FOR VENTIL

HOODS+DUCTED

EXTRACT.UNIT

640748 640748 640748 640748 640748 640748 640748

DRAIN FOR HOODS

DIAM.1/2"(M) WITH

PLUG

640409 640409 640409 640409 640409 640409 640409

36-WATT LIGHTING

FIXTURE W/1

LAMP-IP 65

680805 680805 680805 680805 680805

27-WATT LIGHTING

FIXTURE W/1

LAMP-IP 65

680804 680804 680804 680804

EC1816T

642037

EC1820T

642038

EC1824T

642039

EC1828T

642013

EC1832T

642040

EC1836T

642041

EC1840T

642042

ACCESSORIES MODELS

OPTIONAL

ACCESSORIES

642037 642038, 642042, 642041, 642040, 642013, 642039
