ZANUSSI

P R O F E S S I O N A L

430 AISI CENTRAL TYPE HOODS

MASTER - M line - 2000 mm

641301

430 S/S LABYRINTH FILTER H=500 MM 6 8 10

INCLUDED ACCESSORIES

Net weight - kg. 51 60 69

Air Capacity - mc/h 5100 6100 7100

height 500 500 500

depth 2000 2000 2000

width 2000 2400 2800

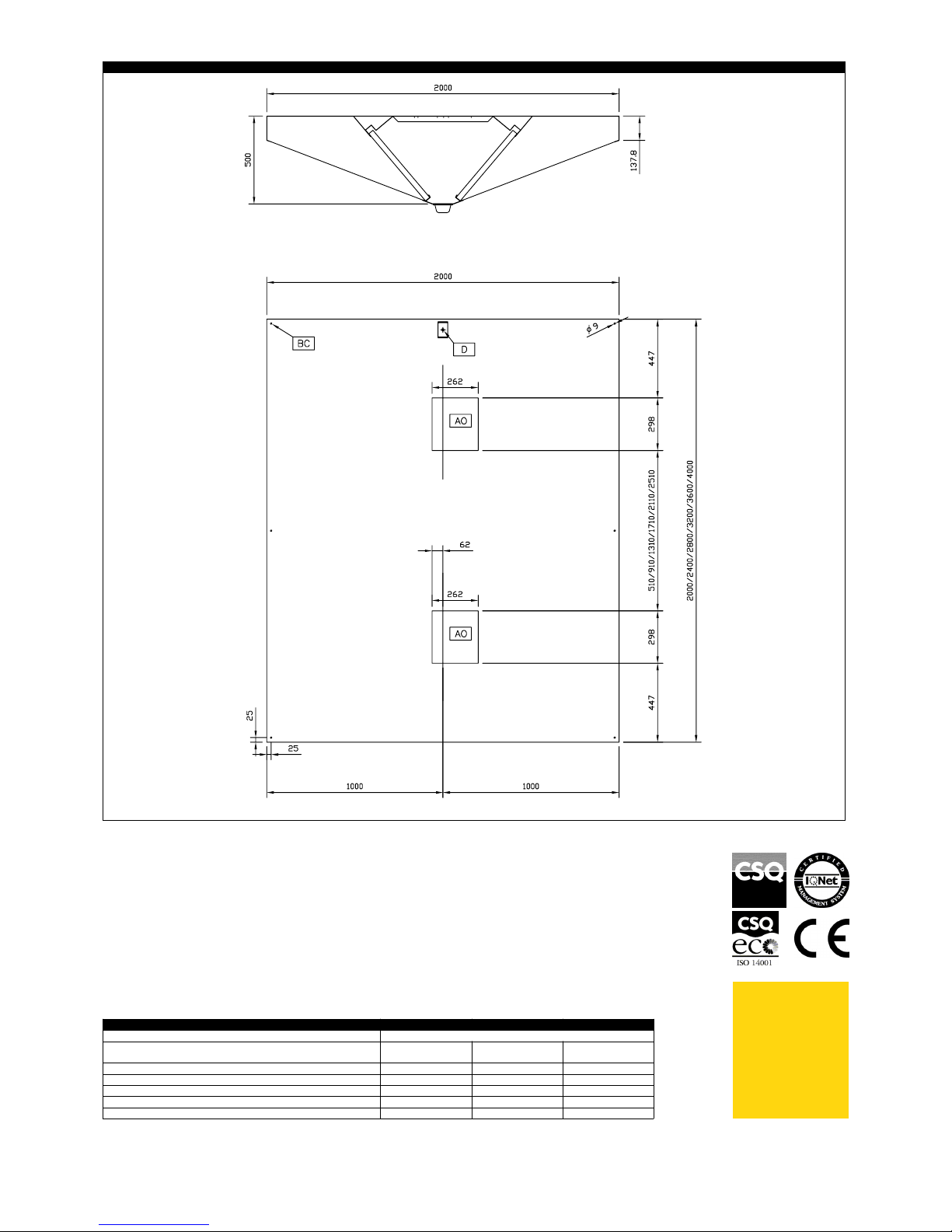

External dimensions - mm

MC2020BT

642301

MC2024BT

642302

MC2028BT

642303

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

A range of wall-mounted hoods used

for snack applications and on the

N700 and N 900 Series cooking

units. Their particular profile and the

limited installation height makes

them suitable for use in places with

low ceilings. The range consists of

hoods with 3 different lengths (2000,

2400 and 2800 mm) and a depth of

2000 mm.

FUNCTIONAL AND

CONSTRUCTION

FEATURES

� Constructed entirely in 430 AISI

stainless steel.

� Labyrinth filters in 430 AISI

stainless steel easily removable for

cleaning. Labyrinth filters guarantee

constant filtration to avoid clogging

and protect against fire.

� Central drain pipe with drain hole

to transfer grease into a 304 AISI

container.

� External panels with upturned

edges to avoid injuries.

� Blind panels in 304 AISI stainless

steel for a correct exhaustion.

� The outlet holes are sized in order

to minimize drops in pressure.

� Pressure gauging for perfect

calibration.

� Condensate collection tray in 304

AISI stainless steel.

� Eyebolts and screw anchors for

ceiling installation.

� Prearranged for installation of

lighting.

HBAB2 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

SPEED VARIATOR FOR MOTORS UP TO 1.7 KW 640686 640686 640686

FAN FOR VENTIL HOODS+DUCTED EXTRACT.UNIT 640748 640748 640748

DRAIN FOR HOODS DIAM.1/2"(M) WITH PLUG 640409 640409 640409

36-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680805

27-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680804 680804

MC2020BT

642301

MC2024BT

642302

MC2028BT

642303

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

642301, 642303, 642302
