SINKS WITH CUPBOARD FOR DISHWASHERS

1200/1800 mm

132714

Right hand drainer l l

Left hand drainer l l

Net weight - kg. 55 55 60 60

N° and type of door 1, Hinged 1, Hinged 2, Sliding 2, Sliding

Bowl dimensions (wxdxh) - mm 400x500xH300 400x500xH300 500x500xH300 500x500xH300

Bowls - n. 1 1 2 2

radius R=8 R=8 R=8 R=8

depth 13 13 13 13

height 100 100 100 100

Upstand dimensions - mm

Worktop thickness - mm 50 50 50 50

height 1000 1000 1000 1000

depth 700 700 700 700

width 1200 1200 1800 1800

External dimensions - mm

MARMDX

132715

MARMSX

132716

MLA2ST

132713

MLA2DT

132714

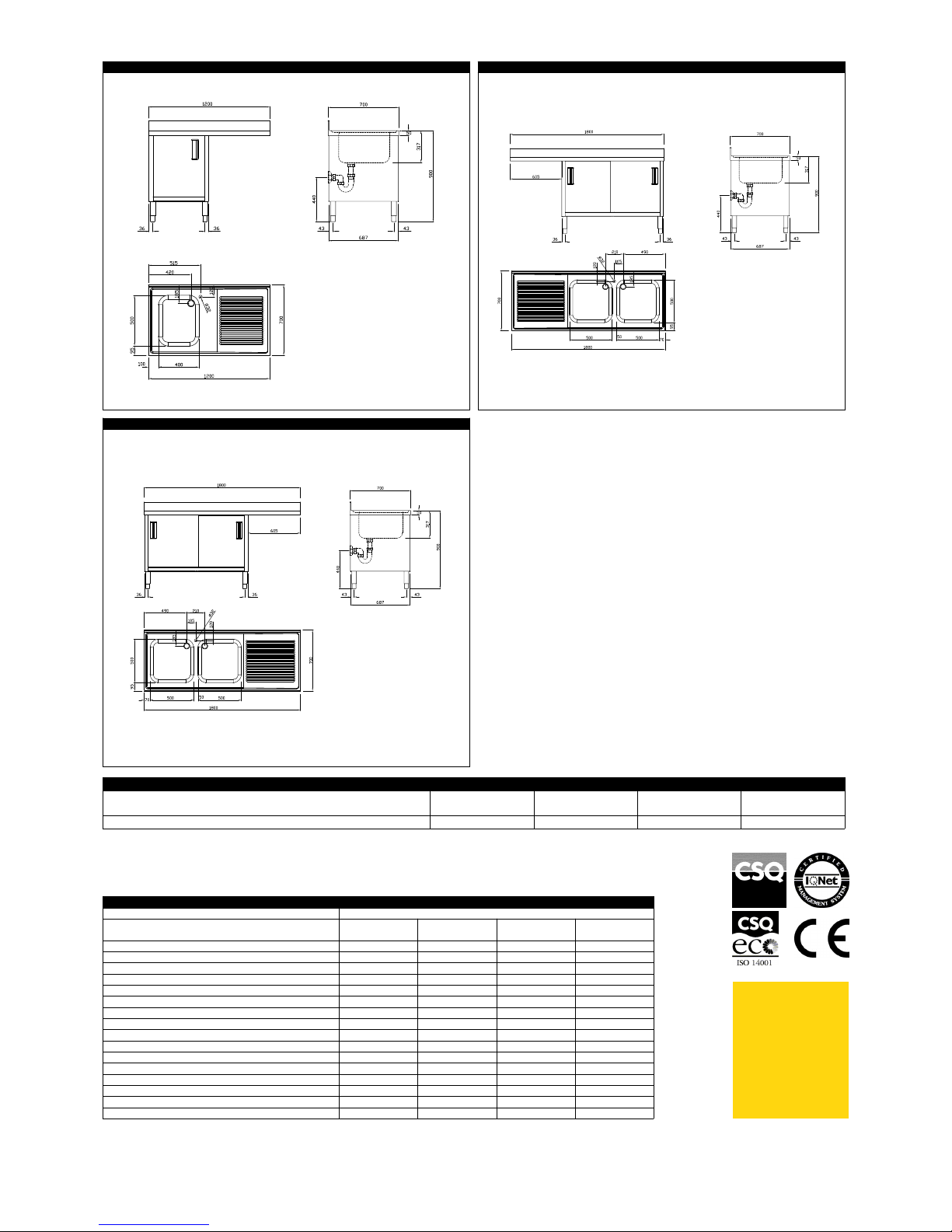

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

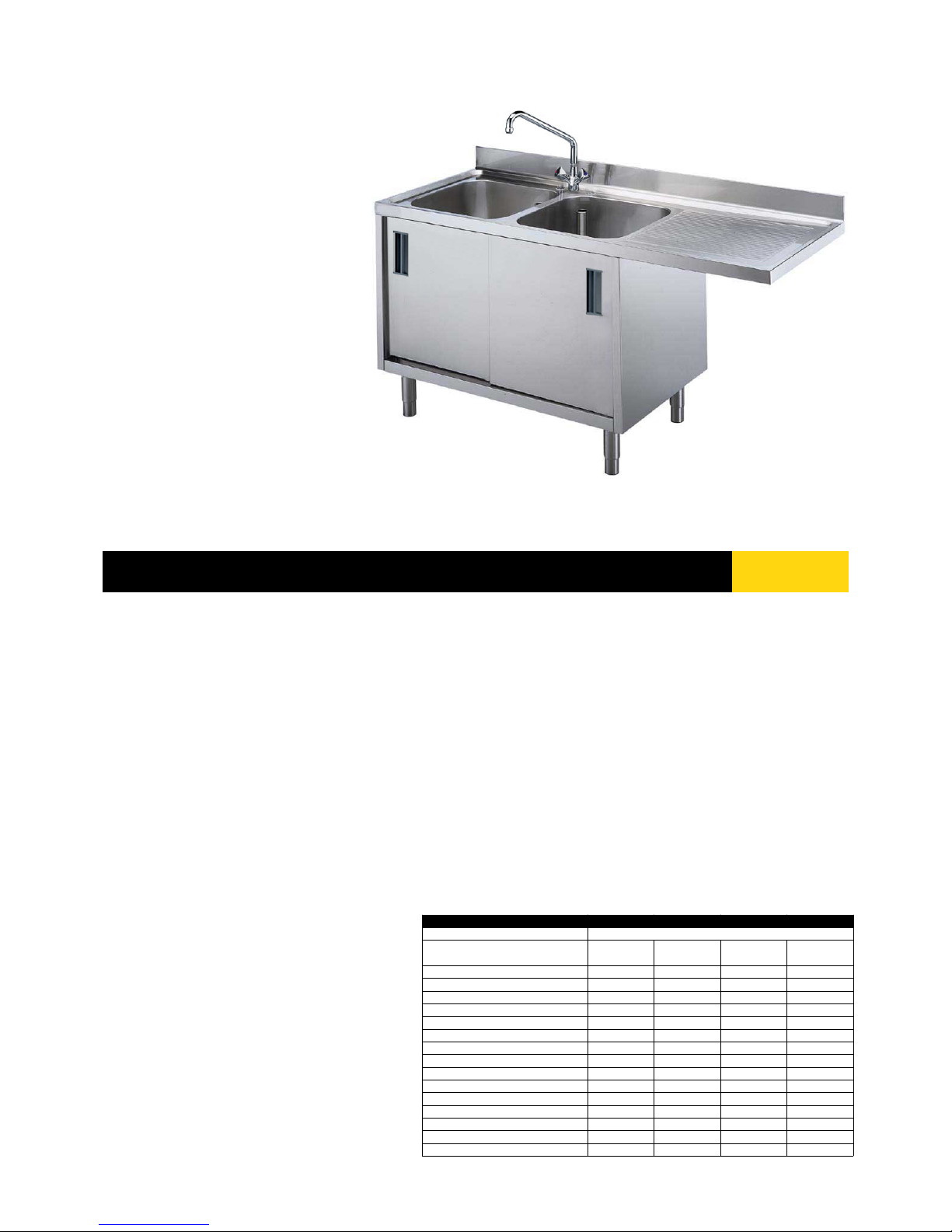

The range consists of 4 sinks with

cupboard for undercounter

dishwashers , 1200 and 1800 mm in

length and with double bowl. Sink

cupboard units are ideal for washing,

cleaning and storage. These models

are ideal to be placed in conjunction

with the undercounter dishwasher.

FUNCTIONAL AND

CONSTRUCTION

FEATURES



� Made entirely from stainless steel

with welded construction for

maximum strength.

� Inner welded frame in stainless

steel to guarantee superior strenght

and stability.

� The 50 mm high worktop in 304

AISI stainless steel, 10/10 in

thickness, incorporates a layer of 18

mm sound deadening material, has

upturned edges to protect the

kitchen worker.

� Base panel in 304 AISI stainless

steel, 10/10 in thickness reinforced.

� Sink bowl in 304 AISI stainless

steel, supplied as standard with an

overflow pipe and a drain hole.

� Rear splashback with 8 mm

rounded corner, 100 mm in height

and 13 mm deep.

� 64 mm diameter feet, adjustable

-10/+60 mm.

� Accessories available on request:

tap unit, false bowl bottom, single or

double syphons.

� All models comply with the more

strict international standards as far

as hygiene and cleanability are

concerned.

AAEF1 2010-09-13 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

WALL MIXER TAP WITH SWIVEL SPOUT 3/4" 855310 855310 855310 855310

WALL MIX.TAP+SPRAY+SPOUT+SH.LEVER+THERM 855307 855307 855307 855307

SINGLE PLASTIC SYPHON 2" 895313 895313 895313 895313

SINGLE BRASS SYPHON 2" 895314 895314 895314 895314

PRE-WASH SPRAY UNIT,SINGLE HOLE 855315 855315 855315 855315

OVERFLOW FILTER FOR 500X500 MM BOWL 895136 895136

MIXER TAP(PREMIUM)+SPRAY ARM-3/4" HOLE 855326 855326 855326 855326

MIXER TAP(INFRARED)+SPOUT 3/4"SING.HOLE 855325 855325 855325 855325

MIXER TAP WITH SPOUT 3/4" SINGLE HOLE 855319 855319 855319 855319

MIXER TAP W/FOOT PEDAL FOR SINKS ON LEGS 855317 855317 855317 855317

FOOT OP.MIXER TAP(HOT+COLD)+SPOUT-3/4" 855328 855328 855328 855328

FALSE BOTTOM FOR R/H 500X500 MM BOWL 895200 895200

FALSE BOTTOM FOR L/H 500X500 MM BOWL 895210 895210

ELBOW OP.TAP+SPRAY ARM+SPOUT-3/4" HOLE 855324 855324 855324 855324

ELBOW OP.MIXER TAP+SPOUT-3/4"SINGLE HOLE 855322 855322 855322 855322

DOUBLE PLASTIC DRAIN SYPHON 2" 850022 850022

MARMDX

132715

MARMSX

132716

MLA2ST

132713

MLA2DT

132714

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

D - Water drain 2" 2" 2" 2"

MARMDX

132715

MARMSX

132716

MLA2ST

132713

MLA2DT

132714

LEGEND

132715 132713

132714
