ZALMAN HD160 Manual de usuario

The design and specifications of this product may change without prior notice to enhance its quality.

www.zalman.co.kr www.zalmanusa.com

English version

◈Please read this manual thoroughly before installation.

◈Please visit our website and watch the HD160 Plus installation video to assist

you in the installation process.

E-mail [email protected]

HD160 Plus

The design and specifications of this product may change without prior notice to enhance its quality.

HD160 Plus

Congratulations on your purchase of Zalman’s HD160 Plus Home Theatre PC

Enclosure! You are now about to experience Zalman’s world of silent computing.

The HD160 Plus is designed for ultra quiet home theatre PC operation, utilizing

optimized ventilation and anti-vibration reinforcements, making it ideal for

environments that require silence such as living rooms, bedrooms, educational

facilities, and offices.

1. Cautionary Notes

2. Components 4

. Specifications 5

4. Front Panel Buttons & I/O Ports 6

5. Installation Guide 7

6. Recommended Use 1

▣Introduction

▣Contents

English

The design and specifications of this product may change without prior notice to enhance its quality.

HD160XT Plus

Cautionary Notes

(1) Check the condition of the product and its components before installation. If

there is a problem with the product and/or its components, please contact the

retailer for replacement.

(2) Avoid inserting any objects into the system while the power is ON. Doing so

may result in injury and/or damage to the system.

(3) Check the manual when connecting cables. Incorrect connections may

damage the component and system.

(4) The air vents must not be blocked.

(5) Keep this unit away from heat sources, direct sunlight, water, oil, and humidity.

Place the unit on a flat, leveled, solid, and well-ventilated area.

(6) Do not clean the product surface with chemicals or wet cloth.

(chemicals industrial brightener, wax, benzene, alcohol, paint thinner,

mosquito repellent, aromatics, lubricant, detergent etc.)

(7) If this unit is to be transported long distance, remove all HDDs (Hard Disk

Drive) for separate transport. And place the HD160 Plus in its own box.

◈◈Disclaimer

Zalman Tech Co., Ltd. is not responsible for any damages due to external

causes, including but not limited to, improper use, problems with electrical power,

accident, neglect, alteration, repair, improper installation, or improper testing.

The design and specifications of this product may change without prior notice to enhance its quality.

HD160 Plus

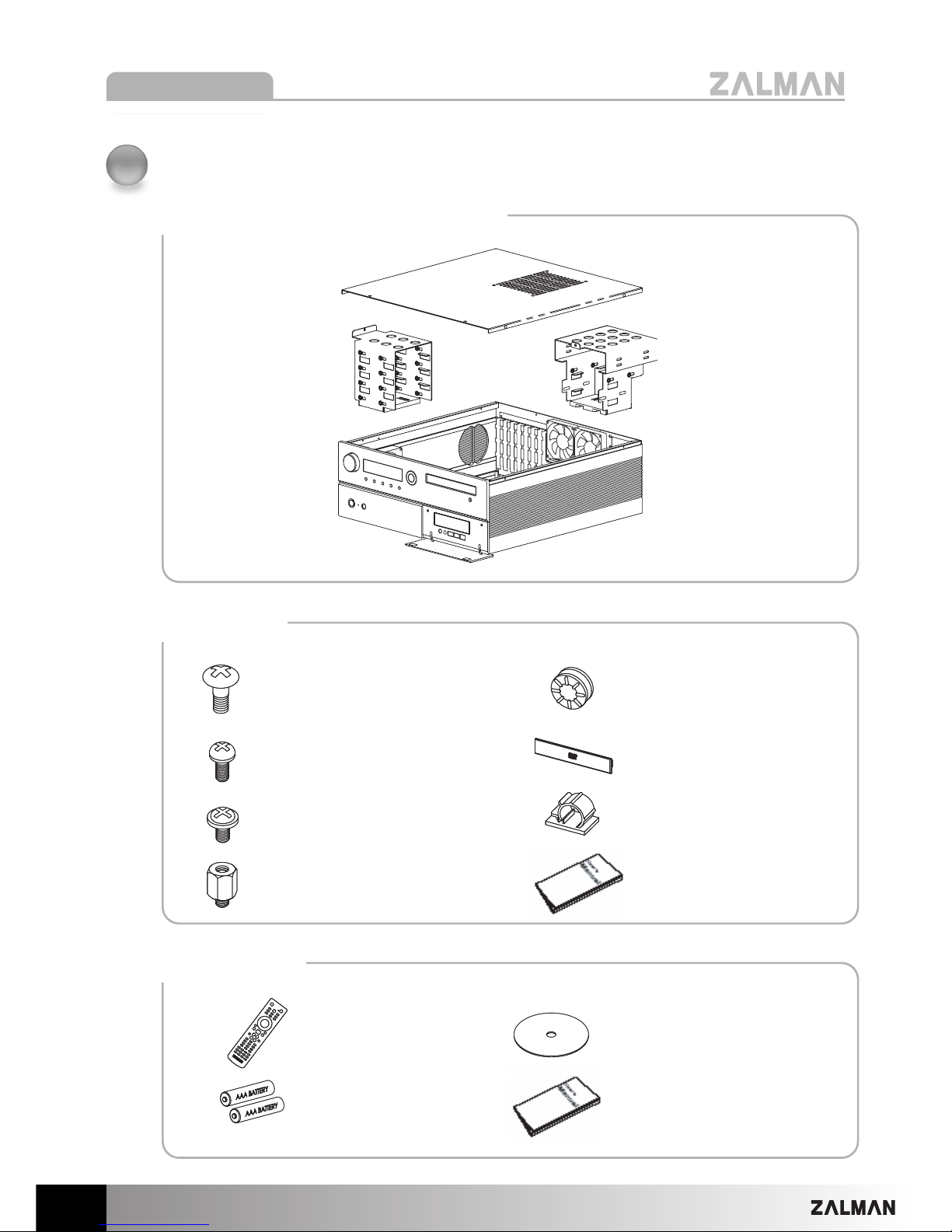

Components

(1) HD16 Plus Main Components

(2) Case Parts

(3) iMON Parts

20 HDD Bolts

(PH #6-32X10)

4 Power Supply Bolts

(PH #6-32X6)

18 ODD / Motherboard Bolts

(PWH M3X5)

2 micro ATX Stand Offs (M3)

20 Dampers

1 ODD Aluminum Bezel

1 Clamp

1 User’s Manual

1 Remote Control

2 Batteries (AAA)

1 Installation CD

1 User’s Manual

HDD Chassis

Top Panel

ODD Chassis

Main Chassis

English

The design and specifications of this product may change without prior notice to enhance its quality.

HD160 Plus

Specifications

Enclosure Type Desktop

Dimensions (DXWXH) 460mm X 435mm X 160mm

(18.1” X 17.1” X 6.3”)

Weight 6.8kg (14.9lb)

Material Aluminum

Motherboard Compatibility Standard ATX / micro ATX

Power Supply Compatibility Standard ATX / ATX12V

PCI/AGP Card Compatibility Full Size

Drive Bays 5 X 3.5" Internal Drive Bays

1 X 5.25" External Drive Bay

Cooling Components Rear Panel 2 X 80mm Exhaust Fans

Bottom Panel 1 X 80mm Exhaust Fan(Optional)

Side Panel 1 X 92mm Exhaust Fan(Optional)

Expansion Slots 7 Slots

Front I/O Ports 2 X USB Ports

1 X IEEE1394(FireWire) Port

1 X Microphone

1 X Headphones

Available Colors Silver / Black

LCD FFSTN NEGATIVE LCD TYPE

The design and specifications of this product may change without prior notice to enhance its quality.

HD160 Plus

Front Panel Controls & I/O Ports

① Remote Control Receiver

② Power Button

③ System Power LED

④ Volume Control / Mute

⑤ Navigation Controls

⑥ Media Program Controls

⑦ Audio (Headphones, Mic) Port

USB Port

IEEE1394 (FireWire) Port

⑧ 3.5”Bay

⑨ ODD Tray Open / Close

⑤

④

⑥

①

②

③

⑨

⑧

⑦

MCE CLOSE START MENU BACK

English

The design and specifications of this product may change without prior notice to enhance its quality.

HD160 Plus

Installation Guide

(1) Opening the Enclosure

To remove the Top Panel of the enclosure, unscrew the six Bolts (FH M3x6).

(2) Removing the ODD and HDD Chassis

Remove the Bolts (PWH M4x5), and horizontally pull the ODD and HDD Chassis

approximately 15mm (0.6inch) away from the Front and Side Panels, then lift them

out of the enclosure.

Bolt (FH M3x6)

Top Panel

HDD Chassis

Bolt (PH M4x5)

ODD Chassis

The design and specifications of this product may change without prior notice to enhance its quality.

HD160 Plus

(3) Assembling the Motherboard and Power Supply

Mount the motherboard and power supply by using appropriate bolts. Mount the computer

components (CPU, VGA, RAM etc.) onto the motherboard.

To mount a microATX motherboard, first install the two enclosed microATX

Stand Offs and align their height with the ATX Stand Offs.

Note)

Bolt

(PWH M3x5)

Motherboard

Power Supply

Bolt

(PH #6-32X6)

ATX Stand Off

microATX Stand Off

English

The design and specifications of this product may change without prior notice to enhance its quality.

HD160 Plus

(4) Installing 5.25

""and 3.5

""Drives

(1) Install the 5.25” drive (ODD) and 3.5” drive (HDD) onto the ODD and HDD Chassis

with the appropriate bolts.

(2) Slide the ODD and HDD Chassis onto the enclosure’s Front Panel and Side Panel,

then secure them onto the panels with the Fixing Bolts(PWH M4x5).

This product is provided with one 5.25” bay and five 3.5” bays.

For optimal HDD cooling, install in the order mentioned in the diagram below.

Note)

Bolt (PH M4x5)

Damper

Bolt

(PWH M3x5)

Bolt

(PH #6-32x10)

OODDDD ((55..2255””))

HHDDDD--⑤⑤((33..55””))

CCaarrdd RReeaaddeerr

FFrroonntt II//OO

HHDDDD--④④((33..55””))

HHDDDD--②②((33..55””))

HHDDDD--③③((33..55””))

HHDDDD--①①((33..55””))

The design and specifications of this product may change without prior notice to enhance its quality.

HD160 Plus

(5) Connecting the Cables

1) Power and Data Transmission Cables

Connect the Power and Data Transmission Cables (IDE or SATA) required for the HDD,

ODD, FDD, VGA etc.

2) LCD PCB Cable

①Connect the Power LED Cable (2-Pin or 3-Pin) to the motherboard’s Front Panel Port

(refer to the motherboard’s manual).

②Connect the USB Cable that is connected to the USB Cable of the LCD PCB to the

motherboard’s USB Port.

③Connect the System Power Switch Cable (2-Pin) with the motherboard’s Front Panel

Port (Refer to the motherboard’s manual).

④Connect the Standby Power Cable (20-Pin or 24-Pin) to the motherboard and power

supply.

②③ ① ④
