Yongnuo YN200 Manual de usuario

使用说明

User Manual

Please make sure the power is turned off when

installing and connecting the accessories.

Flash is suitable for ventilated environment, please

keep the heat sink of flash from being blocked when

using.

After using the flash, do not touch the tube with your

hands, otherwise it may cause burns.

Do not touch the product with wet hands and do not

expose it to rain.

Do not use in flammable and explosive environment.

If maintenance or repair is needed, it shall be carried

out by the company or authorized maintenance

personnel. Disassembling and assembling by yourself

may cause electric shock and other accidents.

Keep children away from this product.

Please take out the batteries if this product is not used

for a long time.

When storing and transporting this product, please

remove the flash tube.

Precaution

Thanks for purchasing YONGNUO TTL SPEEDLITE YN200.

Please read this manual carefully to understand the safety

instructions, functions and maintenance of this product. Please

keep this manual properly for reference.

-1-

YN200 is the Yongnuo's first high-power outdoor flash, with flash

power up to 200W, adopts 14.4v 2900mAh lithium battery power

supply design, with extreme speed recycle system, 2 seconds

recycling time , flash firing times at full output up to 500 times.

Supports YONGNUO new upgraded RF radio flash system

It can receive the controlling and triggering signal from the TTL

master unit such as YN862 series, YN560-TX PRO series , realizing TTL

and M/Multi mode off-camera flash; It could receive the controlling

and triggering signal from the wireless flash trigger such as YN560-

TX (II)/RF603/RF605 wireless flash trigger, realizing M/Multi mode

flash.

Using removable bare tube lamp tube, GN60 high index

GN60@ ISO100 (using reflector cover). Supports TTL flash, manual

flash, multi flash, high speed synchronization, up to 1/8000 seconds.

16 channels, up to 10,000 configurable photographer ID, six flash

groups A/B/C/D/E/F.

Equipped with attachment bayonet, accessories such as reflective

cover can be installed.

It is equipped with large capacity battery with imported cell, using

Type-C interface charger, which supports quick charging with PD

protocol power adapter (excluded).

Supports USB firmware upgrade

Equipped with Micro USB interface, supports firmware upgrade,

users can log in the Yongnuo official website to download the

firmware upgrade package to upgrade the flash.

Supports wireless optical slave function.

It can receive the master optical control signals of Yongnuo,C/N,

and supports S1 and S2 pre-flash cancel trigger mode.

E qu i p p ed w i th 3 . 5 m m s y n c h r o n i z a t io n j ac k , s u p p o r t s

synchronization interface flash.

Features

-2-

1/4“Mounting

Hole

USB port

（Micro USB）

3.5MM

Sync cord jack

Power Switch

Battery Release Button

LCD

1.YN-B2900 Li-ion Battery

4.YN200 SPEEDLITE

2.YN-C2900 Charger

3.200W Flash Tube

Contains items:

5.USB-A to USB-C Charging Cable

Radio transmission

link lamp

Optical transmission

wireless sensor

Battery Compartment(Battery)Flash Tube

Control panel

C o n n e c t t h e U S B p o w e r a d a p t e r

(excluded) to the YN-C2900 charger with the

Type-C charging cable, and then charge.

If you use the power adapter and charging

cable (excluded) that supports PD quick

charging, it only takes about 3 hours to be

fully charged, and if you use the 5V2A

charger, it takes about 6 hours to be full

charged. When the battery is fully charged,

press the release button to remove the

battery.

YN-C2900 Charger user manual

Components Description

-3-

2.The meaning of [Link lamp]

[LINK]lamp Statues

GREEN LAMP Lit Radio transmissing

RED LAMP Lit Flash trigging

GREEN LAMP Flicker Standby mode*

Meaning

Parts Operations

In wireless mode, short press to enter channel setting and

long press to set ID.

Press this button and the flash will switch between different

flash modes.(Radio mode (YN560 SLAVE)/optical

transmission /S1/S2) in radio mode, long press the button to

switch between M/Multi mode.

It sets up wireless groupings, supports A-F slave groupings.

In different modes, short press to realize setting/confirming

function, such as channel, ID, strobe frequency, times, custom

function, long press to set custom function.

Press the [ +] button to increase parameters, and press the[-]

button to decrease parameters.

The flash is set to be power-on at the ON position and

shutdown at the OFF position.

Red light indicates full power, press test flash.

（Charging

lamp）

Power switch

*About the

Standby mode can reduce the power consumption, which is

enabled by the custom function. In mode, any

button or the radio master unit can awake the slave flash.

Standby mode(see page11 )

standby

1.Control panel

Basic Operations

-4-

2. Install/remove lamp holder accessories (optional)

As shown in the figure, insert the attachment (such as reflector) into

the attachment bayonet of lamp holder, and rotate the attachment

according to the arrow direction to complete the installation. When

removing, rotate in the opposite direction of the arrow and remove

the attachment.

Installation Instruction

3.Install battery

Install the battery as shown in the drawing to the battery

compartment, when you hear the"click",meaning the battery is

installed in place.

When taking out the batter y, first press the battery release button

to take out the battery.

1. Install/remove the flash tube

As shown in the figure, put the thinner foot

of the flash tube at the corresponding

position of the lamp holder and insert the

flash tube.

After using the flash, wait a few minutes

to make sure the tube is cool down before

removing the tube.

4. Power on

Switch the flash power switch to ON to turn

ON the power, and OFF to turn OFF the power.

-5-

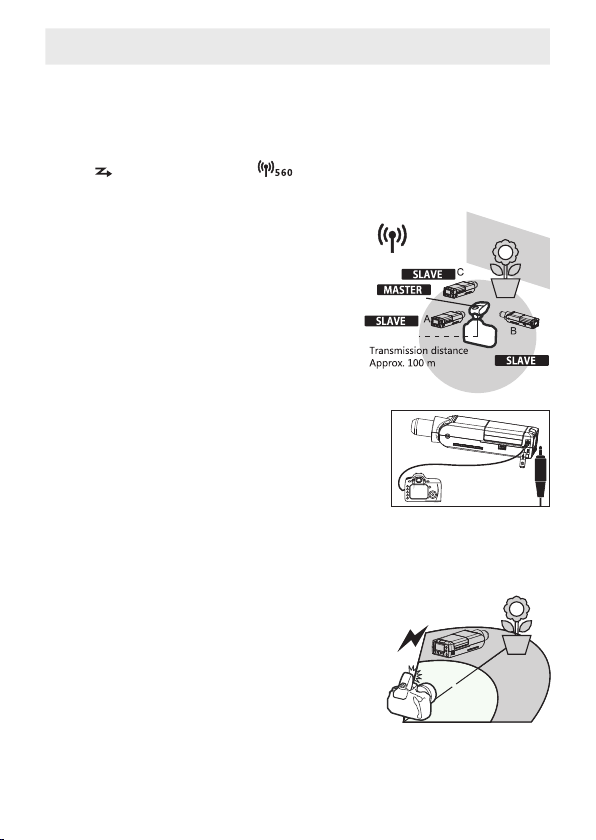

2.Triggering through synchronization

interface

Insert the triggering cable(excluded) into

the 3.5mm synchronization trigger port,

and use the camera or universal wireless

flash trigger to synchronize the flash.

Set the flash to radio mode and set the

flash mode to [M] or [MULTI].If the flash is

set to TTL or OFF, it will not be able to flash.

3.Triggering through optical transmission

(see page 9)

A: Using synchronizing flash (S1, S2)

Supports flash mode: M

B: Triggering through flash with master unit

(optical transmission)

Supports optical transmission channel 1-4,

grouping A/B/C

Supports flash mode: ETTL, M

Controlled by the compatible master flash

(camera)

1.Triggering through radio module (see page 7-8)

YN200 can only be used as a slave flash, and Yongnuo YN560-TX PRO

series flash transmitter is recommended as the main control unit,

which suppor t s T T L , manual, multi flash, a n d high-speed

synchronization.

Press [ ] button to set it to [ ] radio mode, and set it to the same

channel and ID as the master unit.

Triggering Mode Selection

Positioning and Operation Range

(Example of wireless flash shooting)

Before shooting, perform a test flash

and test shooting.

The transmission distance may be

shorter depending on the conditions

such as the positioning of slave units, the

surrounding environment and weather

conditions.

-6-

1.Set to radio transmission flash mode.

Short press the [ ]button until the screen

displays that the flash mode is set to radio

mode [ ].

2.Set the wireless channel

Short press the [CH/ID] button, then press

[+] or [-] button to set the channel (1-16),

and press [SET/FN] button to confirm.

5.Master unit setting

T h e m o d e , b r i g h t n e s s , e x p o s u r e

compensation and other parameters of the

flash are set in the master unit.

3.Set the wireless ID

Long press the [CH/ID] button to set the ID

(0000-9999) .Then short press [SET/FN] and

[+][-] button in turn. Set the master unit and

slave unit to the same ID. If the master unit

does not have ID setting, please set the ID of

YN200 to the default 0000.

4.Set up the grouping

Press the [GR] button to set the slave

grouping (A/B/C/D/E/F).

Wireless Flash Shooting: Radio Transmission

-7-

M: manual flash mode - flash output

r a n g e 1 /6 4~ 1 / 1 , w it h 1 / 3 g e a r a s

adjustment increment.

In radio mode, long press the [ ] button to

set the flash mode to M, and press [+] and [-

] button to set the flash output.

Multi: Strobe flash mode - flash output

range 1/64~1/4

In radio mode, long press [ ] button to set

the flash mode to Multi, press [+] and [-]

button to set the flash output. Short press

the [SET/FN] button to set the flash times

and the flash frequency successively.

TTL mode

In TTL mode, the metering system of the

cam e ra will dete c t t he flash ligh t ing

reflected from the subject, and the flash

output is adjusted automatically, equalizing

exposure of the subject and background.

Press the[+] [-] button to set exposure

compensation. The exposure compensation

va l ue s et b y t he s lav e u nit w i ll b e

s u p e r i m p o s e d o n t h e e x p o s u r e

compensation set by the master unit.

Wireless Flash Shooting: Radio Transmission

-8-

6.Flash mode setting*

In radio mode, long press the [ ] button to

switch between TTL/M/MULTI different

flash modes.

*For or

using RF603/RF605 as the master unit.

synchronous interface triggering
