Yeastar S50 VoIP PBX

Installation Guide

Version: 1.2

Date: 2016.09.02

Yeastar S50 Installation Guide

2/13

Content

Content………………………………………………………………………………………………………...2

Welcome……………………………………………………………………………………………………….3

Before You Start……………………………………………………………………………………………...4

Package Contents………………………………………………………………………………………….4

Hardware Overview………………………………………………………………………………………..4

LED Indicators and Ports………………………………………………………………………………….5

Installation…………………………………………………………………………………………………….7

Safety Disclaimers and Installation Warnings……………………………………………………………7

Module Installation………………………………………………………………………………………….7

Desktop Installation……………………………………………………………………………………….10

Rack Installation ………………………………………………………………………………………….10

Ground Connection………………………………………………………………………………………..11

Connecting the Equipment……………………………………………………………………………….12

Getting Started with the Configuration…………………………………………………………………13

Yeastar S50 Installation Guide

3/13

Welcome

Thank you for choosing Yeastar S50 IP PBX. S50 is a compact and full-featured IP-PBX that comes

in a 19’’ 1U rack-mountable chassis. The advanced module-based S50 is capable of supporting

ISDN BRI, PSTN, and GSM connectivity, providing VoIP communications for up to 50 users.

This guide describes how to install the S50 and how to log in the web GUI to configure the system.

Once you complete the installation, refer to the Yeastar S-Series Administrator Guide for instructions

on how to perform configurations on the system.

Related Documents

This Installation Guide only explains the installation of Yeastar S50 IPPBX. For more functionality

and advanced settings, please refer to the relative documents as below:

Document

Description

Yeastar S-Series Datasheet

Datasheet for the Yeastar S-Series IPPBX.

Yeastar S-Series Administrator Guide

The administrator could refer to this manual for

instructions on how to configure, operate, monitor,

and maintain the Yeastar S50 IPPBX.

Yeastar S-Series Extension User Guide

Users could refer to the guide for instructions on how

to login the user portal, and how to configure their

accounts, listen to call recordings, check voicemail

messages, etc.

Yeastar S50 Installation Guide

4/13

Before You Start

Before you begin to install the S50 IP Phone System, please check the package contents to verify

that you have received the items below. If there is any problem, please contact your provider.

Package Contents

1* S50 PBX

1* Ethernet Cable

1* Power Cord

2 Rack Mounting Kits

1* Grounding Stud & Nut

4* Rubber Feet

1* Warranty card

1* Quick Start Guide

Hardware Overview

Front Panel

System Indicator

Power Indicator RJ11 Port Reset

WAN

LAN Port Status

SD Slot

Rear Panel

Power Switch

ANT Sockets Power Inlet

Protective Earth

Yeastar S50 Installation Guide

5/13

LED Indicators and Ports

LED Indicators

LED

Indication

Status

Description

POWER

Power status

The power is switched on.

Off

The power is switched off.

System

System status

Blinking

The system is running properly.

Static/Off

The system goes wrong.

WAN

WAN status

Static Green light

Linked normally, 10/100 Mbps.

Static Orange light

Linked normally, 1000 Mbps.

Blinking Orange light

In communication.

Off

Off-line.

LAN

LAN status

Static Green light

Linked normally, 10/100 Mbps.

Static Orange light

Linked normally, 1000 Mbps.

Blinking Orange light

In communication.

Off

Off-line.

Port Status

FXS

Green light

Static: The port is idle.

Blinking: There is an ongoing call on

the port.

GSM/3G

Red light

Static: the trunk is idle.

Blinking slowly: there is no SIM card

inserted.

Blinking rapidly: the trunk is in use.

BRI

Orange light

Blinking slowly: the BRI line is

disconnected.

Static: the BRI line is connected or in

use.

FXO

Red light

Blinking slowly: no PSTN line is

connected

to the port.

Static: the PSTN line is idle.

Blinking rapidly: the PSTN line is busy.

Port Description

Ports

Description

RJ11 Port

FXO port (red light): for theconnection of PSTN lines or FXS ports of traditional

PBX.

FXS port (green light): for the connection of analog phones.

BRI port (orange light): for the connection of ISDN BRI lines.

Note: the sequence number of the ports corresponds to that of the Indicator

lights in the front panel. (I.e. the LED lights in the front indicate the connection

Yeastar S50 Installation Guide

6/13

status of the corresponding ports at the front panel.)

ANT

Rotate the antenna into the Antenna Socket.

SD Slot

Insert a SD card.

Ethernet Port

Yeastar S50 provides two 10/100/1000 Mbps adaptive RJ45 Ethernet ports.

There are 3 Ethernet modes for the system. The default mode is “Single”.

Single: LAN port interface will be used for uplink connection. WAN port is

disabled.

Bridge: LAN port interface will be used for uplink connection. WAN port

interface will be used as bridge for PC connection.

Dual: both ports can be used for uplink connection.

Reset Button

Press and hold for 10 seconds to restore the factory defaults.

Power Inlet

Connect the supplied power supply to the port.

Power Switch

Switch on or off the device.

Yeastar S50 Installation Guide

7/13

Installation

This chapter shows you how to install Yeastar S50 IP phone system.

Safety Disclaimers and Installation Warnings

To avoid unexpected accident, personal injury or device damage, please read the safety disclaimers

and installation warnings.

Power

Use only the power cord provided with the IP PBX.

Keep the power off during the installation.

Make sure that the supply voltage matches the specifications indicated on the back panel of the

device.

To avoid the electric accident, do not open or remove the cover of IP PBX when it is working as

well as off the power.

Before cleaning the device, cut off the power supply.

Environment

Install the Yeastar S50 IP PBX in a location that is clean, free from vibration, electric shock, and

temperature/humidity extremes. The operating temperature should be kept below 104°F (40°C).

Module Installation

Yeastar S50 supports installing up to 4 modules. The optional modules are as below:

S2 Module

O2 Module

B2 Module

SO Module

GSM Module

3G Module

NOTE

Before installing themodule, please check if the module is clean and intact.

Yeastar S50 Installation Guide

8/13

STEP 1 Loosen the screws on the enclosure and then remove the upper cover.

STEP 2 Insert themodule to the Module Slot.

STEP 3 Insert a SIM card on the GSM/3G module following the instructions. Skip this step if no

GSM/3G module installed.

Yeastar S50 Installation Guide

9/13

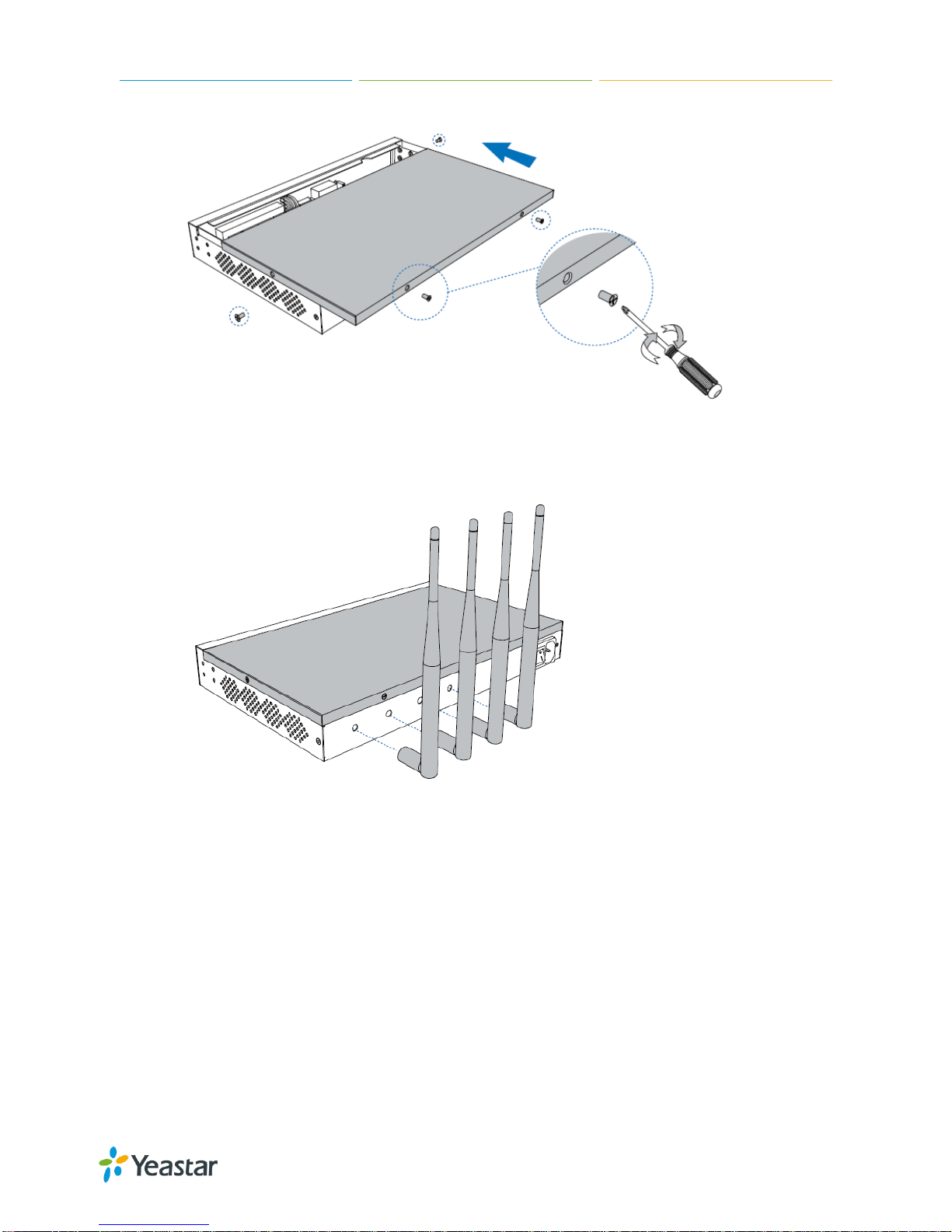

STEP 4 Close the cover and fix the screws.

STEP 5 Rotate the antenna into the Antenna Socket.

Skip this step if no GSM/3G module installed.

Yeastar S50 Installation Guide

10/13

Desktop Installation

WARNING

Please set 5~10cm gaps around the device for air circulation.

Please avoid any heavy thing placed on the device.

STEP 1 Place the IP PBX on a steady platform.

STEP 2 Remove the adhesive backing paper from the rubber feet.

STEP 3 Turn over the device and attach the supplied rubber feet to the recessed areas on the

bottom at each corner of the device.

Rack Installation

WARNING

Be careful not to drop any components. Dropping components may damage them or cause

an injury.

Only use the 19-inch rack mounting kits (attached bracket and fittings) included with the

PBX.

STEP 1 Fix the brackets to the left and right sides of the PBX with 4 screws.
