ELECTRIC GRASS TRIMMER

060-2288-0

Owner's Manual

WARNING: Read and follow all safety rules and operating

instructions before using this product.

TOLL-FREE HELPLINE: 1-866-523-5218

Technical Data............................................................................................2

General Safety rules ...............................................................................3-4

Specific Safety Rules..................................................................................5

Electrical information ...............................................................................7-8

Symbols .....................................................................................................6

Know your trimmer ....................................................................................9

Assembly and Adjustment...................................................................10-13

Operation ............................................................................................14-17

Maintenance .............................................................................................18

Troubleshooting ........................................................................................19

Warranty ...................................................................................................20

Parts list ..............................................................................................21-22

Table of Contents

Technical Data

Input..................................................................120 V AC, 60 Hz, 3.7 A

Feed..................................................................................... Automatic

Speed................................................................... 9,000RPM (no load)

Cutting path .........................................................................12’’(30cm)

Line diameter............................................................

.0.065" (1.65 mm)

Weight.......................................................................5 lb 3 oz(2.36 kg)

General Safety Rules

Safety is a combination of common sense, staying alert and knowing how to

use your grass trimmer.

1. READ and become familiar with this entire instruction manual. LEARN about

the tool’s applications, limitations and possible hazards.

2. AVOID DANGEROUS CONDITIONS. DO NOT use in wet or damp areas

or expose to rain.

3. DO NOT use in the presence of flammable liquids or gases.

4. KEEP BYSTANDERS AT A SAFE DISTANCE. NEVER allow children near

the tool.

5. DRESS FOR SAFETY. DO NOT wear loose clothing, gloves, neckties, or

jewellery (rings, watches, etc.) when operating the tool. Loose clothing can

get caught and draw you into moving parts.

6. ALWAYS WEAR EYE PROTECTION.

7. ALWAYS remove the extension cord plug from the electric outlet when making

adjustments, changing parts or cleaning.

8. AVOID ACCIDENTAL START-UPS. Make sure the power switch is in the

OFF position before plugging in the extension cord.

9. TREAT the extension cord with care. Do not use it to carry the tool. Keep cord

away from heat, oil, sharp edges, or moving parts. Replace damaged cords

immediately; they may create a shock or fire hazard.

10. NEVER LEAVE A RUNNING TOOL UNATTENDED. Turn the power switch

to OFF. Do not leave the tool until it has come to a complete stop.

11. DO NOT OVERREACH. Keep proper footing and balance at all times.

SAVE THESE SAFETY INSTRUCTIONS

?WARNING: TO AVOID MISTAKES THAT COULD CAUSE SERIOUS

INJURY, DO NOT PLUG IN THE GRASS TRIMMER UNTIL THE

FOLLOWING STEPS HAVE BEEN READ AND UNDERSTOOD.

General Safety Rules - continued

12. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good

working order.

13. CHECK FOR DAMAGED PARTS. Check for alignment of moving parts,

binding, breakage or any other conditions that may affect the tool’s

operation. Any part that is damaged should be properly repaired or

replaced before use.

14. KEEP THE HANDLE DRY, CLEAN AND FREE OF OIL AND GREASE.

Always use a clean cloth when cleaning. Do not use solvents, brake fluids,

gasoline, or other petroleum products to clean the tool, because they may

damage plastic parts.

SAVE THESE SAFETY INSTRUCTIONS

ALWAYS WEAR EYE PROTECTION.

A grass trimmer can throw foreign objects into your eyes,

which could cause permanent eye damage.

ALWAYS wear safety goggles (not glasses). Ordinary

eyeglasses have only impact-resistant lenses—they are

NOT safety goggles.

Specific Safety Rules for Grass Trimmers

1. IF YOU ARE NOT thoroughly familiar with using the grass trimmer,

obtain advice from a qualified person.

2. MAKE SURE wiring codes and recommended electrical connections are

observed. The grass trimmer is double insulated. When servicing, use only

identical replacement parts.

3. DO NOT grasp the exposed cutting line when picking up or holding the

grass trimmer.

4. AVOID UNINTENTIONAL STARTING. Don’t carry the plugged-in grass trimmer

with your finger on switch. Make sure the switch is in the OFF position when

plugging in the grass trimmer.

5. DO NOT FORCE THE GRASS TRIMMER. It will do the job better and with

less likelihood of injury when used at the pace for which it was designed.

6. The grass trimmer should be stored indoors in a dry, high, or locked location,

out of children's reach, when not in use.

7. MAKE all adjustments with the switch in the OFF position and the grass

trimmer disconnected from the power source.

8. ALWAYS use accessories provided or recommended by the grass trimmer's

manufacturer.

9. KEEP guards in place and in working order. Keep hands and feet away

from cutting line.

10. WHEN LENGTHENING A NEW CUTTING LINE, be careful of the sharp line

cutter on the guard.

11. KEEP VENTILATION OPENINGS clear of debris.

12. Before using the grass trimmer, remove any stones, sticks, debris or

objects that could become entangled or ejected by the grass trimmer.

SAVE THESE SAFETY INSTRUCTIONS

?WARNING: NEVER REACH UNDER THE GRASS TRIMMER

(CUTTING LINE AREA) UNTIL IT HAS COMPLETELY STOPPED. THE

GRASS TRIMMER’S CUTTING LINE WILL CONTINUE TO ROTATE FOR A

FEW SECONDS AFTER IT IS SWITCHED OFF.

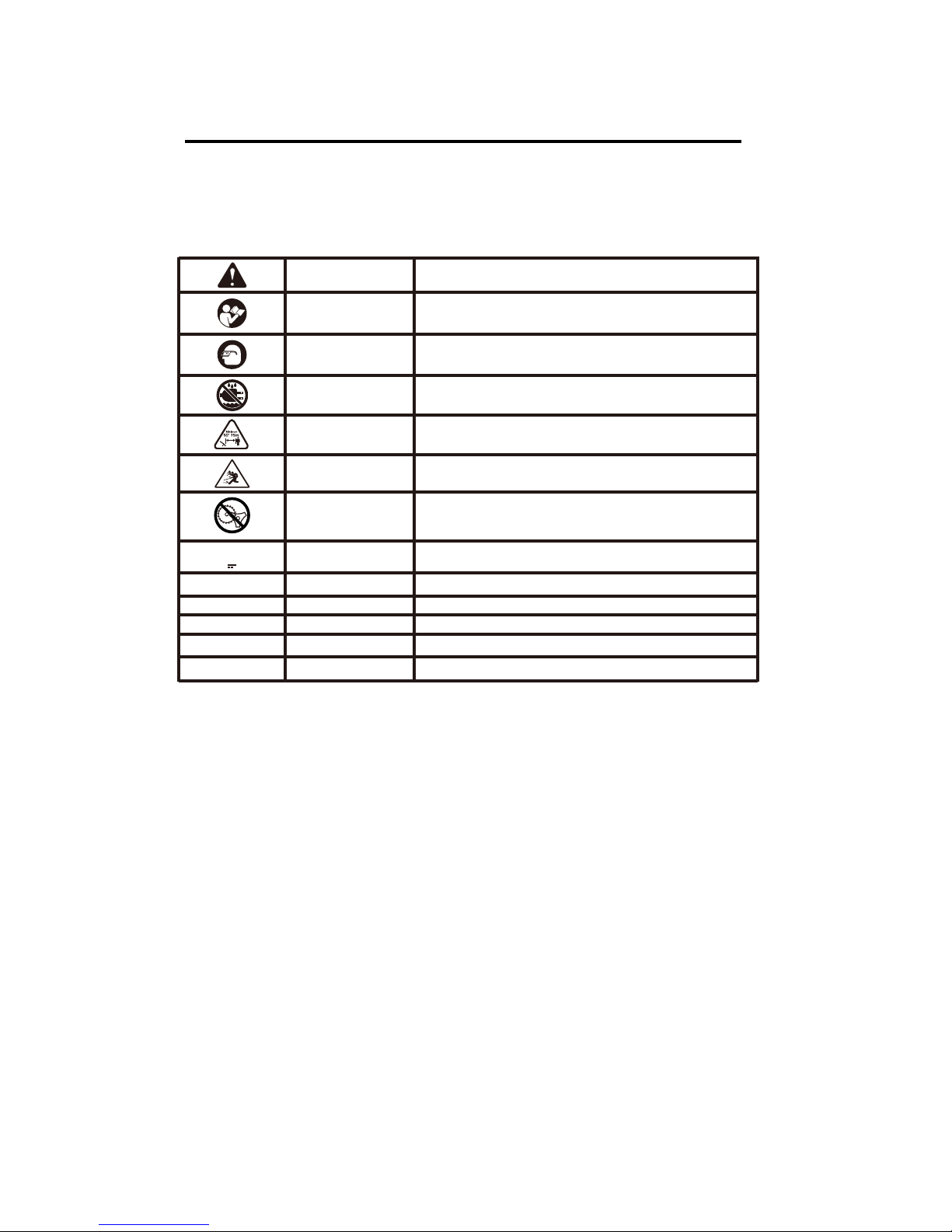

Symbols

SAVE THESE SAFETY INSTRUCTIONS

Some of the following symbols may be used on this product. Please study them and

learn their meaning. Proper interpretation of these symbols will allow you to operate

the product better and safer.

SY M BOL NAME DE SIGNATI ON/EX PL ANATI ON

Safety Alert Indicates a potential personal injury hazard.

Read Operator’s

Manual

To reduce the risk of injury, user must read and understand operator’s

manual before using this product.

Eye Protection Always wear eye protection with side shields marked to comply

with ANSI Z87.1.

Wet Conditions Alert Do not expose to rain or use in damp locations.

Keep Bystanders

Away Keep all bystanders at least 50 ft. away.

Ricochet Thrown objects can ricochet and result in personal injury or property

damage.

No Blade Do not install or use any type of blade on a product displaying this

symbol.

Direct Current Type or a characteristic of current

noNo Load Speed Rotational speed, at no load

.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute

V Volts Voltage

Hz Hertz Frequency (cycles per second)

min Minutes Time

Electrical Information

SAVE THESE SAFETY INSTRUCTIONS

?WARNING: TO AVOID ELECTROCUTION:

1. Useonly identical replacement parts when servicingatoolwith double

insulation. Servicing should be performed byaqualified technician.

2. Do not use in wet or damp areas or expose to rain.

?WARNING: DOUBLE INSULATION DOES NOT TAKE THE PLACE OF

NORMAL SAFETY PRECAUTIONS WHEN OPERATING THIS TOOL.

?WARNING: USE ONLY IDENTIFICAL REPLACEMENT PARTS WHEN

SERVICING THE GRASS TRIMMER, TO AVOID INJURY.

?WARNING:

TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR

DAMAGE TO THE TOOL, USE PROPER CIRCUIT PROTECTION. YOUR

GRASS TRIMMER IS WIRED AT THE FACTORY FOR 120 V OPERATION.

CONNECT TO A 120 V, 15ACIRCUIT,AND USE A 15 A TIME-DELAYED

FUSE OR CIRCUIT BREAKER. TO AVOID SHOCK OR FIRE,IF THE

EXTENSION CORD IS WORN, CUT OR DAMAGED IN ANY WAY,

REPLACE IT

IMMEDIATELY.

DOUBLE INSULATED

This grass trimmer hasaplug that looks like the one shown in Fig. A.

The grass trimmer is double insulated to

provide a double thickness of insulation

between you and the tool’s electrical

system. All exposed metal parts are

isolated from the internal metal motor

components with protective insulation.

1) 2-pronged plug

2) Properly grounded extension cord

Fig. A

Electrical Information - continued

CAUTION! ALWAYS MAKE SURE THAT YOUR OUTLET IS PROPERLY

GROUNDED. IF UNCERTAIN, HAVE IT CHECKED BY A CERTIFIED

ELECTRICIAN.

GUIDELINES FOR USING EXTENSION CORDS

USE THE PROPER EXTENSION CORD.Make sure your extension cord is in

good condition. When using an extension cord, be sure to use one heavy

enough to carry the current your product will draw. An undersized cord will cause

overheating. The table below shows the correct size to use depending on cord

length and nameplate ampere rating. If in doubt, use the next heavier gauge.

The smaller the gauge number, the heavier the cord.

Minimum Gauge for Extension Cords (AWG)

(when using 120 V only)

Make sure your extension cord is properly wired and in good electrical condition.

Always replace a damaged extension cord or have it repaired by a qualified

person before use. Keep extension cords away from sharp objects, excessive

heat and damp or wet areas.

Use a separate electrical circuit for your tools. This circuit should comprise a wire of

at least 12 gauge and should be protected with a 15 A time-delayed fuse. Before

connecting the motor to the power line, make sure the switch is in the OFF

position and the electric current is identical to that stamped on the

motor nameplate. Running at a lower voltage will damage the motor.

SAVE THESE SAFETY INSTRUCTIONS

Ampere Rating Total Length of Cord in Feet (meters)

More Than Not More Than 25' (7.6 m) 50' (15 m) 100' (30.4 m) 150' (45.7 m)

0 6 18 16 16 14

6 10 18 16 14 12

10 12 16 16 14 12

12 16 14 12 Not Recommended

?WARNING: THIS GRASS TRIMMER IS FOR OUTDOOR USE ONLY.

DO NOT EXPOSE TO RAIN OR USE IN DAMP LOCATIONS.

?WARNING: ALTHOUGH THIS TOOL IS DOUBLE INSULATED, THE

EXTENSION CORD AND RECEPTACLE MUST STILL BE GROUNDED

WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRICAL

SHOCK.

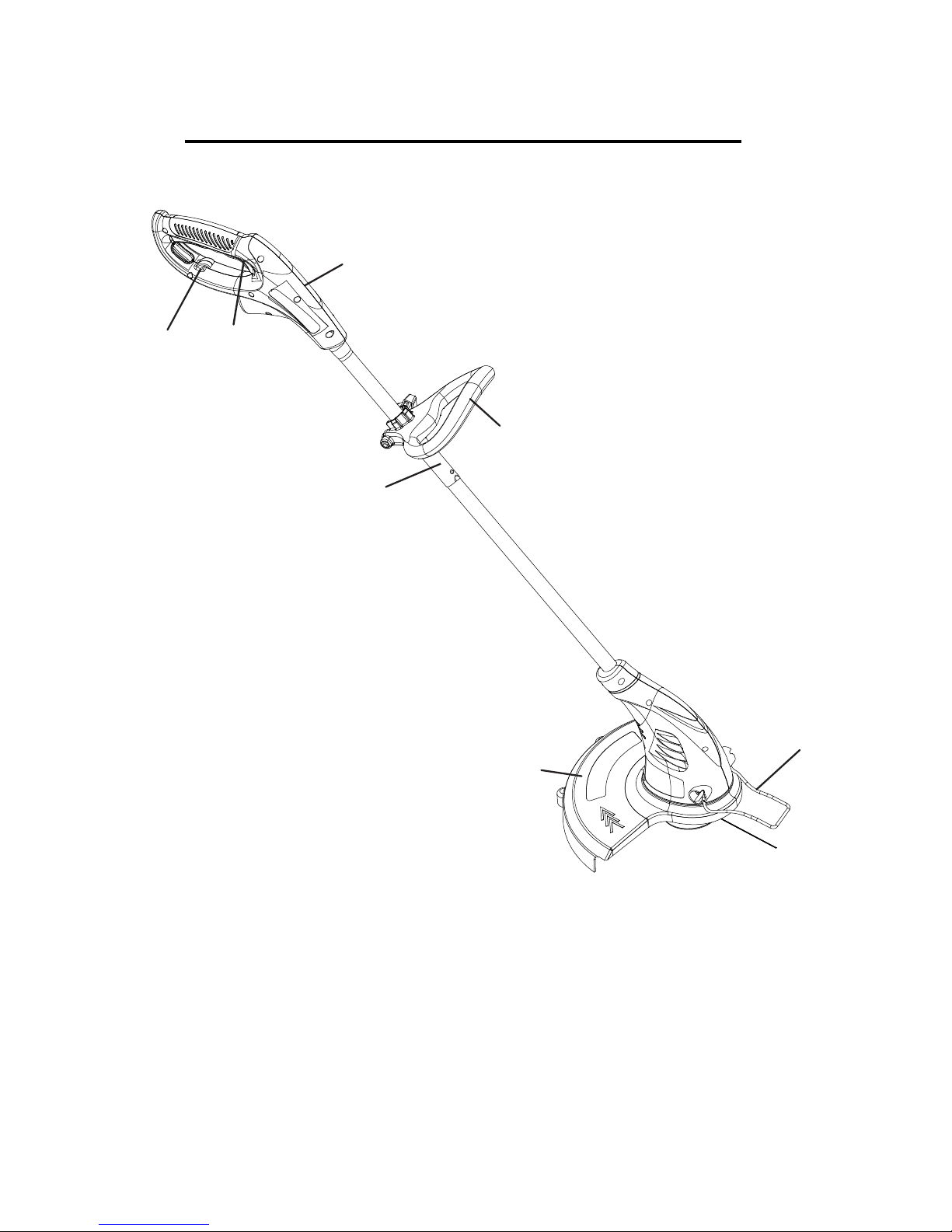

Know Your Grass Trimmer

Fig. 1

REAR HANDLE

CORD

RETAINER

SWITCH

TRIGGER

FRONT

HANDLE

SPLIT BOOM

GRASS

DEFLECTOR

EDGER

GUIDE

UNPACKING

This product requires assembly.

•Carefully remove the product and any accessories from the box. Make sure that

•Inspect the product carefully to make sure no breakage or damage occurred

•Do not discard the packing material until you have carefully inspected and

•If any parts are damaged or missing, please call 1-866-523-5218 for assistance.

PACKING LIST

Trimmer Assembly

Grass Deflector Assembly with Screw

Operator’s Manual

Auxiliary handle

WARNING:

If any parts are damaged or missing do not operate this product

this warning could result in serious

WARNING: Do not attempt to modify this product or create accessories

not recommended for use with this product. Any such alteration or modification

is misuse and could result in a hazard ous condition leading to possible serious

WARNING: Do not connect to power supply until assembly is complete.

Failure to comply could result in accidental starting and possible serious personal

injury.

ATTACHING GRASS DEFLECTOR（Fig. 2-3）

•Remove supplied screw with a star-headed screwdriver from the trimmer head.

•Fit the grass deflector into the slots on trimmer head.

•Turn counterclockwise to lock grass deflector into place.

•Line up the screw hole in the grass deflector with the center hole in the trimmer

•

Install supplied screw and tighten by turning clockwise with a star-headed

screwdriver.

Fig. 2

GRASS

DEFLECTOR SLIDE

OVER HEAD

AND

TURN

COUNTERCLOCKWISE

SCREW

SCREW HOLE

Fig. 3

head.

personal injury.

until the parts are replaced. Failure to heed

personal injury.

satisfactorily operated the product.

during shipping.

all items listed in the packing list are included

Assembly and Adjustments

Otros manuales para 060-2288-0

Tabla de contenidos

Otros manuales de Recortadora de Yard Works

Yard Works

Yard Works CGT48CU Manual de usuario

Yard Works

Yard Works Grass trimmer/edger Manual de usuario

Yard Works

Yard Works CGT48BCU.9 Manual de usuario

Yard Works

Yard Works CGT48BCU Manual de usuario

Yard Works

Yard Works 60-2310-6 Manual de usuario

Yard Works

Yard Works 60-3014-6 Manual de usuario

Yard Works

Yard Works HONGK001 Guía

Yard Works

Yard Works 060-2343-8 Manual de usuario

Yard Works

Yard Works 060-2279-2 Manual de usuario

Yard Works

Yard Works 060-2273-4 Manual de usuario

Yard Works

Yard Works 060-2370-2 Manual de usuario

Yard Works

Yard Works 60-2241-0 Manual de usuario

Yard Works

Yard Works 267-4920 Manual de usuario

Yard Works

Yard Works 60-2293-6 Manual de usuario

Yard Works

Yard Works 267- 4910 Manual de usuario

Yard Works

Yard Works 60-2277-6 Manual de usuario

Yard Works

Yard Works LHT12021-1 Manual de usuario

Yard Works

Yard Works YW2510 Manual de usuario

Yard Works

Yard Works 060-2342-0 Manual de usuario

Yard Works

Yard Works RS25CCPR Manual de usuario

Yard Works

Yard Works LST22012-1 Manual de usuario

Yard Works

Yard Works 267-4926 Manual de usuario

Yard Works

Yard Works 60-3040-2 Manual de usuario

Yard Works

Yard Works 060-2371-0 Manual de usuario

Manuales populares de Recortadora de otras marcas

MTD

MTD HT 51 E Manual de usuario

McCulloch

McCulloch T22 LS Manual de usuario

COCKRAFT

COCKRAFT PRO HL36-S Manual de usuario

Grizzly

Grizzly CT 1800 Li Manual de usuario

Peco

Peco Z Trimmer ZT-3000 Manual de usuario

Solo

Solo 116 Manual de usuario

Stiga

Stiga ST 1200 Manual de usuario

Echo

Echo GT-225 - 10-09 Manual de usuario

RedMax

RedMax BT17 Manual de usuario

GreenWorks

GreenWorks STA806 Manual de usuario

Parkside

Parkside PHSL 900 A3 Manual de usuario

Gardeo

Gardeo PRO GPTHT2560 Manual de usuario

Park

Park DT-810870 Manual de usuario

Worx

Worx WG209 Manual de usuario

Gardenline

Gardenline 43671/HTKS26 Manual de usuario

Makita

Makita 3710 Manual de usuario

Champion

Champion 100683 Manual de usuario

Stihl

Stihl FS 311 Manual de usuario
