OWNER'S MANUAL
MODEL NUMBER:
96198001600
SNOW THROWER
Always Wear Eye Protection During Operation
IMPORTANT MANUAL Do Not Throw Away
WARNING:
Read the Owner's Manual and
follow all Warnings and Safety
Instructions. Failure to do so
can result in serious injury.
414928 Rev 3 09.26.07 TH
Printed in U.S.A.
20
REPAIR PARTS SNOW THROWER - MODEL 96198001600

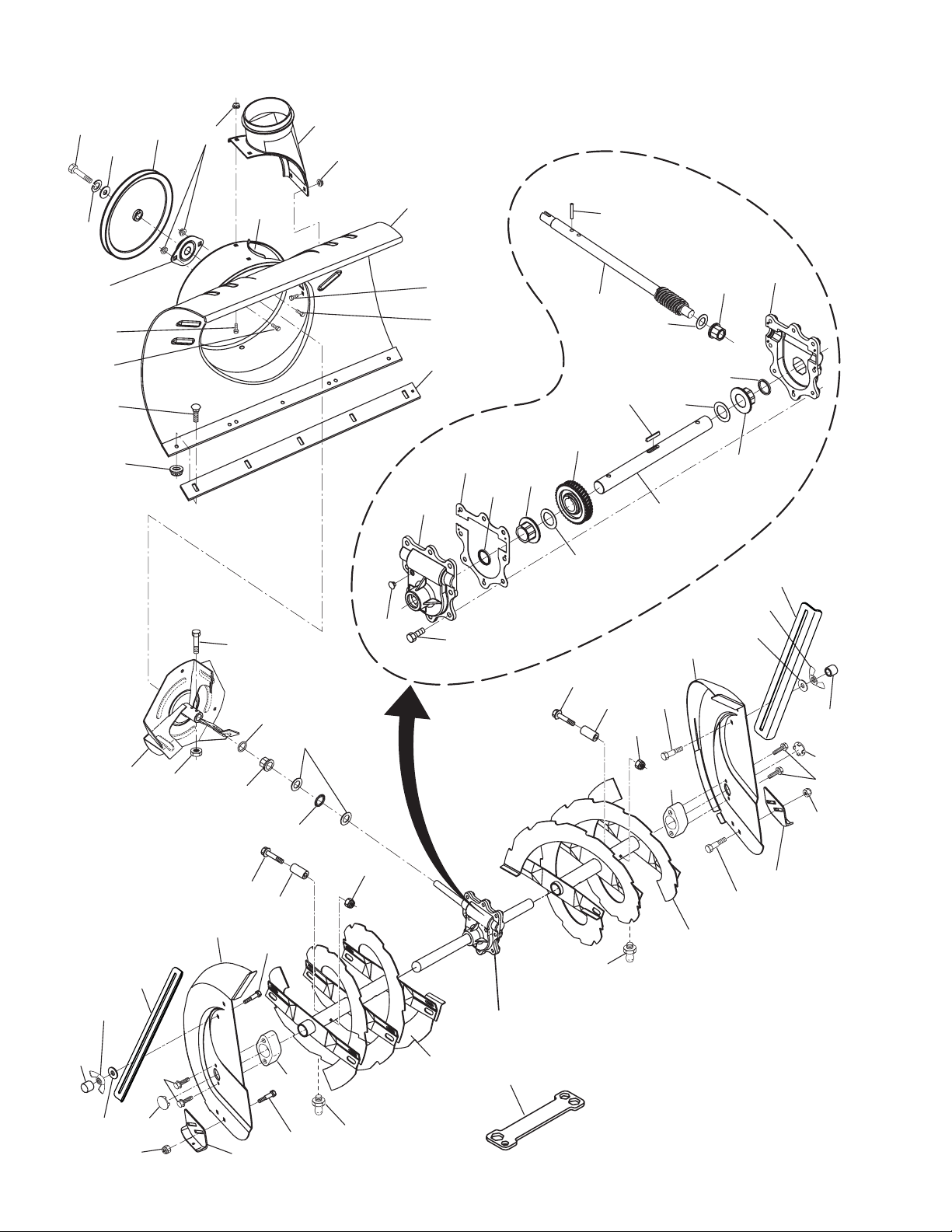

AUGER HOUSING / IMPELLER ASSEMBLY
21
KEY PART
NO. NO. DESCRIPTION
4 191079 Pulley, Impeller
5 188909 Bearing Assembly, Flange
6 155377 Nut, Hex Flange 5/16-18
7 180355 Bolt, Flat Head, Carriage
5/16-18 x 5/8
8 72270505 Bolt, Carriage 5/16-18
9 163183 Bolt, Hex Head
10 404930X428 Housing, Auger
11 404933X479 Bar, Scraper
12 178675X008 Bracket, Corner Discharge
13 175322 Base, Discharge Chute
14 10040500 Washer, Lock 5/16
15 19111507 Washer, Flat
16 74940516 Screw, Hex Head 5/16-18 x 3/4
17 405637 Grease Fitting
18 179582 Screw, Hex Head 5/16 x 1
19 73800400 Nut, Hex Lock 1/4-20
20 155377 Nut, Hex Lock 5/16-18
21 401347 Washer, Flat
22 178777X479 Skid Plate, RH
24 128638 Wing Nut
25 72270506 Bolt, Carriage 5/16-18 x 3/4
26 174658 Bearing, Auger
27 174697 Washer, Thrust, 1"
28 198636 Bolt, Shear
29 174762X479 Skid Plate, LH
30 405973X479 Auger Assembly, RH
REPAIR PARTS SNOW THROWER - MODEL 96198001600
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
31 405972X479 Auger Assembly, LH
32 407768 O-Ring
33 407769 Bushing, Flange 3/4
34 174681 Washer, Thrust 3/4
35 174684 Bearing, Thrust 3/4
36 407757 Shaft, Impeller
37 174683 Washer, Thrust 5/8
38 407758 Bushing, Flange 5/8
39 407767 Screw, Hex Head 5/16-18 x 3/4
40 407760 Plug, Case
41 407761 Housing, Gearbox, RH
42 407770 Seal, Oil
43 407762 Bushing, Flange, 1"
44 189282 Key, Square 1/4 x 1/4 x 7/8
45 407763 Gear, Worm
46 407764 Shaft, Auger
47 407765 Housing, Gearbox, LH
48 175321X479 Impeller Assembly
49 74780426 Screw, Hex Head 1/4-20 x 1-5/8
50 407766 Gasket, Gearbox
51 7836M Pin, Roll 3/16 x 1-1/8
52 181160X479 Bar, Drift Cutter
53 72270506 Bolt, Carriage
54 198709 Stop
55 198638 Spacer
56 180684 Multi-Wrench
57 196710 Gearbox Assembly
58 411939 Plug Bearing Hole HSG
22
REPAIR PARTS SNOW THROWER - MODEL 96198001600

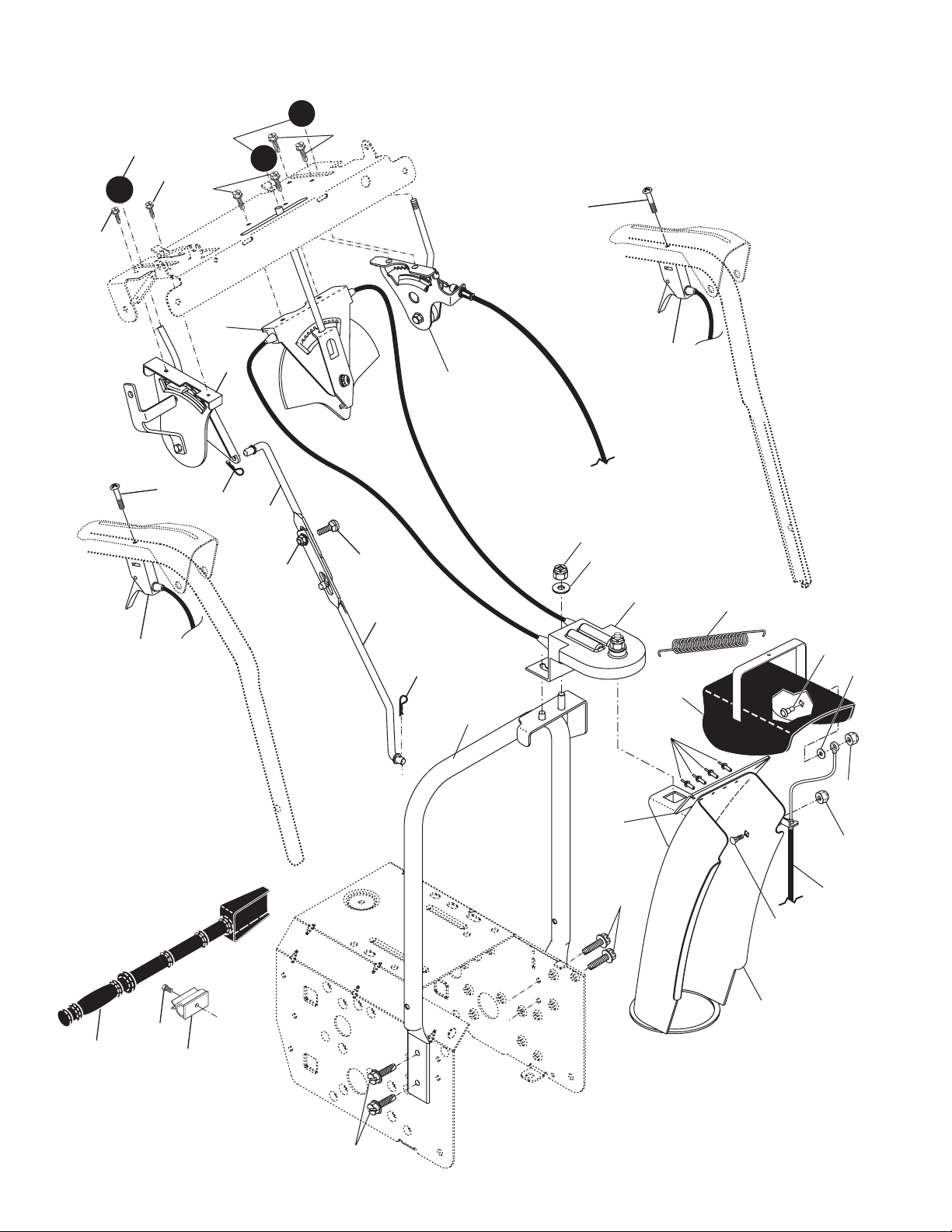

CONTROL PANEL / DISCHARGE CHUTE
3
2
1
2
6
19
2
2
26
28
27
27
25 20
29
7
4
5
6
8
8
16
18
17
10
14
3
13
15
9
11
12
22
23
22
23
31
32
30
23
REPAIR PARTS SNOW THROWER - MODEL 96198001600
CONTROL PANEL / DISCHARGE CHUTE
KEY PART
NO. NO. DESCRIPTION
1 414280 Knob, Lever
2 17501010 Screw #10-24 x 5/8
3 198475 Control Assembly, Deflector
4 73800600 Nut, Lock 3/8-16
5 19131316 Washer, Flat 3/8
6 404974 Control Assembly, Chute Rotater
7 405784X479 Support, Pivot
8 150078 Screw, Hex Head 5/16-18 x 3/4
9 184505 Spring, Deflector
10 179829 Bolt, Shoulder
11 179246 Washer, Friction, Nylon
12 191730 Nut, Lock 1/4-20
13 72250505 Bolt, Carriage 5/16-18
14 751153 Nut, Lock 5/16-18
15 404770X428 Chute Assembly
16 178633X428 Deflector Assembly
17 179145 Seal, Deflector
18 128415 Rivet, Blind
19 414281 Knob, Speed Control Lever
20 72270506 Bolt, Carriage 5/16-18 x 3/4
22 74041024 Screw #10-24 x 1-1/2
23 188303 Control Assembly, Power Steering
25 155377 Nut, Lock 5/16-18
26 198474 Lever Assembly, Speed Control
27 169675 Retainer, Hairpin
28 180445 Rod, Upper, Speed Control
29 187716 Rod, Lower, Speed Control
30 405400 Clamp, Mounting, Clean-Out Tool
31 192199 Tool, Clean-Out
32 194189 Screw, Hi-Lo 13-16 x 5/8
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
24
REPAIR PARTS SNOW THROWER - MODEL 96198001600

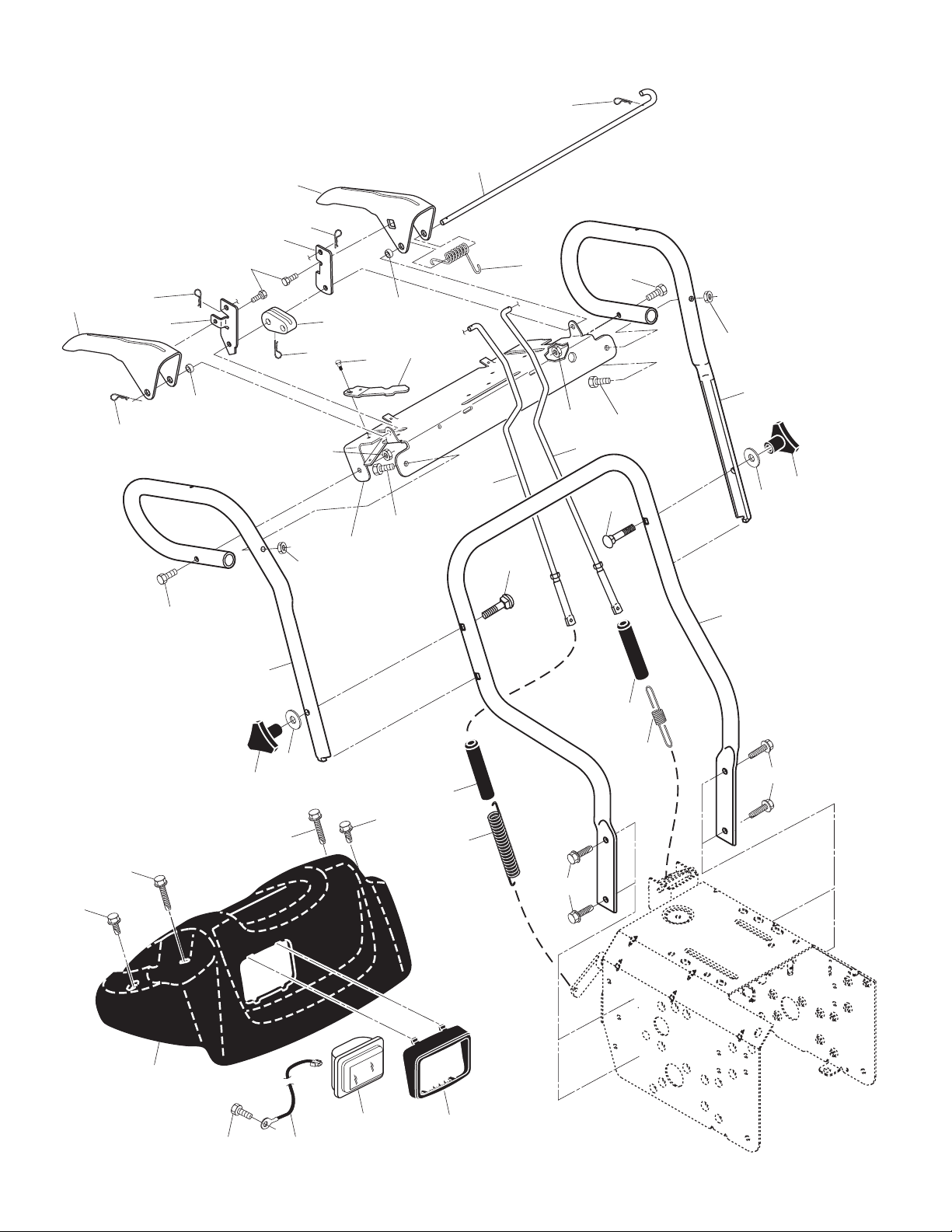

HANDLES
34 37
42
10
15
23
22
27
27
22
15
32
31
32
30
31
38 39
7
636
2
5
5
5
1
8
28
28
9
18
19
26
24
24
25
5
5
40
29
12
11
15
11
11
15
16
17
16
17
14
13
25
REPAIR PARTS SNOW THROWER - MODEL 96198001600
HANDLES
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1 412682X479 Lever, Auger Control, RH
2 412681X479 Lever, Traction Drive Control, LH
5 169675 Retainer, Hairpin
6 17060408 Screw, Hex Head 1/4-20 x 1/2
7 412677 Rod, Interlock
8 196333X008 Arm, Impeller Rod
9 412679X008 Arm, Traction Rod
10 412683X479 Panel, Control
11 74780524 Screw, Hex Head 5/16-18 x 1-1/2
12 74780528 Screw, Hex Head 5/16-18 x 1-3/4
13 414519X479 Handle Tube, LH
14 414518X479 Handle Tube, RH
15 751153 Nut, Lock 5/16-18
16 19131316 Washer, Flat 3/8
17 178899 Knob, Handle
18 180480 Rod, Auger Control
19 405740 Rod, Traction Control
22 72120618 Bolt, Carriage 3/8-16 x 2-1/4
23 401940X479 Handle Tube, Lower
24 180447 Sleeve, Spring
25 180926 Spring, Traction Drive
26 178669 Spring, Auger Control
27 17000616 Screw, Hex Head 3/8-16 x 1
28 412680 Bushing, Pivot
29 193072 Screw, Ground Wire, Headlight to Blower Housing
30 182906 Console, Panel
31 175262 Screw, Hex Head, Tapping #10-24 x 1-1/4
32 184471 Screw, Hex Head, Tapping #10-24 x 1/2
34 17060410 Screw
36 178831 Spring, Torsion, Lever
37 412675X004 Spring, Interlock
38 178666 Headlight, Halogen (Includes Bulb)
- - 401620 Bulb, Halogen
39 178668 Bezel, Headlight
40 180964 Harness, Headlight (Halogen)
42 414572 Cam, Interlock
26
REPAIR PARTS SNOW THROWER - MODEL 96198001600

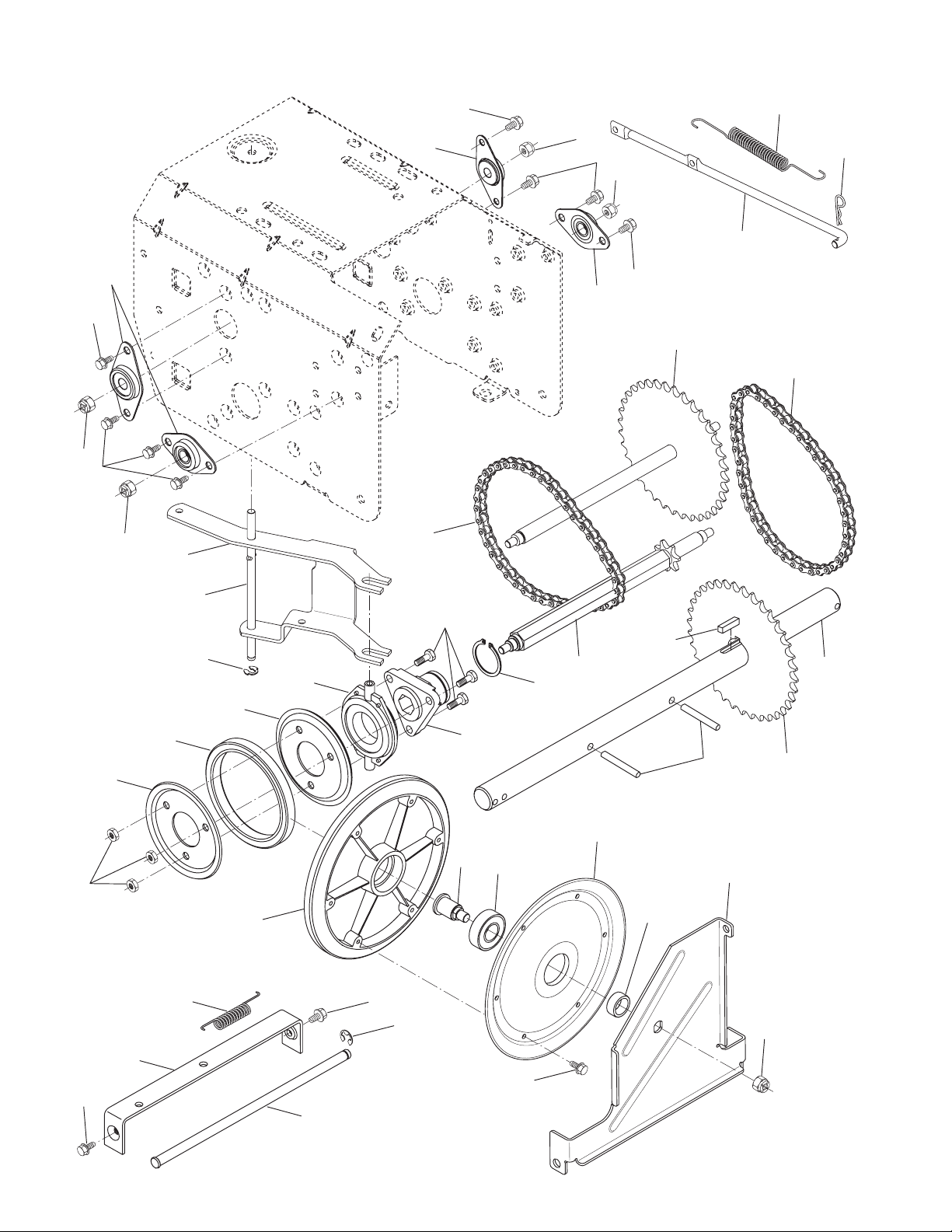

DRIVE
4
4
4
4
4
2
2
43
11
1
1
22
5
5
5
2
2
20
41
21
17
13
3
6
14
19
18
18
15
24
36
35
34
37
31
9
12
23
26
29
25
4
4
33
28
32
27
44
27
REPAIR PARTS SNOW THROWER - MODEL 96198001600
DRIVE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1 401619 Chain, Drive
2 751153 Nut, Lock 5/16-18
3 402882 Clip, Retainer
4 17490508 Bolt, Hex Head 5/16-18 x 1/2
5 408981 Bearing, Flange
6 12000007 E-Ring, Retainer
9 402855 Sprocket & Shaft Assembly
11 402568 Rod, Clutch
12 402187 Shaft, Hex
13 402310 Pivot Rod, Shifter
14 401732 Yoke, Shifter
15 175344 Trunnion Bearing Assembly
17 178613 Hub, Rubber Wheel
18 198176X479 Plate, Rubber Wheel
19 73930500 Nut, Lock 5/16-18
20 179831 Ring, Rubber Wheel
21 74760514 Screw, Hex Head 5/16-18 x 7/8
22 169675 Retainer, Hairpin
23 180135 Spring, Bias
24 402691 Sprocket, Axle Shaft
25 402652 Pivot Rod, Swing Plate
26 401820 Plate, Drive
27 404307 Axle Shaft Assembly
28 402504 Shaft, Friction Pulley
29 401984X479 Bracket, Shifter, Speed
31 17541008 Screw, Cap Head
32 189282 Key, Square
33 198791 Bearing, Ball
34 402394 Plate, Swing
35 402511 Spacer, Bearing
36 402393 Pulley, Friction
37 132010 Nut, Lock 5/16-18
41 12000012 Ring, Retaining
43 402878 Spring, Return
44 9465M Pin, Roll
28
REPAIR PARTS SNOW THROWER - MODEL 96198001600

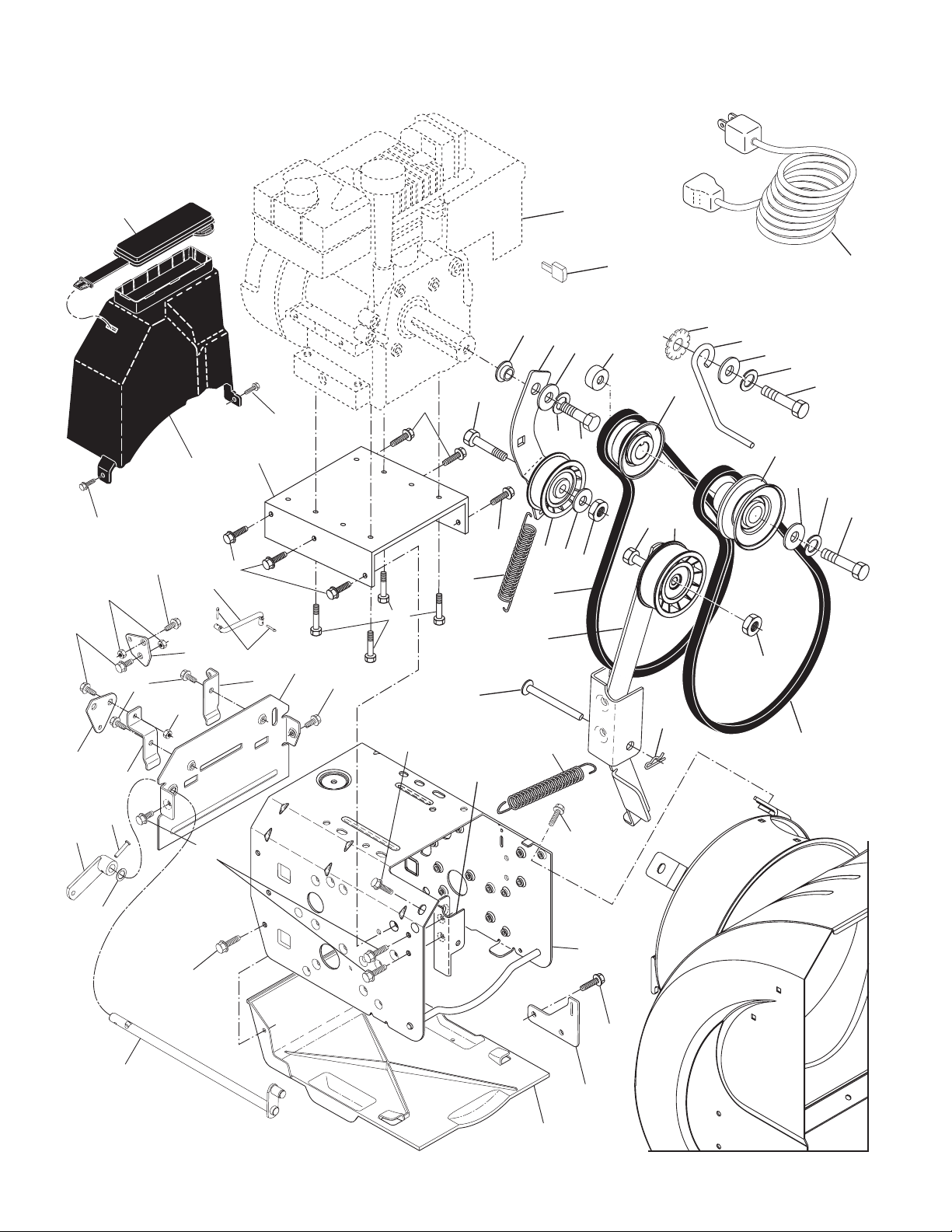

CHASSIS / ENGINE / PULLEYS
6
19 17
10 21
22
23
2
3
4
642
8
9
12
13
15
27
26
25
24
18
7
20
14
5
40
46
44
49
50
51
52
35
34
33
38
37
39
43
11
32
32
36
36
44
45
41
30
29
31
31
11
11
1
5
5
5
16
56
47
53
10
21
28
57
6
58
