Yard force SA500ECO Manual de usuario

Model SA500ECO

Service centre: +44(0)1904727513

Mail: support@yardforce.co.uk

Web: www.yardforce.co.uk

SUMEC UK

UNIT A&B ESCRICK BUSINESS PARK

ESCRICK, YORK

YO19 6FD

ROBOMOWER

Original Instructions

2 3

Read this manual carefully prior to assembling and

operating the Robomower. It is dangerous to operate this

product without being familiar with these instructions.

Keep this manual in a safe place and have it ready for

future reference.

15 18

13 14

4 5

INTRODUCTION

Congratulations on the purchase of your new device. During production, this equipment has

been checked for quality and subject to a nal inspection. The functionality of your equipment

is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants

will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect

and it represents no cause for concern.

The operating instructions constitute part of this product. They contain important

information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating

and safety instructions. Use the product only as described and for the

applications specied. Keep this manual in a safe place and in the event that

the product is passed on, hand over all documents to the third party.

The Robomower is exclusively designed for mowing lawns. It is only intended for private use

and is not suitable for commercial use.

SA500ECO Original Instructions

CONTENT

Introduction 05

Intended purpose 05

General description 05

Technical Data 07

Safety precautions 08

Assembly instructions 28

Operation 42

Cleaning/maintenance 48

Troubleshooting 53

Declaration of conformity 55

INTENDED PURPOSE

Any other use that is not specically approved in these instructions can result in damage to

the Robomower and could be a serious danger to the user.

This appliance MUST NOT be used by children and persons with reduced physical, sensory

or mental capabilities or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their

safety.

Children should be supervised to ensure that they do not play with the appliance.

The owner or operator is responsible for accidents or harm to others people and their

property.

The manufacturer cannot be held liable for damage caused by other incorrect operation of

the Robomower or if it is not used in line with its intended purpose.

GENERAL DESCRIPTION

Scope of delivery

Carefully unpack the mower and check that all the subsequently listed parts are present:

• Robomower

• Charging station

• Transformer

• Extension cord

• Boundary wire

• Boundary wire connector B (blue)

• Fixing pegs

• Spare blades

• Measurement ruler (on the color box)

• Cement resistor

• Manual

6 7

GENERAL DESCRIPTION

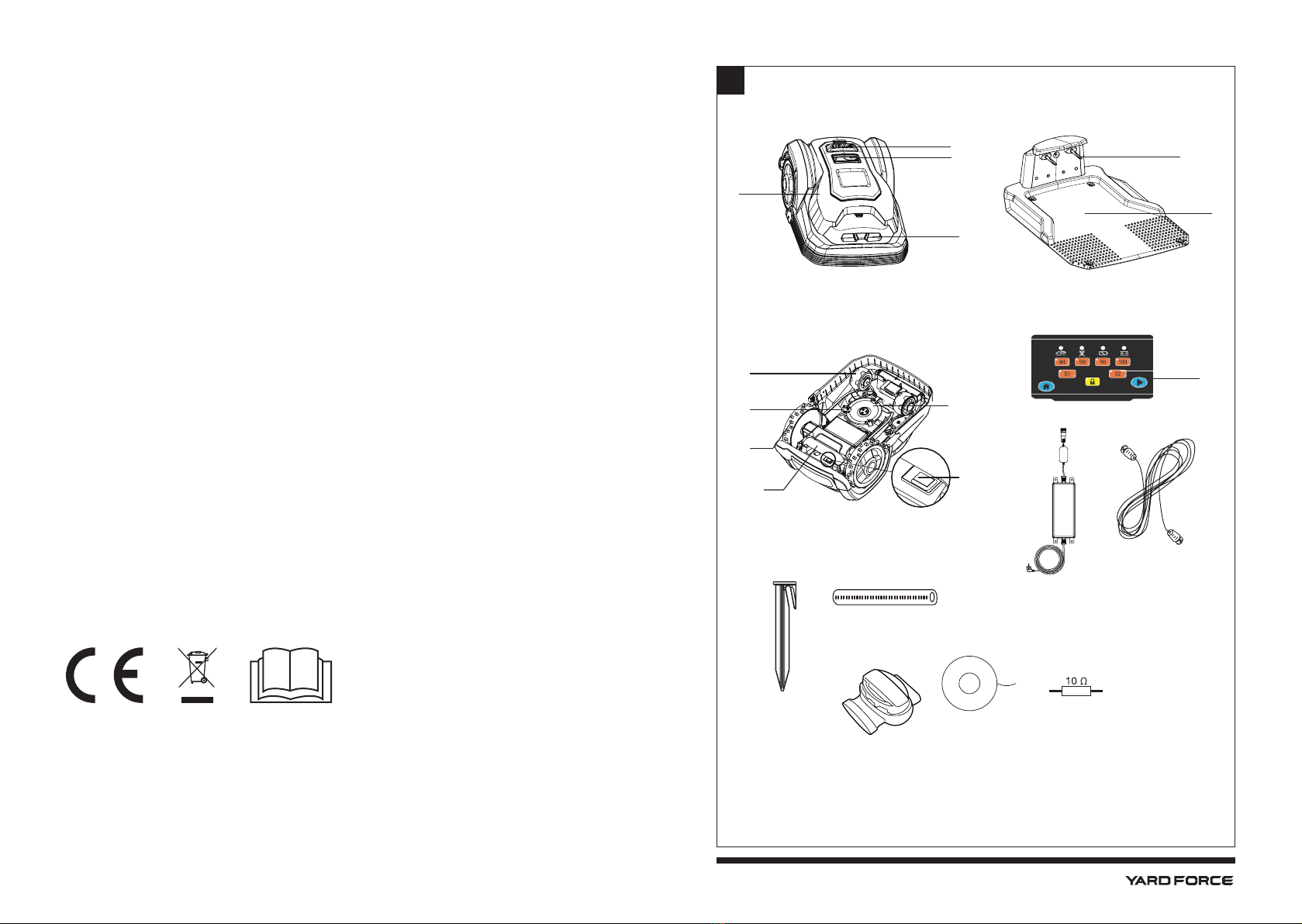

Overview

The illustration of the principal functioning parts can be found on the front and

back foldout pages.

1 Robomower x 1

2 STOP button

3 Display and keypad

4a: Charging contacts (Robomower)

4b: Charging contacts (charging station)

5 Charging station x 1

6 Blade (3 per each)

7 Blade holder

8 Front wheel

9 Rear wheel

10 Carrying handle with safety switch

11 Main power switch

12 Control panel

13 Transformer x 1

14 Extension cord x 1

15 Fixing peg x 120

16 Measurement ruler (on the color box) x 2

17 Boundary wire connector x 3

18 Boundary wire x 1 (100m)

19 Cement resistance x 1

Functional description

This Robomower is an autonomous robot used to cut lawn grass. It will remain within an area

designated by a boundary wire, start work following a programmed schedule, and return to its

charging station as needed. The three sharp blades ensure clean cuts with minimal damage

to the plant, leaving behind tiny snippets as natural fertilizer.

TECHNICAL DATA

Max cutting area 500 m2

Battery 862615 18650-20Q

Lithium-Ion battery, 28 V/2.0 Ah, 56Wh

Power supply

FY3201500

Input 100-240V AC, 50/60 Hz

Output 32 V DC, CC1.5A

Typical mow time on one charge 60 min

Rated voltage 28 V DC

Rated power 50 W

No load cutting speed 3500 min-1

Cutting width 18 cm

Blade model / part number 846210

Cutting height adjustment 5 Settings

Cutting height, min-max 20 mm-60 mm

Number of blades Three (Pivoting)

Charging time 60 min

Recommended time per day* Please see note 1 below.

300 m24 hours

500 m26 hours

Degree of protection:

Robomower IPX4

Charging station IPX4

Power supply IP 67

Robomower weight 8.5 Kg

Charging Station weight 2 Kg

Robomower size, L x W x H 570 X 390 X 260 mm

Package size, L x B x H 780 X 510 X 330 mm

Gross weight 18 kg

Measured sound power level

Measured sound pressure 46.6 dB(A) , K=3.0 dB(A)

Guaranteed sound power level LWA= 67 dB(A) (K=0.35 dB(A))

The sound values have been determined according to noise test code given in EN 50636-2-

107, using the basic standards EN ISO 11203 :2009 and EN ISO 3744:2010.

The noise gures quoted are emission levels and are not necessarily safe working levels.

Factors that inuence the actual level of exposure of work-force include the characteristics

of the work room, the other sources of noise, i.e. the number of machines and other adjacent

processes and the length of time for which an operator is exposed to the noise. Also the

permissible exposure level can vary from country. This information, however, will enable the

user of the machine to make a better evaluation of the hazard and risk.

*Note 1: The recommended time per day stated in this specication is just for reference. It

depends on the condition of blades, the type of the grass being cut, the growth condition,

humidity, and whether lawn area is at. A more complex lawn with trees, ower beds,

paths and slopes may require a longer work time.

8 9

This section covers the basic safety instructions when

working with this machine.

General notes on safety

This machine can cause serious injury if it is

not properly used. Please read these operating

instructions carefully and familiarise yourself with

all the control elements before operating this

machine.

Keep these operating instructions in a readily

accessible place so that this information is always

at your disposal.

Please note that despite all measures to integrate

safety measures into the construction, the safety

devices and supplemental safety measures, a

resiudual risk remains when using this machine.

Symbols used in the manual

Warning symbols with information on damage and

injury prevention.

Warning symbol with information on the danger of

electric shock.

Symbols on the machine

Caution!

These instructions must be read.

Danger of injury due to ung-out material! Keep

bystanders well away from the machine.

WARNING - Do not ride on the machine.

CAUTION - Do not touch rotating blade.

WARNING – Remove the disabling device

before working on or lifting the machine.

WARNING – Keep your hands and feet away from

the rotating blades. Never place your hands or

feet close to or under the body when Robomower

is in operation.

Return any discarded batteries to your local

dealer, collector or recycle point.

It is not permitted to dispose of this product as

normal household waste. Please recycle where

facilities exist. Check with your local authority or

retailer for recycling advice.

Guaranteed sound power level value is 67dB.

SAFETY PRECAUTIONS SAFETY PRECAUTIONS

10 11

Warning Symbols on the charger

Warning!

Before use, refer to the corresponding

paragraph in the manual.

Double insulation

Pole orientation

Waste electrical products should not be disposed

of with household waste. Recycle where facilities

exist. Check your local authority or retailer for

recycling advice.

CE conformity mark

Warning Symbols on the battery pack

Batteries contain Li-Ion and should not be

disposed with general household waste. Contact

your local authority for disposal advice.

Do not throw into water.

Do not throw on to re.

Do not subject the battery to strong sunlight

over long periods and do not leave it in high

temperatures.(max.45 OC).

Waste electrical products should not be disposed

of with household waste. Recycle where facilities

exist. Check your local authority or retailer for

recycling advice.

SAFETY PRECAUTIONS SAFETY PRECAUTIONS

12 13

Main Power switch

Additional safety instructions for Robomowers

Do not store anything heavy on the top of the Robomower

or charging station both during storage or when in use.

Never use the device if the main power switch (11) is

damaged or does not work properly. Never bypass the

main power switch. Set the main power switch to OFF for

storage or when the device is not in use. Use the original

packaging when transporting the Robomower,

especially for long distances.

If you need to move the Robomower from or within the

working area, rst press the STOP button (2) to stop the

device.

Secondly, ensure that the main power switch (11) is

switched OFF before you lift up your Robomower.

Thirdly, close the top cover, and carry the Robomower

by the carrying handle (10) at the rear under the mower,

keeping the blade disc away from your body as shown.

Note: The carrying handle (10) includes two safety

switches. Lifting the device by the carrying handle will

trigger the switches, deactivating the Robomower.

SAFETY PRECAUTIONS SAFETY PRECAUTIONS

14 15

Lightning Protection

In order to prevent lightning damage to the machine, do

not place the charging station under tall trees.

Operating the machine:

WARNING! This machine can cause serious injuries.

Follow instructions below to reduce risk of accident

and injury.

IMPORTANT

READ CAREFULLY BEFORE USE

KEEP FOR FUTURE REFERENCE

Preparation:

• Read the instructions carefully and make sure you

understand them fully. Be familiar with the controls

and the proper use of the machine.

• Never allow children, persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge or people unfamiliar with these

instructions use the machine.

• Local regulations may restrict the age of the operator.

Children should be supervised to ensure that they do

not play with the appliance.

• The operator or user is responsible for accidents or

hazards occurring to other people or their property.

• Ensure the correct installation of the perimeter

boundary system as instructed.

• Periodically inspect the area where the machine

is to be used and remove all stones, sticks, wires,

and other debris which could cause damage to the

machine or be unsafe.

• Periodically visually inspect to see that the blades,

blade bolts and cutter assembly are not worn or

damaged. Replace worn or damaged blades and bolts

in sets to preserve balance.

• On multi-spindle machines, take care as rotating one

blade can cause other blades to rotate.

• Never leave the machine to operate unattended,

especially while other people such as children and

pets are in the area.

• Never use the machine to level out uneven patches.

SAFETY PRECAUTIONS SAFETY PRECAUTIONS

16 17

• If the blades no longer cut correctly or if the motor is

overloaded, check all the parts of your equipment and

replace the worn parts. If a more extensive repair is

required, contact the customer service centre.

Use:

• Never operate the machine with defective guards or

without safety devices, for example deectors and/or

grass catchers, in place.

• Do not put hands or feet near or under rotating parts.

• Never pick up or carry the machine while the motor is

running.

• Turn OFF / Power OFF the machine

– before clearing any blockages.

– before checking, cleaning or maintaining the

machine.

• Start Robomower according to the instructions.When

the main power switch (11) is in the ON position, make

sure you keep your hands and feet away from the

rotating blades.

• Never lift the Robomower or carry it around with the

mains switch is in the ON position.

• Do not let persons use the mower who do not know

how it works or behaves.

• Do not put anything on top of the Robomower or its

charging station.

• Do not use the Robomower with defective blade discs,

body, defective blades, screws, nuts etc.

• Avoid operating the machine in wet grass. Doing so

can cause additional wear and tear, and will increase

the amount of cleaning required.

Work interruptions:

• After the machine has been turned off, the cutting

cylinder will continue to rotate for a few seconds.

Keep hands and feet well away.

• Only remove blockages when the machine is standing

completely still. Ensure that the grass ejector opening

(if any) is clean.

• Switch off the power when the machine is transported,

lifted or tilted.

• Never leave the machine unattended. Children should

be supervised to ensure that they do not play with the

appliance.

CAUTION!

The following below outlines measures to avoid

damage and harm to both the Robomower and

people using it.

Taking care of your machine:

• Switch off the power when the machine is to be

carried across uneven surfaces, for example steps.

SAFETY PRECAUTIONS SAFETY PRECAUTIONS

18 19

• Inspect the machine before each use. Never operate

the machine if safety devices (e.g. impact protector,

parts of the cutting facility or bolts) are missing, worn

out or damaged. Check the power cable and starting

lever (if any) for damage. To avoid imbalance, all tools

and bolts must be changed as complete sets.

• Only use spare parts and accessories that have been

supplied or recommended by the manufacturer. The

use of alien parts results in the immediate loss of all

guarantee claims.

• Ensure that all nuts, bolts and screws are rmly

tightened and that the machine is in a safe working

condition.

• Never try to repair the machine yourself, unless you

have been trained accordingly. All work that has not

been listed in these instructions must only be carried

out by authorised servicing agencies.

• Treat the machine with the greatest care. Always keep

the tool clean. Follow the maintenance instructions.

• Never overload the machine. Always work within

the specied capacity range. Do not use low-power

machines for heavy-duty work. Do not operate the

machine for purposes for which it is not intended.

Electrical safety:

CAUTION!

The following states how to avoid accidents and

injuries due to electric shock:

• Before each use, carry out a visual inspection of the

power and extension cord for any signs of damage or

ageing. Damaged mains power cables increase the

risk of electric shock.

• Connect the machine to a power socket with a

residual-current circuit breaker that has a rated current

of no more than 30 mA.

• Always keep the extension cable well away from

the cutting tools. Should the power cable become

damaged during work, instantly disconnect the power

cable from the mains. DO NOT TOUCH THE POWER

CABLE BEFORE IT HAS BEEN DISCONNECTED

FROM THE MAINS! Risk of electric shock.

• The supply cord cannot be replaced. If the cord is

damaged the appliance should be scrapped.

• Keep extension cable away from blades and other

moving parts. They may damage the cable and result

in contact with live parts.

• Check that the mains voltage is the same as indicated

on the rating plate.

Maintenance and storage

• Keep all nuts, bolts and screws tight to be sure the

machine is in a safe working condition.

• Replace worn or damaged parts for safety.

• Ensure that only the recommended replacement

cutting blades are tted.

SAFETY PRECAUTIONS SAFETY PRECAUTIONS

Tabla de contenidos

Otros manuales de Cortacésped de Yard force

Yard force

Yard force Easymow 260 Manual de usuario

Yard force

Yard force YF22-2N1 Manual de usuario

Yard force

Yard force SA650B Manual de usuario

Yard force

Yard force YF22ESSPV Manual de usuario

Yard force

Yard force Classic 500 Manual de usuario

Yard force

Yard force LM C34 Manual de usuario

Yard force

Yard force LM C32A Manual de usuario

Yard force

Yard force HM A30 Manual de usuario

Yard force

Yard force Y2GMB46SCM0 Instrucciones de instalación

Yard force

Yard force GM B41 Manual de usuario

Yard force

Yard force LM G34A Manual de usuario

Yard force

Yard force Compact 400RiS Manual de usuario

Yard force

Yard force SC600ECO Instrucciones de operación

Yard force

Yard force GM B41A Manual de usuario

Yard force

Yard force GM B46CK Manual de usuario

Yard force

Yard force YF20VRX-RM Manual de usuario

Yard force

Yard force GR40 Manual de usuario

Yard force

Yard force EasyMow 260B Actualización de firmware

Yard force

Yard force Y0LMX22S300 Manual de usuario

Yard force

Yard force GT5664 Instrucciones de operación

Yard force

Yard force LM C38 Manual de usuario

Yard force

Yard force SLM34KZD Manual de usuario

Yard force

Yard force SA900B Manual de usuario

Yard force

Yard force ProRider E559 Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario
