Yanmar 4TNE106-GE Guía

Yanmar

4TNE106-GE

and

4TNE106T-GE

Form No. 908293

Engine Service Parts Manual

Introduction

This manual covers service parts for the Yanmar 4TNE106-GE (natural aspirated (NA)) and 4TNE106T-GE (turbo)

engines. When ordering service parts, specify the correct part number, full description, quantity required and the

engine model number and serial number (located on a plate on the valve mechanical cover).

Items shown that do not have a part number are shown for reference purposes only and are not available for purchase.

Gehl ® Company and Mustang Manufacturing, Inc. reserve the right to make changes or improvements in the design

or construction of any part of the unit without incurring the obligation to install such changes on any previously

delivered units.

Table Of Contents

ALTERNATOR ..........................39

CAMSHAFT & DRIVING GEAR .................17

COOLING WATER SYSTEM ...................27

CRANKSHAFT & PISTON ....................19

CYLINDER BLOCK ........................1

CYLINDER HEAD & VALVE COVER ...............7

ENGINE STOP DEVICE .....................35

EXHAUST MANIFOLD & SILENCER ..............13

FLYWHEEL HOUSING & OIL PAN ................5

FUEL INJECTION PUMP ....................29

FUEL INJECTOR ........................31

FUELLINE............................33

GASKET SET ..........................41

GEAR HOUSING .........................3

LUBRICATION OIL LINE .....................23

LUBRICATION OIL SYSTEM...................21

STARTER............................37

SUCTION MANIFOLD.......................9

908293/AP1001 1PRINTED IN USA

CYLINDER BLOCK

Ref Part

No. No. Description Quantity

1 138149 BLOCK ASSY / CYLINDER (INCLUDES ITEMS #2-13) 1

2 425-34722 PLUG 1

3 137972 BOLT / CAP MAIN-BEARING 10

4 137974 BUSHING 1

5 425-34783 SPRING PIN 2

6 138123 PLUG NPT 3/8 STEEL 4

7 138146 PLUG 70 1

8 138147 PLUG 30 8

9 138123 PLUG NPT 3/8 STEEL 1

10 138145 PLUG 12 - 16 1

11 137960 JOINT / PIPE 1

12 137975 BEARING / ASSY MAIN 5

137973 BEARING / MAIN UNDERSIZED=0.25MM 5

13 137976 BEARING / ASSY THRUST 2

137977 BEARING / THRUST OVERSIZED=0.25MM 2

14 137933 BOLT / CYLINDER HEAD 18

15 137965 GASKET / HEAD 1

PRINTED IN USA 2908293/AP1001

CYLINDER BLOCK

908293/AP1001 3PRINTED IN USA

GEAR HOUSING

26 10

Ref Part

No. No. Description Quantity

1 138150 HOUSING ASSY / COVER (INCLUDES ITEM #2) 1

2 137969 SEAL / OIL 1

3 137968 COVER / FUEL INJECT. PUMP 1

4 425-35164 BOLT M6X 2

5 137970 CASE ASSY / GEAR (INCLUDES ITEMS #6-8) 1

6 137966 HOUSING / GEARS 1

7 138022 PUMP / ASSY LUB OIL 1

8 138139 STUD BOLT 4

9 137948 COVER 1

10 138127 O-RING 1

11 138100 O-RING 1

12 138101 O-RING 1

13 138116 PIN / PARALLEL 4

14 425-34763 O-RING 1A 1

15 425-34746 BOLT M8 X 20 PLATED 7

16 138134 BOLT M10 X 22 PLATED 2

17 425-34805 BOLT M8 X 40 PLATED 6

18 425-34747 BOLT M8 X 45 PLATED 9

19 425-34766 BOLT M8 X 50 PLATED 1

20 138130 BOLT M8 X 70 PLATED 5

21 425-34800 BOLT M8 X 80 PLATED 3

22 138141 NUT 4

23 137947 CAP / LUB OIL SUPPLY 1

24 425-34751 COVER, BLIND 1

25 138125 O-RING 1

26 138154 GASKET / LIQUID 1

PRINTED IN USA 4908293/AP1001

GEAR HOUSING

908293/AP1001 5PRINTED IN USA

FLYWHEEL HOUSING & OIL PAN

Ref Part

No. No. Description Quantity

1 425-34695 PIN 2

2 138069 HOUSING / FLYWHEEL 1

3 425-34756 CAP 1

4 138135 BOLT M10 X 35 PLATED 10

5 137964 SEAL / OIL 1

6 137967 PAN COMPLETE / LUB OIL (INCLUDES ITEMS #7,8) 1

7 425-36121 PLUG, DRAIN 1

8 138113 SEAL WASHER 1

9 425-34729 BOLT M8 X 12 PLATED 22

10 425-34733 BOLT M8 X 16 PLATED 4

11 138154 GASKET / LIQUID 1

PRINTED IN USA 6908293/AP1001

FLYWHEEL HOUSING & OIL PAN

908293/AP1001 7PRINTED IN USA

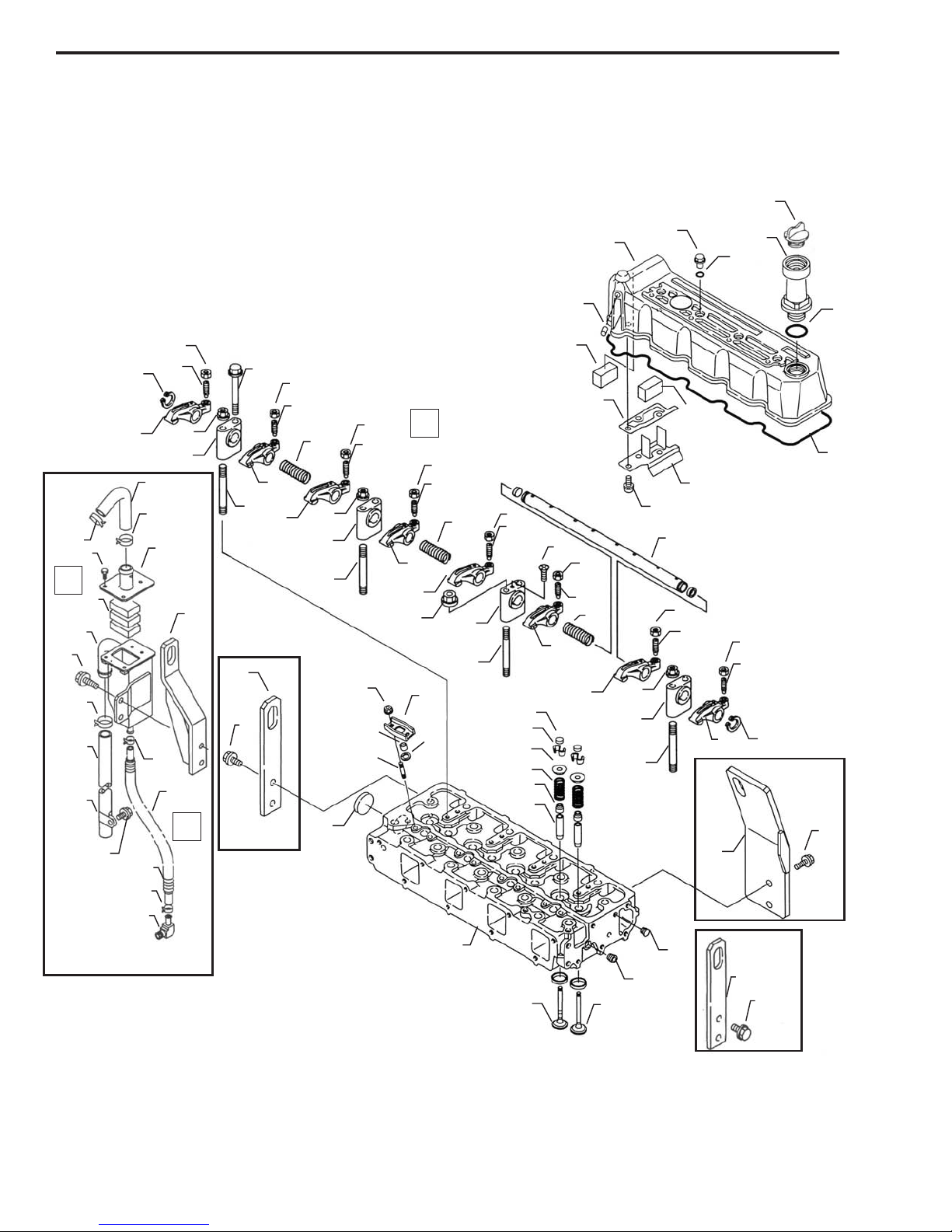

CYLINDER HEAD & VALVE COVER

27 33

34 25

27 28

26 30

19 17

Turbo Only

NA Only

Only

Turbo

Only

58 49
