Yamaha NS-C60 Manual de usuario

Thank you for selecting this Yamaha NS-C60 speaker system.

This model is designed mainly to be used as a center speaker system.

NS-C60 Natural Sound

Center Speaker System

Note

Though this speaker is a magnetic shielding type,

there may be an influence on TV picture accord-

ing to the type of TV or the placement of the

speaker. In such a case, place the speaker apart

from the TV so that there is no influence on TV

picture.

PRECAUTIONS

Read these precautions carefully before operating

your speaker.

●When using an amplifier with a rated output power

higher than the music input of the speaker, care

should be taken never to exceed the speaker’s

music input.

●Do not attempt to clean the speaker with chemical

solvents as this might damage the finish. To clean,

wipe with a dry, soft cloth.

●To prevent the enclosure from warping or discolor-

ing, do not place the speaker where it will be

exposed to direct sunlight or excessive humidity.

●Do not place the speaker where it is liable to be

knocked over or struck by falling objects. Stable

placement will also ensure better sound perfor-

mance.

●Placing the speaker on the same shelf or rack as

the turntable can result in feedback.

●Anytime you note distortion, reduce the volume con-

trol on your amplifier to a lower setting. Never allow

your amplifier to be driven into “clipping”.

●Secure placing is the owner’s responsibility.

YAMAHA shall not be liable to any accident

caused by an improper placing of the speaker.

PLACING THE SPEAKER

Slip-prevention pad

Place the speaker on top of the TV or on the floor

under the TV or inside the TV rack so that it is stabi-

lized.

When placing the speaker on top of the TV, to pre-

vent the speaker from falling down, put the provided

slip-prevention pads at four positions on the bottom of

the speaker where the speaker touches the surface of

the TV.

TV set

Downloaded from: http://www.usersmanualguide.com/

Note

Do not let the bare speaker wires touch each other

as this could damage the speaker and/or

the amplifier.

CONNECTION TO

YOUR AMPLIFIER

BEFORE MAKING CONNECTIONS, MAKE SURE

THAT THE AMPLIFIER IS SWITCHED OFF.

■CONNECTIONS

●Connect the push-type input terminals at the rear of

the speaker to the speaker output terminals of your

amplifier with the provided speaker cables.

●One side of the speaker cable is marked by a white

line. Connect the (+) terminals on both the amplifier

and the speakers using this white-marked side.

Connect the (–) terminals on both components

using the unmarked side of the cable. If connected

with reversed polarity, the sound will be unnatural

and lack bass.

Procedures:

➀Press the tab on the terminal down, as shown in

the figure.

➁Insert the bare wire end properly into the terminal

hole. [Remove approx. 5 mm (1/4”) insulation from

the speaker cable.]

➂Remove your finger from the tab to allow it to lock

snugly on the cable’s wire end.

➃Test the security of the connection by tugging

lightly on the cable at the terminal.

SPECIFICATIONS

Type ......................2 way bass-reflex speaker system

Magnetic-shielding type (EIAJ)

Speaker Unit..............8 cm cone woofer (JA0858) x 2

Tweeter (JA05S0) x 1

Input Terminal .............................................Push-type

Nominal Impedance.........................................6 ohms

Frequency Response...........60 Hz – 20 kHz (–10 dB)

Nominal Input Power............................................40W

Music Input Power................................................80W

Sensitivity ...................................................88 dB/w/m

Dimensions (WxHxD)..................435 x 100 x 221 mm

(17-1/8” x 4” x 8-11/16”)

Weight.........................................2.2 kg (4 lbs. 13 oz.)

Accessories............................Speaker cable (4m) x 1

Slip-prevention pad x 4

* Specifications subject to change without notice due

to product improvements.

* Care should be taken not to exceed the input power

values noted above.

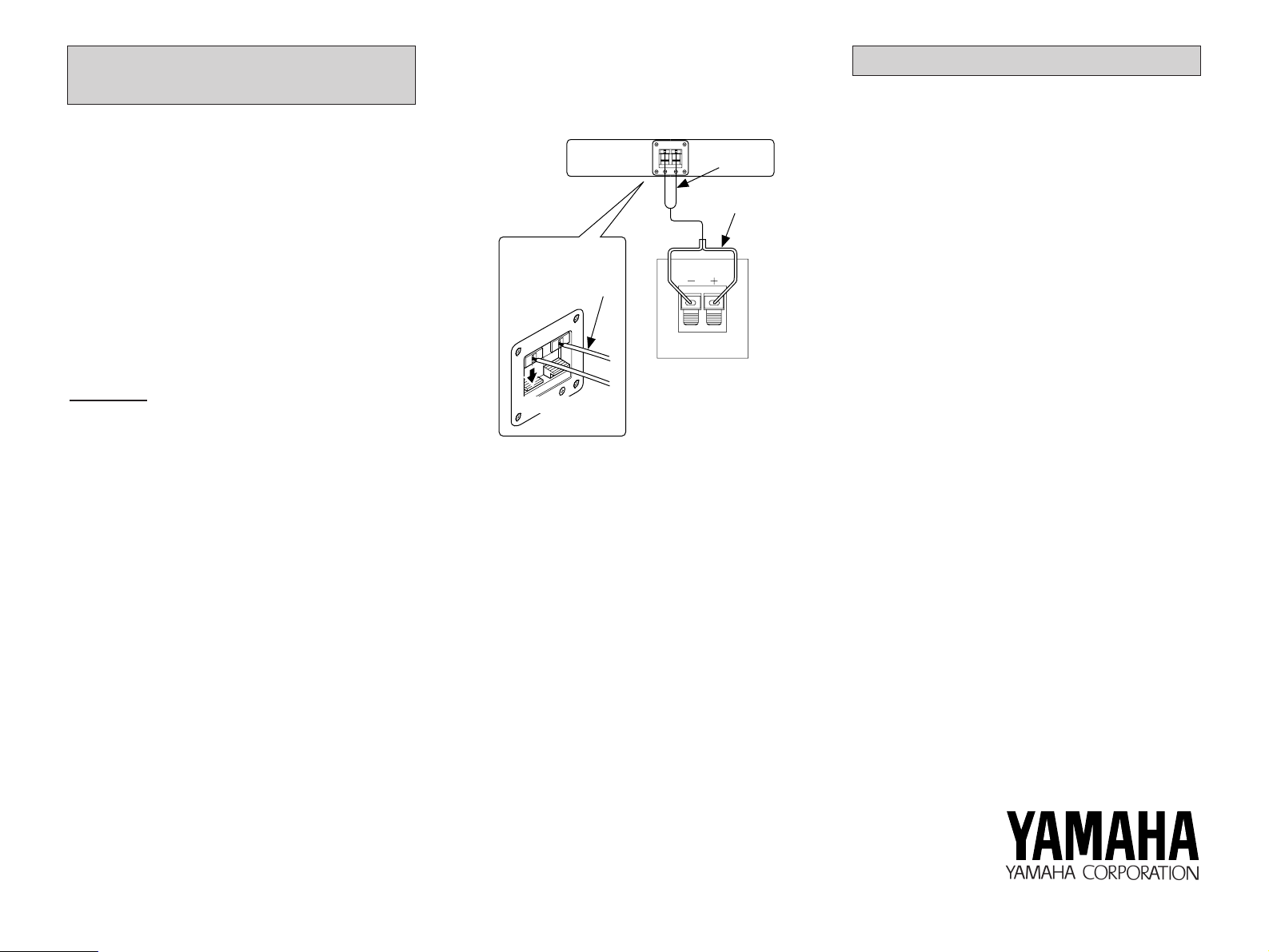

Press tab

Center speaker

output terminals

of the amplifier

White line

NS-C60
