Yamaha NS-U50 Manual de usuario

Unit: mm

18.8 18.8

A screw with a diameter of 4 mm

and a pitch of 0.7 mm can be

used.

110 (4-5/16")

FRONT

55 (2-1/8")55 (2-1/8")

192 (7-9/16")

Unit : mm (inch)

255 (10")

65 (2-9/16")60 (2-3/8")35 (1-3/8")

293 (11-9/16")

P.O.Box 1, Hamamatsu, Japan

100692

SERVICE MANUAL

SPEAKER SYSTEM

NS-U50

■SPECIFICATIONS

Type ................2-way acoustic suspension magnetic shielding

Speaker Unit

Woofer ........................................... 9 cm (3-1/2") cone

Tweeter ..................... 2.5 cm (15/16") balanced dome

Impedance ................................................................... 6 ohms

Frequency Response ................................. 75 Hz – 30 kHz

Nominal Input Power ................................................... 40 W

NS-U50

■DIMENSIONS ■ATTACHING STAND

Maximum Input Power .............................................. 100 W

Sensitivity ......................................................88 dB/2.83 V/m

Crossover Frequency ................................................ 5 kHz

Dimensions (W x H x D) .................... 110 x 293 x 192 mm

(4-5/16" x 11-9/16" x 7-9/16")

Weight.............. 2.0 kg (4 lbs. 7 oz.) /1 piece (stand included)

Accessories ........................ Stand x 2, Screws for stand x 4,

Non skid pad x 8, Speaker cord (2m) x 2

✻Specifications are subject change without notice due to

product improvements.

Attach the included stands

to the speakers using the

two included screws.

Place the speakers next to

a personal computer on a

desktop to achive the

optimum listening position.

Be sure to attach the

stands to the speakers

correctly as shown in the

figure. If you attach them

in the opposite direction or

otherwise incorrectly, the

speakers may fall and be damaged or cause injury.

■Non skid pad

To prevent the speakers from sliding around, attach the

supplied pads as shown in the illustration.

You can also use the screw holes on the rear of the

speaker for installing the speakers.

200

201

202

202-1 204

2 

NS-U50

■PARTS LIST

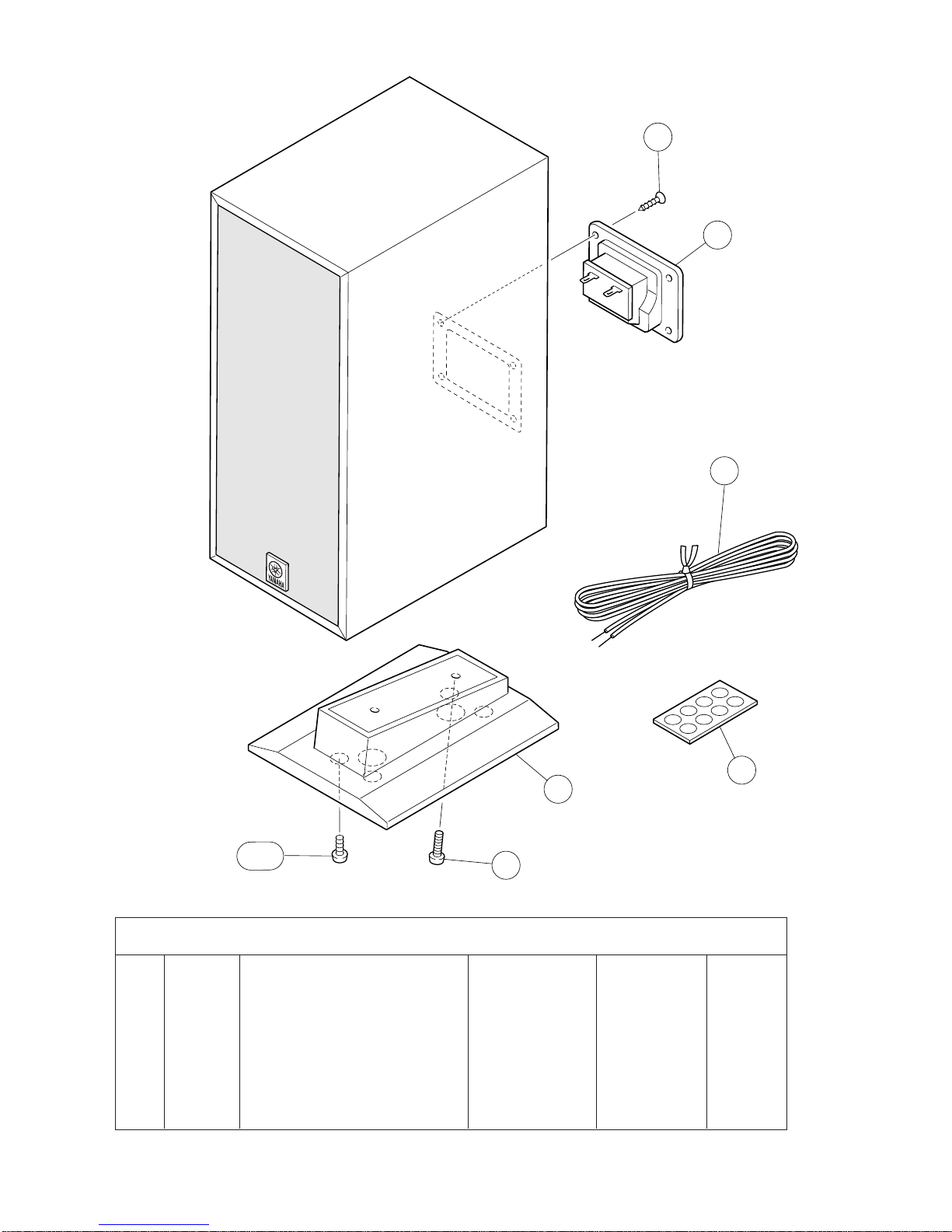

■EXPLODED VIEW

2 VU986200 SPEAKER TERMINAL

* 3 03744160 OVAL HEAD TAPPING SCREW 3x12 MFC2-BL

ACCESSORIES

200 V4859700 SPEAKER CABLE 2.0m

* 201 V4252700 LEG PADx8

* 202 V4252600 STAND ASS’Y STANDx1

202-1 VB931600 BIND HEAD P-TITE SCREW 4x8 MFZN2-BL

204 VB132700 BIND HEAD SCREW 4x12 MFZN2-BL

* New Parts

Ref.

No. PART NO. Description Remarks Markets
