Yamaha ATS-B400 Manual de usuario

En 1

Quick Guide

Sound Bar

Thank you for purchasing this Yamaha product.

This product is a bar-shaped speaker system with a subwoofer, used by

connecting to a TV. Audio content from a Bluetooth® device can also be

played through this product.

• Be sure to read this document and the included Safety Guide to ensure

proper and safe use. Keep these documents readily available for future

reference.

Safety Guide

Be sure to read the Safety Guide first to ensure safe use.

Quick Guide (this document)

This document describes the procedure for enjoying the sound of a

TV.

1Confirming contents of product package (p. 2)

2Preparing the remote control (p. 3)

3Installing the product (p. 3)

4Connecting to a TV (p. 4)

5Connecting to power (p. 5)

6Playing TV sound through the sound bar (p. 5)

Adjusting the sound to your preference (p. 7)

Listening to audio from a Bluetooth® device (p. 8)

Controlling the sound bar with the smartphone app (p. 8)

User Guide

More detailed information is described.

https://manual.yamaha.com/av/23/atsb400/

2En

1Confirming contents of product package

This product includes the following main devices and accessories. Take out all items from the box and make sure that all items are present.

Sound bar (ATS-CUB400)

Remote control Power cords (×2)

Mounting template

Spacers (×2)

• Quick Guide (this document)

•SafetyGuide

HDMI cable

Use when mounting the sound bar on a wall.

Subwoofer (SR-WSWB40A)

Main devices

Accessories

En 3

2Preparing the remote

control

A Lithium battery (CR2025) has already been inserted into the remote

control. Pull out the insulation sheet as follows so as to use the

remote control.

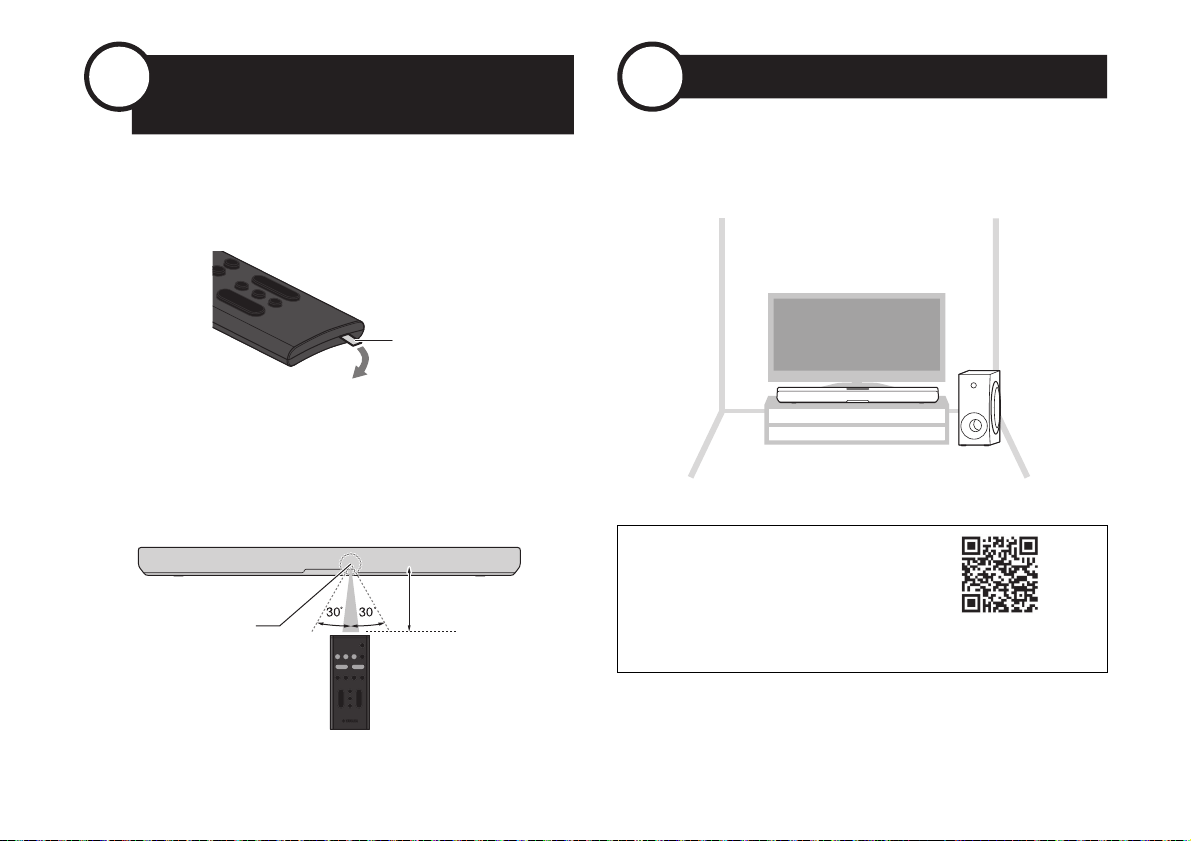

Operating range of the remote control

The remote control can be used to control the functions of this

product. When using the remote control, point the remote control at

the remote control sensor of the sound bar within the range shown in

the following illustration:

3Installing the product

Install the sound bar and subwoofer as shown in the following

illustration.

Battery insulating strip

Within 6 m (20 ft)

Remote control sensor

Remote control

For proper installation of the sound

bar on a wall, make sure to have the

work done by a contractor with

qualified service personnel. See the

Wall Mounting Installation Guide on

our website for the installation

method.

Wall Mounting

Installation Guide

4En

4Connecting to a TV

Connect to a TV using the HDMI cable (included)

Connect to an HDMI input jack compatible with Audio Return Channel (labeled as “eARC” or “ARC”) on the TV using the included HDMI cable.

NOTE

• Be sure to use the included HDMI cable.

• When connecting to a TV not compatible with ARC or connecting to an audio device, follow the connection procedure described in the User

Guide.

HDMI IN

eARC/ARC

HDMI

Sound bar (rear)

HDMI OUT/TV (eARC/ARC) jack

HDMI input jack

(compatible with eARC/ARC)

Control signal

TV’s audio signal

En 5

5Connecting to power

After connecting the sound bar to the TV, connect the sound bar and

subwoofer to power as follows:

NOTE

When the sound bar is turned on, the sound bar and subwoofer will

be automatically connected wirelessly. Pairing is not necessary.

6Playing TV sound through

the sound bar

1Turn on the TV.

When the the HDMI Control function of the TV is enabled (p. 6),

the sound bar will also turn on. In this case, go to Step 4.

2Turn on the sound bar.

Press the power button on the remote control.

When the sound bar is turned on, the subwoofer also turns on at

the same time.

3Press TV.

4Press VOLUME (+/−) to adjust the volume.

Sound bar (rear)

To an AC wall outlet

Power cord (included)

To an AC wall outlet

Power cord (included)

Subwoofer (rear)

VOLUME (+/−)

Power

Remote control

6En

HDMI Control function

NOTE

• When the sound bar is connected to a TV via HDMI cable, confirm that the TV’s settings are properly configured as follows:

- The TV’s HDMI Control function is enabled.

- The audio output is not set to the TV speakers.

• Connect AV devices, such as BD/DVD players and set top boxes, to the TV’s HDMI input jacks.

When the sound bar is connected to the HDMI input jack

compatible with Audio Return Channel (labeled as “eARC” or

“ARC”) on a TV via an HDMI cable, control signals are

transmitted from the TV to the sound bar.

This will enable you to use the HDMI Control function to control

the sound bar using the TV’s remote control. Also, the TV audio

signal is transmitted to the sound bar via the HDMI cable.

Therefore, the sound bar can be connected to a TV using a

single HDMI cable.

En 7

Listening to audio with sound that matches the video or

music content (Sound mode)

A sound mode can be selected from among three sound modes that

produce surround-sound fields and one sound mode for stereo

playback. This function is STANDARD by default.

STEREO

This sound mode provides stereo playback. This sound mode

is best suited for music playback.

STANDARD

This sound mode provides surround playback that is best

suited for TV programs such as sports broadcasts. It

emphasizes human voices and makes them easier to hear,

while creating a sense of presence.

MOVIE

This sound mode provides surround playback that is best

suited for movies. It creates a sound space that seems to

envelop your body.

GAME

This sound mode provides surround playback that is best

suited for video games. Accurate localization of individual

sound effects provides a highly immersive gaming experience.

bPlaying back human voices clearly (CLEAR VOICE)

The human voices within the audio can be heard more easily when

the Clear Voice function is enabled. The function is recommended

for playback at a low volume and for movies or dramas that use a lot

of background music and sound effects.

Press CLEAR VOICE to enable or disable this function.

cEnjoying rich bass sound (BASS EXT)

The bass sound is enhanced and becomes richer when the Bass

Extension function is enabled.

Press BASS EXT to enable or disable this function.

Adjusting the sound to your preference

Remote control

Glows: enabled

Off: disabled

Flash three times: enabled

Flash one time: disabled

8En

VGM6770

Published 06/2023

KSOD-A0

10-1 Nakazawa-cho, Naka-ku, Hamamatsu, 430-8650 Japan10-1 Nakazawa-cho, Naka-ku, Hamamatsu, 430-8650 Japan

Audio content from a Bluetooth device (such as a smartphone) can

be played through the sound bar.

1Press BLUETOOTH on the remote control to switch

the input source to Bluetooth.

2On the Bluetooth device, enable the Bluetooth

function.

A list of Bluetooth devices that can be connected is displayed on

the screen of the Bluetooth device.

3Select “Yamaha ATS-B400” or “ATS-B400” within the

list.

4Play a song on the Bluetooth device when the

connection is established.

The sound bar will begin playing audio from the Bluetooth

device.

NOTE

This product can be connected to two Bluetooth devices

simultaneously (multipoint connection). To switch between two

Bluetooth devices to be played, stop playback on the currently playing

device and then start playback on the other.

By installing the free dedicated app “

SoundBarRemote

”

on a smartphone, the sound bar can also be controlled

from that smartphone. The app allows you to control the

sound bar while checking the sound bar settings

currently applied, such as sound mode and volume

adjustment of each frequency range (tone control), via

the app’s screen.

Search for “SoundBarRemote” on the App Store or

Google Play and install it on the smartphone.

For details on the app, see the description of the app on

the App Store or Google Play.

NOTE

• To control the sound bar using the app, configure the settings on your

smartphone as follows:

- Enable the Bluetooth function.

- For devices using the Android 11 OS or earlier, configure the settings to

allow location information to be obtained.

The Sound Bar Remote app uses location information from the Android

device only to detect the sound bar. The acquired location information will

not be used for any other purpose.

- For devices using the Android 12 OS or later, configure the settings to allow

the use of nearby devices.

• This sound bar is only compatible with the Sound Bar Remote app. The

sound bar cannot be controlled using other apps (such as Sound Bar

Controller).

Listening to audio from a

Bluetooth® device

Bluetooth device

Controlling the sound bar with

the smartphone app
