Yamaha CD-S3000 Manual de usuario

Printed in Malaysia ZK20410

OWNER’S MANUAL

MODE D’EMPLOI

BEDIENUNGSANLEITUNG

BRUKSANVISNING

MANUALE DI ISTRUZIONI

MANUAL DE INSTRUCCIONES

GEBRUIKSAANWIJZING

ИНСТРУКЦИЯ ПО ЭКСПЛУАЦИИ

Compact Disc Player

Lecteur Compact Disc

A Living Tradition in Sound

A piano comes into this world through the perfect synergy of advanced technical

skill and artistry. Such a piano can create sound that truly reflects the player’s

feelings.

The final stage in piano production is called “voicing”. It is here that the

instrument is given its soul.

A highly skilled expert concentrates his mind and sensitivity on the sound of each

key, finely adjusting the dynamic feel of the hammers, bringing the tone and

vibrancy of all 88 keys together perfectly; a truly stunning achievement.

It is a quality of sound that can only be determined by an astute, sensitive ear. We

apply this very same concept to the manufacture of our audio products. The

technician performs exhaustive listening tests and every component is considered,

in order to finally achieve the ideal sound.

Yamaha’s tradition of audio quality stretches back over 125 years, and continues to

live on in all Yamaha products today.

NP-S2000

A-S2000

CD-S2000

Soavo-1

NS-10M

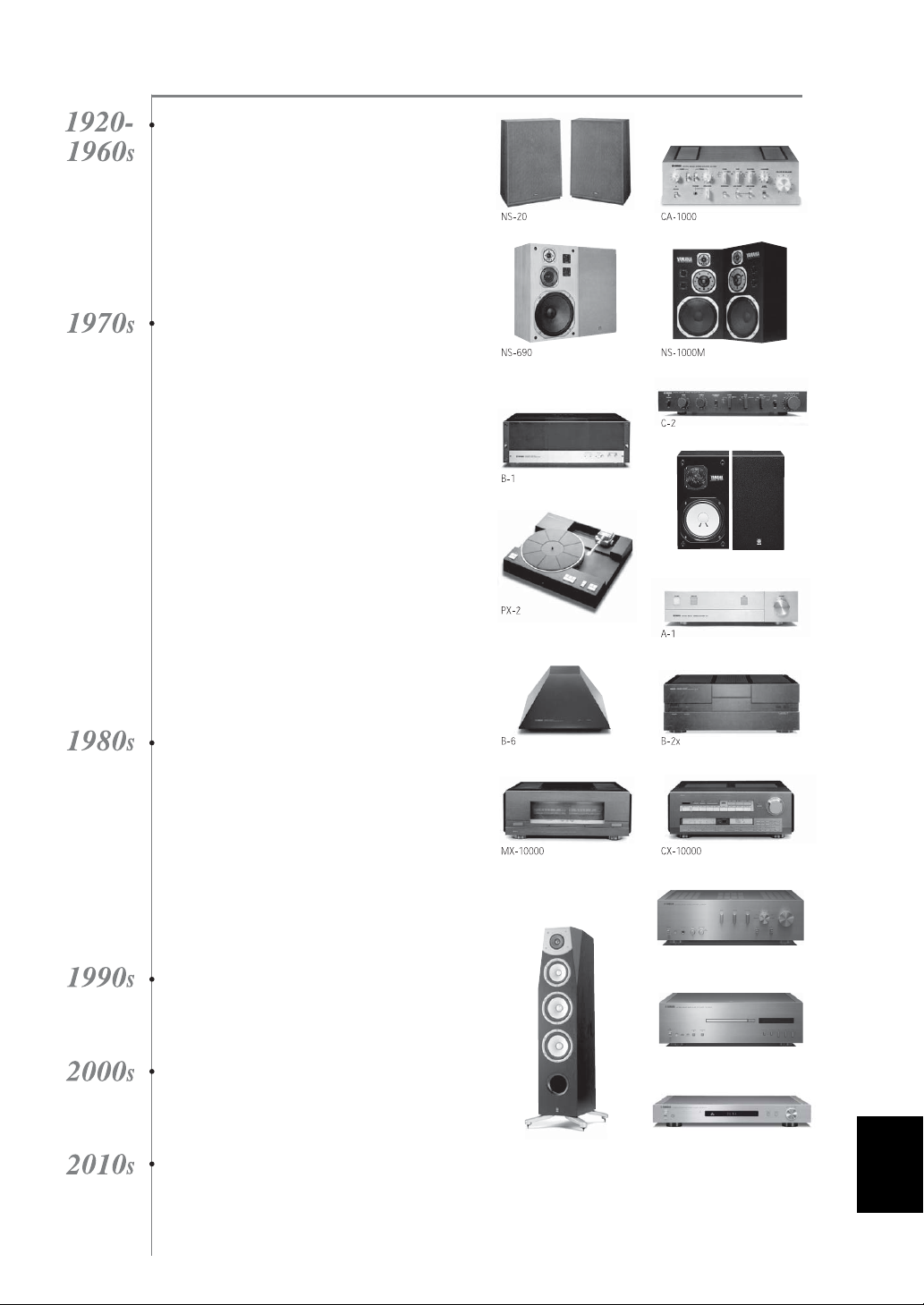

Excellence in Audio Achievement

First HiFi System introduced in 1920

We introduced numerous HiFi components

(turntables, FM/AM tuners, integrated

amplifiers, preamplifiers, power amplifiers

and speakers) in 1955 - 1965.

Natural Sound Speaker Series introduced

in 1967

NS-20 Monitor Speaker

CA-1000 Integrated Amplifier

Featuring A-Class operation, the CA-1000 set

the standard for integrated amplifiers.

NS-690 Natural Sound Speaker

NS-1000M Monitor Speaker

A truly legendary speaker still revered by HiFi

enthusiasts.

B-1 Power Amplifier

An innovative power amp that used vertical FETs in all

stages.

C-2 Control Amplifier

Received top prize at the Milan International Music

and HiFi Show.

NS-10M Studio Monitor Speaker

Became of the most popular studio monitors

in the world.

A-1 Integrated Amplifier

PX-2 Turntable

Yamaha’s first straight arm turntable.

B-6 Power Amplifier

Pyramid-shaped power amplifier.

GT-2000/L Turntable

First CD Player (CD-1) introduced in 1983

B-2x Power Amplifier

MX-10000 Power Amplifier and

CX-10000 Control Amplifier

Redefined the capabilities of separate components.

AX-1 Integrated Amplifier

GT-CD1 CD Player

MX-1 Power Amplifier and

CX-1 Preamplifier

Soavo-1 and Soavo-2 Natural Sound

Speaker Systems

A-S2000 Stereo Amplifier and

CD-S2000 Super Audio CD Player

NP-S2000 Network Player

English

4En

◆Full-stage balanced signal transmission beginning with the DAC

achieves the ultimate in CD reproduction

◆Independent power supplies with digital and analog completely

separated

◆Exclusive Yamaha loading mechanism and high precision CD drive

◆Left-right symmetrical design with rigid, stable construction

◆Pure Direct

◆Super sound from Super Audio CDs

◆Heavy feet with newly-developed antivibration spikes

◆DSD playback via 192 kHz, 24-bit USB DAC

■Supplied accessories

Please check that you have received all of the following parts.

• Power cable

• Remote control

• Batteries (AAA, R03, UM-4) (×2)

• Stereo pin cable

• SAFETY BROCHURE

■About this manual

•yindicates a tip for your operation.

• The color of images in this manual may vary from the original.

• Read the “SAFETY BROCHURE” before using this unit.

Contents

Controls and functions.......................................................................................................................................... 6

Connections.......................................................................................................................................................... 18

Playback of music files stored on a PC.............................................................................................................. 22

Specifications ....................................................................................................................................................... 26

Playable disc format............................................................................................................................................ 27

Troubleshooting................................................................................................................................................... 29

CONTROLS AND FUNCTIONS

5En

Controls and functions

In this chapter, you will learn the controls and functions of CD-S3000.

6En

Controls and functions

■Front panel (pages 6 to 9)

1STANDBY/ON/OFF switch

Turns on or off this unit.

STANDBY/ON (upper position):

In this position, you can select STANDBY or ON,

using the pCD key on the remote control.

OFF (lower position):

The power of this unit is turned off.

• When you turn on this unit, it will take a few seconds

before this unit can reproduce sound.

• If this unit is not operated for 30 minutes with no audio

signal detected, it goes to STANDBY mode (page 15).

• If you disconnect the power cable from the AC outlet and

connect it again when this unit is in STANDBY mode, the

power of the unit is turned on (page 20). If the unit is not to

be operated for a long time, set the STANDBY/ON/OFF

switch to OFF.

2STANDBY/ON indicator

Lit brightly:

Shows that the power of the unit is ON. In this

condition, you can switch the unit to STANDBY mode

using the pCD key on the remote control.

Lit dimly:

Shows that the unit is in STANDBY mode. In this

condition, press the pCD key on the remote control

to turn on the unit.

Off:

Shows that the power of the unit is OFF. In this

condition, you can turn on the unit using the

STANDBY/ON/OFF switch only.

STANDBY/ON

OFF

PURE DIRECT

SA-CD CD

SOURCE LAYER

LAYER

USB

OPTICAL COAXIAL

DISC

SA-CD HYBRID

TRACK TOTAL

REMAIN

PROG

SHUFFLE

REP OFF SALL A-B

SOURCE

2 41 3 5 7 8 6

Notes

7En

3PURE DIRECT key

Turns on the PURE DIRECT mode to improve audio

quality.

When this unit is in the PURE DIRECT mode:

• No signal is output from the DIGITAL OUT

(OPTICAL and COAXIAL) jacks on the rear panel

(page 10).

• The least indicators and messages appear on the

front panel display.

• Press this key again to turn off the PURE DIRECT mode.

• This setting is retained even if you turn off this unit.

4PURE DIRECT indicator

Lights when the PURE DIRECT mode is turned on.

5SOURCE key

Selects the audio source to be played back. Each time

you press this key, the audio source is switched.

The audio source setting is retained even if you turn off this

unit.

6SOURCE indicators

The indicator of the audio source selected with the

SOURCE key lights.

7LAYER key

Switches the playback layer of a hybrid Super Audio

CD between SA-CD and CD while playback is

stopped (page 27).

This setting is retained even if you turn off this unit.

When SA-CD layer is selected, audio signals are output only

from the BALANCED OUT and ANALOG OUT jacks.

8LAYER indicators

The indicator of the layer selected with the LAYER

key lights.

Note

(coaxial digital input) (optical digital input)

English

8En

Controls and functions

■Front panel (pages 6 to 9)

9Disc tray

Loads a disc.

0(Open/Close) key

Opens or closes the disc tray.

The disc tray also closes automatically when you press:

• the (Play) key on the front panel or on the remote

control.

• the front edge of the disc tray gently.

• a numeric button on the remote control.

A(Skip/Search backward) key

Press the key once to skip back to the beginning of the

current track.

Press it twice to skip to the beginning of the previous

track.

Press and hold it to search backward.

(Skip/Search forward) key

Press the key once to skip to the next track.

Press and hold it to search forward.

B(Play) key

Starts playback.

C(Pause) key

Pauses playback. Press the or key to resume

playback.

D(Stop) key

Stops playback.

STANDBY/ON

OFF

PURE DIRECT

SA-CD CD

SOURCE LAYER

LAYER

USB

OPTICAL COAXIAL

DISC

SA-CD HYBRID

TRACK TOTAL

REMAIN

PROG

SHUFFLE

REP OFF SALL

SOURCE

9 0

HI JEK

9En

ERemote control sensor

Receives signals from the remote control.

The remote control transmits a directional infrared beam.

Be sure to aim the remote control directly at the remote

control sensor on the front panel of this unit during operation.

FDisplay

The brightness can be adjusted with the DIMMER key

on the remote control (page 12).

G(playback) / (pause) indicator

Lights in the playback/pause mode.

HDisc type indicator

Indicates the type (SA-CD/CD/HYBRID) of the disc

in the disc tray.

ITime display mode indicator

Indicates the time display mode of the display. Change

the mode by pressing the DISPLAY key on the remote

control (page 13).

JPlayback mode indicator

Indicates the current playback mode.

PROG: Program playback (page 14)

SHUFFLE: Shuffle playback (page 13)

REP OFF: Repeat playback off (page 12)

REP S: Single repeat playback (page 12)

REP ALL: All repeat playback (page 12)

KInformation display

AB C D

3030 Approximately 6 m (20 ft)

See page 28 for more information on MP3/WMA

playback.

Elapsed time of the current track

Remaining time of the

current track

Total remaining time of the

disc

English

10 En

Controls and functions

■Rear panel

1BALANCED OUT jacks (male)

2ANALOG OUT jacks

3DIGITAL IN USB jack (Type B)

4DIGITAL IN OPTICAL jack

5DIGITAL IN COAXIAL jack

6DIGITAL OUT OPTICAL jack

7DIGITAL OUT COAXIAL jack

While playing the Super Audio CD layer, the audio signals are

output only from the BALANCED OUT and ANALOG OUT

jacks.

8SYSTEM CONNECTOR

Use this connector to connect a product testing device

for servicing.

9REMOTE IN/OUT jacks

Use these jacks to connect an external component for

remote operation.

For details on the connection, see page 21.

0AC IN inlet

Use this inlet to plug in the supplied power cable.

See page 20 for connection information.

SYSTEM CONNECTOR

REMOTE

IN OUT

BALANCED OUT DIGITAL IN

COAXIAL

OPTICOPTICALUSB

ANALOG OUT BALANCED OUT

GND +HOT

- COLD

AC IN

3 4 5

1 2

See page 18 for connection information.

Note

Otros manuales para CD-S3000

Tabla de contenidos

Idiomas:

Otros manuales de Reproductor de CD de Yamaha

Yamaha

Yamaha DV-C6760 Manual de usuario

Yamaha

Yamaha CDC-625 Manual de usuario

Yamaha

Yamaha CD-S3000 Guía del usuario

Yamaha

Yamaha CD-450 Manual de usuario

Yamaha

Yamaha VCD-120K Manual de usuario

Yamaha

Yamaha DVD-S1700 Manual de usuario

Yamaha

Yamaha CD-N500 Manual de usuario

Yamaha

Yamaha CDS1000 - SACD Player Manual de usuario

Yamaha

Yamaha CD-S303 Manual de usuario

Yamaha

Yamaha CD-S300 Manual de usuario

Yamaha

Yamaha CDC-685 Manual de usuario

Yamaha

Yamaha CD-N500 Manual de usuario

Yamaha

Yamaha EMQ-1 Guía de configuración

Yamaha

Yamaha CDS1000 - SACD Player Manual de usuario

Yamaha

Yamaha CD-C600 Manual de uso y cuidado

Yamaha

Yamaha CD-2 Manual de usuario

Yamaha

Yamaha CD S2000 - SACD Player Manual de usuario

Yamaha

Yamaha CDC-610 Manual de usuario

Yamaha

Yamaha CD-S3000 Manual de usuario

Yamaha

Yamaha CDX-390 Manual de usuario

Yamaha

Yamaha EMX-120CD Manual de usuario

Yamaha

Yamaha CDX-5000 Manual de usuario

Yamaha

Yamaha CD-S700 Manual de usuario

Yamaha

Yamaha DVD-C750 Manual de usuario

Manuales populares de Reproductor de CD de otras marcas

RCA

RCA RP-7923 Manual de usuario

Pioneer

Pioneer DEH-P3550MP XM Manual de usuario

Philips

Philips AZ1207 Manual de usuario

Philips

Philips CD582 Manual de usuario

Philips

Philips AZ 6821 Manual de usuario

Lasonic

Lasonic MSU-2020 Manual de usuario

THOMSON

THOMSON RCD150 Manual de usuario

Denon

Denon DCD-1420 Manual de usuario

Panasonic

Panasonic SJ-MR100 Manual de usuario

Onkyo

Onkyo DX-7210 Manual de usuario

Sony

Sony MZ-R3 Manual de usuario

Denon

Denon DVM-4800 Manual de usuario

JBL

JBL MR-32 Manual de usuario

RCA

RCA RCD152 Manual de usuario

Technics

Technics SL-PS770A Manual de usuario

Clarion

Clarion compact disc Manual de usuario

Sony

Sony MZ-M10 Manual de usuario

Philips

Philips Expanium AZ 1538 Manual de usuario
