OWNER’S MANUAL

MODE D’EMPLOI

BEDIENUNGSANLEITUNG

BRUKSANVISNING

MANUALE DI ISTRUZIONI

MANUAL DE INSTRUCCIONES

GEBRUIKSAANWIJZING

ИНСТРУКЦИЯ ПО ЭКСПЛУАЦИИ

HiFi Began with Yamaha

Yamaha’s involvement with and passion for music goes back

more than a century, to when we built our first reed organ in

1887. Now we are the world’s leading producer of pianos and

other musical instruments, and are involved with music in many

other ways as well. We manufacture professional recording

equipment, we design concert halls and we assist artists at

concerts with set up and sound tuning.

This knowledge and experience benefits our production of

audio components in many ways. We introduced our first HiFi

(High Fidelity) turntable in 1954. Thereafter we were one of the first

to offer mass-produced, high quality audio equipment,

and introduced many legendary stereo components.

We hope you enjoy the genuine HiFi experience of

Yamaha Natural Sound.

Excellence in Audio Achievement

First HiFi System introduced in 1920

We introduced numerous HiFi components

(turntables, FM/AM tuners, integrated

amplifiers, preamplifiers, power amplifiers

and speakers) in 1955 - 1965.

Natural Sound Speaker Series introduced

in 1967

NS-20 Monitor Speaker

CA-1000 Integrated Amplifier

Featuring A-Class operation, the CA-1000 set

the standard for integrated amplifiers.

NS-690 Monitor Speaker

NS-1000M Monitor Speaker

A truly legendary speaker still revered by HiFi

enthusiasts.

B-1 Power Amplifier

An innovative power amp that used FETs in all

stages.

C-2 Control Amplifier

Received top prize at the Milan International Music

and HiFi Show

NS-10M Studio Monitor Speaker

Became of the most popular studio monitors

in the world.

A-1 Integrated Amplifier

PX-2 Turntable

Yamaha’s first straight arm turntable.

B-6 Power Amplifier

Pyramid-shaped power amplifier.

GT-2000/L Turntable

First CD Player (CD-1) introduced in 1983

B-2x Power Amplifier

MX-10000 Power Amplifier and

CX-10000 Control Amplifier

Redefined the capabilities of separate components.

AX-1 Integrated Amplifier

GT-CD1 CD Player

MX-1 Power Amplifier and

CX-1 Preamplifier

Soavo-1 and Soavo-2 Natural Sound

Speaker Systems

A-S2000 Stereo Amplifier and

CD-S2000 Super Audio CD Player

4En

◆Full-stage balanced signal transmission achieves the ultimate in CD

reproduction

◆Full-stage balanced signal transmission beginning with the DAC

◆Silent loader and high precision CD drive

◆Independent power supplies with digital and analog completely

separated

◆Pure Direct

◆Left-right symmetrical design with rigid, stable construction

◆Super sound from Super Audio CDs

■Supplied accessories

Please check that you have received all of the following parts.

• AC power cable

• Remote control

• Batteries (AA, R6, UM-3) (×2)

• Audio pin cable

• Safety brochure

■About this manual

•yindicates a tip for your operation.

• This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In

case of differences between the manual and the product, the product has priority.

• The color of images in this manual may vary from the original.

• Read the safety brochure before using this unit.

Contents

Controls and functions.......................................................................................................................................... 6

Connections.......................................................................................................................................................... 14

Specifications ....................................................................................................................................................... 18

Playable disc format............................................................................................................................................ 19

Troubleshooting................................................................................................................................................... 21

CONTROLS AND FUNCTIONS

5En

Controls and functions

In this chapter, you will learn the controls and functions of CD-S2000.

6En

Controls and functions

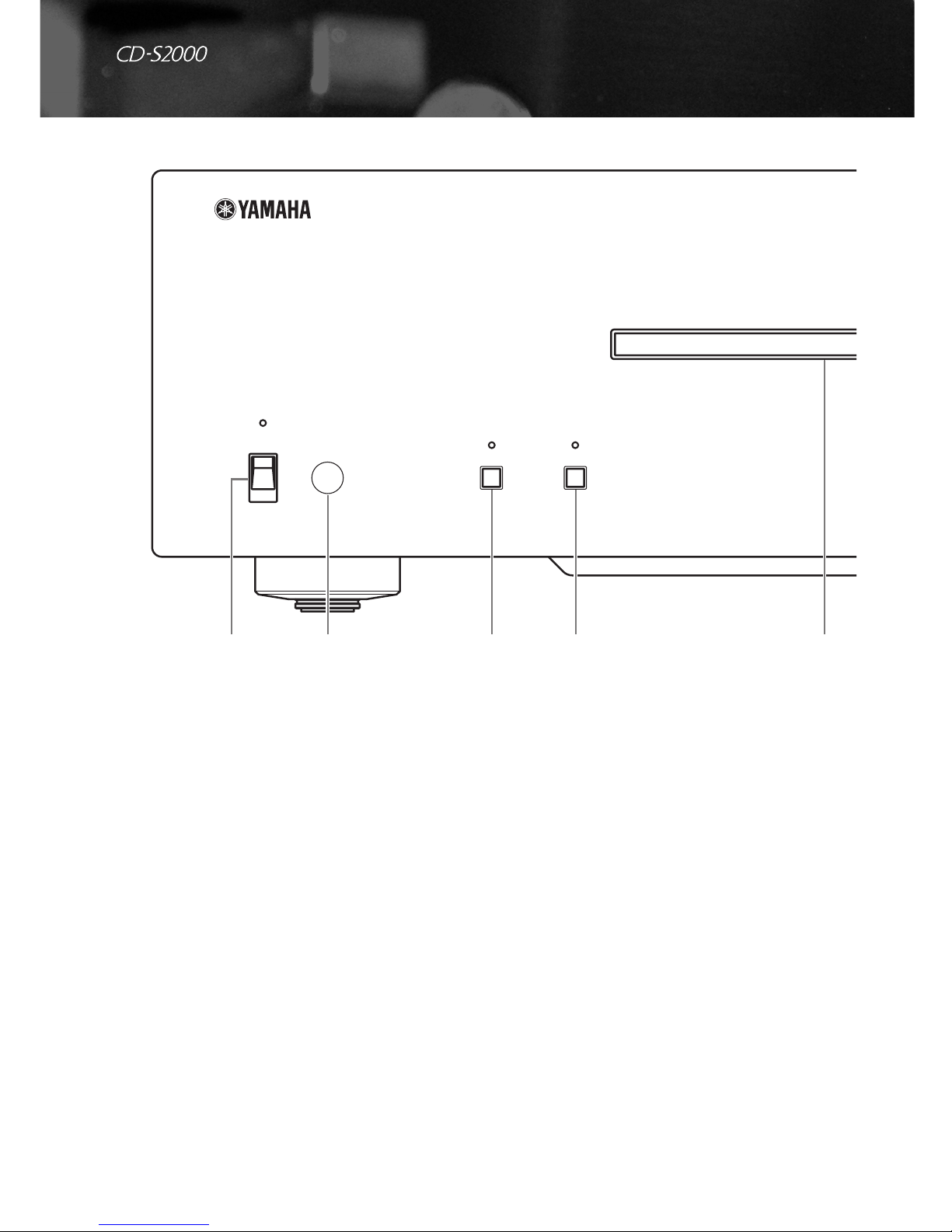

■Front panel

1POWER

Press upward or downward to turn on or off this unit.

The POWER indicator above lights up when this unit is turned

on.

2Remote control sensor

Receives signals from the remote control.

3SA-CD/CD

Switches the playback layer of a hybrid SA-CD between

SA-CD and CD.

• The SA-CD/CD indicator above lights up when the SA-CD

layer is selected.

• This setting is retained even if you turn off this unit.

4PURE DIRECT

Turns on the PURE DIRECT mode to improve audio

quality.

When this unit is in the PURE DIRECT mode:

• The PURE DIRECT indicator above lights up.

• The digital output is turned off.

• The front panel display is turned off.

• The least indicators and messages are still displayed in the front

panel display.

• Press again to turn off the PURE DIRECT mode.

• This setting is retained even if you turn off this unit.

5Disc tray

Loads a disc.

POWER

OFF

SA-CD/CD PURE DIRECT

312 4 5

7En

6(Open/Close)

Opens or closes the disc tray.

You can also close the disc tray by:

• pressing (Play) on the front panel or on the remote control

or by pressing the front edge of the disc tray gently.

• pressing a numeric button on the remote control.

7(Skip/Search backward),

(Skip/Search forward)

: Skips to the next track.

: Skips back to the beginning of the current track.

(twice): Skips to the previous track.

Press and hold or to search backward/

forward.

Each time you press and hold or , the search

speed increases by 4 levels.

8(Play)

Starts playback.

9(Pause)

Pauses playback. Press or to resume playback.

0(Stop)

Stops playback.

APlayback status indicator

BDisc type indicator

CTime display mode indicator

DPlayback mode indicator

EMulti-information display

ALLOFFRANDOM

REMAINTOTALTRACK

SREPPROGWMAMP3SA-CD

09876

AB C D E

See pages 20 for more information on MP3/WMA

playback.

English

8En

Controls and functions

■Rear panel

1BALANCED OUT jacks

2ANALOG OUT jacks

3OPTICAL DIGITAL OUT jack

4COAXIAL DIGITAL OUT jack

COAXIALOPTICAL

BALANCED OUT

OUTPUT

ANALOG OUT

RLL

BALANCED OUT

DIGITAL OUT

See page 14 for connection information.

9En

5VOLTAGE SELECTOR

(Asia and General models only)

The VOLTAGE SELECTOR on the rear panel of this unit

must be set for your local main voltage BEFORE plugging

the AC power cable into the AC wall outlet.

See page 16 for further information.

6AC IN

Use this inlet to plug in the supplied power cable.

See page 16 for connection information.

7Foot

The feet of this unit include built-in spikes. Using the

spikes can reduce the effect of vibrations on the set. When

using the spikes, remove the magnet foot by pulling it.

When using the feet’s built-in spikes, the spikes may scratch the

shelf or floor on which this unit is installed. Use the supports

when placing this unit on expensive furniture, etc.

If this unit is unstable, you can adjust the foot height by rotating

it.

AC IN

VOLTAGE

SELECTOR

5 6 7

(Asia and General models)

Caution

Spike

English

10 En

Controls and functions

■Remote control 1Infrared signal transmitter

Sends infrared signals to this unit.

2SA-CD/CD

Switches the playback layer of a hybrid SA-CD between

SA-CD and CD.

• The SA-CD/CD indicator on the front panel lights up when the

SA-CD layer is selected.

• This setting is retained even if you turn off this unit.

3DIMMER

Selects brightness level for the front panel display. Each

time you press DIMMER, the brightness level changes in

the following order:

Max (brightest) →Level 1 (default) →Level 2 →Level 3

(darkest) →Max

This setting is retained even if you turn off this unit.

4Numeric buttons

Use to select a track directly.

This operation is ineffective for MP3 or WMA discs.

5REPEAT

Repeats playback of a single track or all tracks. Each time

you press REPEAT during playback, the repeat playback

mode changes as follows:

• REP S (single repeat playback): On reaching the end of

the current track, playback repeats from the beginning

of the current track.

• REP ALL (all repeat playback): On reaching the end of

the last track, playback repeats from the beginning of

the first track.

This operation is ineffective for MP3 or WMA discs.

6(Search backward), (Search forward)

Searches tracks backward/forward.

Each time you press or , the search speed increases by 4

levels.

7(Skip backward), (Skip forward)

: Skips to the next track.

: Skips back to the beginning of the current track.

(twice): Skips to the previous track.

654

321

RANDOMREPEAT PROGRAM

CLEARENTER

DISPLAYDIMMER

OPEN/CLOSEPURE DIRECTSA-CD/CD

Note
