Read this manual carefully

before operating this watercraft.

OWNER’S/OPERATOR’S MANUAL

2009 WaveRunner

VX Deluxe

VX Cruiser

F2L-F8199-20-E0

UF2L20E0.book Page 1 Thursday, May 29, 2008 9:51 AM

Read this manual carefully before operating this watercraft. This manual

should stay with the WaveRunner if it is sold.

UF2L20E0.book Page 1 Thursday, May 29, 2008 9:51 AM

Important manual information

EJU30191

To the owner/operator

Thank you for choosing a Yamaha watercraft.

This owner’s/operator’s manual contains in-

formation you will need for proper operation,

maintenance, and care. If you have any ques-

tions about the operation or maintenance of

your watercraft, please consult a Yamaha

dealer.

This manual is not a course on boating safety

or seamanship. If this is your first watercraft,

or if you are changing to a type of watercraft

you are not familiar with, for your own comfort

and safety, please ensure that you obtain

proper training or practice before operating

the watercraft by yourself. In addition, a

Yamaha dealer or boating organization will be

pleased to recommend local sea schools, or

competent instructors.

Because Yamaha has a policy of continuing

product improvement, this product may not be

exactly as described in this owner’s/opera-

tor’s manual. Specifications are subject to

change without notice.

This manual should be considered a perma-

nent part of this watercraft and should remain

with it even if the watercraft is subsequently

sold.

In this manual, information of particular impor-

tance is distinguished in the following ways:

The Safety Alert Symbol means ATTEN-

TION! BECOME ALERT! YOUR SAFETY IS

INVOLVED!

WARNING

EWJ00071

A WARNING indicates a hazardous situa-

tion which, if not avoided, could result in

death or serious injury.

NOTICE

ECJ00091

A NOTICE indicates special precautions

that must be taken to avoid damage to the

watercraft or other property.

TIP:

A TIP provides key information to make pro-

cedures easier or clearer.

EJU30231

WaveRunner VX/VX Deluxe/VX Cruiser

OWNER’S/OPERATOR’S MANUAL

1st Edition, May 2008

Any reprinting or unauthorized use

without the written permission of

Yamaha Motor Co., Ltd.

is expressly prohibited.

Printed in U.S.A.

UF2L20E0.book Page 1 Thursday, May 29, 2008 9:51 AM

Table of contents

General and important labels........... 1

Identification numbers .................... 1

Primary Identification (PRI-ID)

number ........................................... 1

Hull Identification Number (HIN) ........ 1

Engine serial number ........................ 1

Emission control information

(for Canada only) ........................ 2

Approval label of emission control

certificate ........................................ 2

Manufactured date label .................... 3

Important labels .............................. 4

Warning labels ................................... 5

Other labels ....................................... 8

Safety information........................... 10

Limitations on who may operate

the watercraft ............................ 10

Cruising limitations ....................... 11

Operation requirements ............... 12

Recommended equipment ........... 14

Hazard information ....................... 15

Watercraft characteristics ............. 15

Water-skiing ................................. 17

Safe boating rules ........................ 18

Enjoy your watercraft

responsibly ................................ 19

Features and functions................... 20

Location of main components ...... 20

Operation of controls and other

functions .................................... 24

Seat ................................................. 24

Hood ................................................ 24

Fuel tank filler cap ........................... 25

Remote control transmitter

(for VX Deluxe/VX Cruiser) .......... 25

Engine stop switch .......................... 26

Engine shut-off switch ..................... 26

Start switch ...................................... 27

Throttle lever ................................... 27

Cooling water pilot outlet ................. 27

Steering system ............................... 28

Shift lever

(for VX Deluxe/VX Cruiser) .......... 28

Handgrip .......................................... 29

Reboarding step (for VX Cruiser) .... 29

Bow eye ........................................... 29

Stern eyes ....................................... 29

Yamaha Engine Management

System (YEMS) ........................... 30

Yamaha Security System

(for VX Deluxe/VX Cruiser) .......... 30

Multifunction information center ...... 32

Storage compartments .................... 36

Operation ......................................... 39

Fuel and oil .................................. 39

Fuel ................................................. 39

Engine oil ......................................... 40

Pre-operation checks ................... 41

Pre-operation check list ................... 41

Pre-operation check points .............. 43

Operation ..................................... 49

Engine break-in ............................... 49

Launching the watercraft ................. 49

Starting the engine .......................... 49

Stopping the engine ........................ 50

Shifting

(for VX Deluxe/VX Cruiser) .......... 51

Leaving the watercraft ..................... 51

Operating your watercraft ............ 52

Getting to know your watercraft ....... 52

Learning to operate your

watercraft ..................................... 52

Riding with passengers ................... 53

Starting the watercraft ..................... 53

Boarding and starting in deep

water ............................................ 54

Capsized watercraft ......................... 57

Turning the watercraft ..................... 58

Stopping the watercraft ................... 59

Beaching the watercraft ................... 60

Docking the watercraft ..................... 60

Reverse on waterways

(for VX Deluxe/VX Cruiser) .......... 60

Operating in weeded areas ............. 61

UF2L20E0.book Page 1 Thursday, May 29, 2008 9:51 AM

Table of contents

Post-operation care ...................... 61

Transporting ................................. 62

Maintenance and care..................... 63

Storage ......................................... 63

Flushing the cooling system ............ 63

Lubrication ....................................... 64

Battery ............................................. 64

Cleaning the watercraft ................... 65

Maintenance and adjustments ..... 65

Owner’s/operator’s manual and

tool kit ........................................... 65

Periodic maintenance chart ............. 67

Checking the fuel system ................ 69

Engine oil and oil filter ..................... 69

Air filter element .............................. 69

Checking the jet thrust nozzle

angle ............................................ 69

Checking the shift cable

(for VX Deluxe/VX Cruiser) .......... 70

Checking and adjusting the throttle

cable ............................................ 70

Cleaning and adjusting the spark

plugs ............................................ 71

Lubrication points ............................ 72

Checking the battery ....................... 73

Fuel injection system ....................... 74

Specifications .................................. 75

Specifications ................................ 75

Trouble recovery ............................. 76

Troubleshooting ........................... 76

Troubleshooting chart ...................... 76

Emergency procedures ................ 79

Cleaning the jet intake and

impeller ........................................ 79

Jumping the battery ......................... 80

Replacing the fuses ......................... 80

Towing the watercraft ...................... 81

Submerged watercraft ..................... 81

UF2L20E0.book Page 2 Thursday, May 29, 2008 9:51 AM

General and important labels

EJU30261

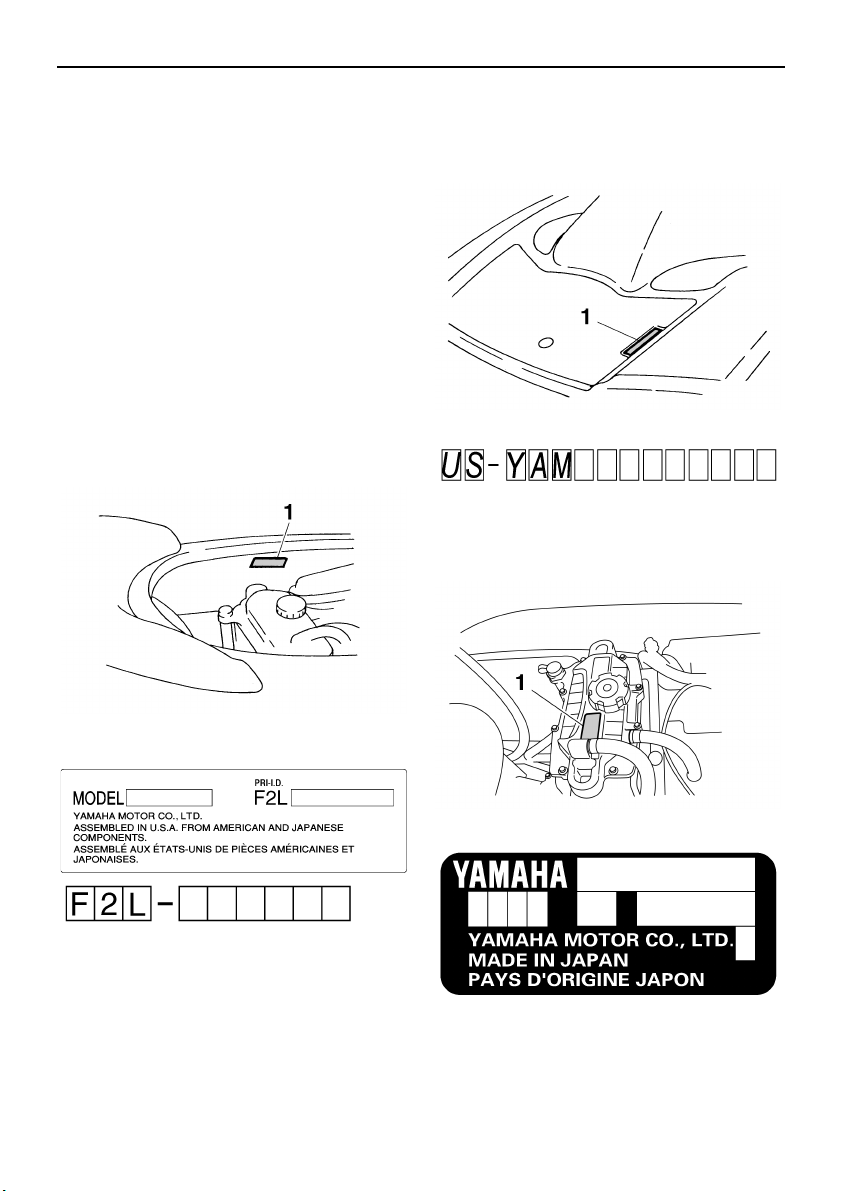

Identification numbers

Record the Primary Identification (PRI-ID)

number, Hull Identification Number (HIN), and

engine serial number in the spaces provided

for assistance when ordering genuine parts

from a Yamaha dealer. Also record and keep

these ID numbers in a separate place in case

your watercraft is stolen.

EJU30281

Primary Identification (PRI-ID) number

The PRI-ID number is stamped on a plate at-

tached inside the engine compartment.

MODEL:

VX1100-H (VX)

VX1100B-H (VX Deluxe)

VX1100A-H (VX Cruiser)

EJU30300

Hull Identification Number (HIN)

The HIN is stamped on a plate attached to the

aft deck.

EJU30310

Engine serial number

The engine serial number is stamped on a

plate attached to the engine unit.

1Primary Identification (PRI-ID) number loca-

tion

1Hull Identification Number (HIN) location

1Engine serial number location

UF2L20E0.book Page 1 Thursday, May 29, 2008 9:51 AM

General and important labels

EJU30360

Emission control information

(for Canada only)

This engine conforms to 2009 U.S. Environ-

mental Protection Agency (EPA) regulations

for marine SI engines.

EJU30400

Approval label of emission control

certificate

This label is attached to the top of the cylinder

head and to the inside of the engine compart-

ment.

1Emission control information label location

SFI

THIS ENGINE CONFORMS TO 2009 CALIFORNIA AND U.S. EPA EMISSION REGULATIONS

FOR SI MARINE ENGINES. REFER TO THE OWNER'S MANUAL FOR MAINTENANCE

ENGINE FAMILY : 9YMXM1.814GA

CATÉGORIE DU MOTEUR : 9YMXM1.814GA

SPECIFICATIONS AND ADJUSTMENTS.

CE MOTEUR EST CONFORME AUX NORMES D'ÉMISSIONS 2009 EPA DES É.-U. ET DE LA

CALIFORNIE POUR MOTEURS NAUTIQUES SI. POUR CONNAÎTRE LES SPÉCIFICATIONS ET

LES RÉGLAGES À EFFECTUER, CONSULTEZ LE MANUEL DU PROPRIÉTAIRE.

FUEL: UNLEADED REGULAR GASOLINE

VALVE LASH(mm) IN:0.14-0.23 EX:0.28-0.37

SPARK PLUG GAP (mm):0.8-0.9

ADVERTISED POWER : 154.5 kw

TROLLING SPEED : 1250±100rpm

CABURANT: ESSENCE NORMALE SANS PLOMB

JEU DE SOUPAPE(mm)ADM:0.14-0.23ÉCH:0.28-0.37

BOUGIE-ÉCARTEMENT (mm):0.8-0.9

RALENTI : 1250±100 tr

SPARK PLUG : LFR6A

FEL : 16.22 g/kw-hr

DISPLACEMENT : 1812 cm³

PUISSANCE AFFICHÉE : 154.5 kw

BOUGIE : LFR6A

FEL : 16.22 g/kw-hr

CYLINDRÉE : 1812 cm³

EMISSION CONTROL INFORMATION

INFORMATION ANTIPOLLUTION

F1W

UF2L20E0.book Page 2 Thursday, May 29, 2008 9:51 AM

General and important labels

EJU30430

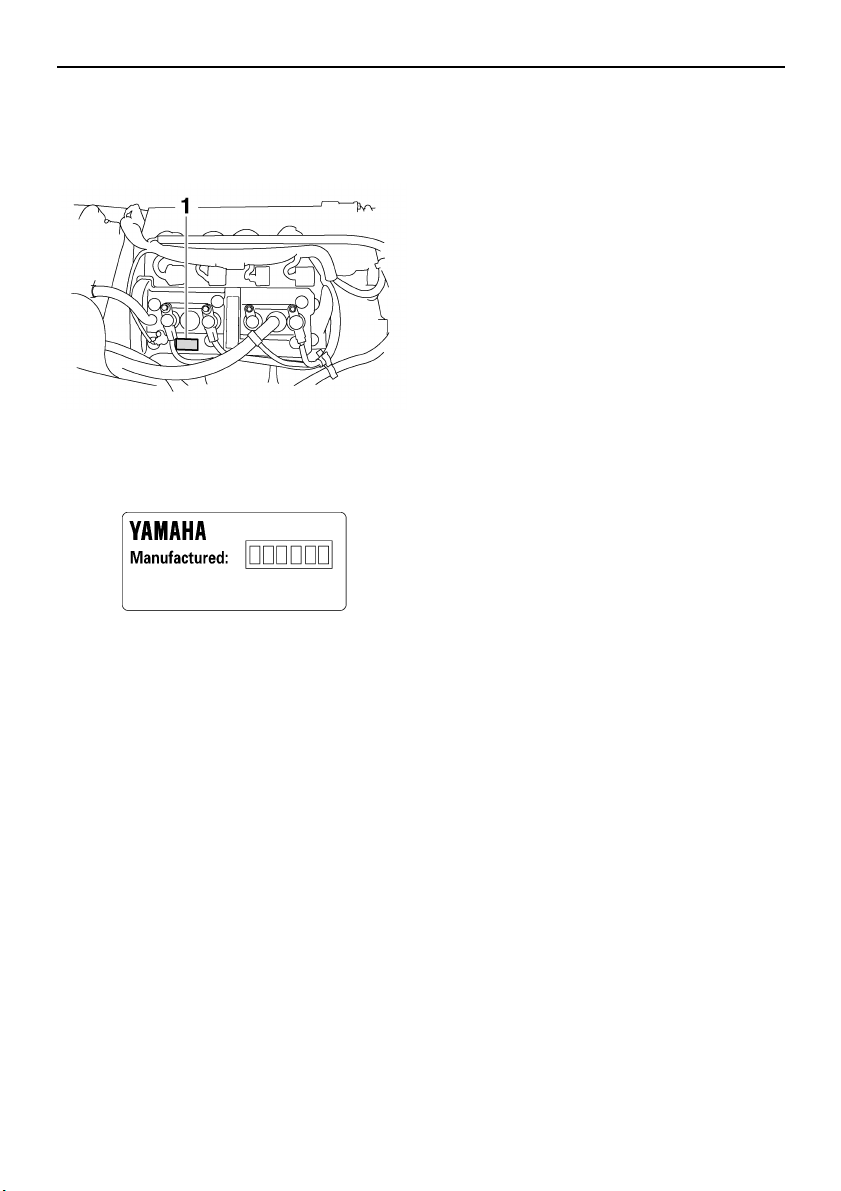

Manufactured date label

This label is attached to the top of the cylinder

head.

1Manufactured date label location

UF2L20E0.book Page 3 Thursday, May 29, 2008 9:51 AM

General and important labels

EJU30451

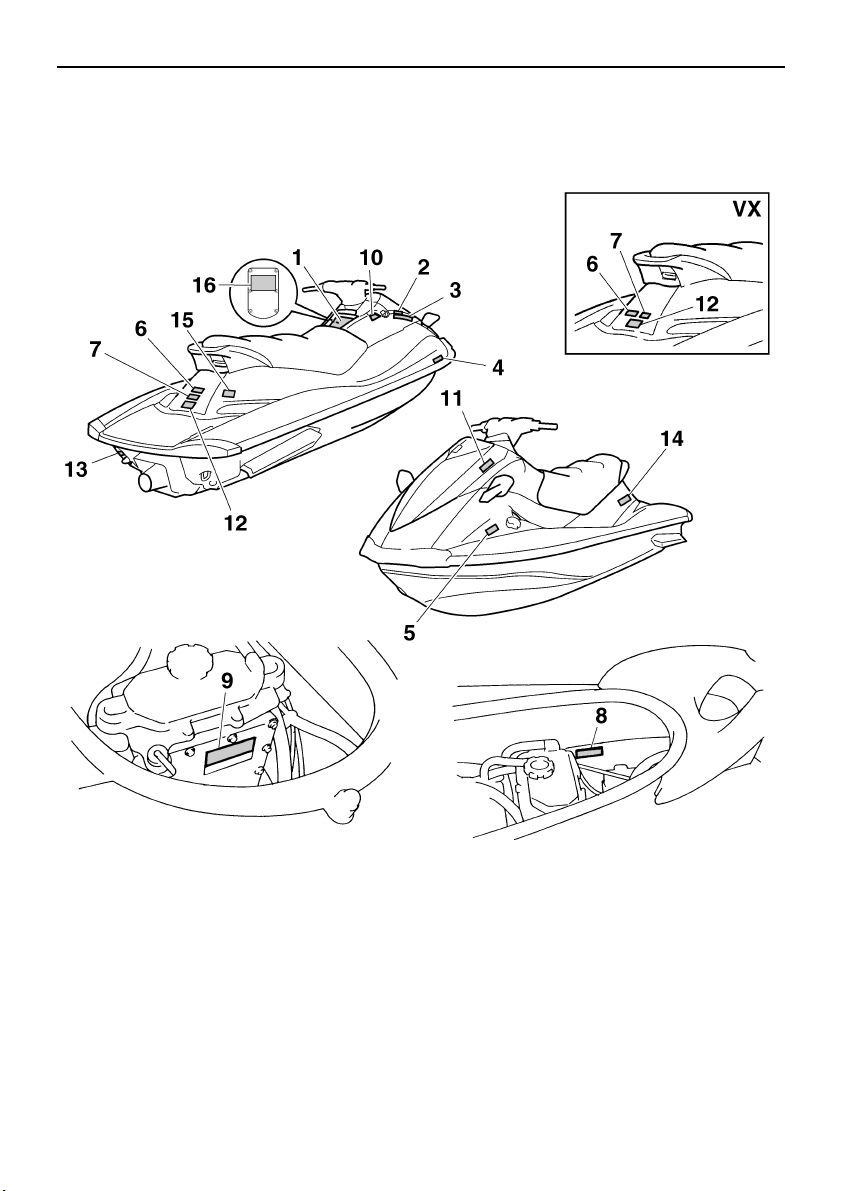

Important labels

Read the following labels before operating this watercraft. If you need any additional informa-

tion, contact a Yamaha dealer.

UF2L20E0.book Page 4 Thursday, May 29, 2008 9:51 AM

General and important labels

EJU35911

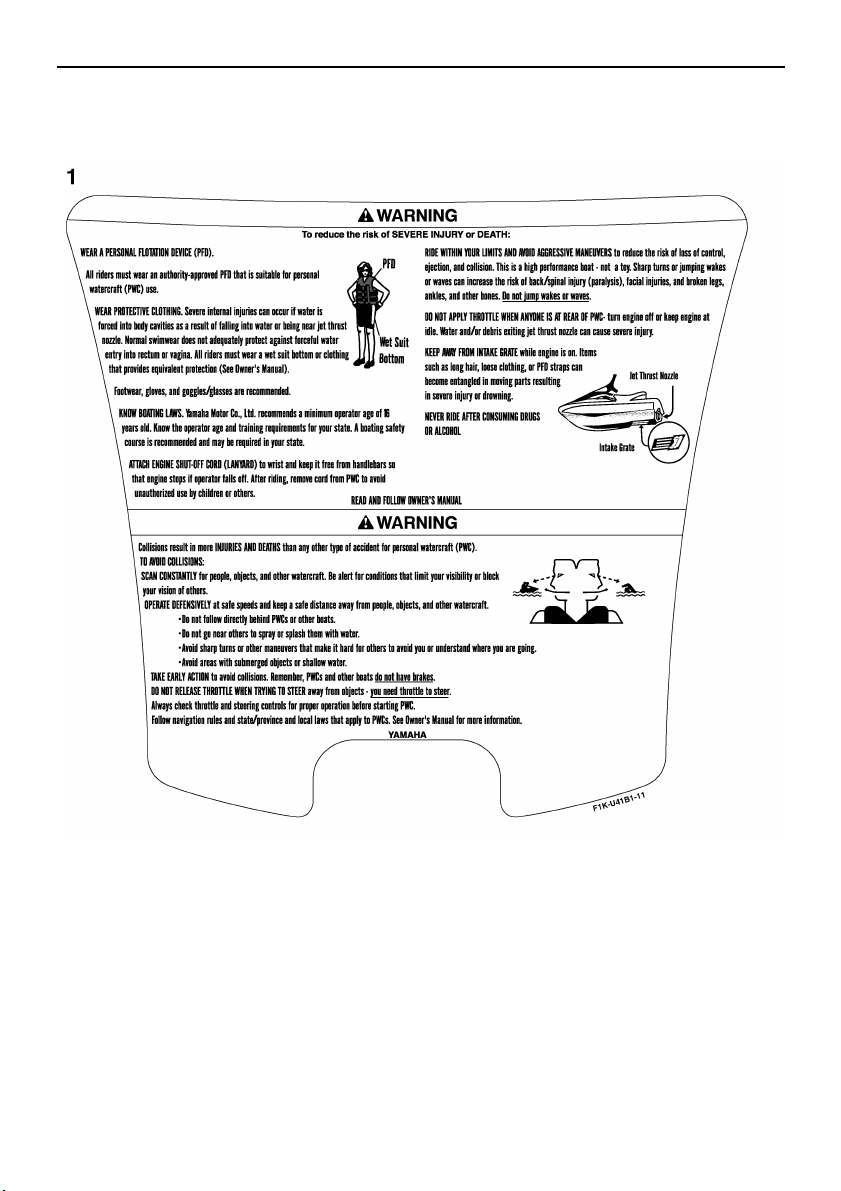

Warning labels

If any of these labels are damaged or missing, contact a Yamaha dealer for replacements.

UF2L20E0.book Page 5 Thursday, May 29, 2008 9:51 AM

Tabla de contenidos

Otros manuales de Bote de Yamaha

Yamaha

Yamaha WaveRunner Manual de usuario

Yamaha

Yamaha 2017 WaveRunner EX Manual del propietario

Yamaha

Yamaha FX High Output WaveRunner 2008 Manual del propietario

Yamaha

Yamaha FX High Output WaveRunner 2006 Manual del propietario

Yamaha

Yamaha WaveRunner VXS 2014 Manual del propietario

Yamaha

Yamaha WaveRunner FZR 2012 Manual del propietario

Yamaha

Yamaha WaveRunner XL1200Ltd Manual de usuario

Yamaha

Yamaha EXCTER220 Manual de usuario

Yamaha

Yamaha AR210 2020 Manual del propietario

Yamaha

Yamaha FX140 WaveRunner 2002 Manual del propietario

Yamaha

Yamaha XLT800 WaveRunner 2003 Manual del propietario

Yamaha

Yamaha WaveRunner VXS 2012 Manual del propietario

Yamaha

Yamaha WaveRunner SuperJet 2009 Manual del propietario

Yamaha

Yamaha WaveRunner V1 2016 Manual del propietario

Yamaha

Yamaha AR195 2019 Manual del propietario

Yamaha

Yamaha 255XE 2021 Manual del propietario

Yamaha

Yamaha AR230 High output Manual del propietario

Yamaha

Yamaha WaveRunner EX 2021 Manual de usuario

Yamaha

Yamaha GP1300R WaveRunner 2005 Manual del propietario

Yamaha

Yamaha WaveRunner EX 2023 Manual del propietario

Yamaha

Yamaha WaveRunner GP800R 2001 Manual del propietario

Yamaha

Yamaha FX High Output WaveRunner 2004 Manual del propietario

Yamaha

Yamaha WaveVenture WVT700BW Manual del propietario

Yamaha

Yamaha WaveRunner XL800 Manual de usuario

Manuales populares de Bote de otras marcas

Raymarine

Raymarine ST70 Instrument Manual de usuario

Pro-Line Boats

Pro-Line Boats Pro Line 19 Sport Manual de usuario

Jeanneau

Jeanneau CAP CAMARAT 8.5 CC Manual de usuario

Tiara Yachts

Tiara Yachts C49 2024 Manual de usuario

Monterey Boats

Monterey Boats Sport Yacht 330 Manual de usuario

J 105 Manual de usuario

PURSUIT

PURSUIT OS 335 Manual de usuario

Boston Whaler

Boston Whaler CONQUEST 345 Manual de usuario

Jeanneau

Jeanneau SUN ODYSSEY 41 DS Manual de usuario

Meridian

Meridian 490 Pilothouse Manual de usuario

Advanced Elements

Advanced Elements AdvancedFrame Expedition AE1009 Manual de usuario

Robo Marine Indonesia

Robo Marine Indonesia GEOMAR Manual de usuario

Swallow Boats

Swallow Boats BayRaider Manual de usuario

Intex

Intex Excursion 5 Set Manual de usuario

X SHORE

X SHORE EELEX 8000 Manual de usuario

ISLAND PACKET

ISLAND PACKET 370 Manual de usuario

Sea Ray

Sea Ray 175 Sport Manual de usuario

Regal

Regal 2300 Manual de usuario
