Fully Automatic Bilge Pump

INSTRUCTION MANUAL

Purpose of this manual

The purpose of this manual is to provide necessary information for product installation, operation and

maintenance.

CAUTION: Read this manual carefully before installing, using or servicing this product. Failure

to follow the instructions within this manual could result in explosion, property damage,severe

personal injury and/or death.

WARNING:

• The operator must be aware of safety precautions to prevent physical injury.

• Operating, installing or maintaining the unit in any way that is not covered in this manual

could cause death, serious personal injury or damage to the equipment.This includes any

modiﬁcation to the equipment or use of parts not provided by Xylem. If there is a question

regarding the intended use of equipment, please contact Xylem representative before

proceeding.

• Do not change the service application without the approval of a authorized Xylem

representative.

NOTICE: Save this manual for future reference,and keep it readily available at the location

of the unit.

DANGER: Failure to follow this instruction manual may lead to signiﬁcant property damage or

may result in serious injury or death.

Safety

Safety terminology and symbols

About safety messages

It is extremely important that you read,understand and follow the safety messages and regulations carefully

before handling the product.They are published to help prevent these hazards:

• Personal accidents and health problems

• Damage to the product

• Product malfunction

Hazard Level:

DANGER

WARNING

CAUTION

NOTICE

Indication:

A hazardous situation which,if not avoided, will result in death or serious injury.

A hazardous situation which,if not avoided, could result in death or serious injury.

A hazardous situation which,if not avoided, could result in minor or moderate injury.

A potential situation which, if not avoided,could result in undesirable conditions.

A practice not related to personal injury.

ELECTRICAL HAZARD:

NOTICE: Never operate a unit unless safety devices are installed.

Hazard categories

Hazard categories can either fall under hazard levels or let speciﬁc symbols replace the ordinary hazard levels

symbols. Electrical hazards are indicated by the following speciﬁc symbols:

These are examples of other categories that can occur.They fall under the ordinary hazard levels and may use

complementing symbols:

• Crush hazard • Cutting hazard • Arc ﬂash hazard

User safety

General safety rules

These are safety rules apply:

• Always keep work area clean

• Pay attention to the risks presented by gas and vapors in the work area.

• Avoid all electrical dangers. Pay attention to the risks of electric shock or arc ﬂash hazards

• Always bear in mind the risk of drowning, electrical accidents and burn injuries

Safety equipment

Use safety equipment according to the company regulations. Use this safety equipment within the work area:

• Hard hat • Gas mask

• Safety goggles, preferably with side shields • Hearing protection

• Protective shoes • First-aid kit

• Protective gloves • Safety devices

Electrical connections

Electrical connections must be made by certiﬁed electricians in compliance with all international, national,state

and local regulations. For more information about requirements, see sections dealing speciﬁcally with electrical

connections.

Precautions before work

Observe these safety precautions before you work with the product or are in connection with the product:

• Provide a suitable barrier around the work area,for example, a guard rail

• Make sure that all safety guards are in place and secure

• Make sure that you have a clear path of retreat

• Make sure that the product cannot roll or fall over and injure people or damage property

• Make sure that the lifting equipment is in good condition

• Use a lifting harness, a safety line and a breathing device as required

• Allow all system and pump components to cool before you handle them

• Make sure that the product has been thoroughly cleaned

• Disconnect and lock out power before you service the pump

• Check the explosion risk before you weld or use electric hand tools

Wash the skin and eyes

Follow these procedures for chemicals or hazardous ﬂuids that have come into contact with your eyes or skin:

Condition Action

Chemicals or hazardous

ﬂuids in eyes

1. Hold your eyelids apart forcibly with your ﬁngers

2. Rinse the eyes with eyewash or running water for at least 15 minutes

3. Seek medical attention

Chemicals or hazardous

ﬂuids on skin

1. Remove contaminated clothing

2. Wash the skin with soap and water for at least 1 minute

3. Seek medical attention,if necessary

Environmental safety

The work area

Always keep the station clean

Waste and emissions regulations

Observe these safety regulations regarding waste and emissions:

• Appropriately dispose of all waste

• Handle and dispose of the processed liquid in compliance with applicable environmental regulations

• Clean up all spills in accordance with safety and environmental procedures

• Report all environmental emissions to the appropriate authorities

WARNING: Radiation Hazard.

Do NOT send the product to Xylem if it has been exposed to any nuclear radiation.

Electrical installation

For electrical installation recycling requirements,consult your local electric utility.

Recycling guidelines

Always follow local laws and regulations regarding recycling.

DANGER: This product is not intended for damage control or to deal with ﬂooding resulting

from hull damage. This product is intended to be used in Bilge Pumping Systems for small craft

with a hull length up to 24 meters, as described within the introduction and scope of ISO 15083.

Bilge Pumping Systems, as speciﬁed in ISO 15083, are limited to normal amounts of water

in an intact boat due to spray, rain,seepage, spillage, and occasional small amounts of water

shifting from boat movements in heavy weather. Use of product in any other way could result in

ﬂooding, catastrophic damage to craft, serious personal injury, or death.

WARNING: This pump is designed for use with fresh water and salt water ONLY. Use with

any other hazardous, caustic, or corrosive material could result in damage to the pump and the

surrounding environment, possible exposure to hazardous substances and injury.

WARNING: Check the function of all bilge pumps at regular intervals. Clear pump inlets from

debris. If seacocks are ﬁtted in the fore and aft peak bulkheads, they shall be kept closed and

shall only be opened to let water drain into the main bilges.

2.5 min

0.5 sec

2.5 min

0.5 sec

2.5 min

0.5 sec

.75"

(2cm)

OFF

1.5"

(3.8cm)

OFF

How Fully Automatic

Bilge Pumps Work:

Rule Automatic bilge pumps eliminate the need for

a separate ﬂoat switch to activate the pump. Once

power is supplied, starting and stopping is completely

automatic.The pump checks for water every 2 ½ minutes

(20 seconds for model 25SA-6WC) by turning on for

a second and measuring load against the impeller.If

water is present, the pump remains on until the water is

removed.Thereafter the pump resumes its 2 ½ minute

check cycle.The automatic pumps feature two positive

leads: an automatic (brown) and a manual override

(brown with a white stripe).

The third black wire is the ground/negative.

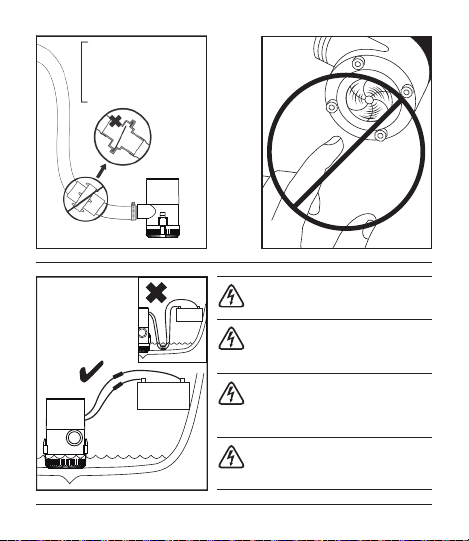

–12"

(–30cm)

+12"

(+30cm)

+12"

(+30cm)

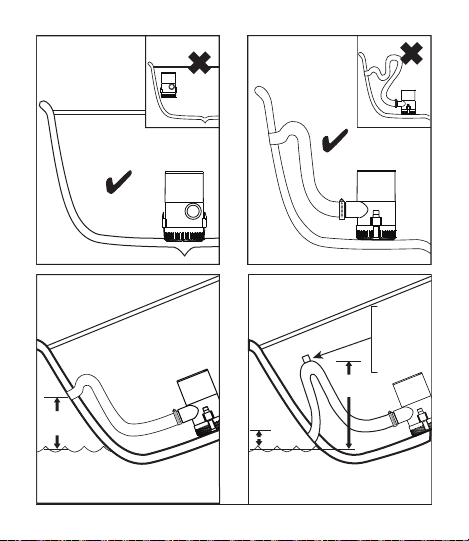

Vented loop

Coude anti-siphon

Belüftetes

Schwanenhalsventil

Circuito con

degassaggio

Beluchter

Avluftad slinga

Bucle venteado

–

+–

No check valve

Pas de vanne anti-retour

Kein rückschlagventil

Nessuna valvola di controllo

Geen terugslagklep

Ingen backventil

Sin válvula de retención

WARNING: Electrical connections should

be performed by a competent marine electrical

technician.

CAUTION: Disconnect power from the system

before working on the unit to avoid personal

injury, damage to the surrounding environment

and/or damage to the unit.

CAUTION: Always install proper fuse size to

prevent damage to product should a short occur.

Failure to install proper fuse could increase risk

of pump malfunction potentially resulting in

personal injury and/or ﬁre hazard.

CAUTION: Keep all wire connections above

the highest water level. Wires must be joined

with butt connectors and a marine grade sealant

to prevent wire corrosion.

Note: Output is based on 10 hour break-in period and at 12V (12V models) or 24V (24V models). On

12 volt pump: Minimum voltage of 10.5 volts required. On 24 volt pump: Minimum voltage of 21 volts

required. [For data on table 1.1]

Note: Les données proviennent d’une période de rodage de 10 heures et d’essais à 12 V (modèles 12

V) ou 24 V (modèles 24V). Pour pompe 12 volts: Tension minimum requis de 10,5 volts.Pour pompe

24 volts: Tension minimum requis de 21 volts. [Pour les données sur le tableau 1.1]

Hinweis: Die Pumpleistung richtet sich nach der zehnstündigen Einlaufzeit und danach,ob 12 V(12

V-Modelle) oder 24 V(24 V-Modelle) anliegen. Für 12-Volt- Pumpe: Mindest erforderliche spannung

10,5 Volt.Für 24-Volt-Pumpe: Mindest erforderliche spannung 21 Volt.[Für Daten auf Tabelle 1.1]

Nota bene: l’uscita è basata su un periodo di rodaggio di 10 ore a 12V (modelli a 12V) o 24V

(modelli a 24V). Pump 12 volt: minima tensione ha richiesto 10.5 volt. Pump 24 volt: minima tensione

ha richiesto 21 volt. [Per i dati sulla tabella 1.1]

Opmerking: De uitvoer is gebaseerd op een inloopperiode van 10 uur en bij 12 V (12V-modellen)

of 24 V (24 V-modellen). Voor 12 volt pomp: 10.5 volt minimaal vereiste spanning Voor 24 volt pomp:

21 volt minimaal vereiste spanning. [Voor gegevens over tabel 1.1]

Obs: Uteffekt baseras på en 10 timmar lång inkörsperiod med 12V (12V-modeller) eller 24V

(24V-modeller).För 12 volts pump: Minsta spänning krävs 10,5 volt.För 24 volts pump: Minsta

spänning krävs 21 volt. [För uppgifter om tabell 1.1]

Nota: La salida se basa en un período de reposo de 10 horas y a 12 V (modelos de 12V) ó 24 V(mod-

elos de 24 V). Para la bomba de 12 voltios: Voltaje mínimo requerido de 10,5 voltios. Para la bomba de

24 voltios: Voltaje mínimo requerido de 21 voltios.[Para los datos de la tabla 1.1]

Table 1.1 / tableau 1.1 / tabelle 1.1 / tabella 1.1 / tabel 1.1 / tabell 1.1 / tabla 1.1
