XL-RAID4-USB3

User Manual

Index

Chapter 1 Product Introduction.................................................................. 4

1.1 Hardware Introduction..................................................................... 4

1.2 Accessories.................................................................................... 4

1.3 LED Instruction................................................................................ 5

Chapter 2 Installation.................................................................................... 6

2.1 Hardware Installation...................................................................... 6

2.2 Precaution before Application......................................................... 7

2.3 Hard Disk Formatting...................................................................... 7

Chapter 3 Device Management................................................................. 12

3.1 Data Rebuilding............................................................................... 12

3.2 GUI (Graph User Interface) Monitoring Software............................ 12

Product Introduction

Chapter 1 Product Introduction

1.1 Hardware Introduction

Front View

1 HDD Tray

2 Power LED

3 Temp LED

4 HDD-0 LED

5 HDD-1 LED

6 HDD-2 LED

7 HDD-3 LED

8 Fan LED

9 Power LED

Rear View

1 Fan

2 HDD Tray Locking Switch

3 HDD Tray Ejection Button

4 Power Switch

5 DC IN

6 USB 3.0 Port

7 eSATA Port

1.2 Accessories

After you open the outer package, make sure that the following items are contained in the package:

Item Qty.

R4-4S-SB3 Device 1

USB 3.0 Cable 1

eSATA Cable 1

Power Cable 1

Adapter 1

Quick Installation Guide 1

CD 1

Accessory Kit 2

Product Introduction

Please make sure that the related accessories and product body are not damaged or missing. If you

have any question, please contact the local distributor or the retailer you purchase from for help.

1.3 LED Instruction

Status LED LED Status

Power On/ System Awaiting Power LED Blue Lights/ On

Access HDD-0~3 LED Blue/ Blinks

Fan Failure Fan LED Red Lights/ On

Overheat ( Over 60ºC) Temp LED Red Lights/ On

HDD Failure HDD-0~3 LED Red Lights/ On

Source HDD-0~3 LED Blue/ Blinks

Rebuilding

Target HDD-0~3 LED Red & Blue/ Blinks

Installation

Chapter 2 Installation

2.1 Hardware Installation

1. Firstly, push the HDD tray locking switch to the “Open” position, and then remove the HDD tray by

pressing the HDD tray ejection button.

2. Remove the dummy HDD from the HDD tray, and install your HDD into the tray. Secure the HDD

with supplied screws to avoid any damage to the HDD due to unnecessary movement.

3. After the HDD installation is completed, please insert the HDD tray back into device, and push the

HDD tray locking switch back to the “Lock” position.

4. Connect USB cable or eSATA cable and then connect the power cable.

5. After the hardware installation is complete, you can power on the unit and proceed with further

configurations and applications.

6. While R4 is connected to computer, the OS will automatically recognize your HDD once the

computer booting is done. If your HDD needs to be formatted, please follow the format procedures.

You can start to use the device once the formatting is complete.

Installation

2.2 Precaution before Application

1. We suggest you to use brand new 2.5-inch SATA HDD with the same brand and model number for

the best performance. When any of the HDD is failed, please ensure that the capacity of the new

HDD is the same or bigger than the original one.

2. Please ensure that the HDDs are free of bad sector before using, otherwise, it may cause system

crash and result in data loss.

3. After removing dummy HDD from the HDD tray, please recycle it or store it at a higher place to avoid

the reach from children, in case of any accidents.

4. Although the HDD tray can be fixed via the bump on itself, however, in order to avoid HDD damage

from carrying or moving, we strongly suggest you to secure the HDD with screws.

5. To get the optimum performance of USB 3.0, your equipment has to meet USB 3.0 requirements in

all circumstances.

6. R4 provides RAID5 function; please install three HDD at least.

2.3 Hard Disk Formatting

1. Windows System

1) After booting, the system will perform automatic detection. After detecting, it will display the

following diagram.

2)Please enter into “Device Manager,” you will be able to see the newly added hard disk.

Installation

3)Enter into “Device Manager” and click on the new hard disk, first “initialize” it, and after the

initialization, you can follow your habit or requirement to “format” the file type you want.

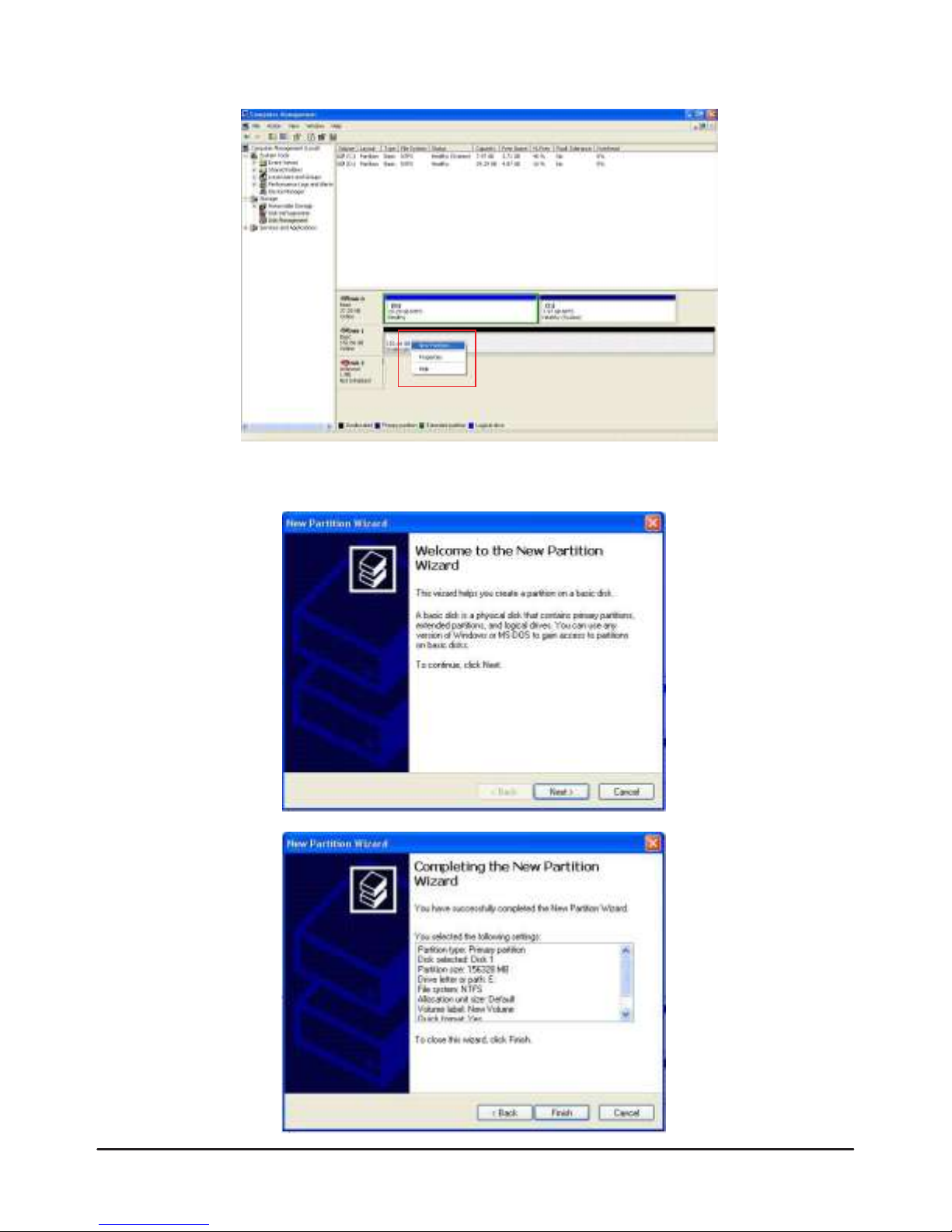

4) After clicking on “New Partition,” the system will show the relevant window to guide you to format

the hard disk. You only need to click in sequence to complete.

Installation

5) After setting the hard disk format and partition you want, the system will automatically begin to

format it.

6) After formatting, the window will display the current hard disk status. At “My Computer,” you will

also be able to see the newly added hard disk.

7) Finish. You may start using the new hard disk.

Installation

2. MAC System

1) Enter into Disk Utility of your computer.

2) Click on this hard disk device.

3) Add in R4 hard disk name and do formatting operation. Choose hard disk formatting and disk drive

name setting (can be set as R4).
