XtendLan DPC-D247 Manual de usuario

DPC-D247

2-wired door station

User´s manual

Introduction

The door station is designed with high resolution color CCD camera, it pro-

vides wide angle of 1050for DT 2-wire intercom system. The high white LED

for night view makes the door station working efciently at night.

The front panel is made of medical stainless steel with a thickness of 2.5 mm

for better protection against vandalism and cauterization. The call button is

made of durable zinc alloy with white backlight for illumination. The name label

with orange backlight is covered by a fully secured and ameproof glass plate.

Parts and Function

Mounting box

Front panel

Plastic bracket

Speaker

Camera lens

Name label

Microphone

Call button

Spanner

Camera adjustment

Fixed axis B

Fixed axis A

Connection port

Name plate hole

Signal adjustment

BUS

S1+ S2+ S-

1 2

Lock Control Jumper

Doorstation Code DIP

T/R+ T/R-

Main Connect Port

1 2 3

Terminal Description

-3-

Lock Control Jumper: To select the lock type.

Door Station Code DIP: Total 4 door stations can be supported.

T/R+,T/R-: USB-RS485 communication terminal.

Main Connect Port: To connect the bus line and the electronic locks.

BUS: Connect to the bus line, non-polarity.

PL: External lock power input, connect to the power positive(power +).

S1+, S2+: Lock power(+) output, to connect 2 locks.

S-: Lock power(-) output.

Door Station Mounting

OPEN

90°

1 2 3 4

Adjusting Camera Angle

Use a screwdriver to loosen

the screw and then adjust the

angle of the camera ,then x

the screw.

Steps:

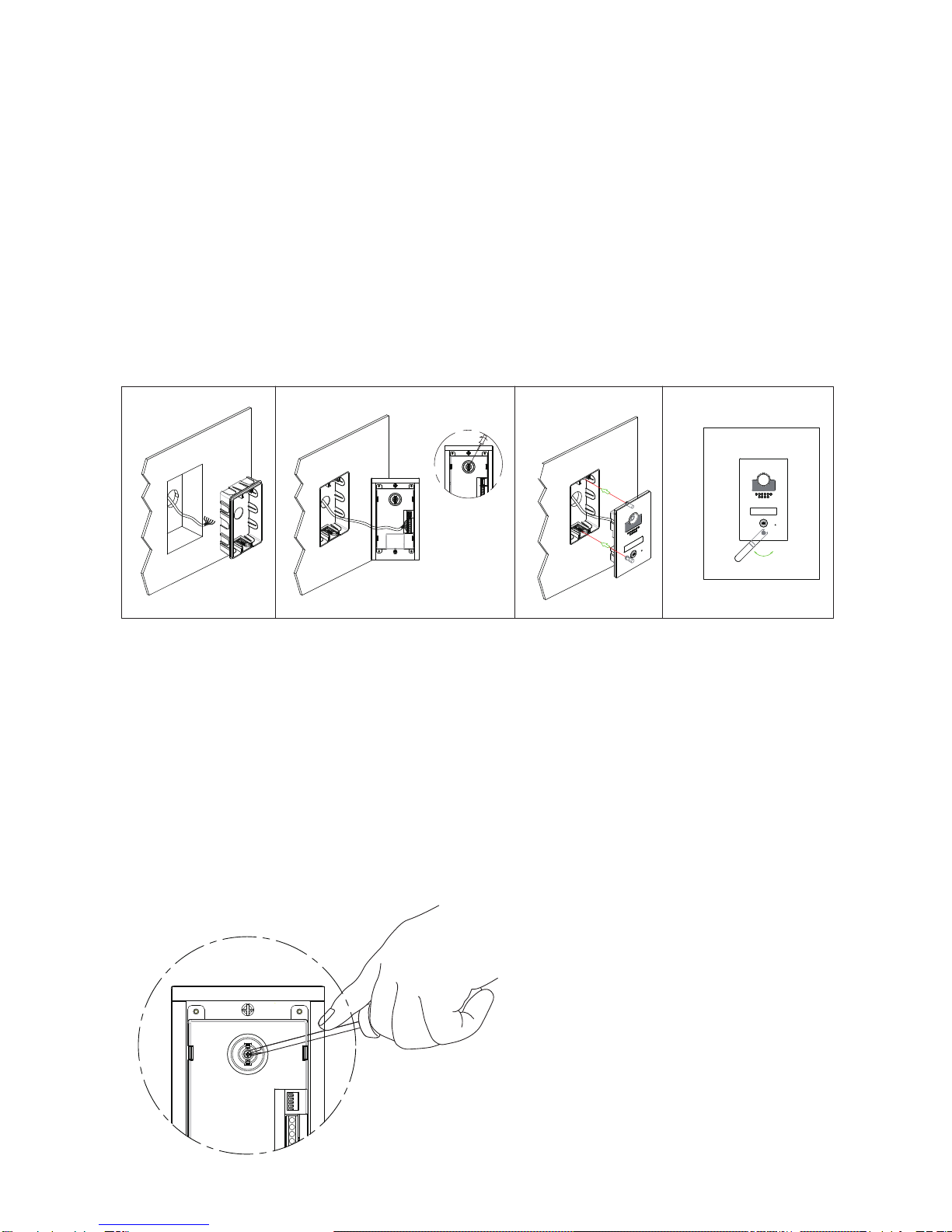

1. Drill a hole in appropriate size, then attach the mounting box to the hole.

2. Adjust the camera angle, and connect the cable correctly.

3. Attach the front panel to the mounting box.

4. Use the special spanner to move 900 to x the front panel.

-4-

Placing Name Label

90° Open

1 2 3

System Wiring and Connections

L1 L2 PL S1+ S2+ S-

monitor

AC~

PC6

Basic one-to-one Connection

Steps:

1. Use the special spanner to move 900to loosen the screw.

2. Open the front panel.

3. Insert the name plate

-5-

Electric Lock Connection

Door Lock Controlled with Internal Power

connect one lock connect two locks

Note:

1. Electronic lock of Power-on-to-unlock type should be used.

2. The door lock is limited to 12V, and holding current must be less than

250mA.

3. The door lock control is not timed from Exit Button(EB).

4. The Unlock Mode Parameter of Monitor must be set to 0 (by default).

LOCK

2nd

1ST

2nd

*1ST

Jumper position in

Connect two locks

2-3

1 2 3

BUS PL S1+ S2+ S-

LOCK

BUS PL S1+ S2+ S-

Jumper position in

Connect one lock

2-3

1 2 3

Door Lock Controlled with Dry Contact

Note:

1. The external power supply must be used according to the lock.

2. Setup the Unlock Mode of Monitor for different lock types.

•Power-on-to-unlock type:Unlock Mode=0 (by default)

•Power-off-to-unlock type:Unlock Mode=1

-8-

LOCK

Take off the Jumper

POWER

SUPPLY

LOCK

Take off the Jumper

POWER

SUPPLY

LOCK

BUS PL S1+ S2+ S- BUS PL S1+ S2+ S-

connect one lock connect two locks

5.2.3 Unlock parameter setting(set on monitor)

1.Touch item on main

menu page.

2.Touch the screen anywhere and

hold for 2s.

3.Touch Installer setup item

4.A digital keypad and setting

instructions will be shown.

Manual

Monitor

Memory

Playback

Album User Setup

09/30/2010 Thu.16:41

Intercom Multimedia

H/W : --- a1.3

S/W: V17.11.418.00

Local addr: ---

Unlock timing: ---

Video standard: -

UI-CODE: ---

MCM-VER.: ---

Updated: ---

Home

Installer

setup

Caliber

TouchScreen

Code Number:[----]

[0010]#:Remove all remote control

[0011]#:Add remote control

[8000]#:Set as master unit 0

[8001]#:Set as slaver unit 1

[8002]#:Set as slaver unit 2

[8003]#:Set as slaver unit 3

[8004]#:Set as guard unit

[8005]#:Set as not guard unit

[8006]#:Panel on as slaver unit called

[8007]#:Panel off as slaver unit called

[8008]#:Date format:MM/DD/YYYY

[8009]#:Date format:DD/MM/YYYY

[8010]#:Set lock mode to 0

[8011]#:Set lock mode to 1

[8021]~[8029]

#Set the lock time of 1~9s

Multi language settings:

---

Cancel

Installation settings:

Note:

1.must connect correctly before setting.

2.the parameter will be saved in door station automatically,so you need only

set on one monitor.

3.the above diagram is t for icon menu series monitors only, to text menu se-

ries monitors,please refer to the corresponding user manual.

-9-

DIP Switches Setting

The DIP switch is designed to set the code

for door station and monitor, there are two

states for each DIP switch, please refer to

the sketch map.

ON(1)

OFF(0)

Total 2 bits can be congured, bit-1 and bit-2 are used to assign ID code for door sta-

tion.The switches can be modied either before or after installation.

There are 6 bits in total. The DIP switches are used to congure the user code

for Monitors.

Bit-6 is an video impedance match switch, which have to be set to ON if match

the impedance, otherwise set to OFF.

Bit-1~Bit-5 are used to set user code, for DT597 door station, the user code

should be set to 0~15.

Please refer to the following settings:

Door station DIP setting

Indoor monitor DIP setting

Bit state Descriptions

Default setting, ID = 0(00), set to the rst Door Station.

ID = 1(10), set to the second Door Station.

ID = 2(01), set to the third Door Station.

ID = 3(11), set to the fourth Door Station.

1 2

-10-

Bit state User code

code=0

code=1

code=2

code=3

code=4

code=6

code=7

code=8

code=9

code=10

code=11

code=12

code=13

code=14

code=15

code=5

Bit state User code Bit state User code

1 2 3 4 5 6

123 4 5 6

1 2 3 4 5 6

123 4 5 6

1 2 3 4 5 6

123 4 5 6

1 2 3 4 5 6

123 4 5 6

1 2 3 4 5 6

Specication

Power Supply : DC 24V (supplied by PC6);

Power Consumption: Standby 60mA; Working status 200mA;

Camera: 1/4 ACS 4T image sensor with DSP processor

Lock Power supply: 12Vdc, 300mA(Internal Power);

Working temperature: -10ºC ~ +45ºC

Dimension: 188(H)×110(W)×34(D)mm

Precautions

• Please clean the unit with soft cotton cloth, don't use the organic impregnant

or chemical clean agent. If necessary, please use a little pure water or dilute

soap water to clean the dust.

• The unit is weather resistant. However do not spray high pressure water on

access control keypad directly. Excessive moisture may cause problems with

the unit.

• You must use the right adaptor which is supplied by the manufacturer or ap-

proved by the manufacturer.

• Pay attention to the high voltage inside the products, please refer service

only to a trained and qualied professional.

-11-
