XtendLan DVR-470J Manual de usuario

DVR-470J

DVR-870J

DVR-1670J

1U Series DVR

Quick Start Guide

Table of Contents

1Hardware Installation and Connection..........................................................................5

1.1 Check Unpacked DVR..........................................................................................5

1.2 About Front Panel and Real Panel .....................................................................5

1.3 After Remove the Chassis....................................................................................5

1.4 HDD Installation .....................................................................................................5

1.5 Front Panel .............................................................................................................6

1.6 Rear Panel..............................................................................................................8

1.7 Connection Sample ...............................................................................................8

1.8 Alarm Input and Output Connection ...................................................................9

1.8.1 Alarm Input and Output Details.................................................................9

1.8.2 Alarm Input Port.........................................................................................10

1.8.3 Alarm Output Port......................................................................................10

2Overview of Navigation and Controls..........................................................................11

2.1 Login, Logout & Main Menu...............................................................................11

2.1.1 Login............................................................................................................11

2.1.2 Main Menu..................................................................................................11

2.1.3 Logout.........................................................................................................11

2.1.4 Auto Resume after Power Failure ..........................................................12

2.2 Recording Operation ...........................................................................................12

2.2.1 Live Viewing...............................................................................................12

2.3 Record Setup (Schedule) ...................................................................................12

2.3.1 Schedule Menu..........................................................................................12

2.3.2 Manual Record ..........................................................................................13

2.3.3 Encode........................................................................................................14

2.3.4 Snapshot.....................................................................................................14

2.3.5 Image FTP..................................................................................................15

2.3.6 Search and Playback................................................................................15

2.3.7 Basic Operation.........................................................................................16

2.4 Network Setup......................................................................................................17

2.5 Pan/Tilt/Zoom .......................................................................................................18

2.5.1 PTZ Setup..................................................................................................18

2.5.2 PTZ Operation...........................................................................................18

2.5.3 3D Intelligent Positioning Key .................................................................19

3Web Client Operation ....................................................................................................21

3.1 Network Connection............................................................................................21

3.2 Login ......................................................................................................................21

3.3 Main Window........................................................................................................21

Welcome

Thank you for purchasing our DVR!

This quick start guide will help you become familiar with our DVR in a very short time.

Here you can find hardware installation，cable connection information and general operations

such as system setup, record, search, backup, alarm setup, PTZ operation, also here you can

find web operation instruction.

Before installation and operation, please read the following safeguards and warnings carefully!

Important Safeguard and Warning

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

We assume no liability or responsibility for all the fires or electrical shock caused by improper

handling or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Keep upwards. Handle with care.

Do not apply power to the DVR before completing installation.

Do not place objects on the DVR

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

The DVR should be installed in a cool, dry place away from direct sunlight, inflammable,

explosive substances and etc.

6. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included:

Contact your local retailer ASAP if something is missing in your package.

1Hardware Installation and Connection

Note: All the installation and operations here should conform to your local

electric safety rules.

1.1 Check Unpacked DVR

When you receive the DVR from the forwarding agent, please check whether there is any visible

damage. The protective materials used for the package of the DVR can protect most accidental

clashes during transportation. Then you can open the box to check the accessories.

Please check the items in accordance with the list on the warranty card. Finally you can remove

the protective film of the DVR.

1.2 About Front Panel and Real Panel

For detail information of the function keys in the front panel and the ports in the rear panel,

please refer to the User’s Manual included in the resource CD.

The model in the front panel is very important; please check according to your purchase order.

The label in the rear panel is very important too. Usually we need you to represent the serial

number when we provide the service after sales.

1.3 After Remove the Chassis

Please check the data cable, power cable, COM cable and main boar cable connection is firm or

not.

1.4 HDD Installation

This series DVR has only one SATA HDD. Please use HDD of 7200rpm or higher.

You can refer to the User’s Manual for recommended HDD brand.

Please follow the instructions below to install hard disk.

1. Loosen the screws of the

upper cover.

2. Remove upper cover.

3. Turn four screws for three rounds

to fix HDD bracket.

4. Place the HDD in

accordance with the four holes.

i th h i

5. Turn the device upside down

and then turn the screw in firmly. 6. Fix the HDD firmly.

After completing HDD installation, please check connection of data ribbon and power cord.

1.5 Front Panel

The front panel is shown as in Figure 1-1.

Figure 1-1

Please refer to the following sheet for front panel button information.

Name Icon Function

Power button Power button, press this button for three seconds to boot up

or shut down DVR.

Shift Shift

In textbox, click this button to switch between numeral,

English(Small/Capitalized),donation and etc.

Up/1

Down/4 、

Activate current control, modify setup, and then move up

and down.

Increase/decrease numeral.

Assistant function such as PTZ menu.

In text mode, input number 1/4.

Left/2

Right/3 

Shift current activated control,

When playback, click these buttons to control playback bar.

In text mode, input number 2/3.

ESC ESC Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Enter ENTER

Confirm current operation

Go to default button

Go to menu

7. Connect the HDD cable and

power cable. 8. Place the upper cover back

and screw firmly.

Record REC Manually stop/start recording, working with direction keys

or numeral keys to select the recording channel.

Slow play/8 Multiple slow play speeds or normal playback.

In text mode, input number 8.

Assistant Fn

One-

window monitor mode, click this button to display

assistant function: PTZ control and image color.

In PTZ menu, shift PTZ control menu.

Backspace function: in numeral control or text control, it can

delete the previous character before the cursor.

In motion detection setup, working with Fn and direction

keys to realize setup.

In preview mode, click it for three seconds to switch between

TV.VGA. For HD1 series DVR, there are three modes: TV,

VGA, VGA_LCD (60Hz LED output).

In text mode, click it to switch between numeral, English

character(small/capitalized) and etc.

Realize other special functions.

Fast play/7 Various fast speeds and normal playback.

In text mode, input number 7.

Play

previous/0



In playback mode, playback the previous video

In text mode, input number 0.

Reverse/Pau

se/6 

In normal playback or pause mode, click this button to

reverse

playback

In reverse playback, click this button to pause playback.

In text mode, input number 6.

Play Next/9 

In playback mode, playback the next video

In menu setup, go to down ward of the dropdown list.

In text mode, input number 9.

Play/Pause /5 In normal playback click this button to pause playback

In pause mode, click this button to resume playback.

In text mode, input number 5.

USB port To connect USB storage device, USB mouse.

Network

abnormal

indication

light

Net Network error occurs or there is no network connection, the

light becomes red to alert you.

HDD

abnormal

indication

light

HDD HDD error occurs or HDD capacity is below specified

threshold value, the light becomes red to alert you.

Record light Alarm System is recording or not. It becomes on when system is

recording.

IR Receiver IR It is to receive the signal from the remote control.

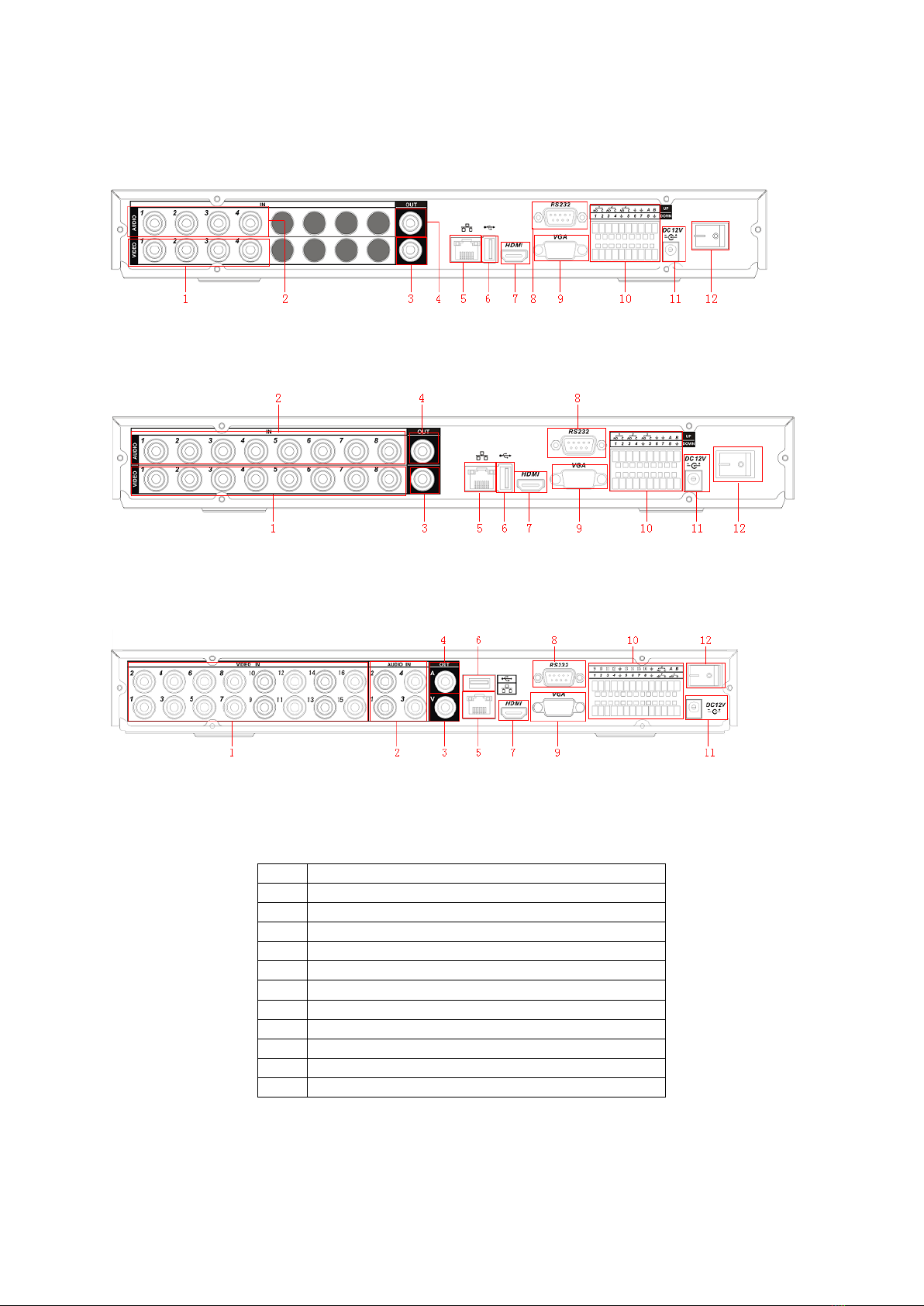

1.6 Rear Panel

The 4-ch rear panel is shown as below. See Figure 1-2.

Figure 1-2

The 8-ch rear panel is shown as below. See Figure 1-3.

Figure 1-3

The 16-ch real panel is shown as below. See Figure 1-4.

Figure 1-4

Please refer to the following sheet for detail information.

Video input

Audio input

Video CVBS output

Audio output

Network port

USB port

HDMI port

RS232 port

Video VGA output

Alarm input/alarm output/RS485 port

Power input port

Power button

When connect the Ethernet port, please use straight cable to connect the PC and use the

crossover cable to connect to the switcher or router.

1.7 Connection Sample

Please refer to Figure 1-5 for connection sample.

Figure 1-5

1.8 Alarm Input and Output Connection

There are two alarm input types for you to select: normal open (NO) and normal close (NC).

1.8.1 Alarm Input and Output Details

Figure 1-6

You can refer to the following sheet and Figure 1-6 for alarm input and output information.

Parameter

Grounding Alarm

Ground line

Alarm Input

1, 2, …, 8. It becomes valid in low voltage.

AB Connection

port

1-NO C，

2-NO C，

3-NO C

Three NO activation outputs.

Relay Output

1,2,3,4: NO and C(Normally Open and Com)

5: NO,C and NC(Normally Open, Com, Normally Closed)

6: Ctrl 12V(This is used for reset the senor)

485 A/B

485 communication port. They are used to control devices such as

PTZ. Please parallel connect 120Ω between A/B cables if there are

too many PTZ decoders.

1.8.2 Alarm Input Port

Please refer to the following sheet for more information.

4/8/16-ch grounding alarm inputs. (Normal open or Normal close type)

Please parallel connect COM end and GND end of the alarm detector (Provide external

power to the alarm detector).

Please parallel connect the Ground of the DVR and the ground of the alarm detector.

Please connect the NC port of the alarm sensor to the DVR alarm input(ALARM)

Use the same ground with that of DVR if you use external power to the alarm device.

Figure 1-7

1.8.3 Alarm Output Port

3 ways relay alarm output (NO contact). Provide external power to external alarm device.

To avoid overloading, please read relay parameters sheet in the User’s Manual carefully.

RS485 A/B cable is for the A/B cable of the PTZ decoder.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de DVR de XtendLan

XtendLan

XtendLan NVR-3202K Manual de usuario

XtendLan

XtendLan DVR-HA401S Manual de usuario

XtendLan

XtendLan HVR-1608PK Manual de usuario

XtendLan

XtendLan DVR-1670B Manual de usuario

XtendLan

XtendLan DVR-x70JE2 Series Manual de usuario

XtendLan

XtendLan DVR-470B Manual de usuario

XtendLan

XtendLan DS-8000HMI Series Manual de usuario

XtendLan

XtendLan 1U J Series Manual de usuario

XtendLan

XtendLan DVR-470 Manual de usuario

XtendLan

XtendLan DVR-470BFV Manual de usuario

XtendLan

XtendLan NVR-1602F Manual de usuario

XtendLan

XtendLan H PG series Manual de usuario

XtendLan

XtendLan DVR-475EL Manual de usuario

XtendLan

XtendLan DVR-880E Manual de usuario

XtendLan

XtendLan DVR-411AUTO Manual de usuario

XtendLan

XtendLan DVR-1670C Manual de usuario

XtendLan

XtendLan DVR-475EL Manual del propietario

XtendLan

XtendLan Hybrid NDVR system Manual de usuario

XtendLan

XtendLan DVR-880E Manual de usuario

XtendLan

XtendLan DVR-HXx92 Manual de usuario

XtendLan

XtendLan DVR-x70PJ Manual de usuario

XtendLan

XtendLan DVR-40AUTO Manual de instrucciones

XtendLan

XtendLan DVR-110LA Manual de usuario

XtendLan

XtendLan DVR-410AUTO series Manual de usuario

Manuales populares de DVR de otras marcas

FLIR

FLIR M3100E Series Manual de usuario

VTRACKPRO

VTRACKPRO FPRO300 Manual de usuario

Swann

Swann NVR-7085 models Manual de usuario

urmet domus

urmet domus 1093/004AHD Manual de usuario

Holux

Holux M1 Manual de usuario

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manual de usuario

Whistler

Whistler D16VRS Manual de usuario

Defender Security

Defender Security 82-20235 Manual de usuario

MISUMI

MISUMI MP-WF100M Manual de usuario

Speco

Speco D8HU Manual de usuario

UST

UST DDR-E04AA Instrucciones de uso

Consolidated

Consolidated Digital Video Recorder Manual de usuario

Mace

Mace DVR0404RW Guía de inicio rápido

RCA

RCA RTD315W Manual de usuario

FSM

FSM Colibri Grande PRO Manual de usuario

Hauppauge

Hauppauge HD PVR 2 Manual de usuario

Identivision

Identivision ICR-PH161i PIONEER Manual de usuario

DIGIFUSION

DIGIFUSION FVRT150 Manual de usuario
