2
High Power Indoor Bar Washer, 240 RGB LED
User Manual
3
CAUTION! READ BEFORE USE!
For your own safety, please read this user manual carefully before you
initially power up your xture.
● Examine packaging to ensure all parts included
● Disconnect all power and other cables prior to servicing
● Always make sure to provide adequate ventilation
● Keep this device away from rain and moisture!
POWER
Be sure you have the proper power
cables for the xture. A 120v cable with a
Standard PC Power connector is required,
and included with the unit. If the xture
expereiences a power failure, check the fuse
located on the power input port.
CONNECTIONS
Remote control and linking is available via
four operation modes: DMX 512 Control, Auto
and Master/Slave, and Sound Active modes to
form different led effects, and DMX-512
connection to connection between xtures.

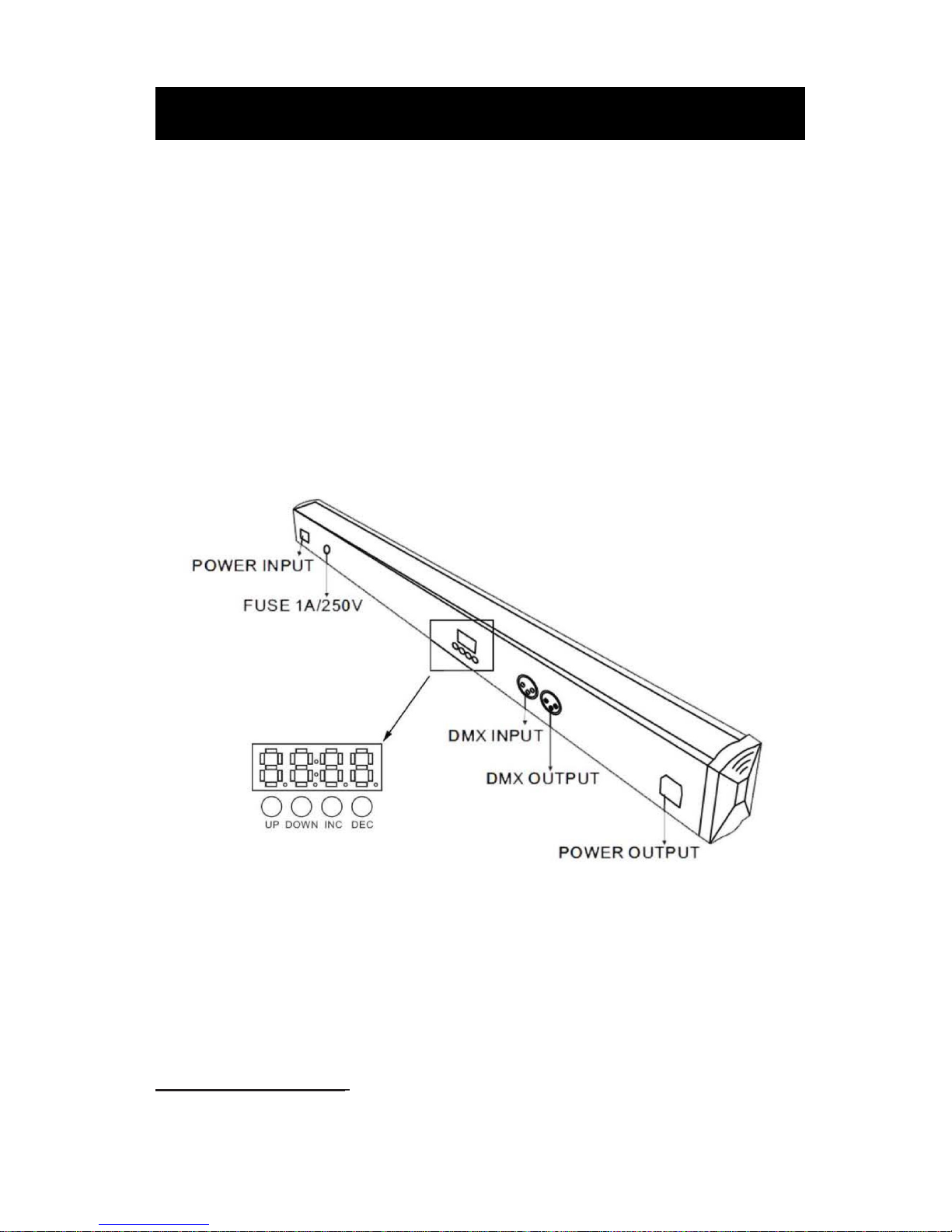

(Input and Output Ports seen here. See the DMX
page for cabling details and Daisy-chaining
specics on Page 11).
SAFETY INSTRUCTIONS:
4
FEATURES:
● RGBA Color Mixing
● Color Strobe Effect
● 22 Color Mix Effect Programs
● LED Chases (Adjustable Speeds)
● Electronic Dimming 0-100%
● Operating Modes: Sound Active, Master /
Slave, or DMX-512 Control Protocol
● DMX Channel modes: 3, 4, 6, or 32
● Digital Display for Address and Function
Settings
● IR Remote Control
Please Note: Specications and improvements in
the design of this unit and this manual are subject
to change without any prior written notice.
5
DMX Control and Chain Connections:
You can connect the DMX-output of a controller directly to the DMX-input of
the xture. If connecting mulitple units, be sure to use the proper cabling.
TERMINATION NOTE: These units are not self terminating. If the last xture
in the DMX chain will need to be terminated with a Terminator. (page 11)
● Voltage: 100V~240V, 50Hz~60Hz
● LEDs: Red x 96, Green x 72, Blue x 72
● Power Consumption: 30W
● Weight: 6 lbs / 2.6Kgs
● Dimensions: 42” x 3” x 3” / 1006mm x 76mm x76mm
● DMX In and Out
● LCD Control Screen
● Beam Angle: 40 degrees
TECHNICAL SPECIFICATIONS:
6
MENU / CONTROLS:
SETUP MENU: You can easily setup and control your 240 RGBA LED Bar
from the on-board LCD screen. Using the MENU, SETUP, UP and DOWN
buttons, you will nd the following options to select and modify:
LED DISPLAY OPERATION - These instructions will provide access to the
setup and control of the DMX light.
1. AUTO MODE
Press the MODE button until AUTO displays on the Menu screen. The xture
comes with 24 built-in programs titled Pr.02 - pr.22 where the user can
set the operation speed and strobe speed. The presets will run in loop until
stopped.
CHOOSING COLORS:
To select a Static Color, press the MODE button until you see Pr.0 1. Then
using SETUP and UP or DOWN buttons to choose betwen colors.
For setting the Operation Speed you can scroll through SP.0 1 to the highest
speed at Sp.fl (1-100). Press SETUP again to control the Strobe Speed from
f500 to f599.
2. BUILT-IN PROGRAM SELECTION
You can access several levels of programs and different styles by setting
the program number, then pressing SETUP button to select programming
options.
To acces the pre-saved programs, press the MODE button until you
see Pr.0 1. Then use UP or DOWN buttons to choose betwen programs titled
Pr.02 - pr.22. When in the selected program number, pressing SETUP again
allows you to set the Operation Speed. You can scroll through SP.0 1 to the
highest speed at Sp.fl (1-100). Press SETUP again to control the Strobe
Speed from f500 to f599.
The Control Screen with
MENU, SETUP, UP, and
DOWN Navigation buttons.
7

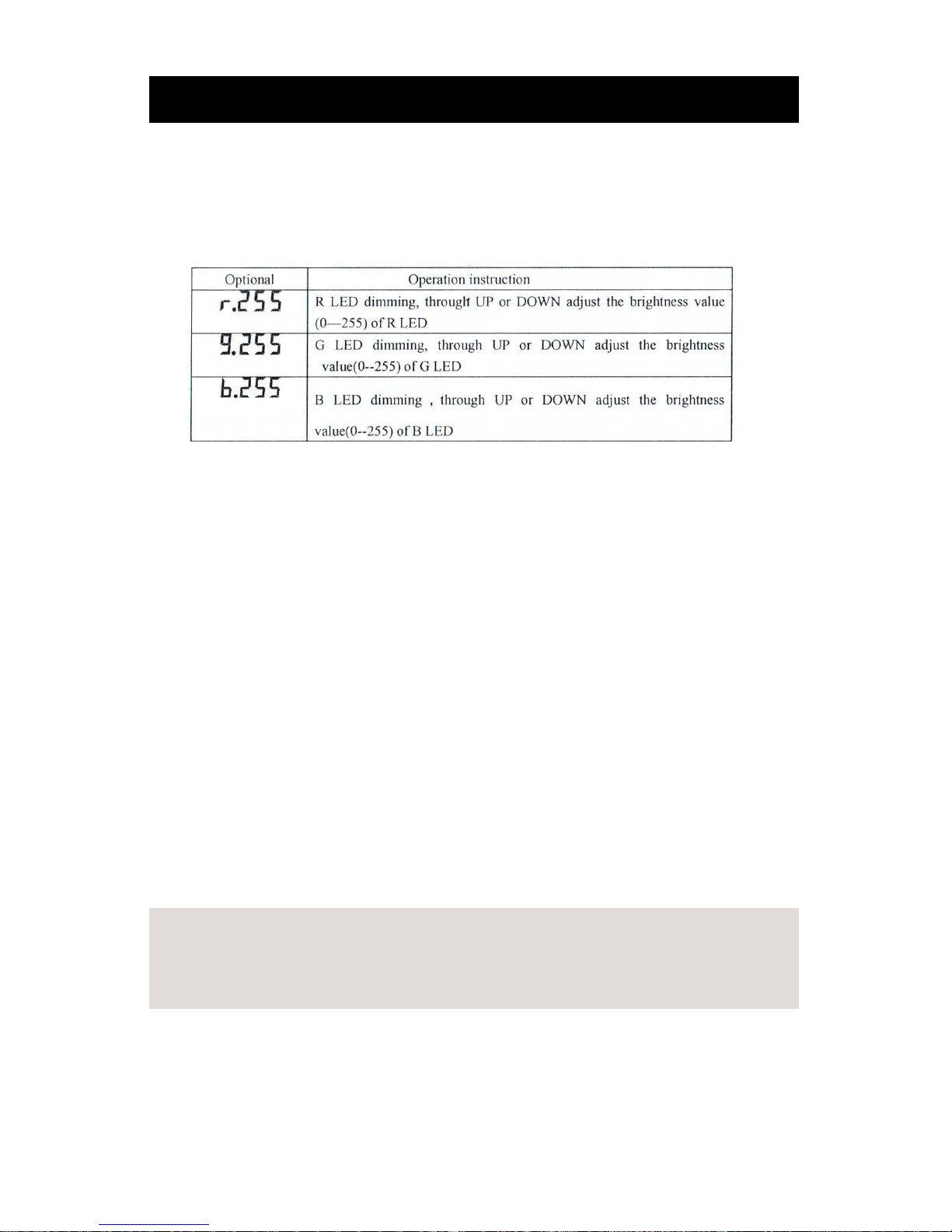

3. DIMMING MODE
Press the MODE button until COLR displays on the Menu screen. Then
repeatedly pressing the SETUP button will scroll through 4 selections,
RED (R), GREEN (G), BLUE (B), and AMBER (A). Each of the R, G, B, vand
A selections
MENU OPTIONS CONT’D:
4. SOUND MODE - This menu will let you navigate and select your de-
sired Sound Mode settings.
Press the MODE button until SU.20 displays on the Menu screen. The
menu will display the parameters SU.00 - SU.3 1. indicating the level of sen-
sitivity of the Microphone (default is 20). Pressing + or - will allow the user
to set the level of Sound sensitivity of the light xture.
Note that this xture has DMX Auto Detection, so regardless of any other Mode
setting, if there is DMX signal present, it will automatically turn on it’s DMX Mode.
When DMX is no longer present, the xture returns to previous Mode setting
(infrared remote control also disabled when in DMX Mode).
5. DMX MODE
Press the MODE button until
d
.
001
displays on the Menu screen.
The DMX Channel can be selected by pressing the UP and DOWN buttons
and selecting
d
.
001
-
d
.
512
. By default, the xture uses a 2 Channel
Conguration.
More DMX Channel congurations can be used by pressing the SETUP
button and selecting either
3-ch
,
4-ch
,
6
-ch
,
or
32-ch
. The following
pages contain Control Charts for each channel mode.
6. MASTER/SLAVE MODE
Press the MODE button until SLAV displays on the Menu screen. The xture
will be slaved to which ever lead device is being controlled. Each xture
acts as a Master when not in Slave Mode.
8
DMX CHANNEL MODE SETUP
7. DMX CHANNEL MODE OPTIONS
These charts detail DMX setting options to access preset programs.
9
8. RESTORE FACTORY SETTINGS
When xture is off, press the MODE and SETUP buttons at the same time
and hold while turning the xture power on. Hold the buttons until
rSEt
displays and ashes on the Menu screen.
DMX CHANNEL MODES SETUP
10
DMX SETUP CONTROL:
[To make Terminator; solder a 120 resistor between
Signal (–) and Signal (+) into a 3-pin XLR-plug and
plug it in the DMX-output of the last xture.]
NOTE: The last or nal xture in the DMX chain MUST have a terminator
plug. A terminator is an XLR type plug that does not connect to a cable.
Assembling a DMX Chain is as simple as connecting two more more
xtures with DMX In/Outs with the proper DMX specic 3-pin XLR-style
cables.
MAKE A TERMINATOR:
