MAINTENANCE MANUAL
Air Mover (USA Standards)
For professional use only
Index
MAINTENANCE MANUAL OF AIR MOVER (Ⅰ)
1．Main Parts Description......................................................................................................................4
2．Wire Diagram .......................................................................................................................................6
3. Steps of Disassembling ..................................................................................................................7
4. Steps of Speed Switch Replacement ..........................................................................................8
5. Steps of Daisy Chain Replacement ...............................................................................................9
6. Steps of Assembling ........................................................................................................................9
7．Methods for Malfunction .............................................................................................................11
MAINTENANCE MANUAL OF AIR MOVER (Ⅱ)
1．Main Parts Description....................................................................................................................19
2．Wire Diagram .....................................................................................................................................21
3. Steps of Disassembling ................................................................................................................21
4. Steps of Speed Switch Replacement ........................................................................................22
5. Steps of Daisy Chain Replacement .............................................................................................24
6. Steps of Assembling ......................................................................................................................26
7．Methods for Malfunction .............................................................................................................29
MAINTENANCE MANUAL OF AIR MOVER (Ⅲ)
1．Main Parts Description....................................................................................................................33
2．Wire Diagram .....................................................................................................................................34
3. Steps of Disassembling ................................................................................................................35
4. Steps of Speed Switch Replacement ........................................................................................36
5. Steps of Assembling ......................................................................................................................37
6．Methods for Malfunction .............................................................................................................39
MAINTENANCE MANUAL OF AIR MOVER (Ⅳ)
1．Main Parts Description....................................................................................................................43
2．Wire Diagram .....................................................................................................................................44
3. Steps of Disassembling ................................................................................................................44
4. Steps of Speed Switch Replacement ........................................................................................45
5. Steps of Assembling ......................................................................................................................47
6．Methods for Malfunction .............................................................................................................48
Number
Applicable Model
Remark
1
X-200AT * /P-200AT *, X-230AT * /P-230AT *,
X-400AT * /P-400AT *, X-430AT * /P-430AT *
X-600*AT */P-600*AT *, X-630AT * /P-630AT *
With Daisy Chain
and Timer
2
X-200A * /P-200A *, X-230A * /P-230A*,
X-400A * /P-400A *, X-430A * /P-430A *
X-600*A */P-600*A *, X-630A * /P-630A *
With Daisy Chain,
without Timer
3
X-200T* /P-200T*, X-230T * /P-230T*,
X-400T * /P-400T * , X-430T * /P-430T *
X-600*T */P-600*T *, X-630*T * /P-630*T *
X-800T * /P-800T * , X-830T * /P-830T *
With Timer,
without Daisy Chain
4
X-200* /P-200*, X-230 * /P-230*,
X-400 * /P-400 *, X-430 * /P-430 *
X-*600 * /P-*600 *, X-630 * /P-630 *
X-800 * /P-800 * , X-830 * /P-830 *
Without Timer and
Daisy Chain
Model Options：
“*”means S、H、C、F（or WFK）or without other parts
“S” means sealed motor ，“A” means daisy chain ，“T” means timer ，
“H” means handle ，“C” means carpet clamp ，“F” “WFK” means Filter Kit
Model letters S, A, T, H, C, F order。
MAINTENANCE MANUAL OF AIR MOVER (Ⅰ)
（With Daisy Chain and Timer）
Applicable model
X-200AT * /P-200AT *, X-230AT * /P-230AT *,
X-400AT * /P-400AT * ，X-430AT * /P-430AT *
X-600*AT */P-600*AT * ，X-630AT * /P-630AT *
Model Instruction：
“*”means S、H、C、F（or WFK）or without other parts
“S” means sealed motor ，“A” means daisy chain ，“T” means timer ，
“H” means handle ，“C” means carpet clamp ，“F” “WFK” means Filter Kit
Model letters S, A, T, H, C, F order。

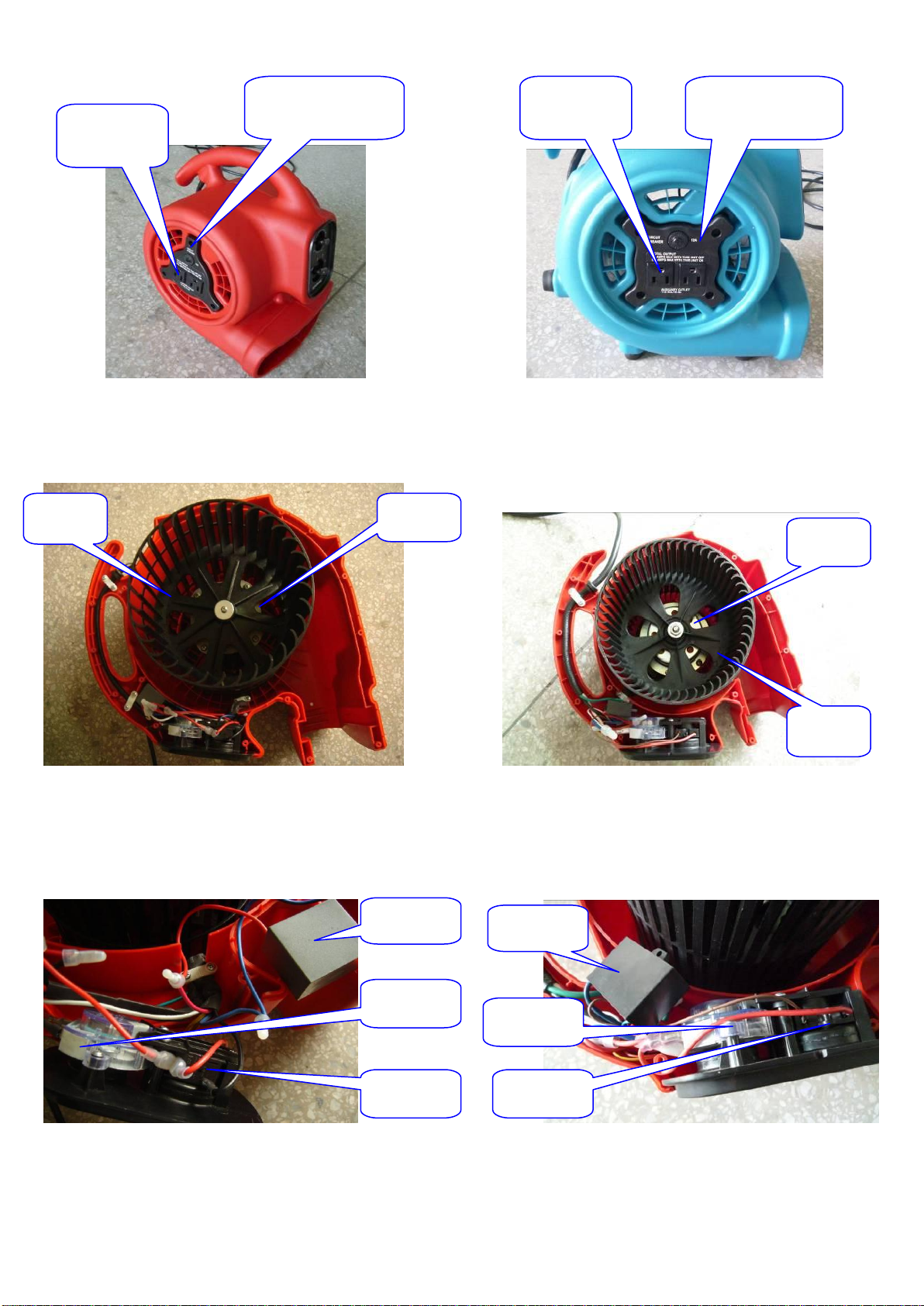

1. Main Parts Description
Fig. 1
Fig. 2-A Fig. 2-B
X-600*AT */P-600*AT * X-400AT */P-400AT *
X-630AT * /P-630AT * X-430AT * /P-430AT *
Left Housing
Switch Plate
Timer Switch
Knob
Speed Switch
Knob
Outlet Grille
Cover
GFCI Daisy
Chain
Right Housing
Grille Cover with
Daisy Chain
Grille Cover with
Daisy Chain
AC Daisy
Chain
Fig. 2-C Fig. 2-D
X-200AT */P-200AT * X-230AT */P-230AT *
Fig. 3-A Fig. 3-B
X-400AT * /P-400AT *，X-430AT * /P-430AT * X-200AT */P-200AT *
X-600*AT */P-600*AT *，X-630AT * /P-630AT * X-230AT */P-230AT *
Fig. 4-A Fig. 4-A
X-400AT * /P-400AT * ，X-430AT * /P-430AT * X-200AT */P-200AT *
X-600*AT */P-600*AT * ，X-630AT * /P-630AT * X-230AT */P-230AT *
Fan
Motor
Timer
Capacitor
Switch
AC Daisy
Chain
Grille Cover with
Daisy Chain
AC Daisy
Chain
Grille Cover with
Daisy Chain
Capacitor
Timer
Switch
Motor
Fan

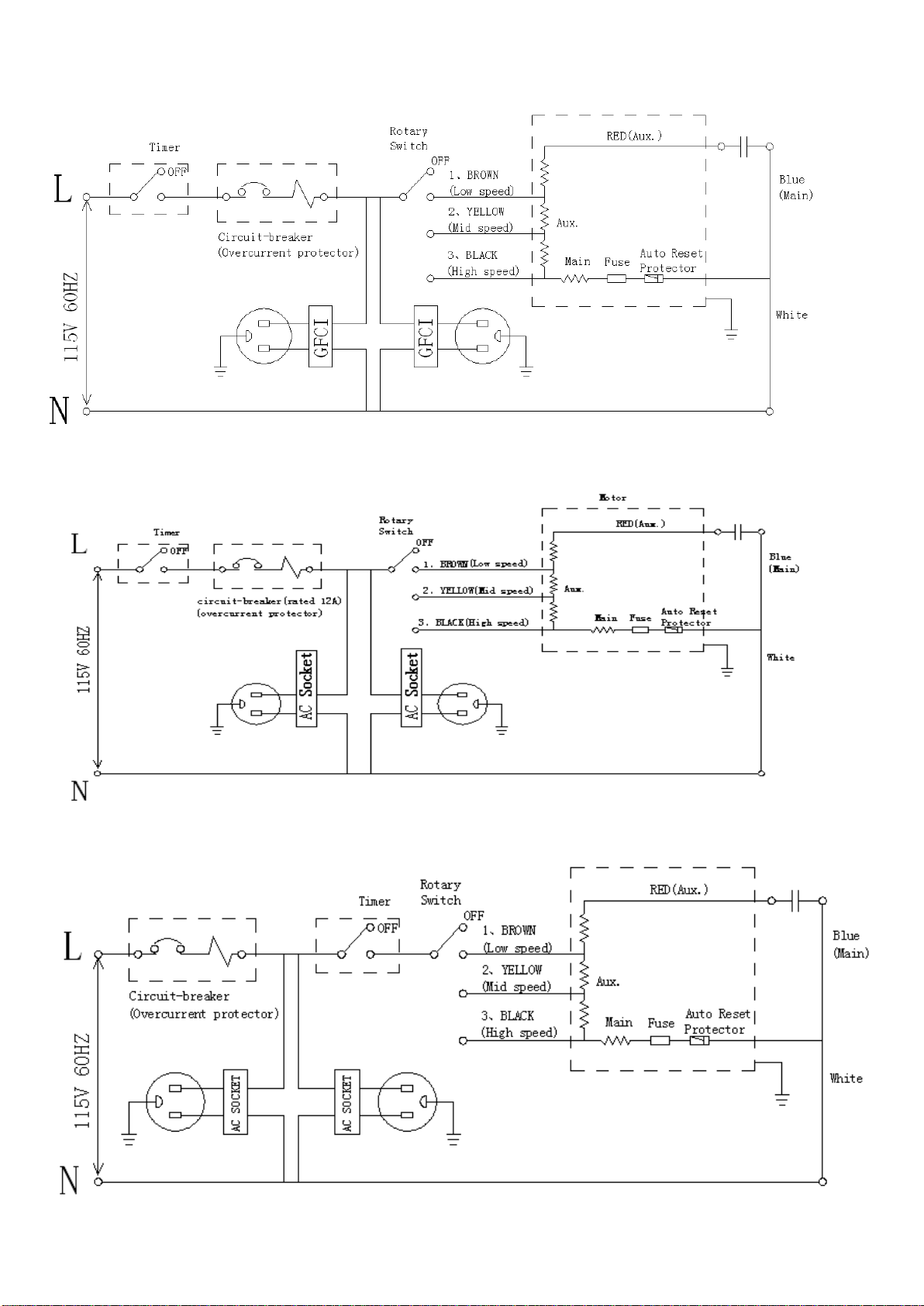

2. Wire Diagram
Fig. 5-A (X-600*AT */P-600*AT *, X-630AT * /P-630AT * )
Fig. 5-B (X-400AT */P-400AT *, X-430AT * /P-430AT * )
Fig. 5-C (X-200AT */P-200AT *，X-230AT */P-230AT *)

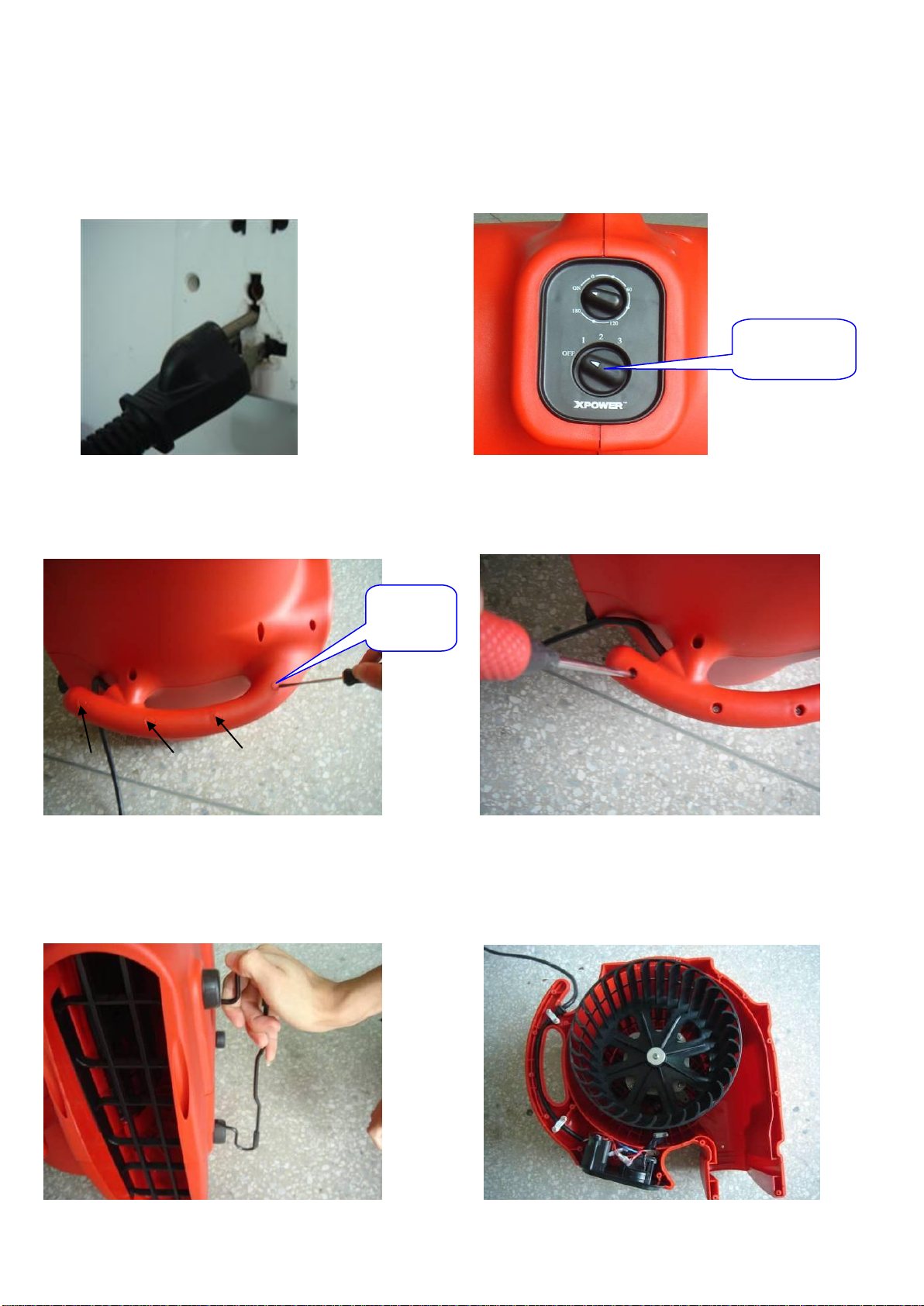

3. Steps of Disassembling：
3.1 Unplug Air Mover. (Fig. 6-1)
Turn on the switch to speed 3 to release the electricity of capacitor for 2 minutes, until the voltage
reduces to a safe voltage. (Fig. 6-2) (Note: if there is something wrong with voltage, the electricity of
capacitor cannot release normally. Do not touch live parts directly without insulation tools).
Fig. 6-1 Fig. 6-2
3.2 Use a flat-head screwdriver to pry out the four screw plugs near the handle. (Fig. 7)
3.3 Remove the screws from the housing. (Fig. 8)
Fig. 7 Fig. 8
3.4 Remove kick stand. (Fig. 9)
3.5 Remove right housing. (Fig. 10)
Fig. 9 Fig. 10
Speed
Switch Knob
Screw
Plug
4. Steps of Speed Switch Replacement
4.1 Open the right housing as in 3.1-3.5. Remove the five terminals from the Switch. (Fig. 11-A)
Or press the switch clip, remove the four terminals from the Switch. (Fig. 11-B)
Fig. 11-A Fig. 11-B
X-400AT * /P-400AT *, X-430AT * /P-430AT * X-200AT * /P-200AT *
X-600*AT */P-600*AT *, X-630AT * /P-630AT * X-230AT * /P-230AT *
4.2 Remove Switch Hold Clip screws. (Fig. 12)
Fig. 12-A Fig. 12-B
X-400AT * /P-400AT *, X-430AT * /P-430AT * X-200AT * /P-200AT *
X-600*AT */P-600*AT *, X-630AT * /P-630AT * X-230AT * /P-230AT *
4.3 Remove Speed Switch. (Fig. 13)
Fig. 13-A Fig. 13-B
X-400AT * /P-400AT *, X-430AT * /P-430AT * X-200AT * /P-200AT *
X-600*AT */P-600*AT *, X-630AT * /P-630AT * X-230AT * /P-230AT *
Switch
Hold Clip
Switch
Hold Clip
4.4 Replace a new Speed Switch in reverse order 4.1—4.3 and connect wires. (Fig. 21- 22)
5. Steps of Daisy Chain Replacement
5.1 Remove the screws from the Grille Cover. (Fig. 14)
Fig. 14-A Fig. 14-B
X-600*AT */P-600*AT * X-400AT */P-400AT *
X-630AT * /P-630AT * X-430AT * /P-430AT *
Fig. 14-C Fig. 14-D
X-200AT * /P-200AT * X-230AT * /P-230AT *
5.2 Unplug terminals connected to the Over Current Protector. (Fig. 15)
Fig. 15-A Fig. 15-B
X-600*AT */P-600*AT * X-400AT */P-400AT *
X-630AT * /P-630AT * X-430AT * /P-430AT *
Fig. 15-C Fig. 15-D
X-200AT * /P-200AT * X-230AT * /P-230AT *
5.3 Remove the fixed nut; remove Over Current Protector. (Fig. 16)
Fig. 16-A Fig. 16-B
X-600*AT */P-600*AT * X-400AT */P-400AT *
X-630AT * /P-630AT * X-430AT * /P-430AT *
Fig. 16-C Fig. 16-D
X-200AT * /P-200AT * X-230AT * /P-230AT *
5.4-A 600 models; Remove two screws from the socket; loosen the three screws to remove wires
from GFCI. (Fig. 17-A)
5.4-B 400 models; Remove the terminals connected to the socket, remove the socket. (Fig. 17-B)
