Xerox Phaser 6700 Manual de usuario

haser® 6700

olor Laser Printer

Phaser® 6700

Service Manual

Xerox Internal-Use Only

www MK-Electronic de

Chapter

Parts List

In this chapter...

! Serial Number Format

! Using the Parts List

! Print Engine Parts

! Feeder Parts Lists

! Finisher Parts

! Xerox Supplies and Accessories

! Service Kits

www MK-Electronic de

9-2 Xerox Internal Use Only Phaser 6700 Printer Service Manual

Serial Number Format

Changes to Xerox products are made to accommodate improved components as

they become available. When ordering parts, include this information:

• Component's part number

• Product type or model number

• Serial Number of the printer

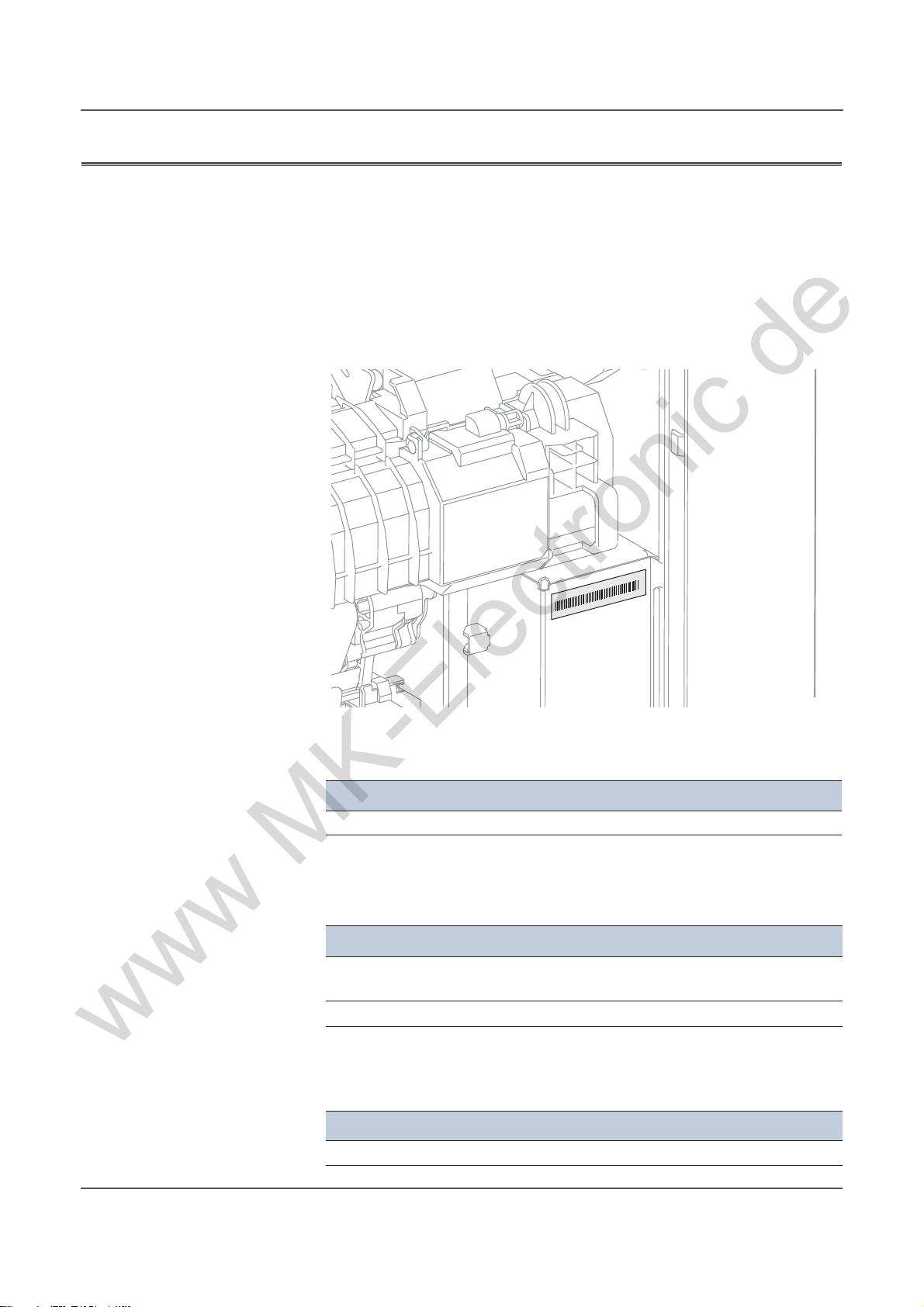

The serial number is located on the chassis near the Fuser. Open the Right Door to

view the serial number label. Serial number format is dependent on input voltage.

For 110V models, a nine-digit serial number uses this format PPPSSSSSS.

•PPP = Three-digit alphanumeric product code

•SSSSSS = Six-digit numeric serial number based on the following table. The

serial numbers are reset only when the ending number is reached or when the

revision number is rolled.

For 220V models, a ten-digit serial number uses this format MMMSSSSSSc.

•MMM = Three digit alphanumeric manufacturing location code

Product Code Product

AB9 6700, 110 V Engine

Product Starting Serial Number Ending Serial Number

6700_N, 110V Engine

6700_DN, 110V Engine

770502 860000

6700_YDN, 110V Engine 573501 673500

Product Code Product Location

AC0 6700V, 220 V Engine 317

ANUFACTURED: July 2011

Xerox S/N: TBD330001

s6700-597

www MK-Electronic de

Phaser 6700 Printer Service Manual Xerox Internal Use Only 9-3

•SSSSSS = Six digit numeric serial number based on the following table. The

serial numbers are reset only when the ending number is reached or when the

revision number is rolled

c = Check digit.

Examples

Xerox Serial Number = AB9774072

Product code for 110V printer = AB9

Serial number for 6700_N or 6700_DN = 774072

Xerox Serial Number = 3170057367

Manufacturing location code for 220V printer = 317

Serial number for 6700V_DN = 005736

Check digit = 7

Using the Parts List

Note

Parts with part numbers are available for order. Parts without part numbers

are only available with the parent assembly.

•Item: The item number in the parts diagram.

•Name/Description: Part nomenclature and number of parts per order.

•Part Number: The part number to order that specific part.

• Parts are referenced PL#.#.#; For example, PL3.1.10 means the part is item 10

of Parts List 3.1.

• A black triangle preceding a number followed by a parenthetical statement in

the parts diagram means the item is a parent assembly, made up of the

individual parts called out in parentheses.

• The notation “with X~Y” following a part name indicates an assembly made

up of components X through Y. For example, “1 (with 2~4)” means part 1

consists of part 2, part 3, and part 4.

• An asterisk (*) after a part indicates the page contains a note about this part.

• The notation “J1<>J2 and P2” is attached to a wire harness. It indicates

connector Jack 1 is attached to one end of the harness and connector J2 is

attached to the other end plugged into P2.

• Fastener location and type are indicated using designators. Refer to “Fastener

Types” on page 8-5 for a complete list of fasteners used, and “Hardware Kit -

604K56670” on page 9-102 for fasteners available in the Hardware Kit.

Product Starting Serial Number Ending Serial Number

6700V_DN, 220V Engine 001001 100500

Designator Fastener Type

E E-ring

KL K-clip

ST Screw, self-tapping

SM Screw, sheet metal

www MK-Electronic de

9-4 Xerox Internal Use Only Phaser 6700 Printer Service Manual

Print Engine Parts

Parts List 1.1 Covers (1/3)

6700-100

ST1

Front

ST1

SM2

3 (with 2, 6, 7,13)

(J370)

(J327)

www MK-Electronic de

Phaser 6700 Printer Service Manual Xerox Internal Use Only 9-5

Part List 1.1 Covers (1/3)

Item Description Part Number

1 Console Assy Panel 110V (Control Panel)

Console Assy Panel 220V

848E84850

2 Harness Opepane (J327-J370) (Control Panel Harness) 962K84820

3 Top Cover Assy (with 2, 6, 7, 13) 848K52492

5 Top Cover Add Tray (Output Tray) 848E53951

6 Top Cover

7 Guide Harness UI

9 Exit Cover 848K52500

10 Guide RH Rib

11 Cover RH Under (lower right cover)

13 Cover Top Rear

99 Kit Control Panel & Harness (with 1, 2)

www MK-Electronic de

9-6 Xerox Internal Use Only Phaser 6700 Printer Service Manual

Parts List 1.2 Print Engine Covers (2/3)

6700-101

ST1

ST1 ST1

SM6

SM2

Front

(P212)

(J302)

910

11 12

13 (with 22)

16 19

6 (with 7,8, Label YMCK)

17 (with 13-16,18-21)

24 (with 9-12,25)

1 (with 2-4)

www MK-Electronic de

Phaser 6700 Printer Service Manual Xerox Internal Use Only 9-7

Part List 1.2 Covers (2/3)

Item Description Part Number

1 Front Door Interlock Switch (I/L SW-J302) (with 2~4) 110K16170

2 Bracket Interlock Front

3 Front Door Open Switch 110E11580

4 Clamp Locking

5 Cover Front RH (upper front cover)

6 Cover Assy Inner Upper (with 7, 8, Label YMCK) 848K52470

7 Cover Inner Upper

8 Magnet Catch

9 Holder Spring Box

10 Spring Waste

11 Latch Waste Box

12 Spring Waste Box

13 Laser Lens Cleaning Tool (with 22) 042K94080

14 Holder Inter Lock Front

15 Actuator Inter Front

16 Spring Inter Lock Front

17 Front Door (with 13~16,18~21) (includes Xerox logo) 848K52463

18 Strap Cover Front 868E25990

19 Bracket Mag

20 Cover Front Lower

21 Cover Front Upper

22 Cleaning Pad

24 Cover Assy Inner Lower (with 9~12, 25) 848K52481

25 Cover Inner Lower

www MK-Electronic de

9-8 Xerox Internal Use Only Phaser 6700 Printer Service Manual

Parts List 1.3 Print Engine Covers (3/3)

6700-102

SM2

SM6

2 (with 7, 8)

[Ref PL11.2.2]

6 (with 1, PL11.2.2)

Front

www MK-Electronic de

Phaser 6700 Printer Service Manual Xerox Internal Use Only 9-9

Part List 1.3 Covers (3/3)

Item Description Part Number

1 Bracket I/L Rear

2 Cover LH (with 7, 8) 848K52511

3 Cover LH Finisher Upper (Upper Finisher Docking

Cover)

848E 54010

4 Cover Rear LH (Finisher Port Cover) 848E54040

5 Cover Assy Rear 848E54031

6 SW Assy I/L Rear (with 1, PL11.2.2) 110K16160

7 Cover LH Outer

8 Cover LH

9 Cover LH Finisher Lower (Lower Finisher Docking

Cover)

848E 54020

www MK-Electronic de
