Phaser®6200 Color Laser Printer

Regular Printer Maintenance

Your printer needs little maintenance other than periodic cleaning of the density sensor and replacing

the following Customer-Replaceable Consumables (CRCs) and Customer-Replaceable Units (CRUs):

■Toner cartridges (black, cyan, magenta and yellow) —see page 17

■Imaging unit —see page 18

■Transfer roller —seepage 23

■Fuser —see page 20

■Feed rollers —see page 25

Order extra printer supplies when the printer’s front panel displays a warning that the consumable is

low or near the end of its life. You must replace the consumable when the front panel displays an error

message that the consumable is empty or at the end of its life. For part number information, refer to the

Supplies section of the Support Guide on the Interactive Documentation CD-ROM. To order

consumables and other supplies, visit the Phaser®6200 Supplies and Accessories web site. Each item

includes installation instructions in the package.

Caution

Keep the imaging unit out of direct sunlight. Otherwise, faded images, light areas or dark

bands may result. Do not place the printer near vents or dust-producing equipment.

Warning

Do not burn the old toner cartridges, the imaging unit, the transfer roller, or the fuser.

Cleaning the outside of the printer

You can clean the outside of the printer with a soft, damp well-wrung cloth. You can use a cloth

moistened with a mild neutral detergent to remove stains; do not spray detergent directly onto the

printer.

Warning

To prevent electric shock, turn the printer off and unplug the power cord before cleaning the

printer.

Caution

Do not use a vacuum cleaner to clean the printer. Do not lubricate the printer with oil.

Regular Printer Maintenance

Phaser®6200 Color Laser Printer 15

Cleaning the density sensor

The printer stops printing when the density sensor is dirty. To clean the density sensor:

1. Use the latch on the front of the printer to open Front Door A.

2. Remove the transfer roller. Squeeze the orange tabs at both sides of the transfer roller and gently

lift it out of the printer.

3. Use a dry towel or cotton swab to wipe the density sensor.

6200-66

6200-23

6200-12

Regular Printer Maintenance

Phaser®6200 Color Laser Printer 16

Caution

Do not use canned air or isopropyl alcohol on the sensor.

4. Reinstall the transfer roller. Insert the rounded ends of the transfer roller into the curved black

guides inside the printer. Lock the transfer roller into the printer by pushing down on the orange

tabs until you hear a click.

5. Close the front door.

6200-24

6200-25

6200-64

Replacing a Toner Cartridge

Phaser®6200 Color Laser Printer 17

Replacing a Toner Cartridge

6-8x

4.2

2.1

4.1

2.2

Click

Declic

Clic

Klicken

Clic

Clique

Klik

Klick

Pull

Tirer

Tirare

Ziehen

Tirar

Puxe

Trek

Dra

Replacing the Imaging Unit

Phaser®6200 Color Laser Printer 18

Replacing the Imaging Unit

Pull

Tirer

Tirare

Ziehen

Tirar

Puxe

Trek

Dra

4.5 kg

10 lbs

PHASER

6200

Imprimante couleur laser

Uniteimageurcouleur

PHASER

6200

ColorLaser Printer

ColorImaging Unit

Replacing the Imaging Unit

Phaser®6200 Color Laser Printer 19

12 13

4.5 kg

10 lbs

Replacing the Fuser

Phaser®6200 Color Laser Printer 20

Replacing the Fuser

Phaser®6200 Color Laser Printer 21

11 12

Replacing the Fuser

Phaser®6200 Color Laser Printer 22

12 13

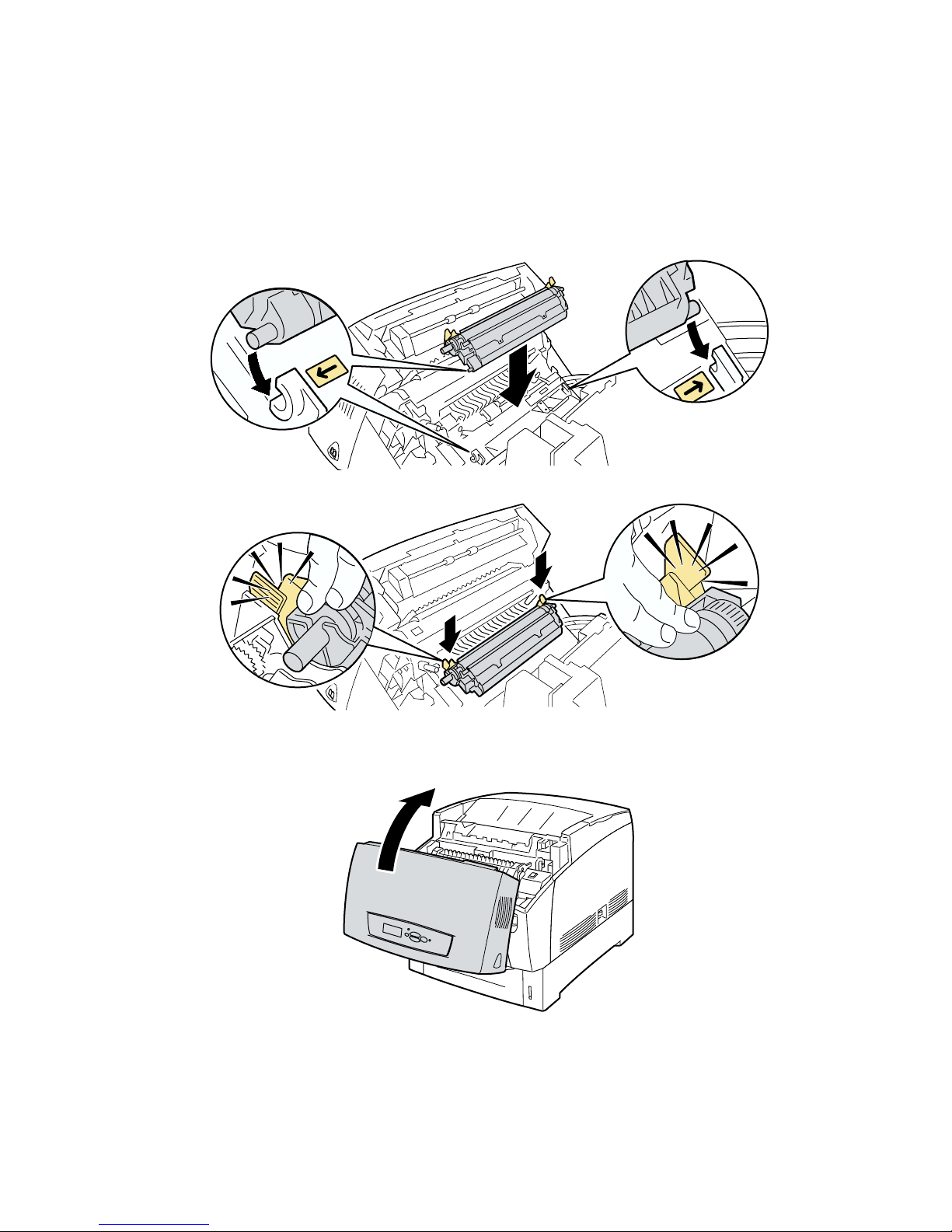

Replacing the Transfer Roller

Phaser®6200 Color Laser Printer 23

Replacing the Transfer Roller

3.13.1

3.2

3.3

4 5
