Xerox WorkCentre®M118/M118i

This guide includes instructions for:

■Navigating Display Screens on page 2

■Network Setup Using DHCP on page 2

■Network Setup Using a Static IP Address on page 3

■Verifying Network Setup Using CentreWare Internet Services (CentreWare IS) on page 4

This setup guide provides instructions for connecting the Xerox WorkCentre M118/M118i on an Ethernet

TCP/IP network. It includes procedures for setting up the network connection using either of the following

methods:

■DHCP: Use this method to allow a DHCP server to automatically assign an IP address. This is the factory

default setting.

■Static IP address: Use this method to manually assign an IP address provided by the network

administrator.

Note

The System Administrator Guide provides detailed instructions for setting up a network connection. If you

are using Novell IPX, refer to the System Administrator Guide for setup procedures.

Before You Begin

Before turning on the machine:

■Confirm that an existing operational network utilizing TCP/IP is available.

■Confirm that the Ethernet cable is plugged into the machine and is connected to an operational Ethernet

port on the network.

Note

The RJ45 Ethernet cable is not supplied by Xerox.

Network Connection

Quick Setup Guide

701P42575

Navigating Display Screens

Xerox WorkCentre M118/M118i

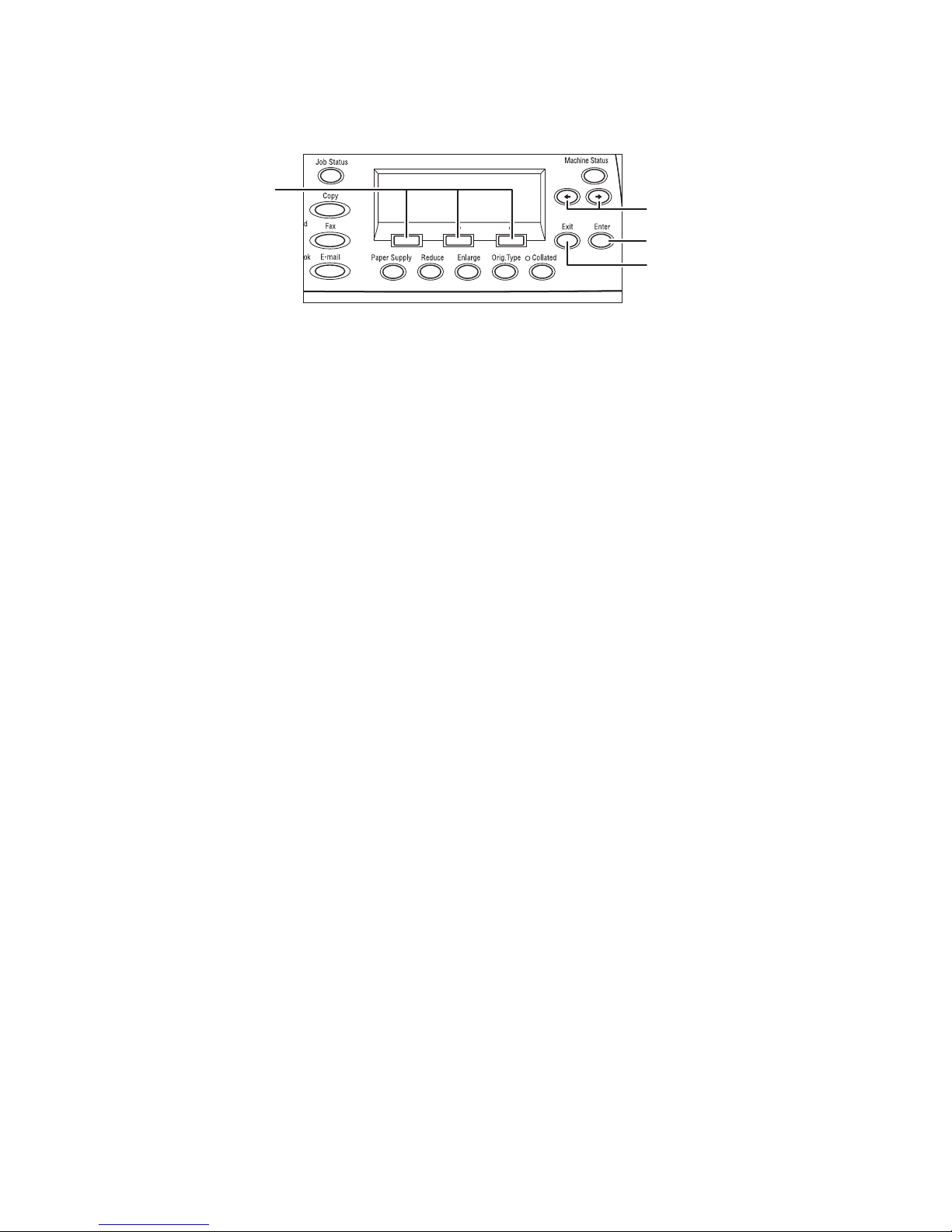

Navigating Display Screens

1. Use the Select buttons to select items on the display and to scroll through menus.

2. Use the Right Arrow and Left Arrow buttons to navigate screens or to move from one entry field to

another.

3. Use the Enter button to accept the currently selected item on the display.

4. Use the Exit button to return to the previous display screen.

Network Setup Using DHCP

When the machine starts up after power on, it automatically uses DHCP to obtain its network configuration

information. A DHCP server delivers an IP address as well as other configuration settings to the machine.

To set up the network connection using DHCP:

1. Turn on the machine.

2. After the machine starts up, it negotiates with the DHCP server for an IP address. Wait two minutes for the

network setup to complete, and then print the System Settings List:

a. On the control panel, press the Machine Status button.

b. User the Select button below the display to highlight Report/List, and then press the Enter button.

c. Press the Right Arrow button.

d. Press the Select button until you see System Settings on the display, and then press the Enter

button.

e. Press the Start button to print the System Settings List.

3. In the Communications Settings section of the System Settings List, confirm that an IP address has been

allocated and that it is an appropriate IP address for your network.

Note

If the IP address starts with 167.xxx.xxx.xxx, the DHCP server has not properly allocated an address

or DHCP is not enabled on your network. Contact your network administrator for assistance.

4. Use CentreWare IS to verify the network setup. See Verifying Network Setup Using CentreWare Internet

Services (CentreWare IS) on page 4.

Network Setup Using a Static IP Address

Xerox WorkCentre M118/M118i

Network Setup Using a Static IP Address

When the machine is powered on, it automatically uses DHCP to obtain its network configuration. To use a

static IP address, DHCP must be turned off and the IP address, gateway address, subnet mask, and

DNS Server address must be entered manually.

Pre-requisites for Using a Static IP Address

Before you begin, obtain the following information from your network administrator:

Connecting the Machine Using a Static IP Address

1. Turn on the machine.

2. When the machine is Ready, press the Log In/Out button.

3. Press the Select button below the display to select System Settings.

a. Use the numeric keypad to enter the Password. The default password is 11111.

b. Press the Select button to select Confirm.

Turn DHCP Off

1. Press the Select button to highlight Print Settings,and then press the Enter button.

2. Press the the Enter button to select Network/Port.

3. Press the Select button until you see TCP/IP Settings on the display, and then press the Enter button.

4. Select Get IP Address,and then press the Enter button.

5. Select Manual,and then press the Enter button.

6. Press the Exit button.

Set the IP Address

1. Press the Select button until you see IP Address on the display,, and then press the Enter button.

2. If there is an incorrect IP address in the field, press the Clear button to delete the address.

3. Use the numeric key pad to enter the first number of the IP address, and then press the Right Arrow button

to move to the next field.

4. Repeat Step 3 to enter the remaining numbers.

5. Press the Enter button to accept the address.

6. Press the Exit button.

IP Address: __________ . __________ . __________ . __________

Gateway Address: __________ . __________ . __________ . __________

Subnet Mask: __________ . __________ . __________ . __________

DNS Server Address: __________ . __________ . __________ . __________

Verifying Network Setup Using CentreWare Internet Services (CentreWare IS)

Xerox WorkCentre M118/M118i

Set the Gateway Address

1. Press the Select button until you see Gateway Address on the display,, and then press the Enter button.

2. Use the numeric key pad to enter the first number of the gateway address, and then press the Right Arrow

button to move to the next field.

3. Repeat Step 2 to enter the remaining numbers.

4. Press the Enter button to accept the address.

5. Press the Exit button.

Set the Subnet Mask

1. Press the Select button until you see Subnet Mask on the display,, and then press the Enter button.

2. Use the numeric key pad to enter the first number of the subnet mask, and then press the Right Arrow

button to move to the next field.

3. Repeat Step 2 to enter the remaining numbers.

4. Press the Enter button to accept the subnet mask.

5. Press the Exit button.

6. Press the Log In/Out button to return to the main menu.

7. Use CentreWare IS to set the DNS server address. See Verifying Network Setup Using

CentreWare Internet Services (CentreWare IS) on page 4.

Verifying Network Setup Using CentreWare Internet

Services (CentreWare IS)

CentreWare IS provides a simple interface that enables you to manage, configure, and monitor networked

printers from your desktop using an embedded web server. CentreWare IS gives administrators easy access to

printer status, configuration, and diagnostic functions. It also provides users with access to printer status and

special printing functions such as printing saved jobs. With CentreWare IS software, you can access and

manage your printers over a TCP/IP network using a web browser.

Note

To enter network configuration settings via CentreWare IS, your computer must be on the same subnet as

the Xerox WorkCentre M118/M118i. For additional information about using CentreWare IS, see the

User Guide and the System Administration Guide.

To verify your network setup using CentreWare IS:

1. At your computer, launch your web browser.

2. Enter the machine’s IP address in the browser’s Address field (http://xxx.xxx.xxx.xxx).

3. Click the Properties tab.

4. Select the Protocol Settings folder on the left sidebar, and then select TCP/IP.

Verifying Network Setup Using CentreWare Internet Services (CentreWare IS)

Xerox WorkCentre M118/M118i

5. If you are using a static IP address, enter the DNS server address in the DNS Address 1 field, and then

click the Apply New Settings button at the bottom of the page.

6. Enter the default user ID and password in the Connect to [ip address] dialog box, and then click the OK

button.

■Default user ID: admin

■Default password: x-admin.

The user ID and password should be changed after network setup is complete.
