Wouxun KG-1000G Manual de usuario
ank you for purchasing the Wouxun KG-1000G mobile GMRS radio.
Your feedback makes our products better. Please share your thoughts.
feedback@buytwowayradios.com
www.buytwowayradios.com
2
Contents
Safety InformationSafety Information������������������������������������������������������������������������������������5
FCC Licensing Information...........................................................................9
Installation and SetupInstallation and Setup ����������������������������������������������������������������������������� 10
What’s Included ...........................................................................................10
Transceiver Installation.................................................................................11
Connecting a Power Source..........................................................................13
Replacing the Fuse........................................................................................14
Connecting an Antenna................................................................................15
Front Panel Installation ................................................................................16
External Speakers .........................................................................................21
Hand Microphone Installation.....................................................................22
Getting StartedGetting Started��������������������������������������������������������������������������������������� 23
Feature Summary..........................................................................................23
Front Panel Guide ........................................................................................25
3
LCD Guide ..................................................................................................26
Back Panel ....................................................................................................27
Side Panels....................................................................................................27
Hand Microphone ........................................................................................28
Basic OperationBasic Operation �������������������������������������������������������������������������������������� 29
Introducing GMRS and the KG-1000G......................................................29
Your First Transmit.......................................................................................30
Dual Display: Using Areas “A” and “B”.........................................................32
Frequency and Channel Modes ....................................................................33
NOAA Weather Mode.................................................................................35
Using the Repeater Channels .......................................................................36
Hand Microphone Hotkeys .........................................................................39
Menu FunctionsMenu Functions ������������������������������������������������������������������������������������� 48
Advanced OperationAdvanced Operation ������������������������������������������������������������������������������� 70
4
DTMF Encoding .........................................................................................70
Repeater Mode Operation............................................................................71
Setting Non-Standard CTCSS or DCS.......................................................75
TroubleshootingTroubleshooting ������������������������������������������������������������������������������������� 78
Technical InformationTechnical Information ���������������������������������������������������������������������������� 80
Specications ................................................................................................80
Standard CTCSS and DCS Tones ...............................................................81
Default GMRS Channels and Frequencies ..................................................83
Optional AccessoriesOptional Accessories������������������������������������������������������������������������������� 86
Limited WarrantyLimited Warranty ����������������������������������������������������������������������������������� 87
5
Safety InformationSafety InformationSafety InformationSafety Information
e KG-1000G is an electrical apparatus, as well as a generator of RF (Radio Frequen-
cy) energy, and you should exercise all safety precautions as are appropriate of this type
of device. ese safety tips apply to any device installed in a well-designed radio station.
⚠
Explosive atmospheres (gases, dust, fumes, etc.). Turn OFF your mobile radio while
taking on fuel or while parked in gasoline service stations. Do not carry spare fuel
containers in the trunk of your vehicle if your mobile radio is mounted in the trunk
area.
⚠
Injury from radio frequency transmissions. Do not operate your mobile radio when
somebody is either standing near to or touching the antenna, to avoid the possibili-
ty of radio frequency burns or related physical injury.
⚠
Dynamite blasting caps. Operating the mobile radio within 150m (500 feet) of
dynamite blasting caps may cause them to explode. Turn OFF your mobile radio
when in areas where blasting is in progress, or where “TURN OFF TWO-WAY
RADIO” signs have been posted. If you are transporting blasting caps in your vehi-
cle, make sure they are carried in a closed metal box with a padded interior. Do not
transmit while the caps are being placed into or removed from the container.
6
Safety Information
⚠
Never allow unsupervised children to play in the vicinity of your mobile radio or
antenna installation.
⚠
Be certain to wrap any wire or cable splices thoroughly with insulating electrical
tape, to prevent short circuits.
⚠
Do not route cables or wires through door jambs or other locations where, through
wear and tear, they may become frayed and shorted to ground or to each other.
⚠
Do not stand in front of a directional antenna while you are transmitting into that
antenna. Do not install a directional antenna in any location where humans or pets
may be walking in the main directional lobe of the antenna’s radiation pattern.
⚠
In mobile installations, it is preferable to mount your antenna on top of the roof of
the vehicle, if feasible, so as to utilize the car body as a counterpoise for the antenna
and raise the radiation pattern as far away from passengers as possible.
⚠
During vehicular operation when stopped (in a parking lot, for example), make it a
practice to switch to Low power if there are people walking nearby.
7
Safety InformationSafety Information
⚠
Never wear dual-earmu headphones while driving a vehicle.
⚠
Do not attempt to drive your vehicle while entering frequencies or accessing menu
items using the DTMF microphone, front panel or the base unit. Pull over to the
side of the road and put the vehicle in park before adjusting or programming the
transceiver.
Notice
▪
ese tips are important for safe operation of your KG-1000G
mobile radio and its accessories. If they do not function normal-
ly, please get in touch with your dealer immediately.
▪
If you use components or accessories not produced by the
Wouxun Company, Wouxun will not guarantee the safety and
usability of the transceiver.
8
Safety Information
Caution
Please read this manual before using, as it includes important instructions for the safe
handling, use and operation of your radio.
FCC Compliance
is device complies with Part 15 of the FCC Rules. Operation is subject to the follow-
ing two conditions:
(1) is device may not cause harmful interference, and
(2) is device must accept any interference received, including interference that may
cause undesired operation.
WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR
RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC
RULES AND US FEDERAL LAW.
9
Safety InformationSafety Information
Radio Operation and EME Exposure
Use only an antenna designed for use with this radio and its operating frequencies. Un-
authorized modications or attachments may damage the radio and violate FCC rules.
DO NOT hold the antenna while the radio is in use.
DO NOT attempt to use the radio with a damaged antenna or feed line.
FCC Licensing Information
e Wouxun KG-1000G is FCC Part 95E type accepted for use on the GMRS. e
KG-1000G operates on General Mobile Radio Service (GMRS) frequencies according
to the Federal Communications Commission (FCC) Rules in the United States. As
such, a GMRS license is required to transmit on these frequencies. To obtain an FCC
license for the GMRS, please go to the FCC’s web site and complete the online appli-
cation or request FCC Form 605.
10
Installation and SetupInstallation and Setup
What’s Included

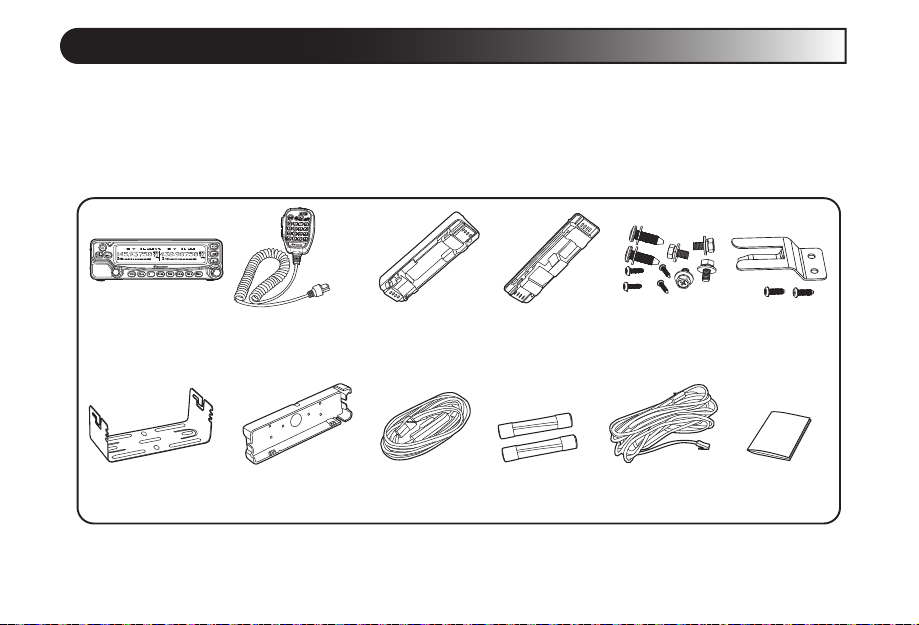

Carefully unpack the contents of the box and be sure that you have the items in the list
below. If any items are missing, please contact your dealer.
FM N FM NRxCT RTX
DCS TX Rx CT R
DCS TT
BUSY 1 3 5 7 9 BUSY 1 3 5 7 9
B/SW
Mobile/Base
Transceiver
Hand
Microphone
Inclined Switchboard
Panel (Already Installed
on Mobile Transceiver)
Flat Switchboard
Panel
Screw Sets Hand
Microphone
Hook
Mobile Mounting
Bracket
Remote Front
Panel Bracket
Mobile Power
Cord
Fuse Extension
Cable
User Manual
