Worx Landroid WR101SI Manual de usuario

Installation guide EN

Original instructions EN

How to install your Landroid®

The installation of the Landroid®is easy. Depending on the size of your garden, the entire process only

takes a short amount of time. If you are like us, you hate wasting your time to mow your lawn. The

Landroid®will prove to be a great investment, providing you with years of lawn care.

You can watch the installation demo video at www.worxlandroid.com.

The Landroid®loves to mow

It is designed to mow often, maintaining a healthier and better looking lawn than ever before. Depending on the

size of your lawn, the Landroid®may be programmed to operate at any time or frequency with no restrictions. It

is here to work for you.

Preparation

Before starting the installation read through this entire Installation Guide carefully. Drawing a sketch of the

working area including all obstacles will make you easier to see the ideal positions for the charging base and

where the boundary wires should be routed.

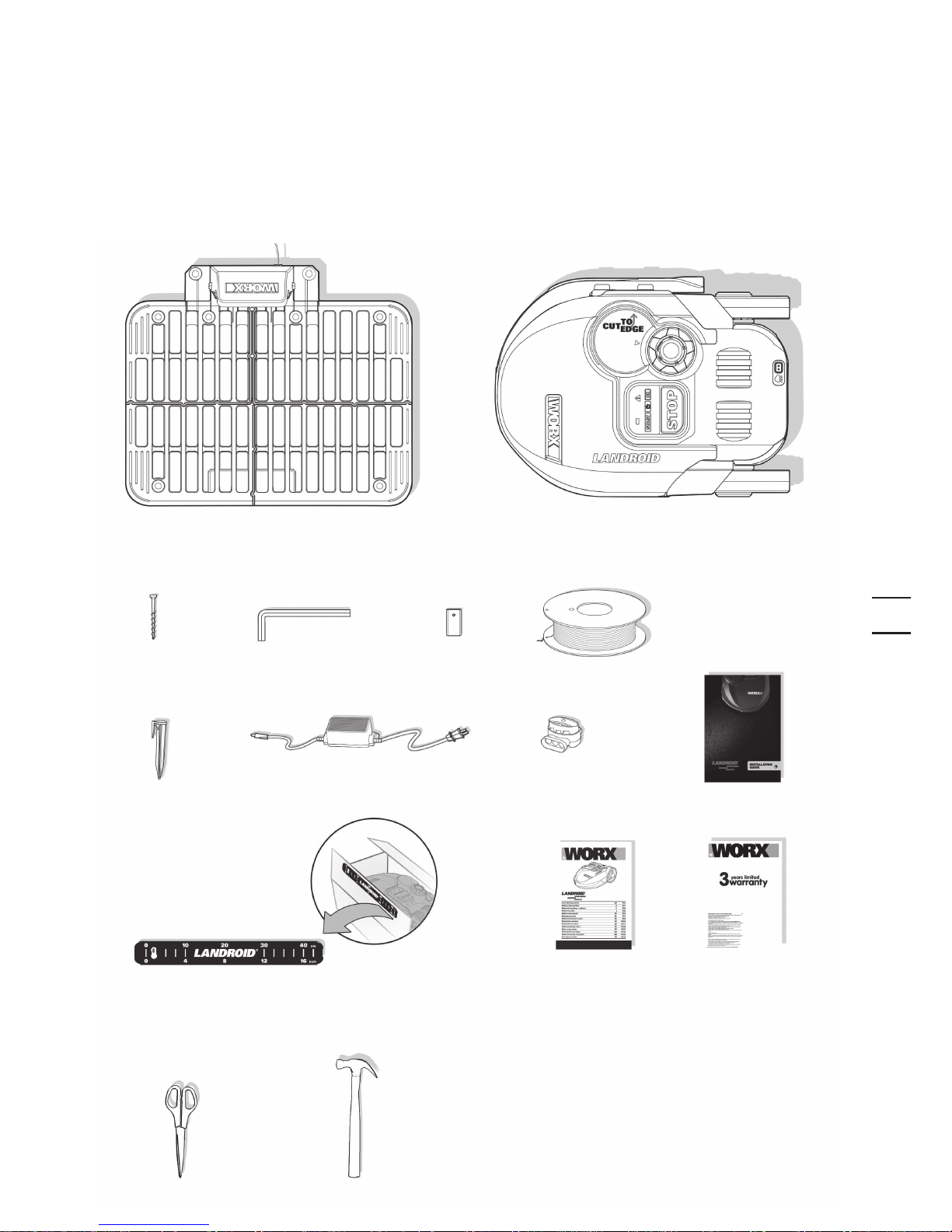

In the box

From your shed

Distance gauge

Hex key Spare blades

Scissors Hammer

Landroid®

Charging base

Base ﬁxing nails

Wire pegs

Boundary

wire reel

Installation

guide

Warranty statementOwner’s manual

Power Adaptor Connector

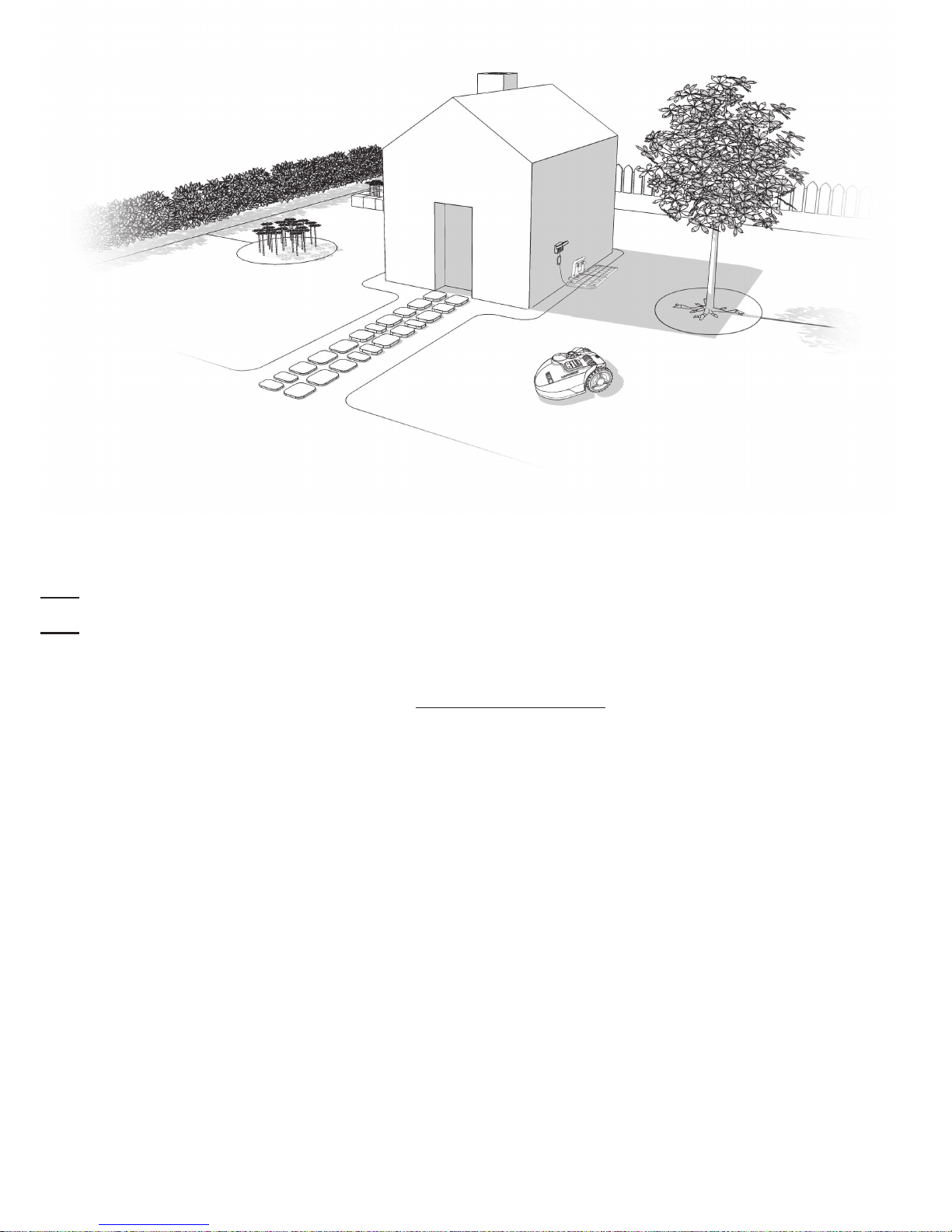

Landroid®'s new home-your garden

Let's start by having a closer look at Landroid®’s new home—your lawn—highlighting the areas where it

can safely go and areas it’s best for Landroid®to avoid.

When hitting any obstacle that’s rigid, stable and taller than

10cm—such as a wall or a fence—your Landroid®will simply

stop and re-direct away from the obstacle.

Obstacles that can be hit

Stones that are heavy enough not to be moved by your

Landroid®can be safely hit. However, if any stone has an

inclined surface that your Landroid®can climb, you should

either remove it or exclude it from the working area.

Stones

If your driveway is level with your lawn, without any protruding

surface, the Landroid®can freely run over it. If you'd like the

Landroid®to avoid it, place the boundary wire 10cm* away from it.

If it’s covered with gravel, you should not allow the Landroid® to

travel over it, using the distance gauge for spacing in this case,

keeping a 26cm* space between the boundary wire and the

driveway.

* This is the recommended distance. Use the provided distance

gauge to ensure proper installation.

Driveways

Roots emerging from the ground should be avoided to prevent

unwanted damages.

Trees

You certainly don’t want your Landroid®to mow your ﬂowers, or

fall into the water. These areas should be avoided.

Additionally, obstacles that are 2cm-10cm high should also be

excluded from Landroid®’s operation area.

Flowerbeds, ponds, pools...

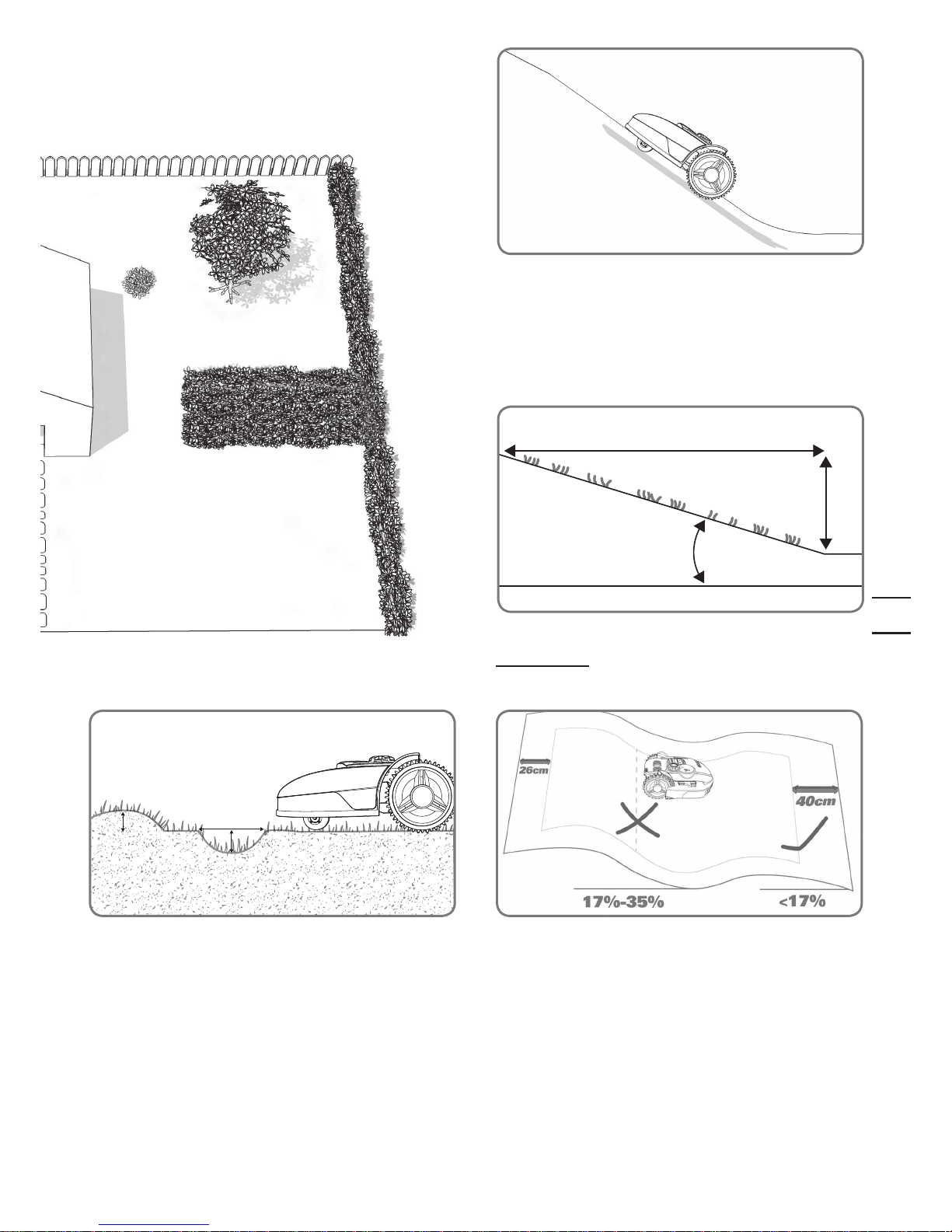

35% (20°)

In the case of large bumps (higher than 2cm) or dips (wider than

10cm and deeper than 2.5cm), please consider if the blades

would touch the ground or if Landroid®would stuck on them;

if this is the case, either make the inclines smoother or exclude

these areas from your Landroid®’s operation.

Depressions and bumps

Your Landroid®has the ability to safely climb slopes up to 35%

(20°), so just avoid areas steeper than this.

So the slope would be:

35cm (Elevation)

100cm (Length) =35% (slope)

Slopes

The Upper Boundary Wire should NOT be placed on slopes

steeper than 35% (20°). The Upper Boundary Wire should have

a distance of at least 26cm between any obstacles. The Lower

Boundary Wire should NOT be placed on slopes steeper than

17% (10°). The Lower Boundary Wire should have a distance of

at least 40cm between any obstacles when it is positioned on

a slope that is 17%.

NOTE: The lower boundary wire cannot be laid across a slope

steeper than 17%, or Landroid®will slip and cross outside the

wire, especially when the grass is wet.

Placement of Boundary Wire on slopes

Upper boundary wire

Lower boundary

Wire

Lower boundary

Wire

**How to calculate the slope of your lawn?

100cm

35cm

Length

Elevation

Max. 35% slope

Max.10cm

Max.2.5cm

Max.2cm

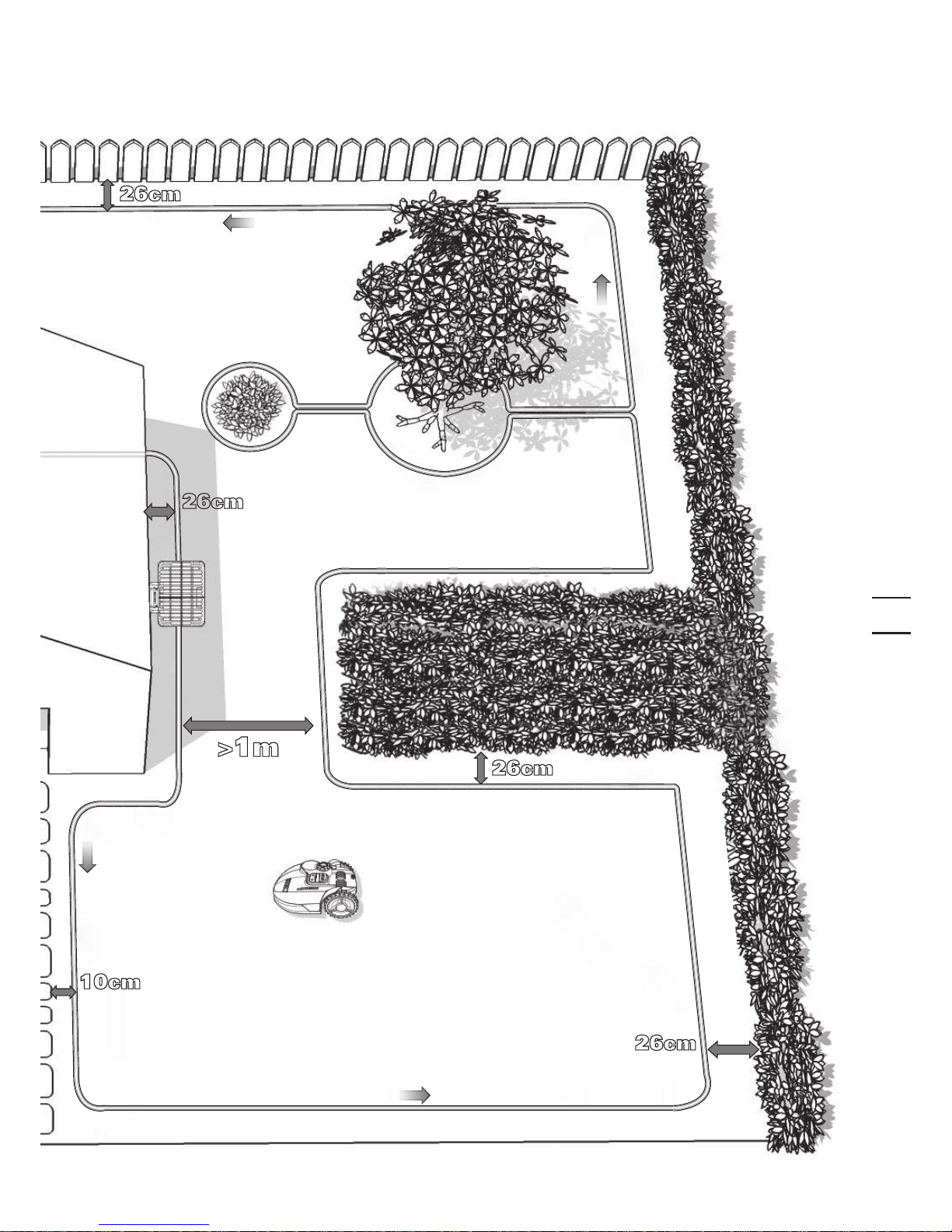

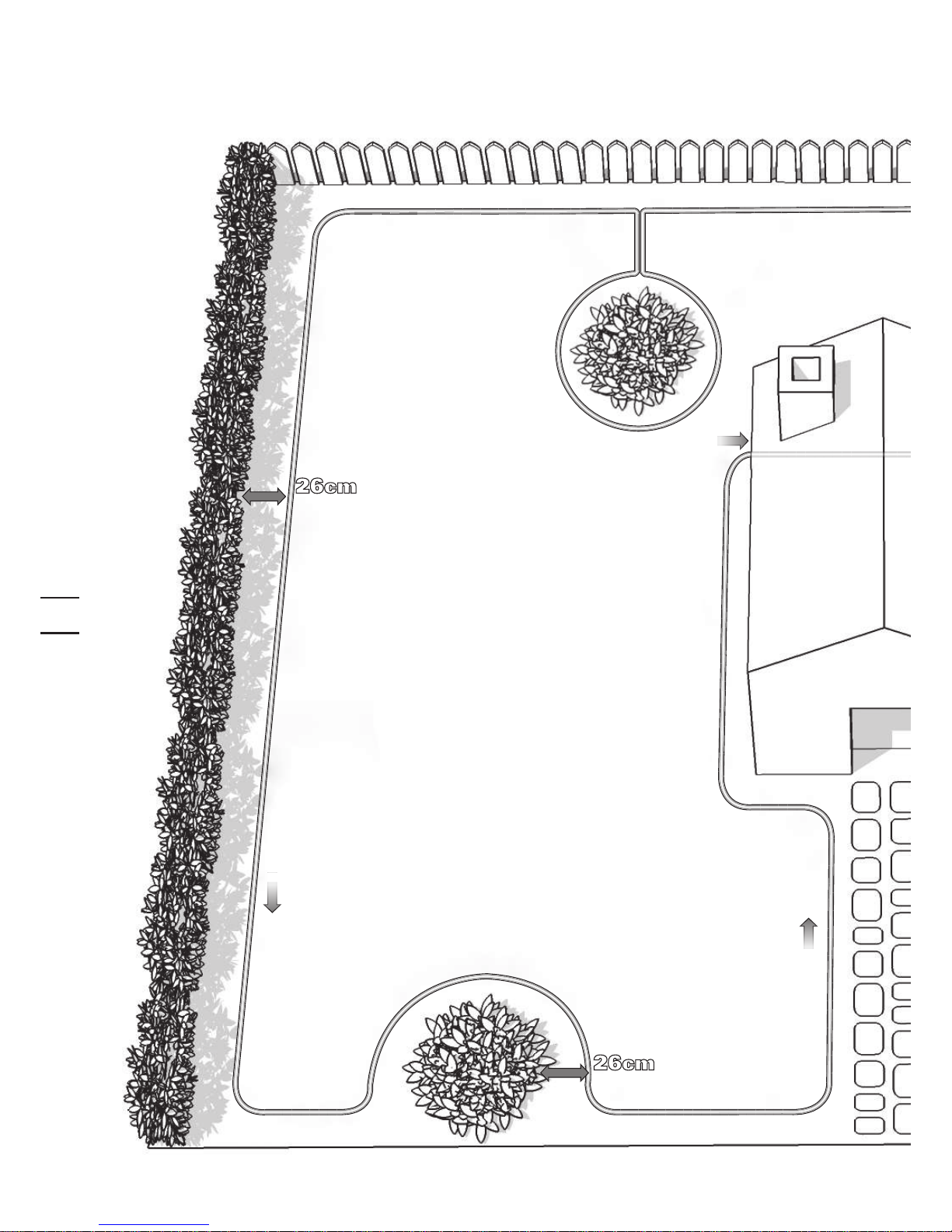

Installation

26cm

See details on step 2.2

See details on step 2.1

See details on step 2.3

10cm

26cm

>1m

See details on step 2.5

See details on step 2.7

See details on

step 2.4

See details on

step 1 & 3

CHARGING

BASE

90o

First of all, ﬁnd a spot for the charging base, taking into account the position of your outdoor electrical outlet since the charging base

only has a 10m power cord.

NOTE: Make sure the adaptor and the electrical outlet are always kept in a dry place.

Your Landroid

needs to know where to mow. This is why you have to mark its working area with a boundary wire

that will form an invisible fence. This wire will also guide your Landroid

to its charging base.

If your neighbor also uses a Landroid

, then you must keep a space of at least 0.5 metres between your

boundary wire and your neighbor's.

Landroid®’s charging base is allowed to be placed against the wall

or fence, with the charging components facing into your lawn.

Allow a straight boundary wire, at least 2m long with no obstacles

to the left and right of the charging base. If possible, place the

charging base in the shade, and batteries are better recharged in a

cool place.

1.1

The charging base must be positioned on relatively level ground.

It must not be positioned on an inclined surface or a place that

makes its plate bend.

There are grooves on the charging base. Slide the boundary wire

in, and the grooves guides the boundary wire to the wire terminal.

1.2

1. Placing the Charging Base
