1. HOW LANDROID WORKS

In the following section, we would like to help you better understand how Landroid works.

Landroid is an autonomous machine, capable of operating on its own. It knows when it needs to go to its charging base, can sense

when it is raining, can stop itself if it senses a problem and knows to stop, draw back, and turn around when it bumps into something

blocking its path. To prevent an accident, Landroid will also automatically stop its blade disc from rotating if it is lifted off the ground.

1.1 Charges itself

When your Landroid needs to recharge, it will stop mowing and follow the boundary wire in an anti-clockwise direction back to its

charging base. Once charging is complete, Landroid will automatically resume mowing or stay in the charging base according to its

mowing schedule.

1.2 Border management

Landroid is programmed to mow the grass along the perimeter of your lawn twice a week on Monday and Friday. If you want to change

this pre-set,

you can modify it via your smartphone or by using the control panel in “Work time-Customize Work time” menus.See

detailed instructions at the end of this manual.

1.3 Rain sensor

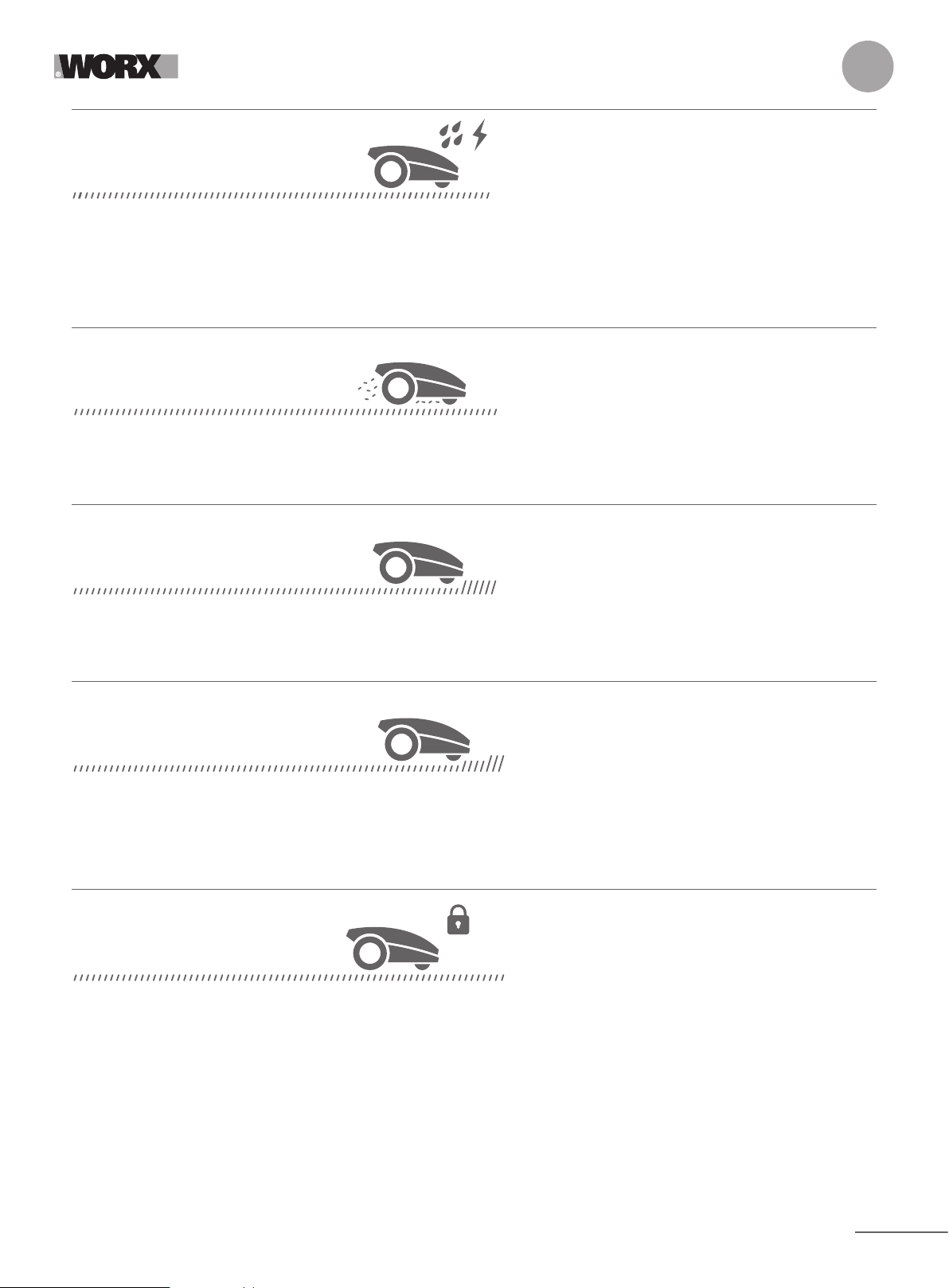

Landroid is 100% weather proof and happy to be outside. But mowing wet grass does not give you the best ﬁnish or result. Landroid

is equipped with a rain sensor which detects rain and tells Landroid to stop mowing and go back to its charging base.

1.4 Rain delay time

After a rainfall, Landroid re-starts when the grass is no longer wet. The default Rain Delay time is 180 minutes. You can change the

Rain Delay time setting via Landroid App

1.6 No more grass clippings to collect

Landroid’s daily mowing produces very short clippings that don’t need to be raked. These clippings are a perfect organic nutrient for

your lawn. Frequent mowing boosts the density of grass blades and effectively prevents the propagation of weeds.

1.7 Cut to edge

Landroid M and L models have a cut to edge feature. The special offset blade gets as close as possible to the border of your lawn,

leaving you little or no trimming to do.

1.8 Cutting Height

Before starting your Landroid for the ﬁrst time, make sure your grass is no longer than 10cm. If longer, use a regular mower to cut it

before operating Landroid. If you want to drastically shorten the height of your grass, it is recommended that you do so progressively,

by adjusting the cutting height in steps.

1.9 Security & PIN Protection

To prevent unauthorised people from being able to use it, Landroid is protected by a PIN code that you can easily set up.

1.5 In more extreme weather

In case of a lightning storm, protect Landroid by unplugging the charging base, disconnecting the boundary wire, and making sure

Landroid is not allowed to charge. In the Winter and especially in case of very cold weather and snow, we recommend you store your

Landroid inside. In some countries we offer a Winter servicing of your Landroid so it’s ready for the Spring growing season. Contact

your dealer or check online for more details.

Worx Landroid

Wire repair connectors

Spare blades kits

Hex key

Charging base

Screws

Wire pegs

Power supply

Boundary wire

20V battery

Boundary wire distance gauges

Bertelsen ruler

Manuals

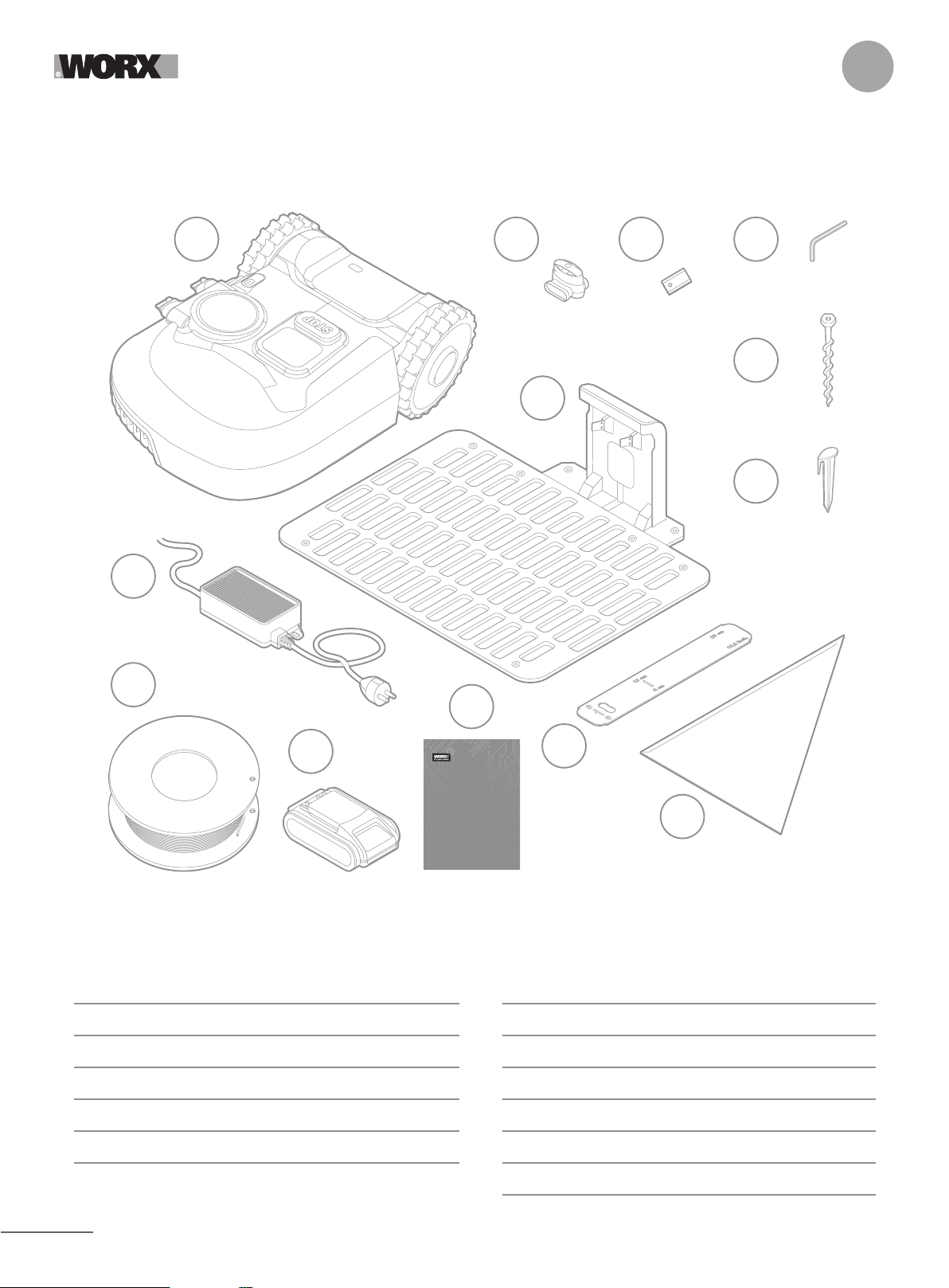

WHAT’S IN THE BOX

26 cm

10 cm

10,2 inch.

4 cm

A B C D

The picture is only for reference

2. INSTALLATION

Installing your Worx Landroid is easier if you carefully follow these instructions. In the end, it is a matter of installing the charging sta-

tion and laying the boundary wire all around your lawn. In addition to this manual, you can use the Get Started guide that’s inside the

box and watch the comprehensive video tutorials on our YouTube channel*.

* This information is provided for your convenience but does not replace the instruction manual and the safety instructions that needs

to be read and understood.

2.1 EVERY MINUTE SPENT IN PLANNING SAVES YOU 10 MINUTES IN EXECUTION

Installing Landroid is even easier if you have made a clear idea of what you need to do. Proper planning will also help you avoid

mistakes or having to rework the installation once it’s done.

2.1.1 On the surface or buried?

Landroid’s boundary wire is designed to stay on the surface of your lawn. Nearly invisible from the ﬁrst day, it will be engulfed in

the soil in a few weeks. If you will want to bury the wire, it is recommended to ﬁrst peg it down and test the installation is succes-

sful by running Landroid over the perimeter. This allows you to easily check everything and, if necessary, change the layout before

burying the wire. Bury the wire no more than a few centimetres below ground level, so that the wire ensures good signal.

2.1.2 Plan for the charging station

The charging station is where your Landroid goes to have its battery recharged. It’s also the parking lot where it rests in between

one mowing session and the next.

Locate a proper position for it, bearing in mind:

A. It needs to be powered, so it should be no more than 10m away from an AC mains outlet

B. If possible, choose a shaded position as batteries and chargers don’t like over-heating

C. The base needs to sit on ﬂat land to ensure effective docking

D. Avoid places close to irrigation sprinklers

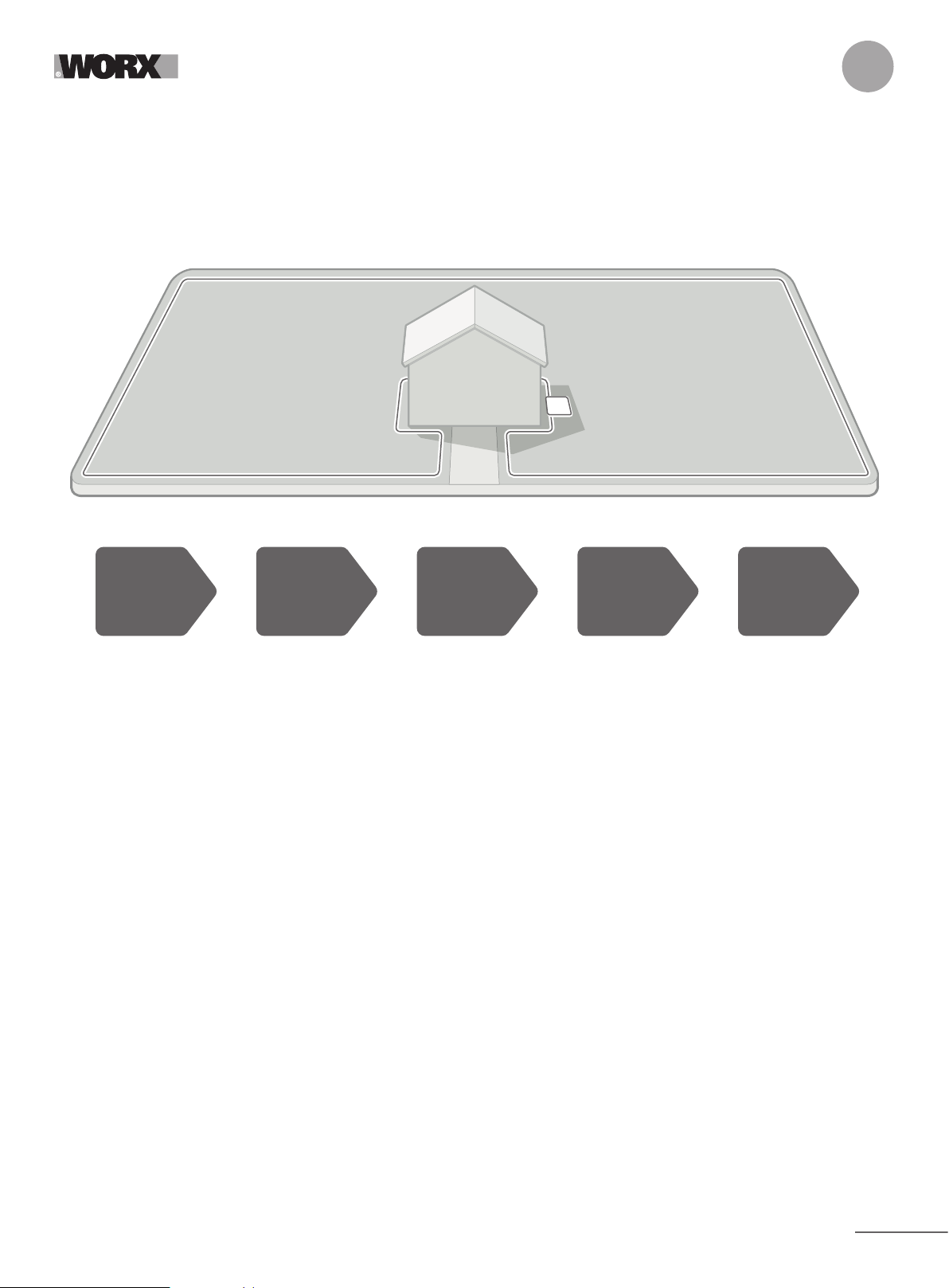

Patrol your

lawn to plan

installation

Lay the

boundary

wire

Power up

Landroid.

Test and

get ready to

mow

Connect

charging

station to

Install the

charging

station

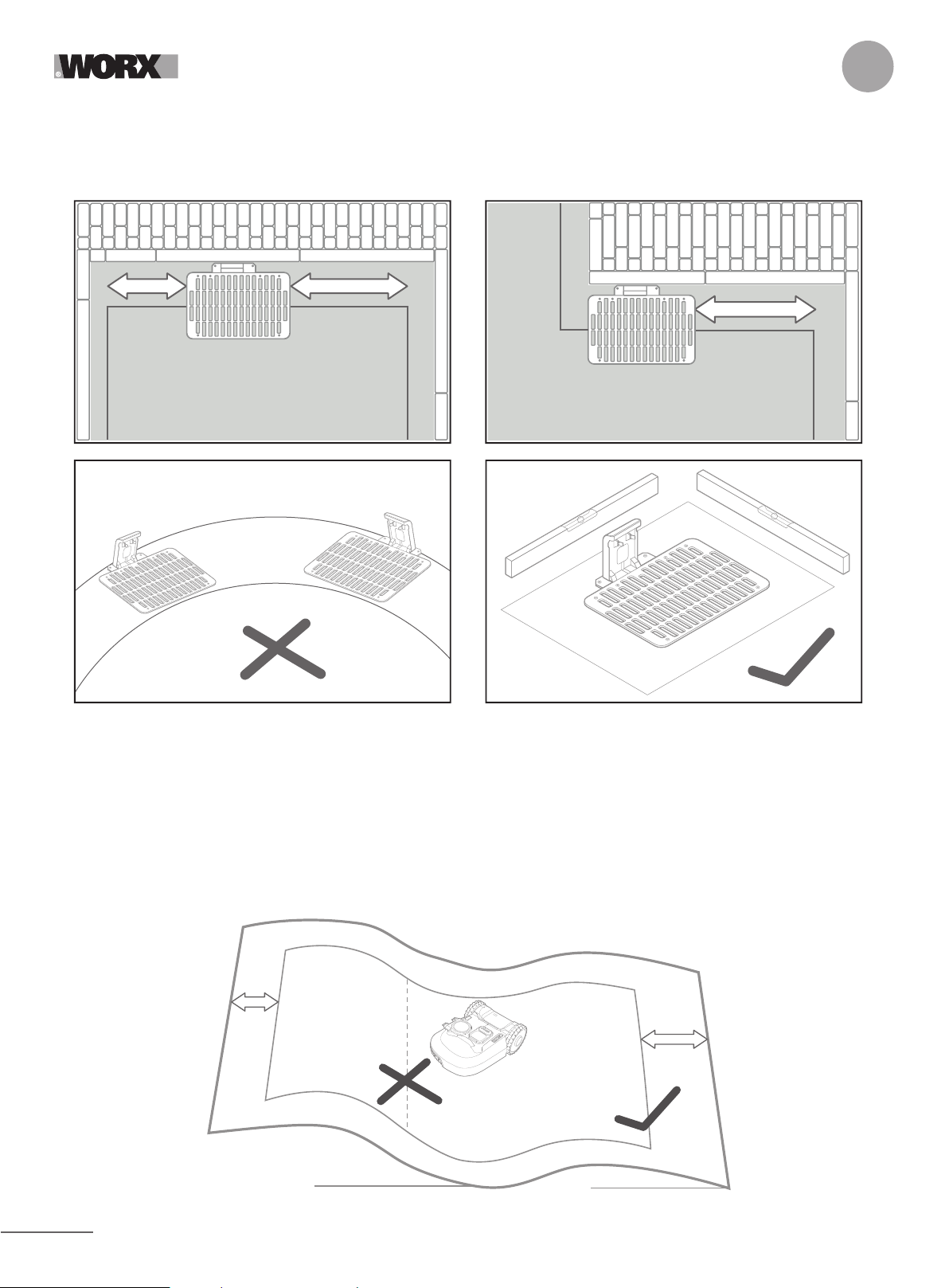

You can place the charging station on your lawn or on a hard surface like a walkway, provided that the lawn and the hard surface are at

the same height (no steps).

To enter the station, Landroid needs at least 80cm straight path in front. On the exit side, it needs at least 30cm straight path before a left

turn (ﬁg. 1). If the turn is to the right, there is no need for a straight path (ﬁg. 2).

2.1.3. Charging station checklist:

A . within reach of AC mains

B. in shade

C. straight path on entrance; straight path on exit if necessary

D. ﬂat land

E. no irrigation sprinklers nearby

2.1.4 .Placement of boundary wire on slopes

The upper boundary wire should NOT be placed on slopes steeper than 35% (20°). The lower boundary wire should NOT be

placed on slopes steeper than 17% (10°), and it should be placed at least 40cm away from any obstacle when positioned on a

slope that is 17%.

80cm30cm

80cm

Upper boundary wire

Lower boundary

Wire

Lower boundary

Wire

26cm

17%-35% <17%

40cm

0°

2.1.5 Plan for the boundary wire

The wire has to be placed at a certain distance from the edge of the lawn. This distance changes depending on what’s on the other

side of the edge. Different parts of your lawn may border different scenarios:

A. If the edge of the lawn borders a step: keep the wire 26cm from the edge. (ﬁgure 1)

B. If the edge of the lawn borders a path at the same height: keep the wire 10cm from the edge. (ﬁgure 2)

C. If the edge of the lawn borders a pool: keep the wire at least 30cm from the edge. (ﬁgure 3)

If a side of your lawn borders a neighbor’s lawn with a robotic mower in use, lay your wire at least 1m apart from your neighbor’s

wire to avoid possible interference.

0cm

2.2.2 Identify obstacles

Landroid’s bump sensor can manage solid obstacles such as trees, furniture and the like, which don’t need to be surrounded by wire. If your

lawn has several obstacles and trees close to each other, we recommend you to purchase the Landroid ACS option, an intelligent ultrasonic

auto-pilot that makes your Landroid steer around obstacles instead of bouncing into them.

boundary wire

digital fence

2.2 PATROL YOUR LAWN

Landroid is designed to manage the most complex of lawns. Carry out a visual inspection of your lawn so you are prepared for a

trouble-free installation of the boundary wire.

2.2.1 Identify forbidden areas

You don’t want your robot mower to mow ﬂowers, dive into a water feature, or shred tree roots that emerge from the ground. Locate

these areas and surround them with boundary wire to prevent Landroid from accessing them.

The boundary wire is a single loop connected on both ends to the charging station, so you will have to depart with the wire from the

border, surround the area you want to protect, then take the wire back to the border as illustrated here in ﬁg. 1.

If areas to be surrounded are far away from the border of your lawn, or if you have several areas and tree roofs to protect, this

traditional method is time consuming.

A great alternative is to purchase Landroid’s Off-Limits option. With this, you simply surround forbidden areas with the Off-Limits

digital fence, which does not need to be connected to the boundary loop (ﬁg. 2). The Off-Limits digital fence is also great to protect

seasonal equipment (e.g. a trampoline) or for protecting new changes to the layout of your lawn without having to rework the

boundary wire.

26cm 10cm 30cm

1 2 3

2.3 NOW ROLL YOUR SLEEVES UP. WHEN IT’S DONE IT’S DONE!

Now that you have planned the installation in every detail, you are ready to take action. Before starting, you may want to use your old mower

for the last time to clean up your lawn and make the installation easier.

2.3.1 Fix the charging station in the selected location

A, Secure the base to the ground by means of the supplied screws, using the supplied hex key (ﬁg.1)

B. If you position the base on hard surface, ﬁx it with plug and screw ﬁxings (not supplied)

2.3.2 Connect one end of the boundary wire to the charging station

A. Strip the end of the wire with a pair of scissors (ﬁg. 2)

B. Open the plastic door and insert the stripped end into the red left clamp (ﬁg. 3)

C. Pass the wire through the guide of the base, as shown in ﬁg. 3

2.3.3 Lay the boundary wire around your lawn

A. Use the supplied gauge to set the distance wire to edge

B. If there is a step at the edge of your lawn, keep the wire at 26cm from it (ﬁg. 4)

C. If there is no step, keep the wire at 10cm from the edge (ﬁg. 5)

OUT

26cm

26 cm

10 cm

10,2 inch.

4 cm

10cm

26 cm

10 cm

10,2 inch.

4 cm
