Wortmann Terra 2447W Manual de usuario

LCD/LED 2447W

+ GERMAN

+ ENGLISH

+ FRENCH

+ SPANISH

+ ITALIAN

+ RUSSIAN

+ POLISH

USER MANUAL

Operation Instructions

Thank you for purchasing this monitor, a high-resolution multi-scan color monitor.

Please read this guide thoroughly before installation.

This monitor has been tested and found compliant with the CE mark. These limits are

designed to provide proper protection against harmful interference to a residential

installation. This monitor generates, uses, and can radiate radio frequency energy. Harmful

interference to radio communication may be led as a result if it‘s not properly installed and

used. However, there is no guarantee that interference will not occur in a particular

installation. If this monitor does cause serious interference to radio or television reception,

resetting the monitor may determine it. Moreover, users are encouraged to correct

interference by doing one or more of the following:

Reorient or relocate the receiving antenna.

Move the monitor and the receiver further away from each other.

Connect the monitor into an outlet on a circuit different from that to which the receiver is

connected.

Consult your local dealer or an qualified technician.

Warning:

To assure a continued compliance, a user must use a grounded power supply cord and the

provided shielded video interface cable with bonded ferrite cores. Also, any unauthorized

changes or modifications to this monitor would void the user‘s authority to operate this

device.

Note: If necessary, shielded interface cables and AC power cord must be used to meet the

emission level limits.

Content

Safety Precautions...............................................................................................................1

First Setup ...........................................................................................................................2

Quick Installation .................................................................................................................3

Installing the LCD Monitor....................................................................................................4

Front View of the Product ....................................................................................................5

Rear View of the Product .....................................................................................................6

Using On Screen Display (OSD) Functions .........................................................................7

Supporting Timing Modes ..................................................................................................10

Technical Information.........................................................................................................11

Care and Maintenance.......................................................................................................12

Troubleshooting .................................................................................................................12

Safety Precautions

This monitor is manufactured and tested on a ground principle that a user’s safety comes

first. However, improper use or installation may result danger to the monitor as well as to

the user. Carefully go over the following WARNINGS before installation and keep this guide

handy.

WARNINGS:

This monitor should be operated only at the correct power sources indicated on the

label on the rear end of the monitor. If you’re unsure of the power supply in your

residence, consult your local dealer or power company.

Do not try to repair the monitor yourself as it contains no user-serviceable parts. The

monitor should only be repaired by a qualified technician.

Do not remove the monitor cabinet. There are high-voltage parts inside that may cause

electric shock to human bodies, even when the power cord is disconnected.

Ensure that the power cord is connected to a grounded power outlet before turning on

the monitor.

If smoke, abnormal noise or odor came out from your monitor, caution you should

remove the power cord immediately and call your service center.

Put your monitor only in a clean, dry environment. Unplug the monitor immediately if

gets wet and consult your service technician.

Avoid exposing your monitor directly to sunlight or other heat source.

Always unplug the monitor before cleaning it. Clean the cabinet with a clean, dry cloth.

Apply non-ammonia based cleaner onto the cloth, not directly onto the glass screen.

Keep the monitor away from magnetic objects, motors, TV sets, and transformer.

Do not place heavy objects on the cable or power cord.

For PLUGGABLE EQUIPMENT, the Socket-outlet shall be installed near the

equipment and shall be easily accessible.

Please do not position the monitor on unsafe space, if it falls, it may be damaged and

may hurt the user.

Unplug the monitor if it is not going to be in use for an extended period of time.

Pay attention to all cables connected to the monitor against stumble hazards.

According to WEEE regulation, this monitor can't be handled as normal trash in

Europe when it is out of usage. Please refer to the recycle information from our

website to handle it.

www.wortmann.de

First Setup

Congratulation for purchasing this monitor of high performance!

This monitor comes with the following accessories:

AC Power cord (Type C5)●DVI cable

Audio cable ●Quick start guide

Warranty card

Quick Installation

1. Connect Video cable (DVI cable)

Make sure both monitor and computer are powered OFF.

Connect the DVI cable from DVI output of computer to the DVI input of the monitor.

Or connect HDMI cable *Optional

Connect the HDMI cable from HDMI output of computer to the HDMI input of the

monitor.

2. Connect Power cord

Connect the power cord to a properly grounded AC outlet, then to the monitor.

3. Connect Audio cable

Connect the Audio cable from Audio output of computer to the Audio input of the

monitor.

4. Connect Earphone (not supplied)

Connect the earphone to the earphone output terminal of the monitor. (Earphone sold

separately).

5. Power-ON computer and monitor

Power-ON the computer, then Power-ON the monitor.

6. Windows users: Setting the Timing Mode (Resolution and Refresh Rate)

Example: 1920 x 1080 @ 60 Hz

Resolution Right-click on the Windows desktop > Display Settings > Advanced Display

Settings. Set the resolution.

Refresh Rate (vertical frequency) See your graphic card’s user guide for instructions.

Example:

Power cable

Audio cable

DVI cable

HDMI cable

Earphone

Installing the LCD Monitor

Installing the Stand Base

1. Place the monitor face down on a soft cloth or cushion on a table.

2. Install the stand base to the monitor.

Disconnecting the Stand Base

1. Place the monitor face down on a soft cloth or cushion on a table.

2. Press the tenon inwardly and pull the stand base to remove.

Front View of the Product

❶OSD Menu On/Off

❷Scroll Down/ Decrease

❸Scroll Up/ Increase

❹Confirm Select

❺Power ON/OFF

❻LED Indicator

❶

❷

❸

❹

❺

❻

Rear View of the Product

❶Power input

❷

Earphone output

Note: Adjustment of the volume control to other settings than the

center position may increase the ear-/ headphones output voltage

and therefore the sound pressure level.

❸Audio input

❹HDMI input

❺DVI input

❶❷❸❹❺

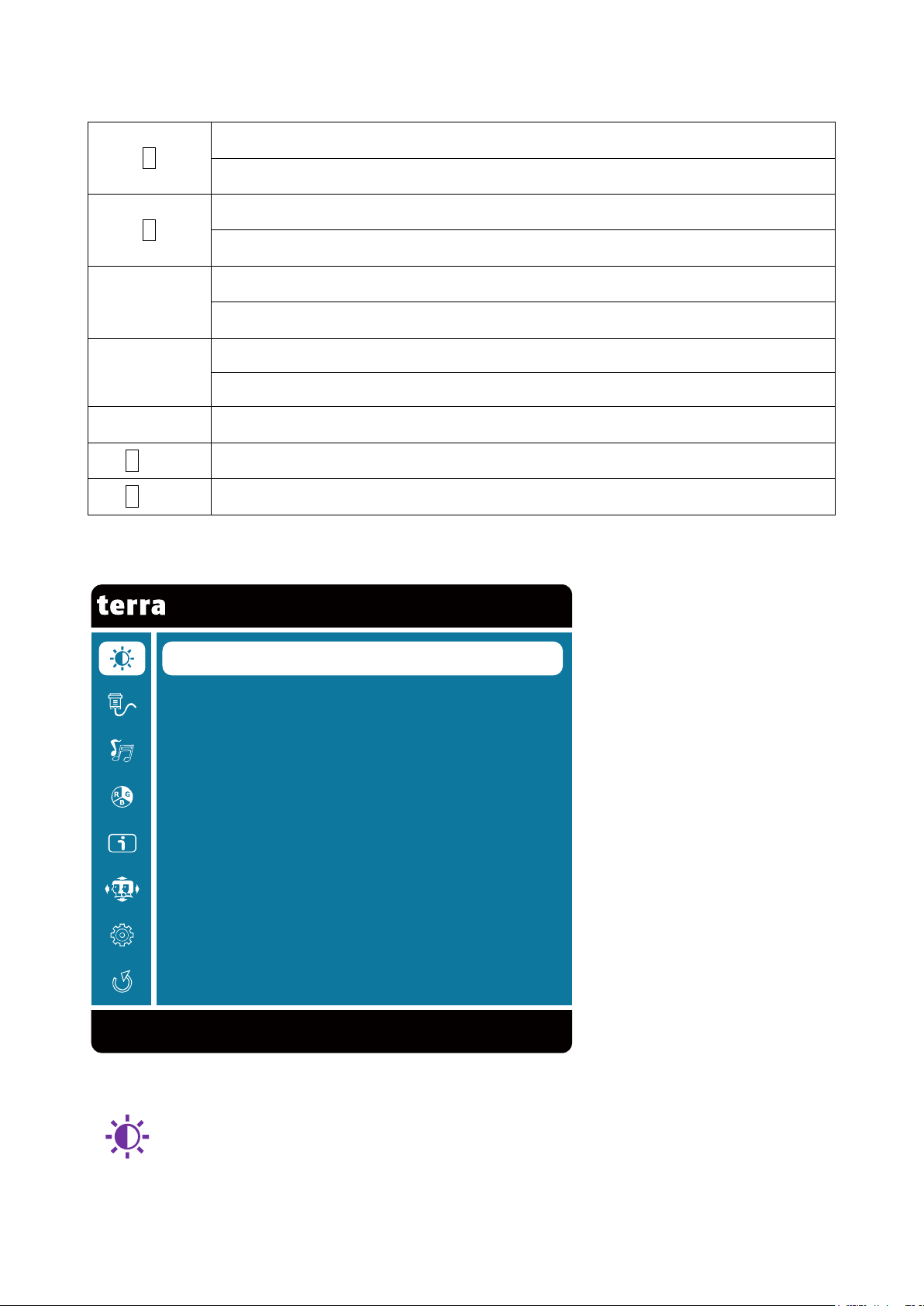

Using On Screen Display (OSD) Functions

Display main menu

Exit from OSD menu

Manual adjust mode select for DVI and HDMI mode

Confirm the Select

▼

Select the desired item when in OSD menu

When not in OSD menu, directly enters the Contrast/Brightness menu

▲Select the desired item when in OSD menu

When not in OSD menu, directly enters the Anti Blue Light menu

▼+▲ Recall both of Contrast and Brightness (when not in OSD menu)

1+▼ Power Lock (when not in OSD menu), press and hold for 5 seconds

1+▲ OSD Lock (when not in OSD menu), press and hold for 5 seconds

Main Menu

Short Cuts Function from the button(s)

Contrast/Brightness: To manually adjust the Contrast, Brightness, DCR, ECO

and OD of screen image.

Contrast: To adjust the foreground white level of screen image.

▲: increase contrast, ▼: decrease contrast.

Contrast/Brightness

Input Source

Audio Adjustment

Colour Setting

Information

Manual Image Adjustment

Menu Setting

Memory Recall

1: Exit 2:Select
