WOOSIM PORTI-W40 Manual de usuario

http://www.woosim.com

All specifications are subjected to change without notice

MODEL PORTI-W40

(4inch Mobile Printer)

WOOSIM SYSTEMS Inc.

#501, Daerung Technotown 3th,

448, Gasan-Dong, GeumChun-Ku,

Seoul, Korea

Tel : +82-2-2107-3700

Fax : +82-2-2107-3707

URL: http://www.woosim.com

http://www.woosim.com 2

PORTI-W40 portable printer operator’s manual.

The information contained in this manual is the property of Woosim System Inc. and

may not be reproduced in whole or in part without the prior written permission of

Woosim Systems Inc.

Trademark

a registered trademark of Woosim System Inc.

All other trademark are the properties of their respective companies.

Caution

Some semiconductor devices are easily damaged by static electricity. You should turn

the printer “OFF”, before you connect or removed the cable on the rear side, in order to

guard the printer against the static electricity.

If the printer is damaged by the static electricity, you should turn the printer “OFF”.

Notice

The contents of this manual are subject to change without notice.

http://www.woosim.com 3



Introduction

The PORTI-W40 is suitable designed for use with a growing variety of mobile

devices. IrDA/Serial or Bluetooth/Serial interfaces make the PORTI-W40 the perfect

comrade for applications such as point of transaction warehousing, distribution, point

of sales, hospitality, gaming and healthcare.

The general features of PORTI-W40 printer are as follows:

XPocket size (138mm x 88.5mm x 45.2mm).

XLight weight(446g) for true mobility.

XVery silent printing thru direct thermal printing method.

XHigh speed (40mm/sec)

XHigh resolution (203dpi, 8dot/mm)

XRS-232C or TTL , IrDA Ver1.0(SIR)

XBluetooth(optional), USB(optional) interface

XEasier paper roll loading by CLAMSHELL design.

XEasier maintenance with self-diagnostic.

XMicrosoft Windows 98/ME/XP/2000 compatible.

XSupport bit-image(logo) download.

XFlow control : Software (XON/XOFF)

Hardware flow control not supported in printer.ଖ

http://www.woosim.com 4



Operating Precaution

Please follow the precautions below to enjoy and maintain the full performance of

the printer.

Using the Printer

ƔBe careful not to drop or bump the printer on a hard surface.

ƔDo not install the printer in direct sunlight or such areas.

Suitable environment for the use of the printer is as follows :

Operating temperature :ଝ-10°C to 40°C

Relative humidity : 10% toଝ90% (No condensation)

ƔDo not install the printer near devices that generate strong

electromagnetic fields such as a copy machine.

ƔDo not open the platen cover during printing .

ƔDo not remove or reinstall the communication cable during printing

or transmission.

ƔDo not touch the connectors of the communication cable and

to close up the Infrared transmitter /receiver during printing.

ƔSwitch the POWER OFF when not in use.

ƔDo not use alcohol or other solvent.

ƔThe AC adapter, the battery charger and the battery pack may

become warm when in use. This is normal and is not a malfunction.

ƔWhen the battery pack is used at low temperature, the length of time

the printer can be used may be shortened.

http://www.woosim.com 5

XThermal Paper Handling

ƔStore the thermal paper in a cool, dry and dark place.

ƔDo not rub the paper with hard object.

ƔDo not leave the paper with hard object.

ƔDo not allow plastic film, erasers, or adhesive tape to touch the paper

for long periods.

ƔDo not stack the thermal paper with diazo copies immediately

after copying or wet-type copies.

ƔDo not use chemical glue.

ƔAlways use the clean thermal paper.

http://www.woosim.com 6

CONTENTS

1. Outline.............................................................................................................................................8

1.1. Model classifications ............................................................................................................8G

1.2. Product Part Number System................................................................................................8G

1.3. Specifications........................................................................................................................9G

2. Setting up the printer .....................................................................................................................10

2.1. Printer & Accessories .........................................................................................................10G

2.2. Printer Features...................................................................................................................11G

2.2.1. Part name.................................................................................................................11G

2.2.2. Dimensions..............................................................................................................11G

2.3. Replacing paper roll............................................................................................................12G

2.4. Power supply ......................................................................................................................14G

2.4.1. Internal power supply ..............................................................................................14G

2.4.2. Installing the Battery................................................................................................14G

2.4.3. Recharging the battery pack.....................................................................................15G

2.5. Set operation mode .............................................................................................................16G

3. Interface.........................................................................................................................................20

3.1. RS-232C or USB ................................................................................................................20G

3.2. Infrared data communication..............................................................................................21G

3.3. Bluetooth ............................................................................................................................22G

4. Using the printer............................................................................................................................23

4.1. Control panel ......................................................................................................................23G

4.2. Self test...............................................................................................................................24G

4.3. Driver installation...............................................................................................................25G

4.4. Bit-image download............................................................................................................27G

4. 5. Troubleshooting.................................................................................................................28G

5. Consumable parts ..........................................................................................................................30

5.1. Recommended paper...........................................................................................................30G

5.2. Printing position..................................................................................................................30G

6. Print Control Function...................................................................................................................31

http://www.woosim.com 7

6.1. Print Commands .................................................................................................................33G

6.2. Line Spacing Commands....................................................................................................35G

6.3. Character Commands..........................................................................................................36G

6.4. Panel Button Commands ....................................................................................................43G

6.5. Print Position Commands ...................................................................................................44G

6.6. Bit-Image Commands.........................................................................................................57G

6.7. Status Commands ...............................................................................................................62G

6.8. Barcode Commands............................................................................................................63G

6.9. Macro Function Commands................................................................................................68G

6.10. Miscellaneous function commands...................................................................................70G

6.11. Line & box commands......................................................................................................74G

6.12. Black mark detection commands......................................................................................75G

7. Introduction of Protocol IrDA(or Bluetooth).................................................................................76

7.1. Frame Structure ..................................................................................................................76G

7.2. Process of Getting the Printer Status...................................................................................77G

7.2.1. Frame Format...........................................................................................................77G

7.3. Process of Printing Data .....................................................................................................78G

7.3.1. Format of Print Data Frame.....................................................................................79G

7.3.2. Format of ENQ Frame.............................................................................................79G

7.3.3. Format of ACK Frame.............................................................................................80G

7.3.4. Format of NACK Frame..........................................................................................80G

7.3.5. Format of ETX Frame..............................................................................................80G

7.3.6. Format of EOT Frame..............................................................................................80G

Appendix ...........................................................................................................................................81

http://www.woosim.com 8

PORTI-W40 ( ) ( )

Model Name

Interface

None : IrDA/Serial

BT : Bluetooth/Serial

U : USB/IrDA

Power

None : DC 8.4V

Model name / Interface Spec.

Example) 1. Porti-S40 Serial/Bluetooth Part No. ൽS40/A1

2. Porti-SC30 Bluetooth Only Part No. ൽG SC30/Z1

S40

SC30

W25

Wired Wireless

A RS-232C 1 Bluetooth

B TTL 2 IrDA

C USB 3 HPIR

D RS-485 0 None

E Parallel

Z None

http://www.woosim.com 9

Item Specification

Printing method Direct thermal line printing

Characters per line 92cpl

Character size Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots]

Resolution 203dpi, 8dots/mm

Print width 4-inch (104mm, 832dots)

Printing speed 40mm / sec

Dimensions 138 * 88.5 * 45.2 mm

Weight 446g (Including battery & roll paper)

Interface RS-232C or TTL/ IrDA Ver1.0 (SIR) (Standard Model)

Bluetooth(optional), USB(optional)

Paper supplied Thermal roll paper (113mm wide, 38ø)

Barcode supplied PDF417(2-dimension), Code128, Code39, I2/5, Code93

UPC, EAN, KAN, JAN, CODABAR

Receive buffer size 10K bytes

Note Printing speed may be slower, depending on the data

transmission speed and the combination of control commands.

Battery Rechargeable 7.4V DC, 1400mAh(Li-ion)

Battery duration 1 hour continuous printing

Battery Charger Input (100~250VAC, 50~60Hz)

Output(8.4VDC/0.8A), 4hours full charge time

Temperature -10¶C ~ 40¶C (operating)

-10¶C ~ 70¶C (storage)

Environment

Conditions Humidity 30% - 80% (operating)

10% - 90% (storage)

Mechanical 37,000,000 lines

MCBF (Mean Cycle

Between failure) Head Approximately 50 Km

http://www.woosim.com 10

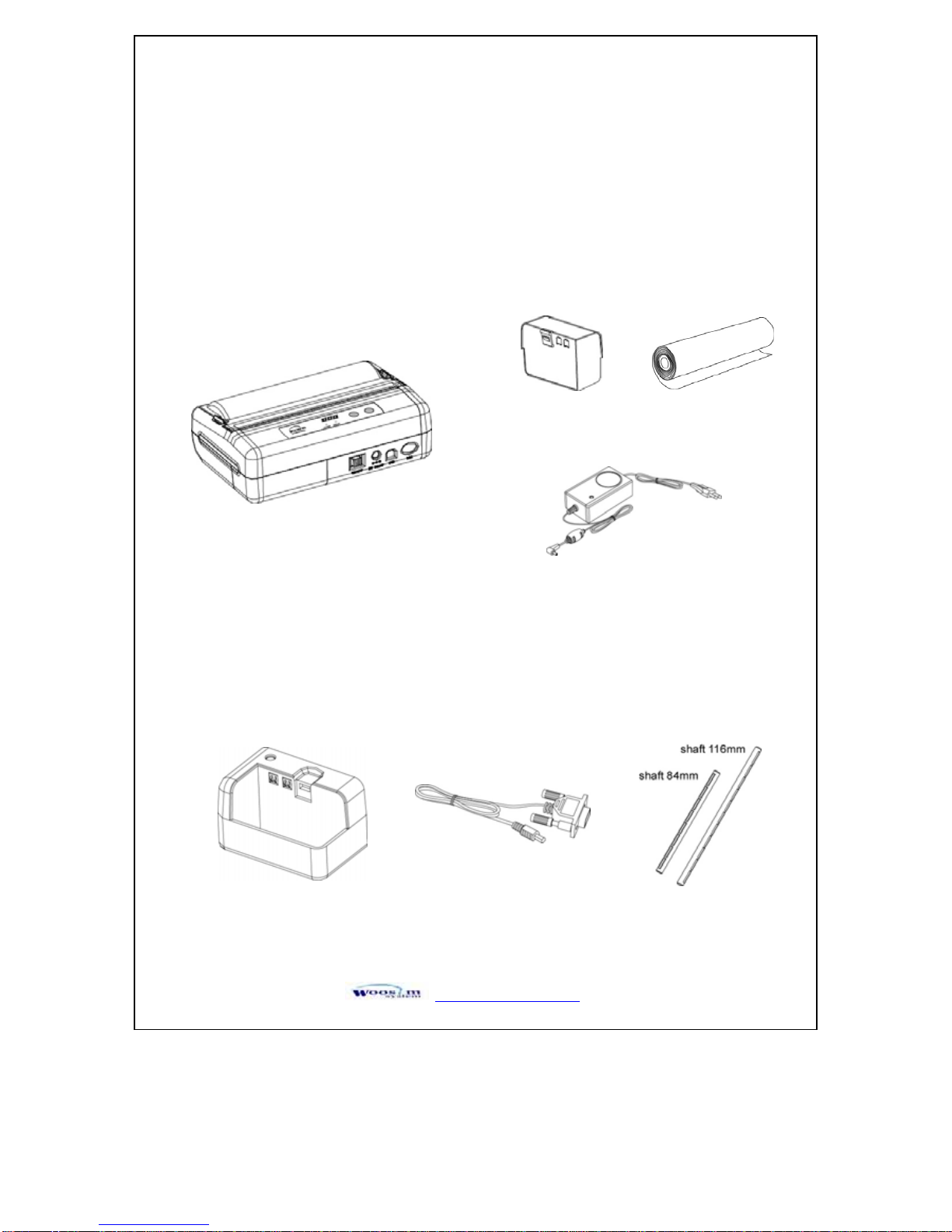

Your printer box should include these items. If any items are damaged or missing,

please contact your dealer for assistance.

PORTI-W40

Battery Pack Roll Paper

Battery Charger

SHAFT

Communication Cable

G

OPTIONAL

Extra Charger
