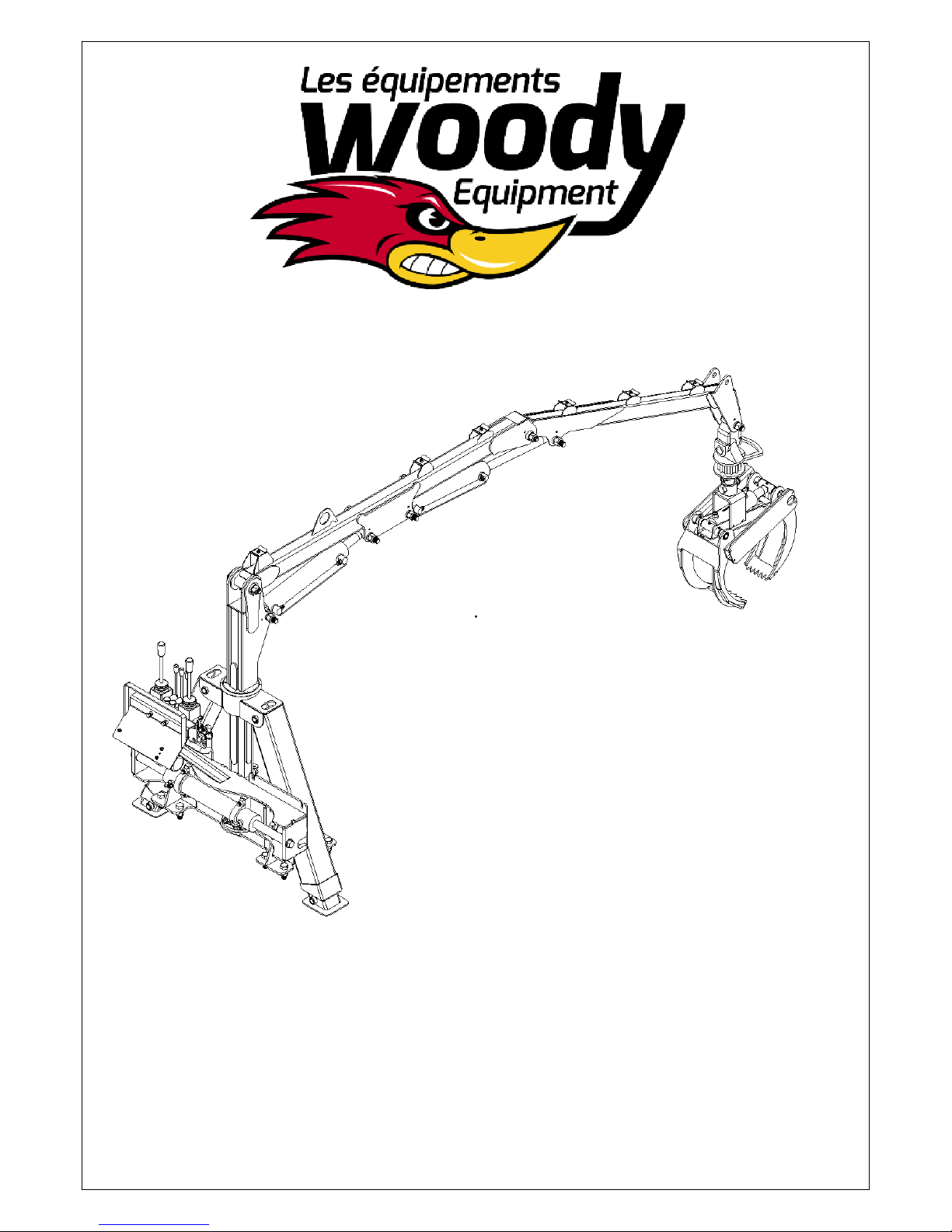

Woody Log Loader
Operator’s Manual
Models: 130 HD - 150
HD - 170 HD
Woody Equipment Inc.
Owners: Jerome and Sebastien Labbe
205 rue Commerciale
Saint-Odilon-de-Cranbourne
Beauce-Nord, Quebec,
Canada G0S 3A0
T. (418) 464-2748
F. (418) 464-2746
Email: ewoody@sogetel.net
<mailto:ewoody@sogetel.net>
Website: www.equipementswoody.com
<http://www.equipementswoody.com/>
Facebook: Les Equipements Woody
Woody Equipment Inc.
C All Rights Reserved: Woody Equipment Inc. of Saint-Odilon-de-Cranbourne.
No part of this manual may be reproduced in any form without the written permission of Woody Equipment Inc.
Table of Contents
Introduction........................................................................1
Warning..............................................................................2
Caracteristic of the loader 130HD....................................3
130HD Loader parts list......................................................4
Caracteristic of the loader 130HDT..................................5
130HDT Loader parts list....................................................
Caracteristic of the loader 150HD...................................7
150HD Loader parts list.....................................................8
Caracteristic of the loader 150HDT.................................9
150HDT Loader parts list..................................................10
Caracteristic of the loader 170HD.................................11
170HD Loader parts list...................................................12
Caracteristic of the loader 170HDT...............................13
170HDT Loader parts list..................................................14
Parts list grapple 52''.......................................................15
Parts list 000lb winch.....................................................1
Parts list double hydraulic directional...........................17
Operation.........................................................................18
Safety Instructions......................................................19-28
1
Introduction
Congratulations on your purchase of a Woody Log Loader. Woody Equipment
designs and manufactures equipment according to very strict criteria. This
equipment is intended for professional use in the agricultural and forestry
sectors.
Even if you have experience with this type of product, we recommend that you
read these instructions carefully. These instructions contain important
information on safety and efficiency and to ensure the validity of the factory
guarantee.
Woody Equipment reserves the right to modify and / or improve its equipment
and maintenance instructions, as well as to revise data without notice.
Write down the serial number, model number, purchased date, dealer name,
and sales representative’s name. Keep this information available for ordering
parts as well as for any technical assistance or warranty issue.
Serial number
Model number
Purchased date
Dealer
Sales representative
2
The following symbols used in this manual are to warn the operator of the dangers
connected to the use of this machinery. Follow the safety instructions to avoid any
risk of serious injury or death.
Warning
3
AW
BA
BB
BC BD
8 79
2 19 39
1
20
27
29
10
6
22
5
21 23
13
11
28
31
32
SCALE 1 : 16
DETAIL AW
30
18
3
SCALE 1 : 16
DETAIL BA
30
1525
SCALE 1 : 16
DETAIL BB
30
1626
SCALE 1 : 16
DETAIL BC
30
174
SCALE 1 : 16
DETAIL BD
30
1424
130-HD Loader
Parts List
4
130 HD Loader Parts List
Item Part # Description Qty
1 60-020-30
Loader swing slider 130,150 & 170
1
2 60-010-04
Loader control valve support 115, 125, 130,150 & 170
1
3 60-006-09
Loader main boom pin 130,150 & 170
1
4 60-006-08
Loader stick boom pin 130,150 & 170
1
5 60-018-06
Loader telescopic stabilizers
130,150 & 170
1
6 60-018-05
Loader stabilizer
1
7 60-018-04
Loader stick boom 130 HD
1
8 60-018-03
Loader main boom 130 HD
1
9 60-018-02
Loader column 130 HD & HDT
1
10 60-018-14
Loader A-Frame 130 HD
1
11 60-004-08
Rotation chain 130 & 150
2
12 60-000-060
Hose lock
6
13 200010
Rotation plastic sleeve
1
14 89-24-20-44-D22-00
Plastic tubing 1 1/2" O.D.
1
15 89-24-20-60-D30-00
Plastic tubing 1 1/2" O.D.
2
16 89-24-20-76-D38-00
Plastic tubing 1 1/2" O.D.
1
17 89-28-24-64-D32-00
Plastic tubing 1 3/4" O.D.
1
18 89-28-24-80-D40-00
Plastic tubing 1 3/4" O.D.
1
19 130240
Anti-shock Q30/7 control
1
20 121080
Double action hydraulic cylinder 3 1/2" X 19 1/2"
1
21 120652
Hydraulic cylinder 3 1/2" x 18" stroke
1
22 120232
Hydraulic cylinder 2" x 36" stroke
2
23 120482
Hydraulic cylinder 3" x 16" stroke
1
24 300280
Bolt 1 1/4"-12 x 7" long
1
25 300281
Bolt 1 1/4"-12 x 8" long
2
26 300290
Bolt 1 1/4"-12 x 9" long
1
27 306401
10000 lb. Hub, 8 nuts assembly
1
28 199309
GR30 Rotator
1
29 400500
Document holder
1
30 301530
Nylon nut 1 1/4"-12
6
31 57-002
36" Grapple
1
32 57-000-04
Grapple yoke
1
130 HDT Loader
Parts List
5
SCALE 1 : 16
DETAIL BF
16
33
23
SCALE 1 : 16
DETAIL BG
33
1724
SCALE 1 : 16
DETAIL BJ
20
33
3
SCALE 1 : 16
DETAIL BH
33
1825
BE
BF
BG
BH
BJ
34
28
7
10
9
31
11
30
12
15
5
13
29 6
29 8
32
22
1
27
2
21
26
14
35
19
SCALE 1 : 16
DETAIL BE
33
4
6
130 HDT Loader
Parts List
Item Part # Description Qty
1 60-020-30
Loader swing slider 130,150 & 170
1
2 60-010-04
Loader control valve support 115, 125, 130,150 & 170
1
3 60-006-09
Loader main boom pin 130,150 & 170
1
4 60-006-08
Loader stick boom pin 130,150 & 170
1
5 60-004-08
Rotation chain 130 & 150
2
6 60-018-06
Loader telescopic stabilizer 130,150 & 170
1
7 60-030-09
Telescopic boom 130
1
8 60-018-05
Loader telescopic stabilizer
1
9 60-030-01
Loader stick boom 130 HDT
1
10 120230
Hydraulic cylinder 2" x 36" stroke
1
11 60-030-02
Loader main boom 130 HDT
1
12 60-018-02
Loader column 130 HD & HDT
1
13 60-018-14
Loader A-Frame 130 HD
1
14 60-000-060
Hose lock
7
15 200010
Rotation plastic sleeve
1
16 89-24-20-44-D22-00
Plastic tubing 1 1/2" O.D.
1
17 89-24-20-60-D30-00
Plastic tubing 1 1/2" O.D.
2
18 89-24-20-76-D38-00
Plastic tubing 1 1/2" O.D.
1
19 89-28-24-64-D32-00
Plastic tubing 1 3/4" O.D.
1
20 89-28-24-80-D40-00
Plastic tubing 1 3/4" O.D.
1
21 130250
Q30/8 Control assembly
1
22 121080
Double action hydraulic cylinder 3 1/2" X 19 1/2"
1
23 300280
Bolt 1 1/4"-12 x 7" Long
1
24 300281
Bolt 1 1/4"-12 x 8" Long
2
25 300290
Bolt 1 1/4"-12 x 9" Long
1
26 140040-020-100600-100600
Hose assembly 1/2'' - 20'' long
1
27 400500
Document holder
1
28 199309
GR30 Rotator
1
29 120232
Hydraulic cylinder 2" x 36" stroke
2
30 120652
Hydraulic cylinder 3 1/2" x 18" stroke
1
31 120482
Hydraulic cylinder 3" x 16" stroke
1
32 306401
10000 lb. Hub, 8 nuts assembly
1
33 301530
Nylon nut 1 1/4"-12
6
34 57-002
36" Grapple
1
35 57-000-04
Grapple yoke
1
150-HD Loader
Parts List
7
BK
BL
BM
BN
BP
30
31
32
8
1176
202112
10
18
18
9
29
4
319
27
5 22
28
33
23
26
SCALE 1 : 18
DETAIL BM
14
23
25
SCALE 1 : 18
DETAIL BK
15
23
1
SCALE 1 : 18
DETAIL BL
16
23
SCALE 1 : 18
DETAIL BN
2413
SCALE 1 : 18
DETAIL BP
2
23
17
